Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

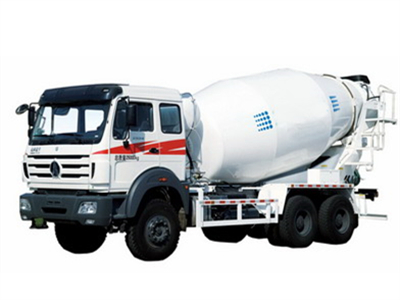

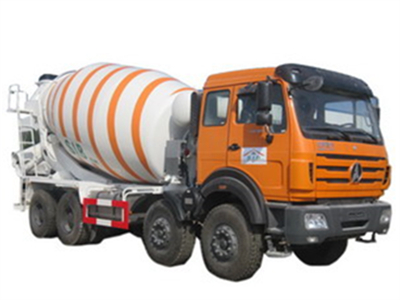

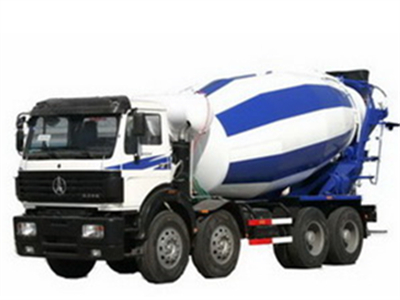

For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands. Beside, our beiben 10 CBM mixer trucks and beiben 14 CBM transit mixer are widely export Africa countries for building construction project.

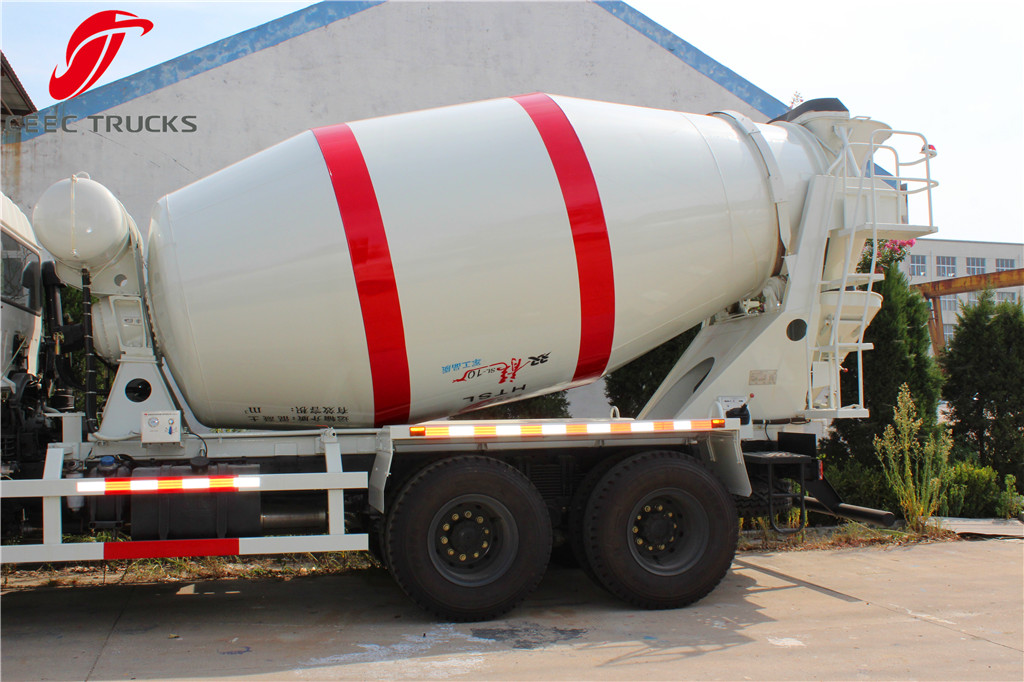

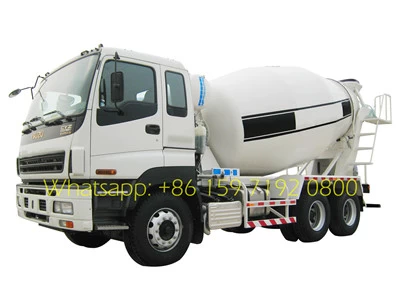

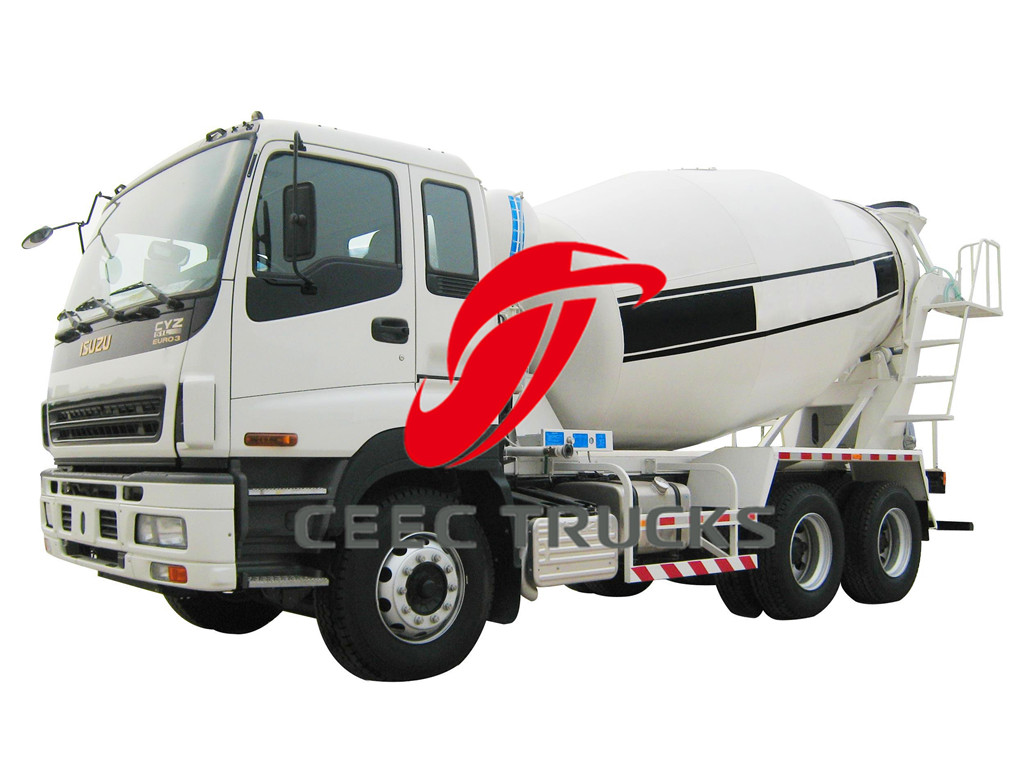

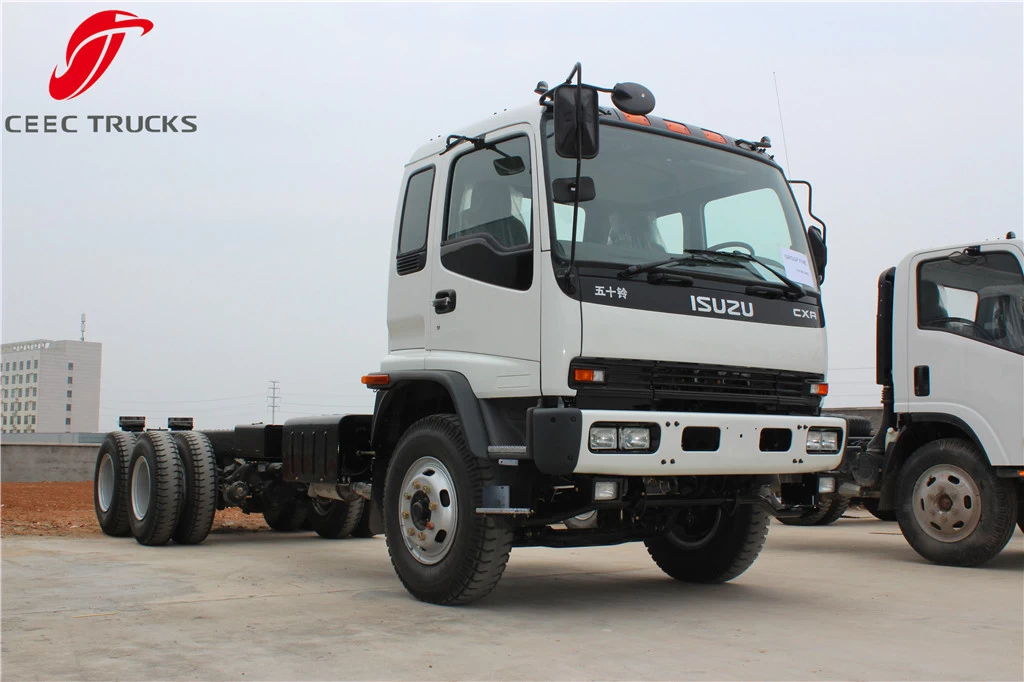

ISUZU 10 CBM concrete transport truck
Features:

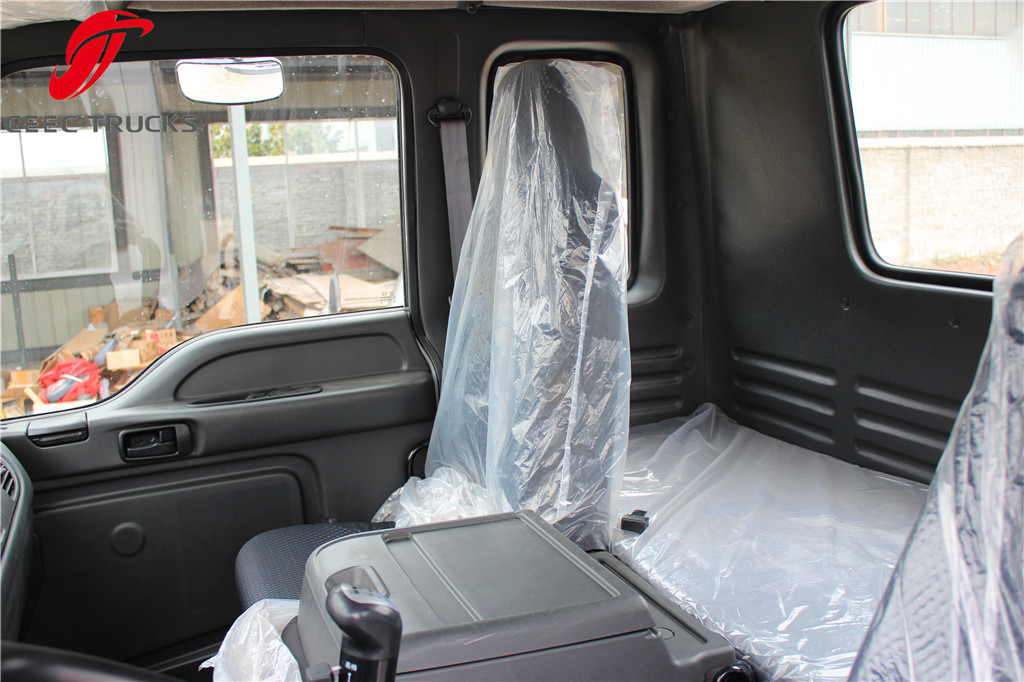

★ ISUZU 10 CBM transit mixer trucks equipped with new ISUZU cabin, which has attractive appearance

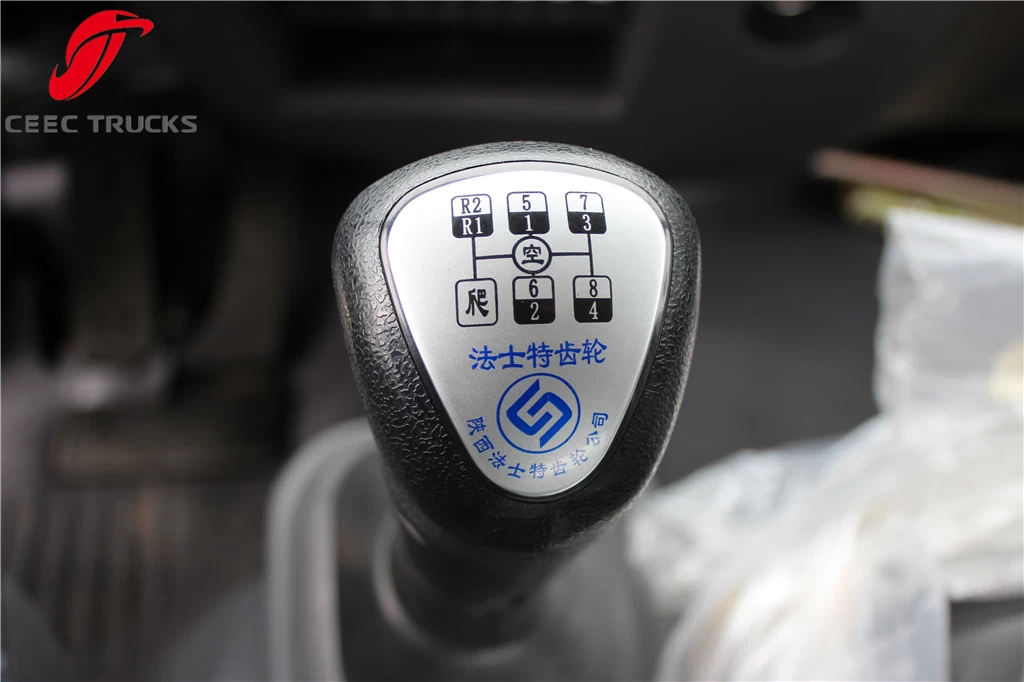

★ ISUZU engine 350HP, Euro 4 emission, and 9shift manual mechinical gearbox
★ Curb weight approx 13650kg and rated mixing capacity can be up to 10CBM, very good performance
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles
★ High strength carbon steel Q345 material, with thickness over 6mm

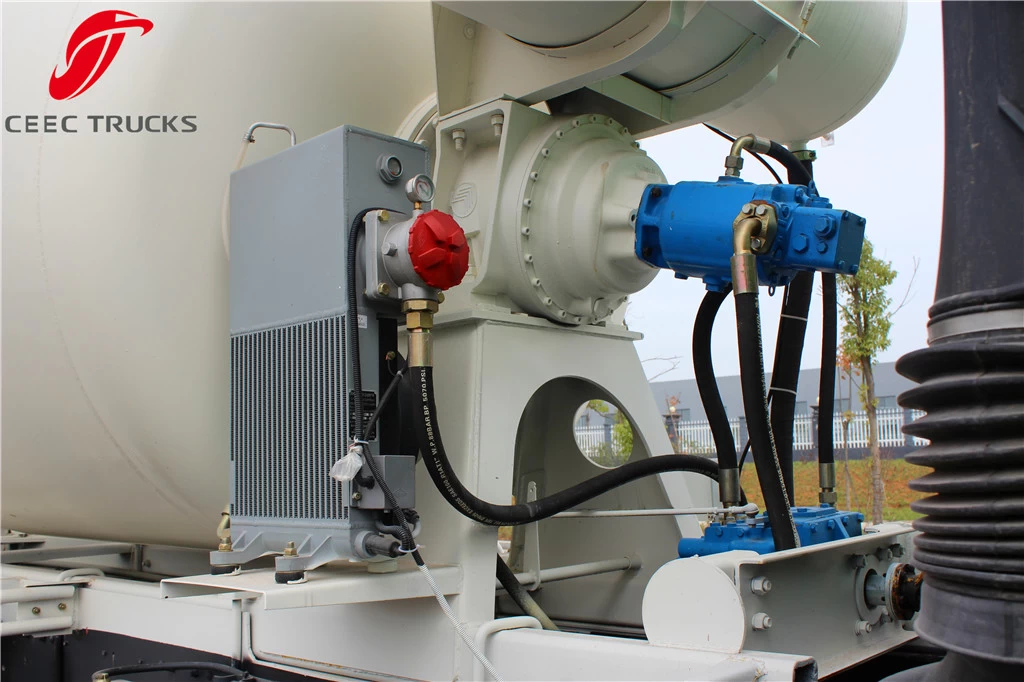

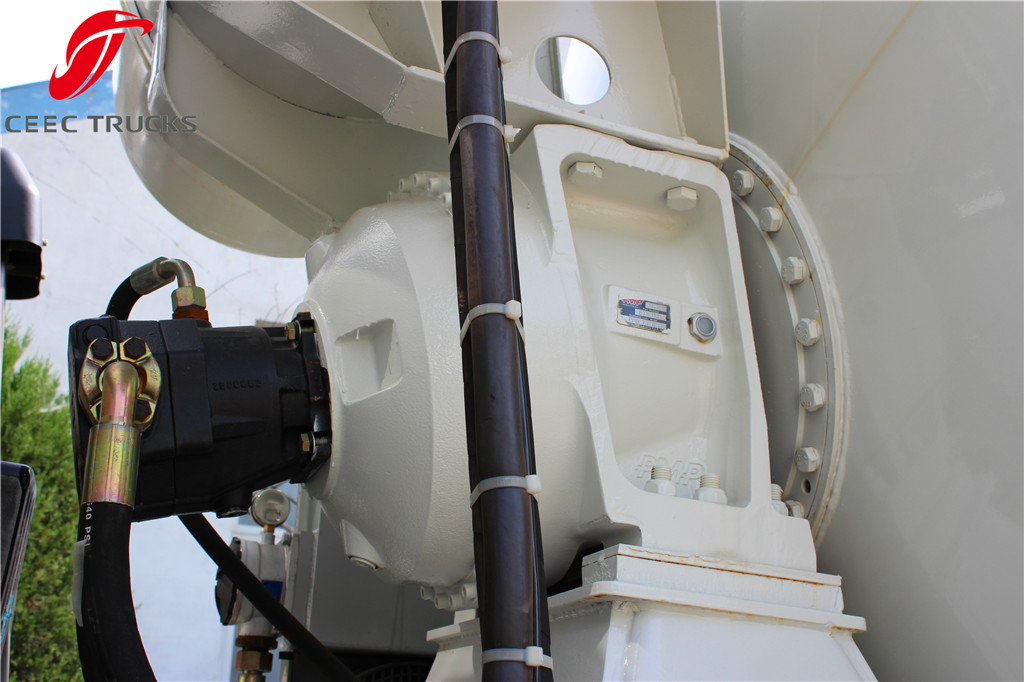

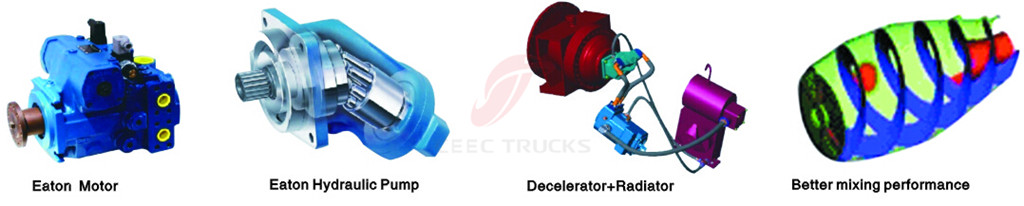

★ Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.
CEEC TRUCKS produced beiben 10 CBM cement mixer truck, 14 CBM transit mixer trucks are widely export africa countries: Congo,
Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea,
Uganda, Rwanda, Burundi, also Asia countries Myanmar, Phillippine, Vietnam, Indonesia, etc.
Similar Keywords: transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
| Concrete Mixer Truck ISUZU (10 CBM)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS3
|
| Chassis Brand
|
ISUZU
|

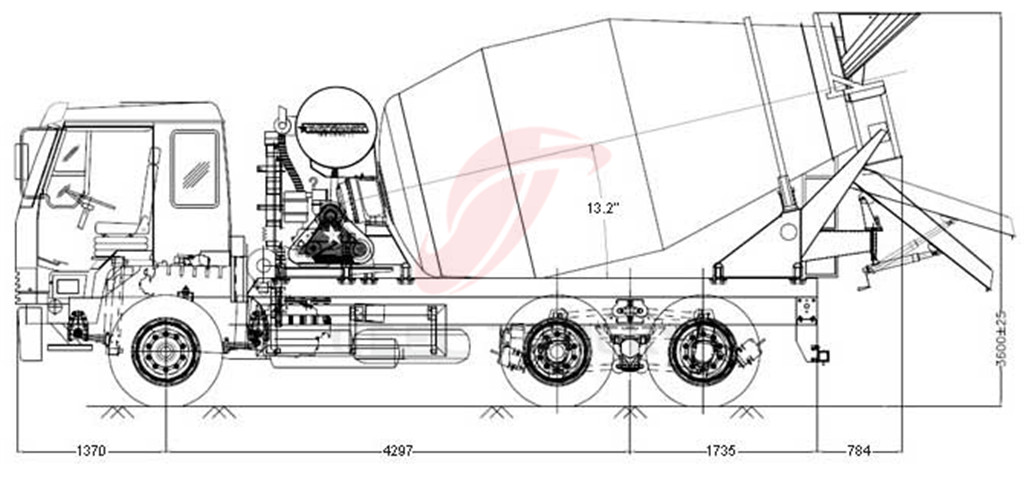

| Overall Dimension
|
9800 * 2500 * 4000 mm
|
| GVW / Kerb Weight
|
25,000 kg / 14,000 kg
|
| Cab
|
Cab Capacity
|
3 persons allowed
|

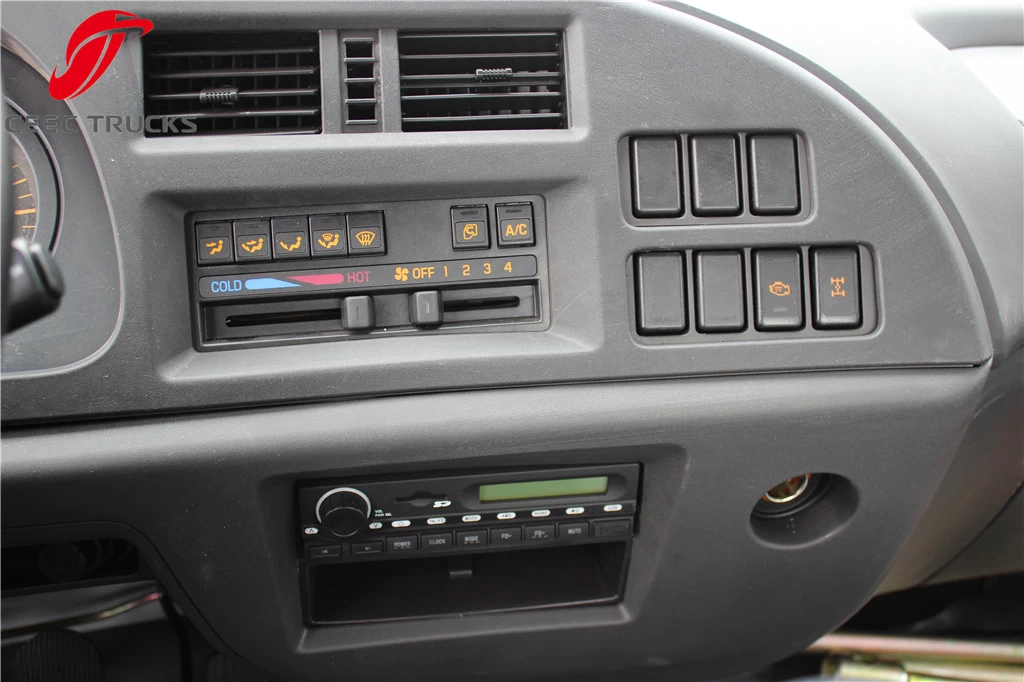

| Air Conditioner
|
W/ air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
ISUZU engine
|
| Power
|
350 Hp (257 KW)
|
| Displacement
|
9839 ml
|
| Emission Standard
|
Euro IV
|
| Chassis
|
Drive Type
|
6X4, left hand drive
|
| Transmission
|
9-speed front, 1 reverse
|
| Wheelbase/No. of axle
|
4000+1350 mm / 3
|
| Tyre Specification
|
11.00-20
|
| Tyre Number
|
10 tyres and 1 spare tyre
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|

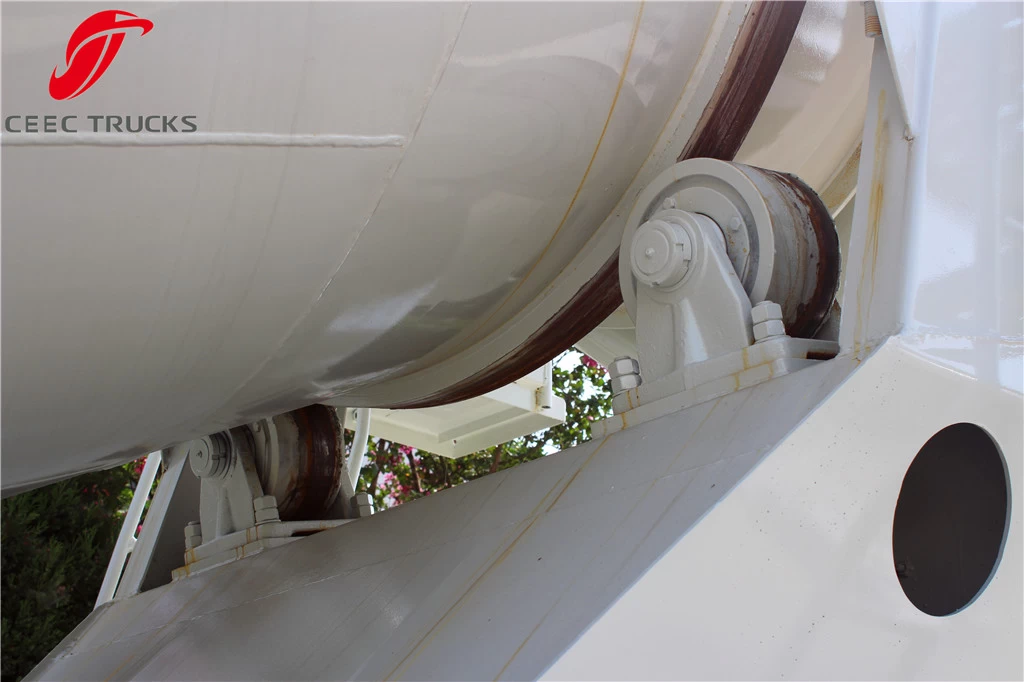

| Superstructure
|
Mixing Capacity
|
10 m³
|
| Drum Material
|
Alloy steel
|

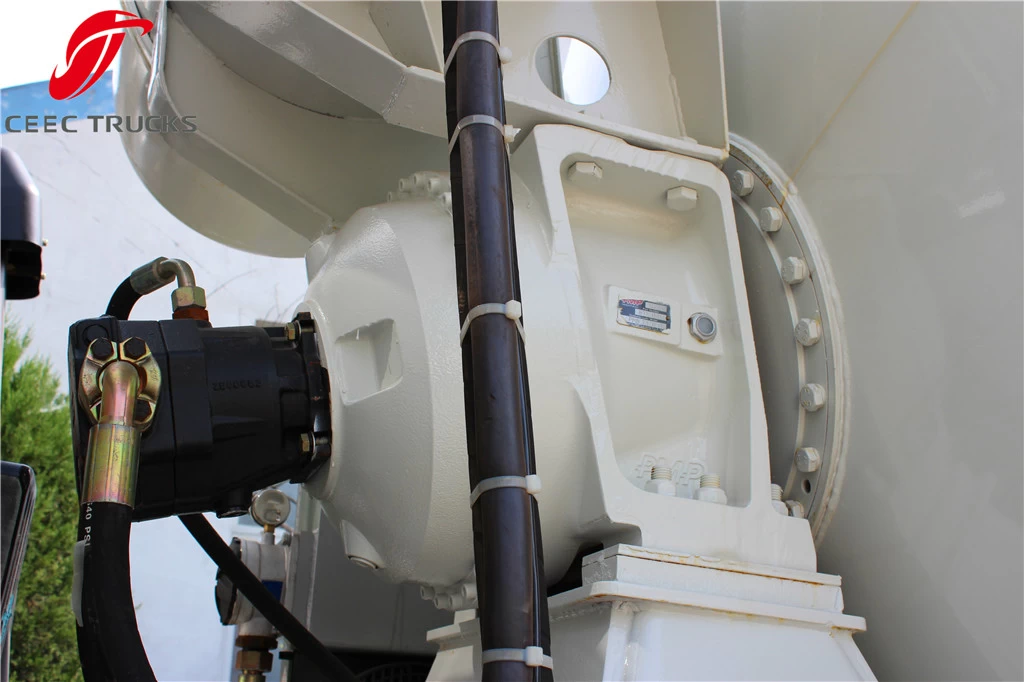

| Hydraulic Motor
|
Imported Brand
|
| HydraulicPump
|
Imported Brand
|
| Reduction Box
|
Imported Brand
|

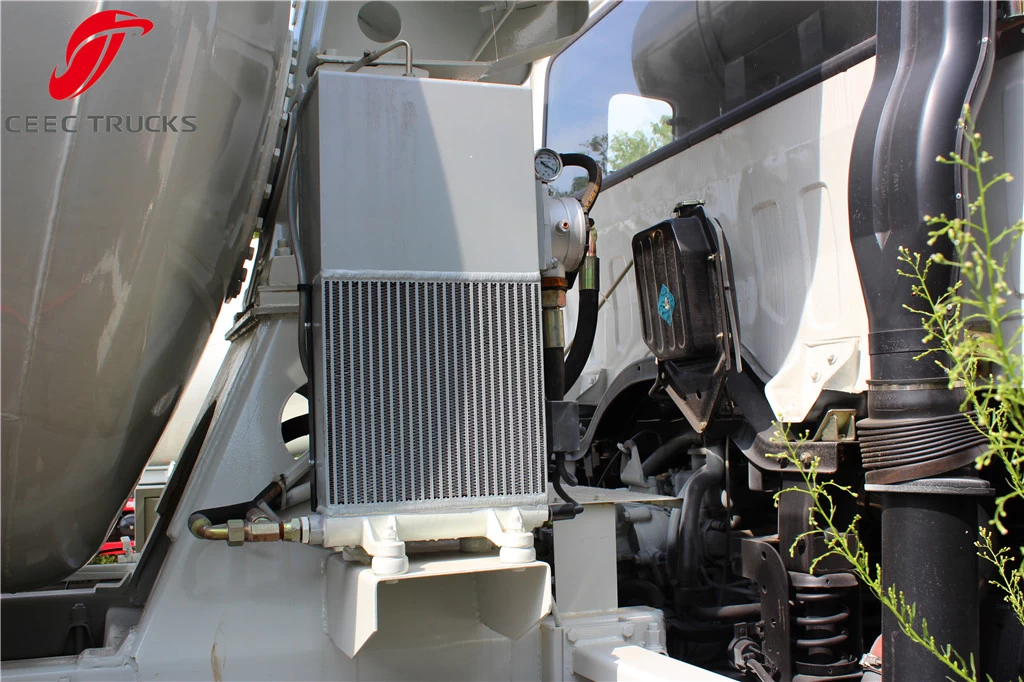

| Radiator
|
High Class Chinese Brand
|
| Rest Rate
|
≤0.5%
|
| Water Supply System
|
Air pressure
|
| Water Tank Volume
|
400 L
|

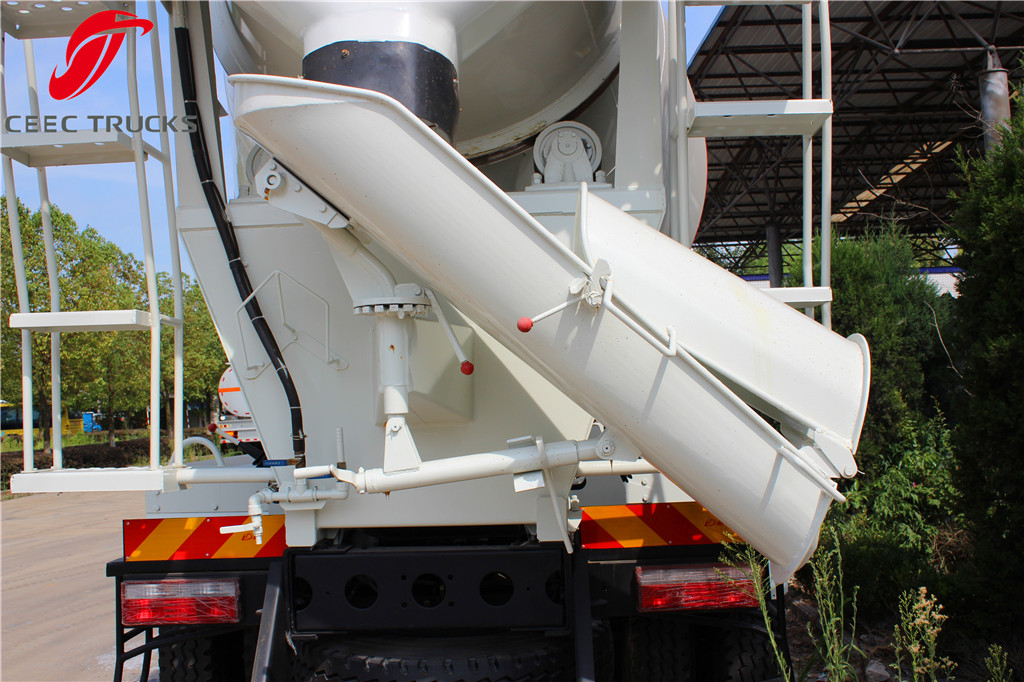

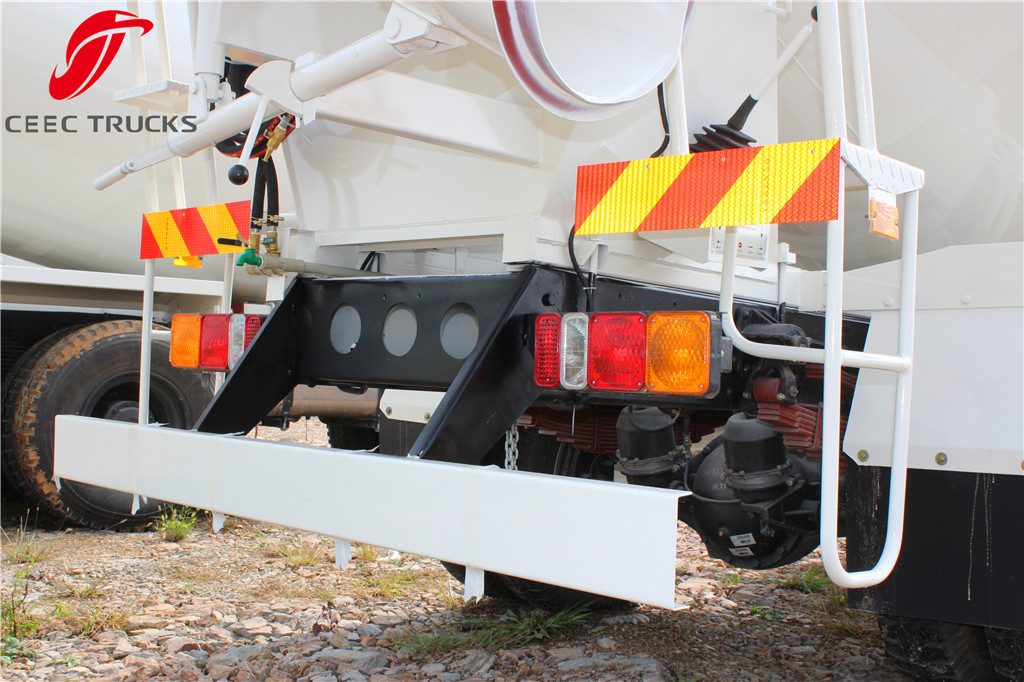

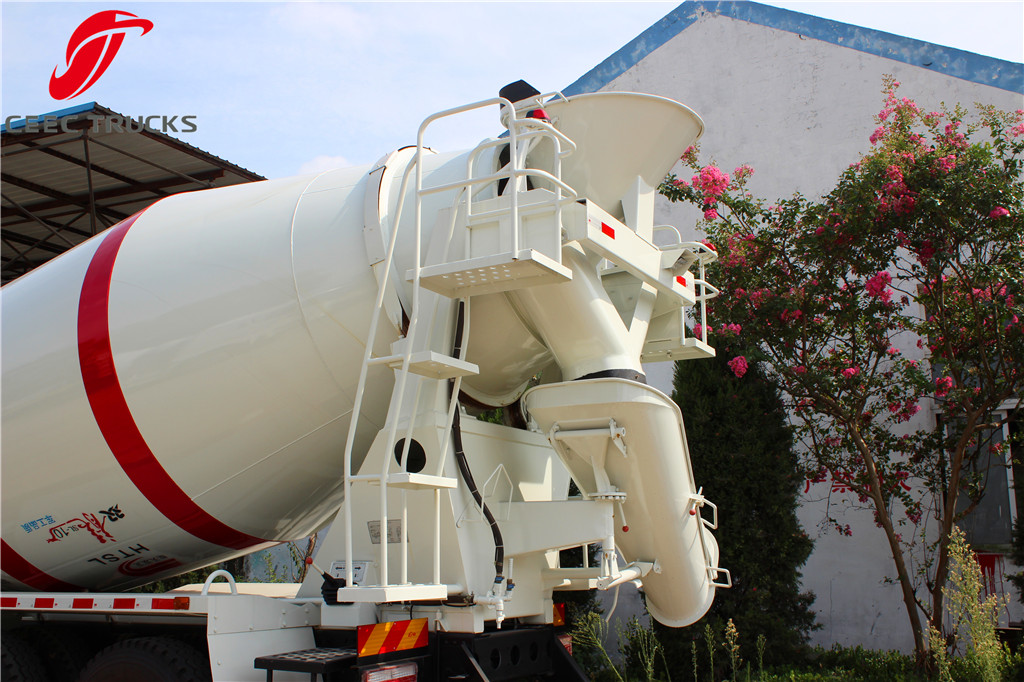

| All other standard accessories: manhole, ladder, inlet, discharge…….
|
| Optional
|
** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.
|

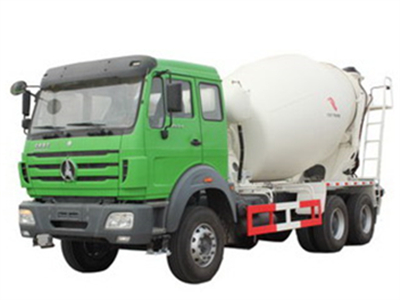

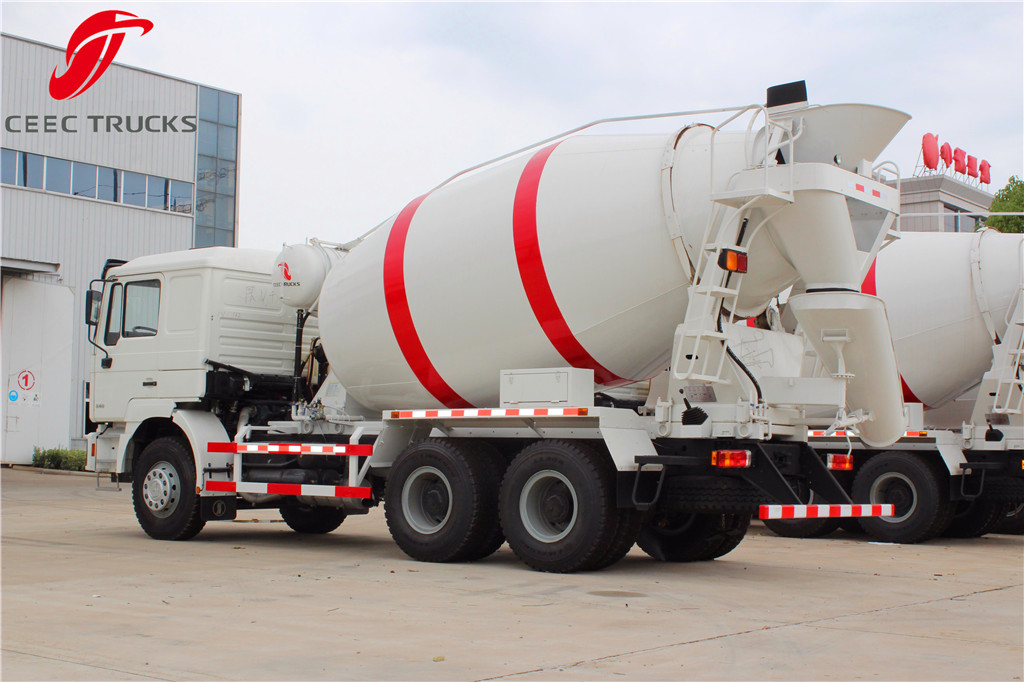

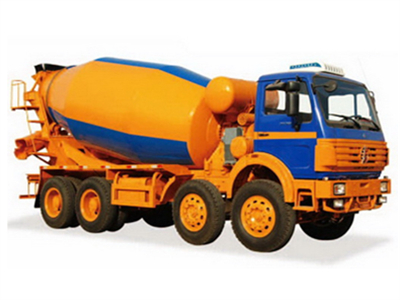

Beiben Transit mixer trucks on sale
