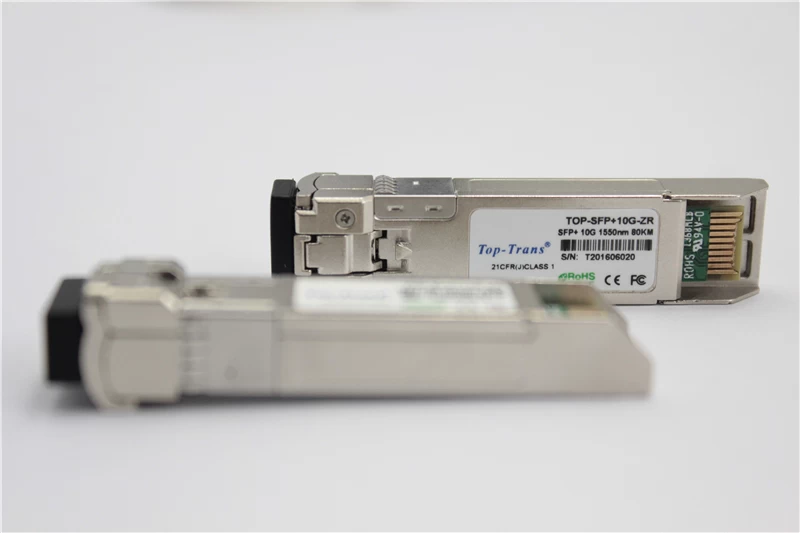

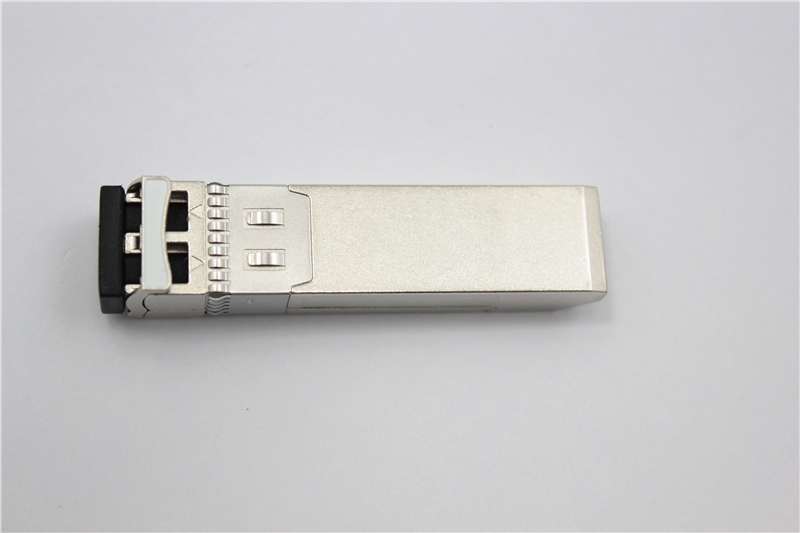

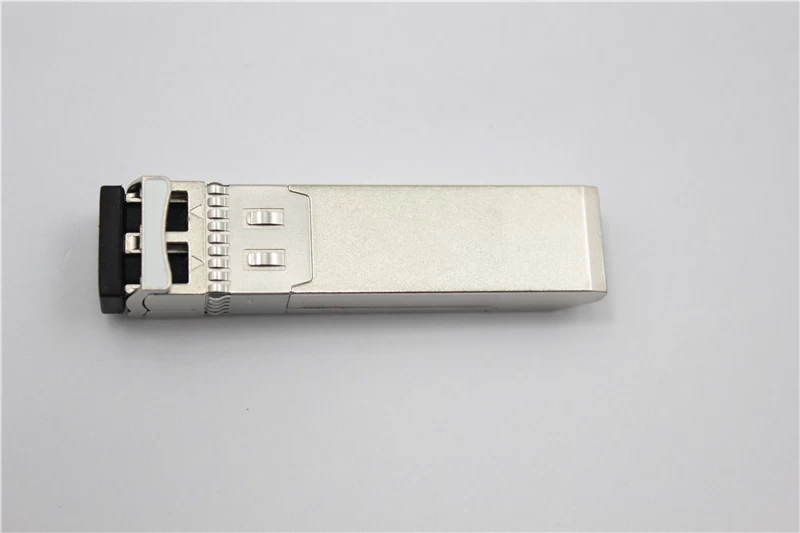

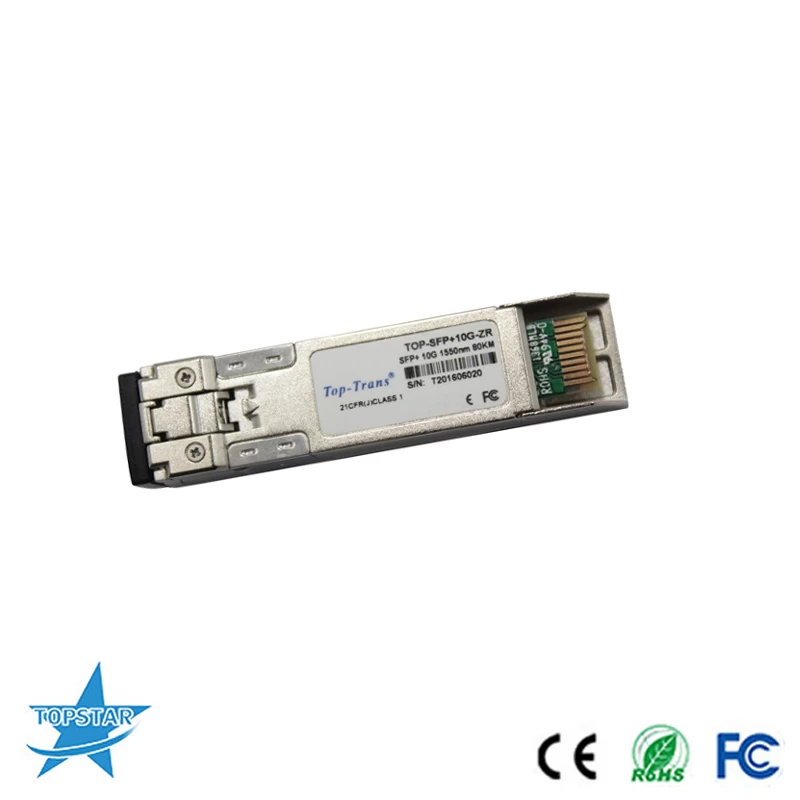

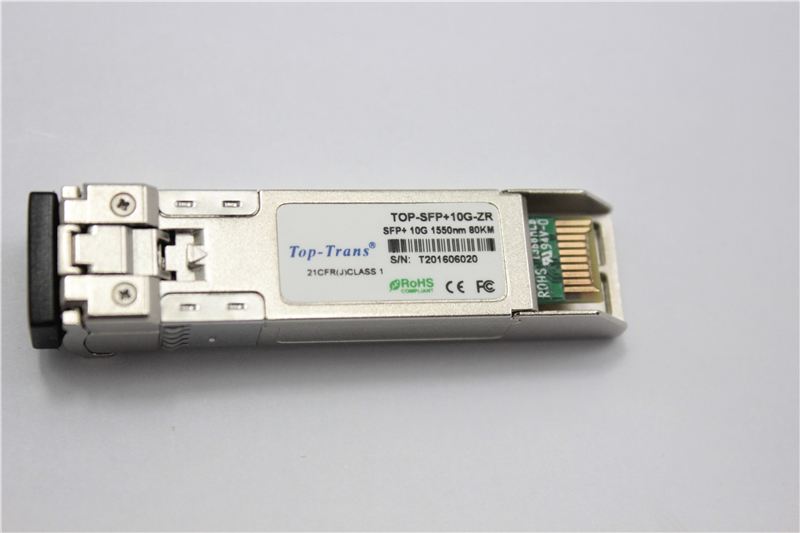

10 Gig SFP Compatible with Cisco- WS-C3650-8X24UQ-S 80km 1550nm Optical Transmitter

TOP-SFP+10G-ZR-C is Compatible with Cisco- WS-C3650-8X24UQ-S.SFP+10G 80KM 1550 optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with single mode fiber (SMF). The trans-ceiver  can support 1.25Gb/s to 11.1Gb/s. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for dataom and storage applications.


  • ConnectorSingle port LC/SC
  • Wavelength1550nm
  • Data Rate10G
  • Distance80km
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years

10 Gig SFP Compatibility Matrix 80km 1550nm Optical Transmitter

10 Gig SFP Matrix 80km 1550nm


PRODUCT FEATURES

●  Hot pluggable

●  10Gb/s serial optical interface

●  Up to 80km on 9/125um SMF

●  Compliant with SFP+ MSA

●  SFP MSA package with duplex LC connector

●  Digital Diagnostic Monitor Interface

●  Very low EMI and excellent ESD protection

●  High transmission margin

●  +3.3V single power supply

●  Below <1.8W power consumption

●  SFP mechanical interface

●  Wide data-rate range



APPLICATIONS

●  10G Base-ZR/ZW

●  10G Fiber Channel

●  Other optical links



STANDARD

●  SFP+ MSA Compliant

●  SFF-8472 reversion 9.5 compliant

●  IEEE802.3-2005 compliant

●  Telcordia GR-468-CORE compliant

●  FCC 47 CFR Part 15,Class B compliant

●  FDA 21 CFR 1040.10 and 1040.11,class1 compliant

●  RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered .
