Topstar is a leading SFP Transceicer manufacturer. We specialize in producing 100G QSFP28,100G CFP,10G SFP,CWDM DWDM,SFP+,XFP, and so on. More buying choices at opticalmodulemanufacturers.com.

All products

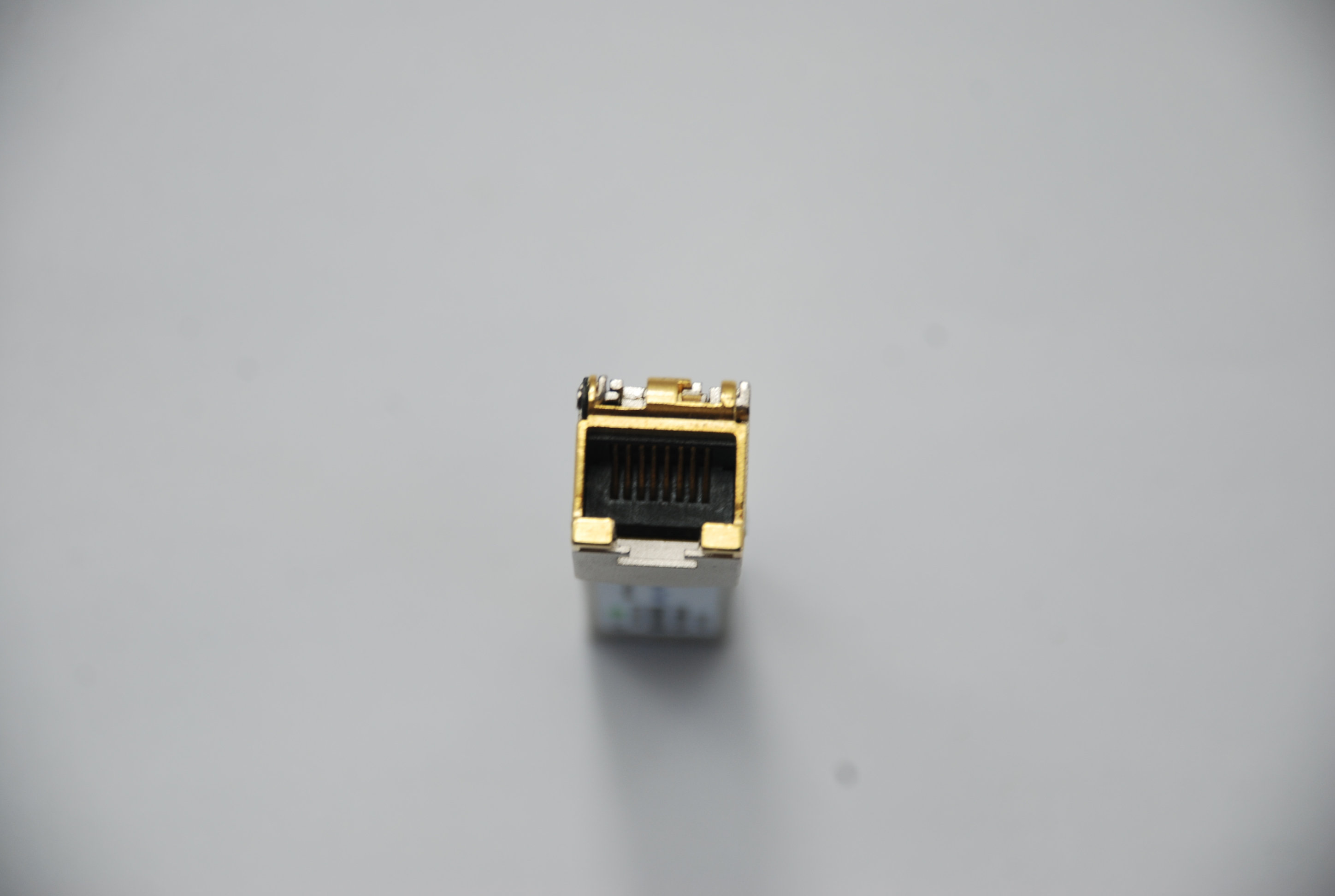

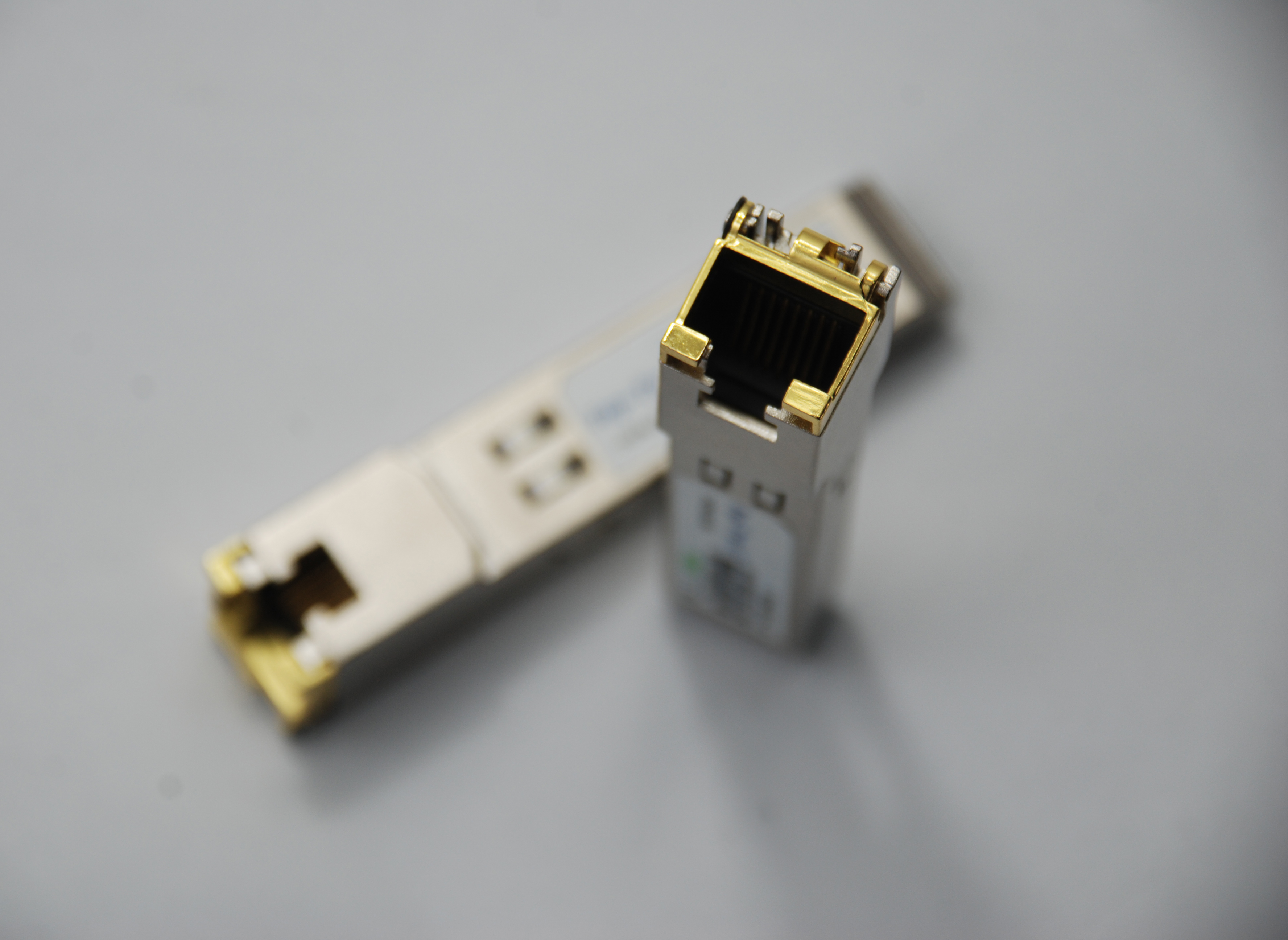

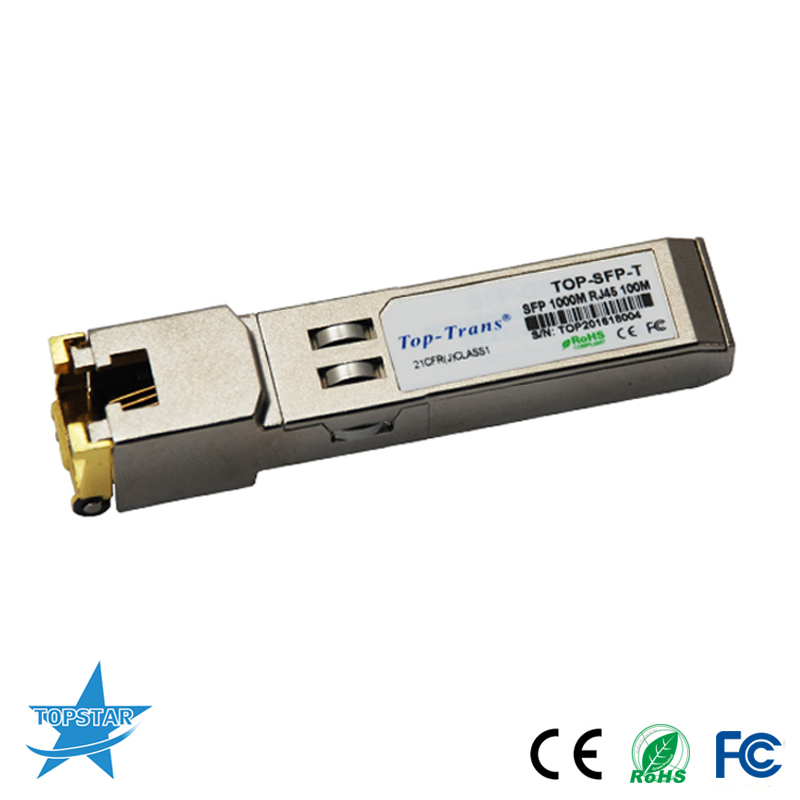

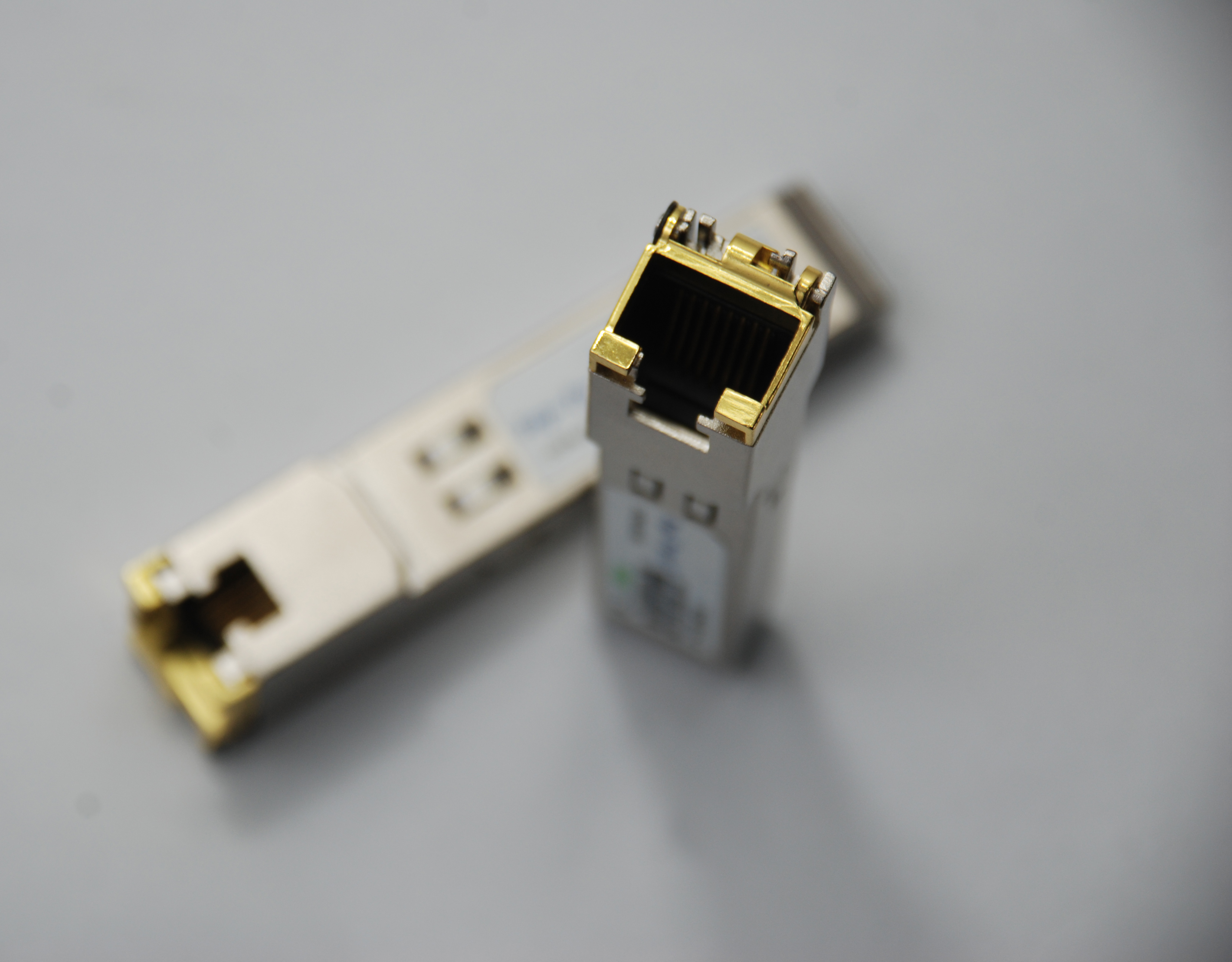

SFP Copper RJ45 Module 10/100/1000 Mbps Modules Ethernet to SFP

SFP Copper RJ45 Module is high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps (or 10/100/1000Mbps Modules) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.Ethernet to SFP,The module provides standard serial ID information compliant with SFP MSA, which can be accessed with an address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Cisco Compatible RJ45 Copper SFP Transceiver Module 10/100Base-T

Cisco Compatible RJ45 Copper SFP transceivers are high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE802.3u. Copper SFP Transceiver Module supports 100Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 10/100 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 25Mbps on each pair. The 10/100Base-T module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

Compatible Cisco SFP-GE-T 1000Base Copper Modules 1G RJ45 SFP

Compatible Cisco SFP-GE-T transceivers are high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable and support CAT 6. 1000Base Copper Modules support 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. 1G RJ45 SFP module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

10G Copper SFP Juniper EX-SFP-10GE-T Compatible 10GBASE-T SFP+ Copper RJ-45

10G Copper SFP transceivers are based on the SFP Multi-Source Agreement (MSA). Juniper EX-SFP-10GE-T Compatible is compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. 10GBASE-T SFP+ uses the SFP's RX_LOS pin for link indication. If you pull up SFP's TX_DISABLE pin, PHY IC should be reset.

Compatible Cisco SFP-10G-T-S RJ-45 10GBase Copper SFP+ Transceiver

10G RJ45 Copper SFP+ transceivers are based on the SFP Multi-Source Agreement (MSA). Copper RJ-45 Transceiver is compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. 10GBase Copper SFP+ uses the SFP's RX_LOS pin for link indication. If you pull up SFP's TX_DISABLE pin, PHY IC should be reset.

Copper SFP Compatible With Brocade XBR-000190 Switch 1000M RJ45 100m Fibre Optic For Brocade 7800

Copper Small Form Pluggable (SFP) transceivers is Compatible with Brocade 7800 7840.SFP 1000M RJ45 100m optical transceivers are designed for 1000Mb/s serial optical interfaces.Please read and check it.
