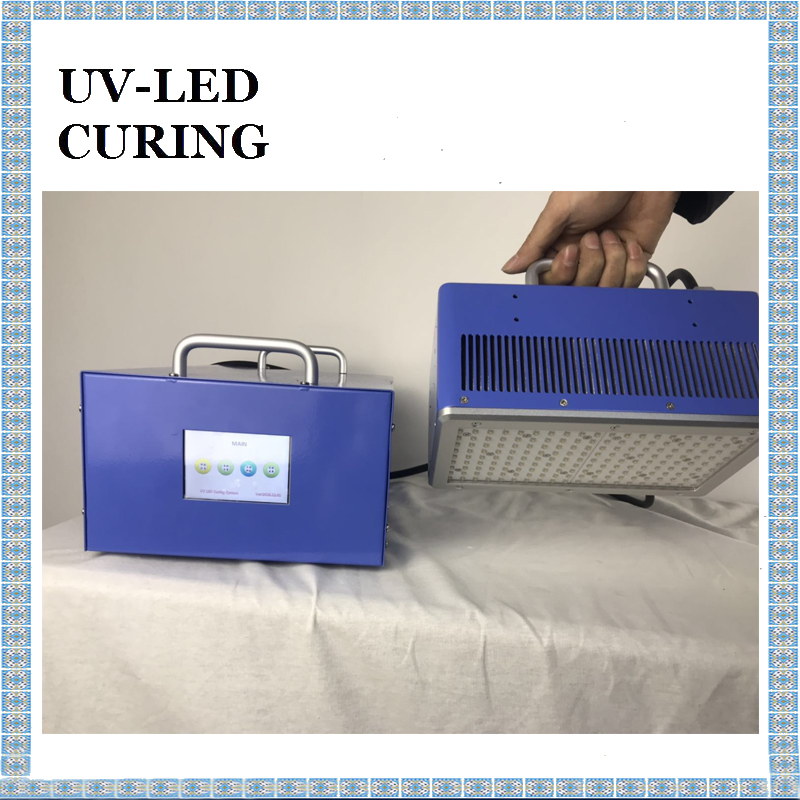

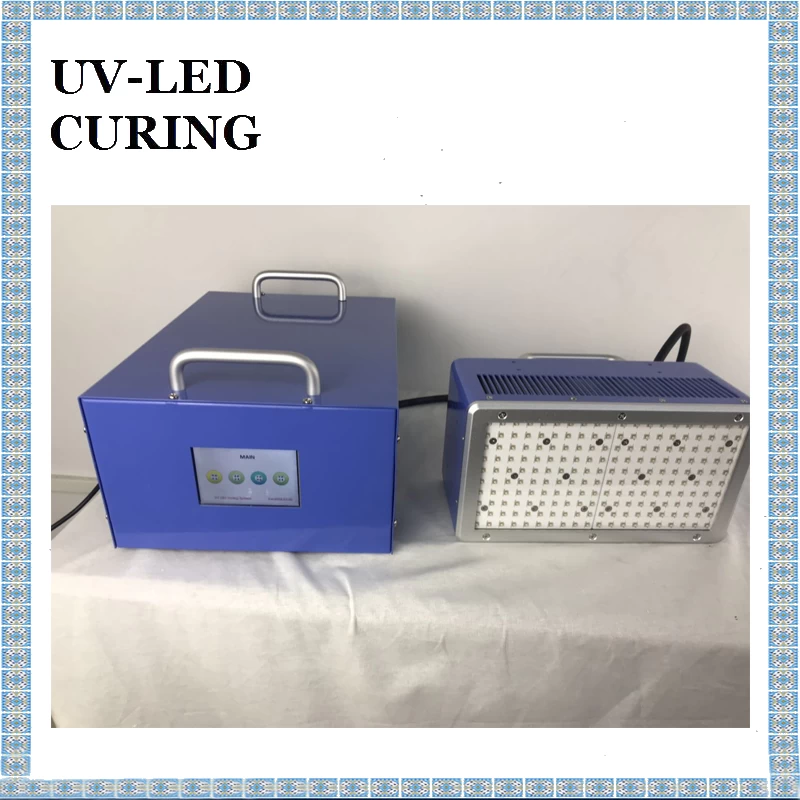

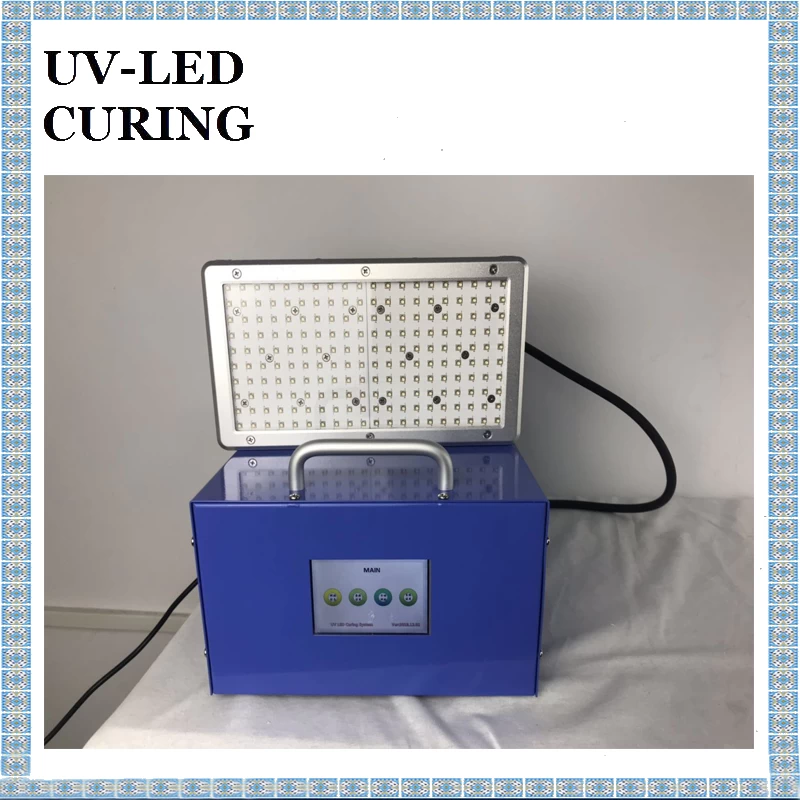

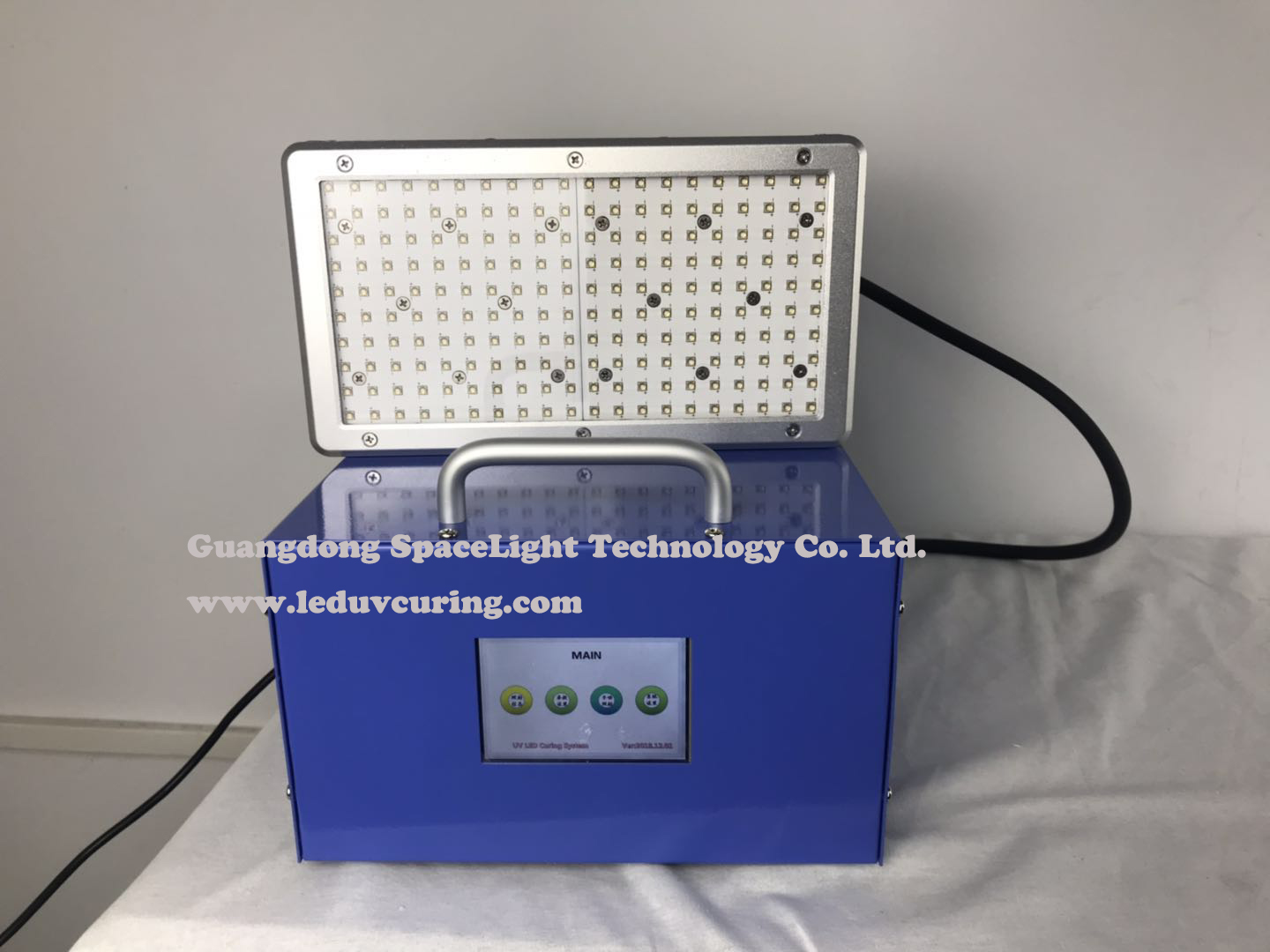

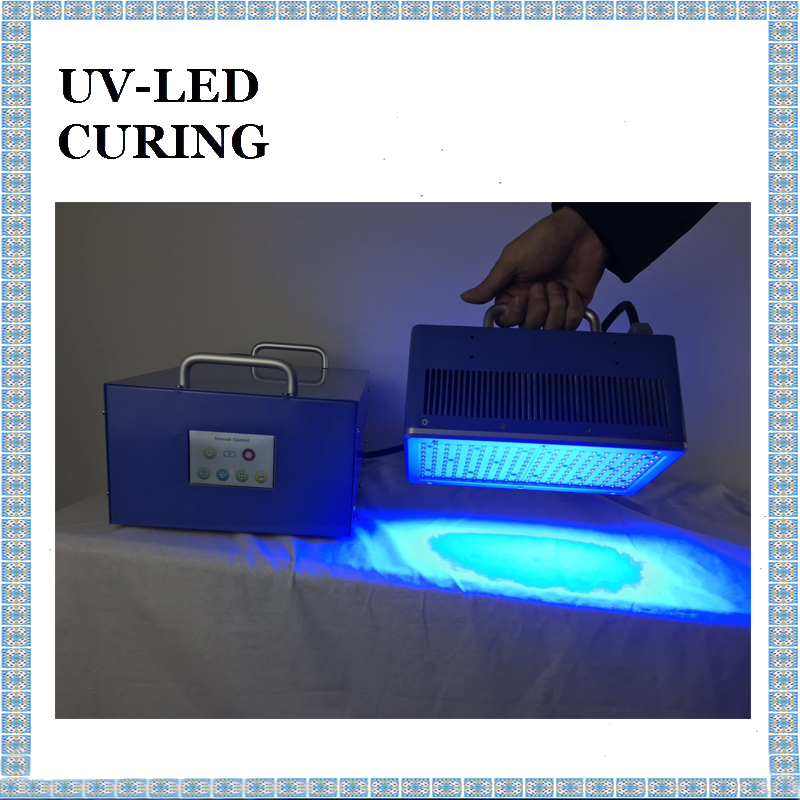

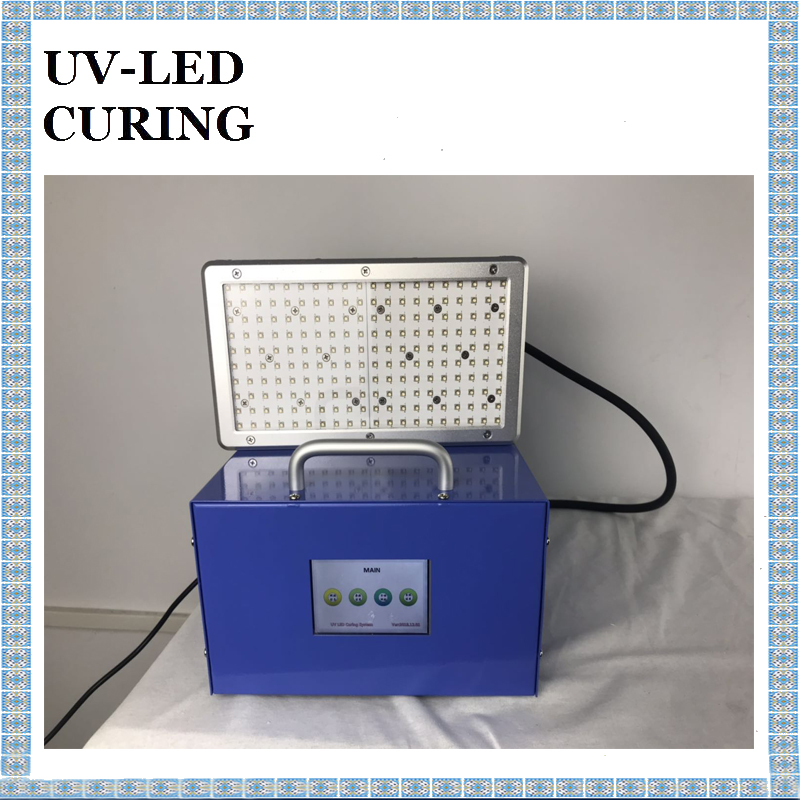

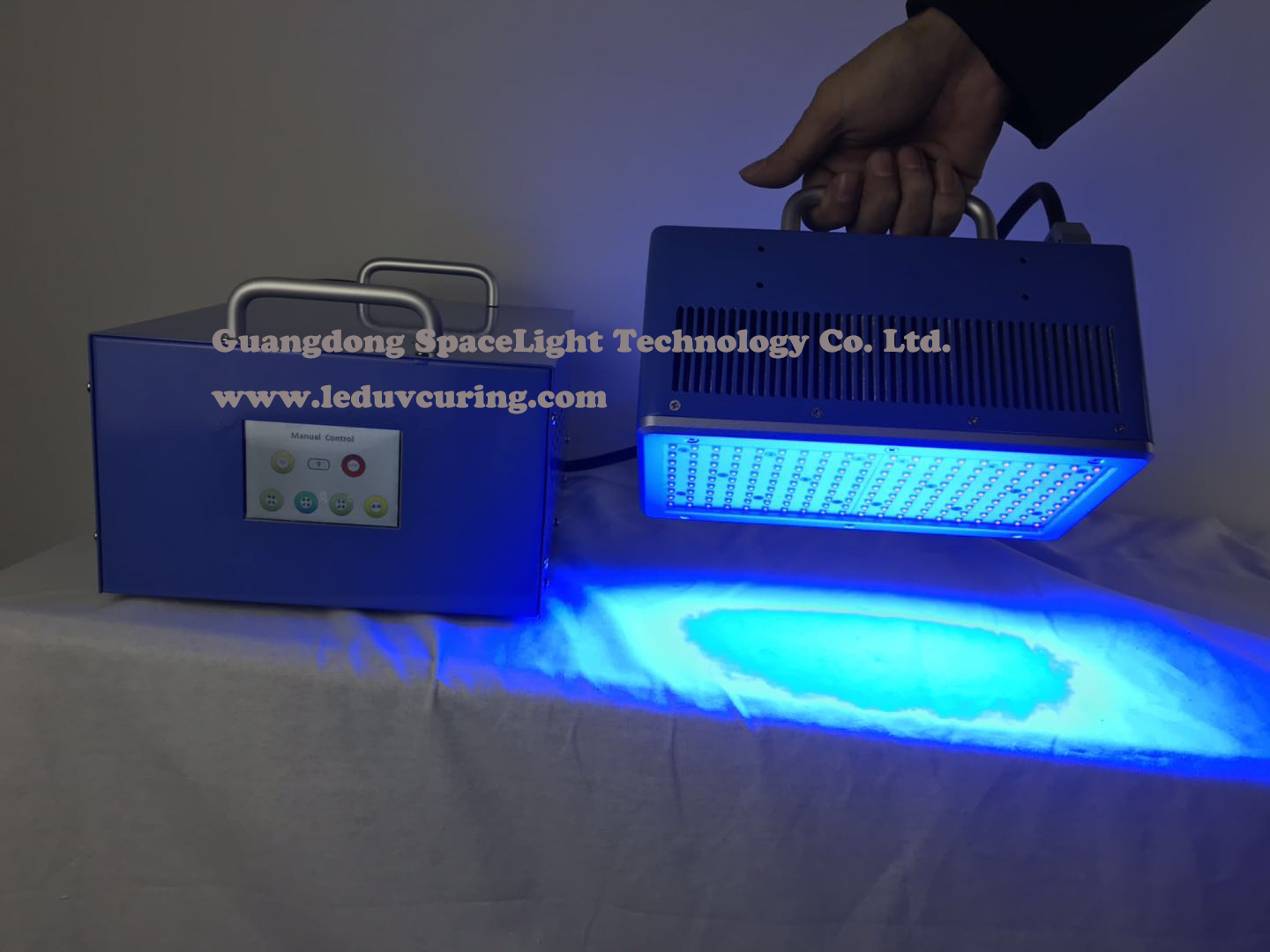

100*200mm Rapid Curing Standard UV LED Curing Light Source is specially for curing TP LCD, Mobile Phone industry, LCD Screen, UV Glue. Customized 100*200mm UV Glue Solid Edge Bonding UV Curing Equipment is low temperature, rapid curing.
Characteristics of 100*200mm Portable LED Ultraviolet Curing Systems for Bonding and Drying :
1.DSX100200 UV 365nm low temperature fast UV curing equipment can be very good for the mobile phone industry, TP industry, LCD industry UV adhesive curing.
2.No high temperature will be generated, and no loss will be caused to components.
3.DSX100X200mm UV 365nm, at present UV LED Curing Light Source System is an indispensable standard in mobile phone parts manufacturing industry.
Applications of Low Cost UV Light Curing Equipment for Coating :
1.It can be used in laser UV curing package. Laser UV package curing light source.
2.PCB industry LED UV photo-curing application
3.Mobile phone components assembly (camera lens, handset, microphone. Shell, LCD module, touch screen coating, etc.). LCD TP industry UV glue curing equipment can be choose DSX100*200
4.Hard disk magnetic head assembly (packaging of reading and writing head, fixing of gold wire, bearing, coil, bonding of chip, etc.). Disk curing light source equipment, chose DSX100X200 please.
5.Optical communication field : passive components [WG/AWG/SPLITTER/ISOLATOR/COUPLOR]. optical fiber curing equipment in 5G era, optical fiber ink coating UV LED curing equipment supplier, please contact Jennifer : +86-18924372460
6.PCB industry : components, capacitors, chips, plugins, inductors, etc.
7.Printing industry : ink and varnish curing , such as plate printing, label printing, rotary printing.
8.Medical instruments (syringe, catheter, endoscope) are bonded by UV curing.
9.Mobile phone, remote control, computer keyboard, calculator keys UV ink screen drying.
10.Security camera UV glue bonding small parts. Camera module UV glue curing, camera module bonding can be used DSX100x200 curing equipment.
Parameters of Large Area UV Curing Machine for 3D Printing :

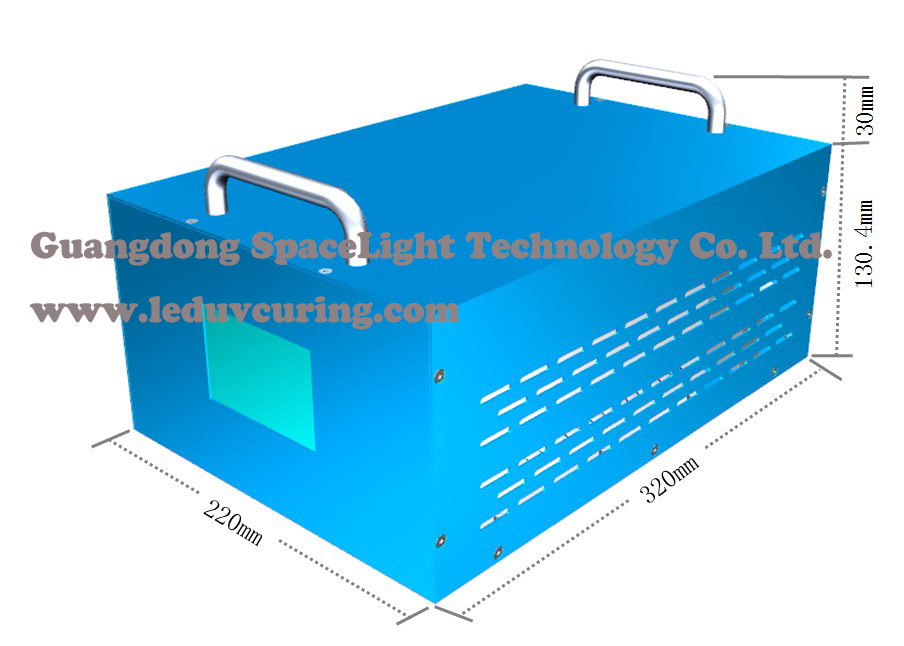

Controller of High Power Ultraviolet LED Curing Equipment without Ozone:
|
Outside Dimension
|
L320*W220*H130mm
|
Power
|
20W
|
|
Cooling Method
|
Air cooling
|
Input power
|
100-240V AC 50-60 HZ
|
|
Material / Weight
|
Blue baking paint sheet metal / 6.4kg
|
The number of drive LED
|
One host drive and one irradiation head
|
|
RS232 serial communication function
|
Can query and adjust illumination, time, switch
|
Control mode
|
Manual, pedal
|
|
LED time accumulation
|
Active recording of accumulated usage time
|
External terminal
|
It can be connected with single chip, PLC and other equipment for control and working statues feedback.
|

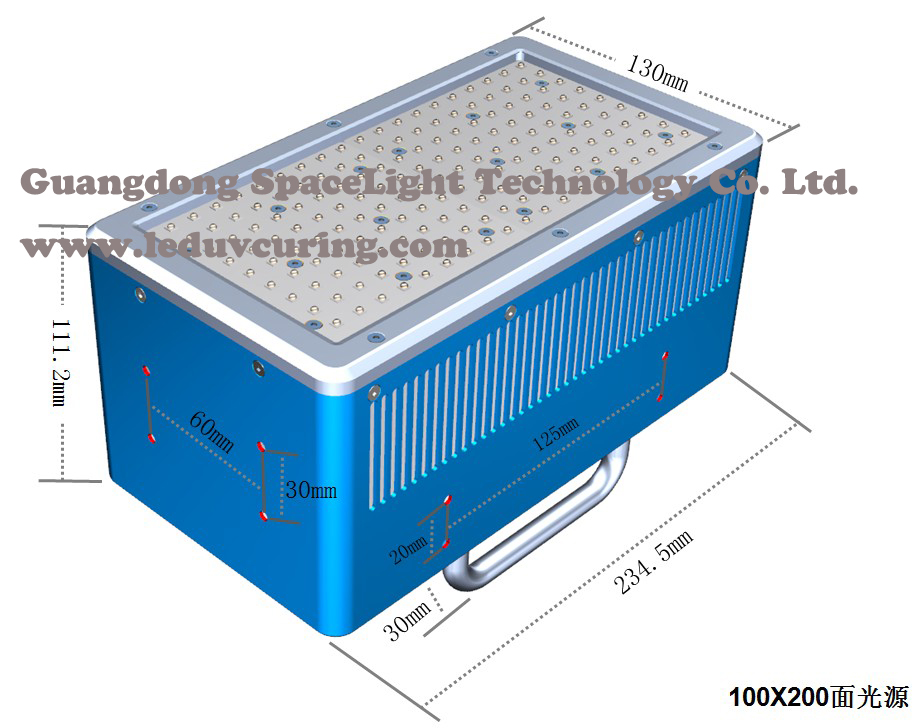

Luminous Head Specification of Large Area UV Curing Machine for UV Coating:
|
Luminous Size
|
100 * 200mm
|
Power
|
400W
|
|
Outside dimension
|
L 234*W130*H111mm
|
Recommend highly
|
5 mm
|
|
Cooling method
|
Air cooling
|
Wavelength
|
365 nm
|
|
Material / Weight
|
Blue baking paint sheet metal / 4.2kg
|
Luminous power（mW/cm2）
|
1000 @ EIT
|
|
Predicted service life
|
20000 H
|
|
Display
|
LCD screen
|
Length of the cable
|
2 .5 m
|
More details please contact : 1651063690jennifer@gmail.com (Jennifer) WhatsApp : +86-18924372460
