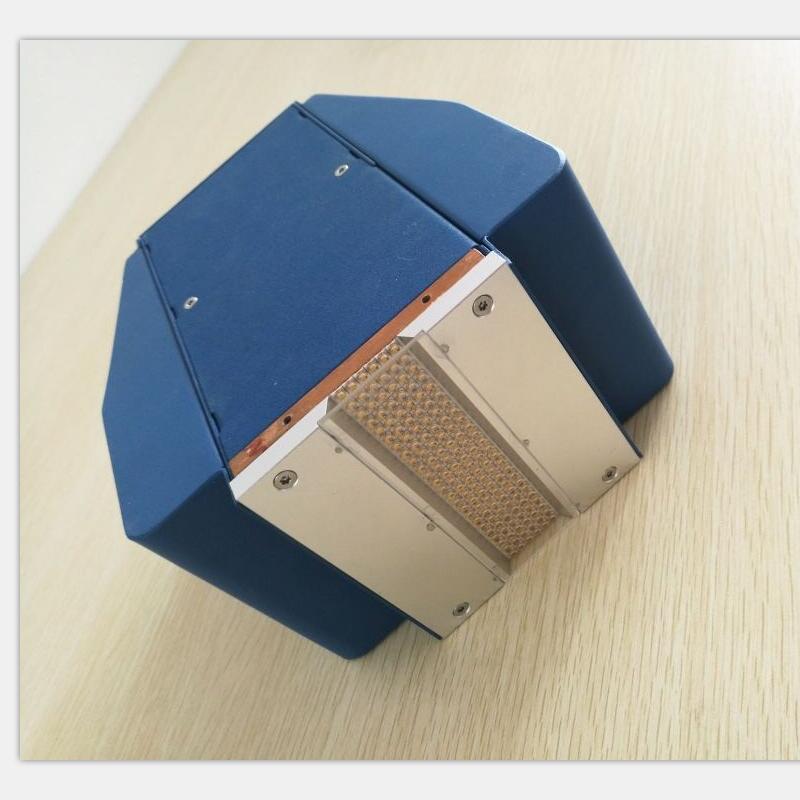

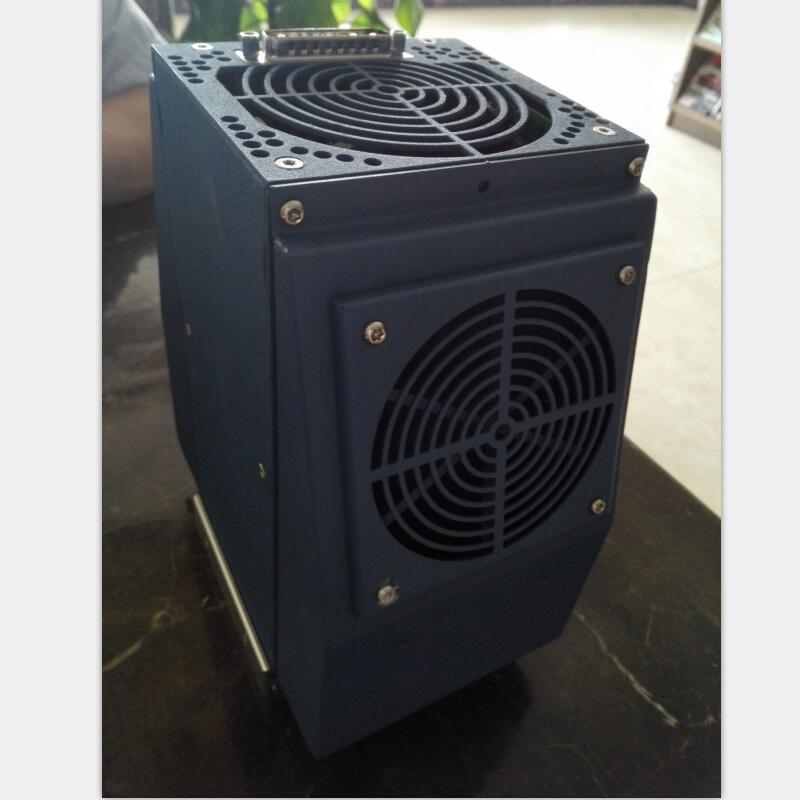

The AnnexCureTM EB168 UV Solidify Machine provides highest output power in an extremely medium
mechanical package for high speed pinning and full cure applications. The EB168
UV LED source is CE, RoHS, and REACH compliant.
Performance of Instant Curing UV Glue UV LED Dryer Lamp :
|
|
365nm
|
385nm 395nm
405nm
|
|
Peak Irradiance (Flat Glass)
|
8w/cm2
|
8w/cm2 ~
16w/cm2
|
|
Emitting Window
|
104mmx25mm
|
104 x25mm
|
|
48Vdc Power In
(Typical)
|
500w/10A
|
500w/10A
|
|
48Vdc Power In (Maximum)
|
500w/10A
|
1000w/20A
|

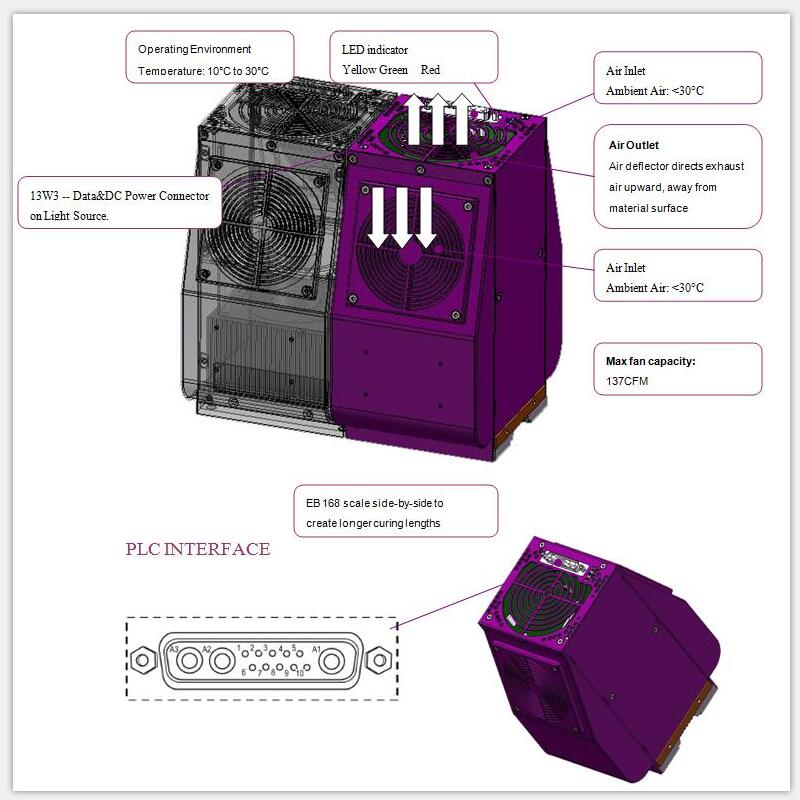

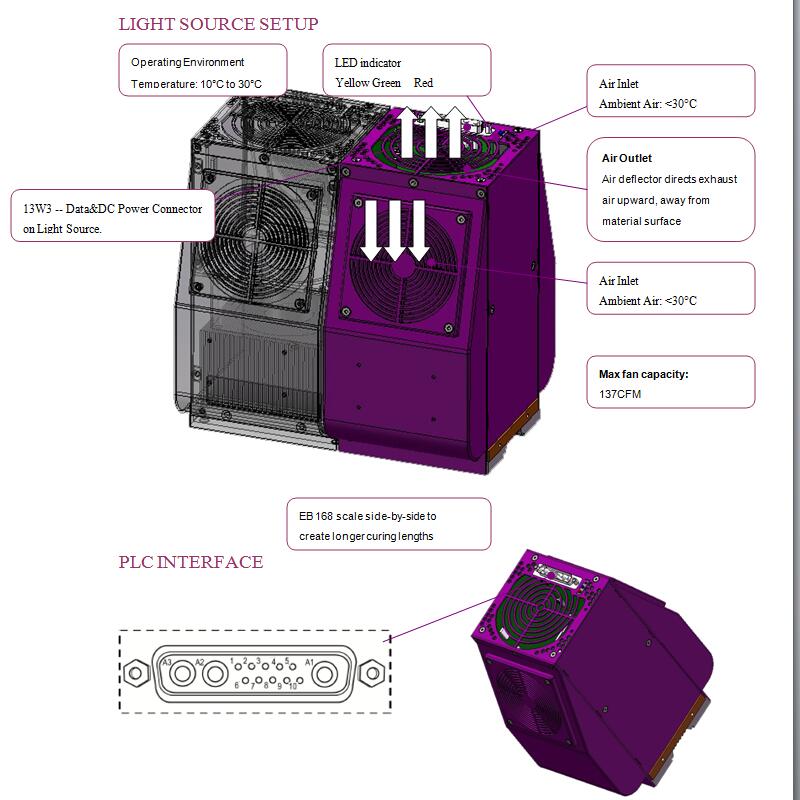

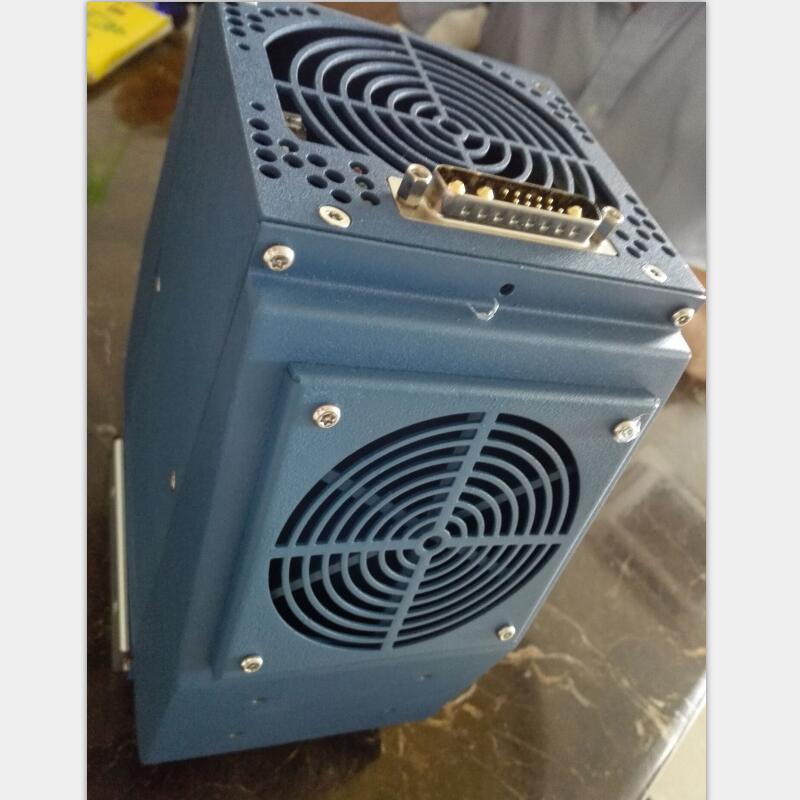

DB13W3 Connector Pins of Air Cooling UV Curing Systems for Printing :
|
Pin
|
Fuction
|
Input/Output
|
Range(min/max)
|
Comments
|
|
4
5
|
Intensity
Control
|
Input
|
0~10V
|
Input voltage is converted to required current to achieve
desired intensity where 5V = 100% and 1.0V = 20%. A
minimum voltage of 1.0V is required for proper LightSource operation.
Note: Aslo can be set to 0~5V by TP
|
|
3
8
|
Enable
signal
|
Input
|
Dry Switch
|
.
ON= LED UVLampON
OFF= LED UV Lamp OFF
|
|
2
7
|
Intensity
Enable
|
Input
|
Dry Switch
|
ON = Intensity Control valid
OFF = Intensity Control invalid
|
|
1
6
|
Alarm
Output
|
Output
|
Dry Switch
|
ON = Error
OFF = No Error
Error including three types:
1 Over temperature
2 LED string open
3 LED short （Debugging）
|
|
9
10
|
Communication
lines
|
Input/Output
|
Modbus
|
|
|
A1
|
+48VDC Power
Input
|
Input
|
+47V to +49V
|
+48VDC Power Input to power Light Source
|
|
A2
|
Ground
|
---
|
0.0V
|
+48VDC Return, Ground
|
|
A3
|
PE
|
|
0.0V
|
Protective Earth, Ground
|

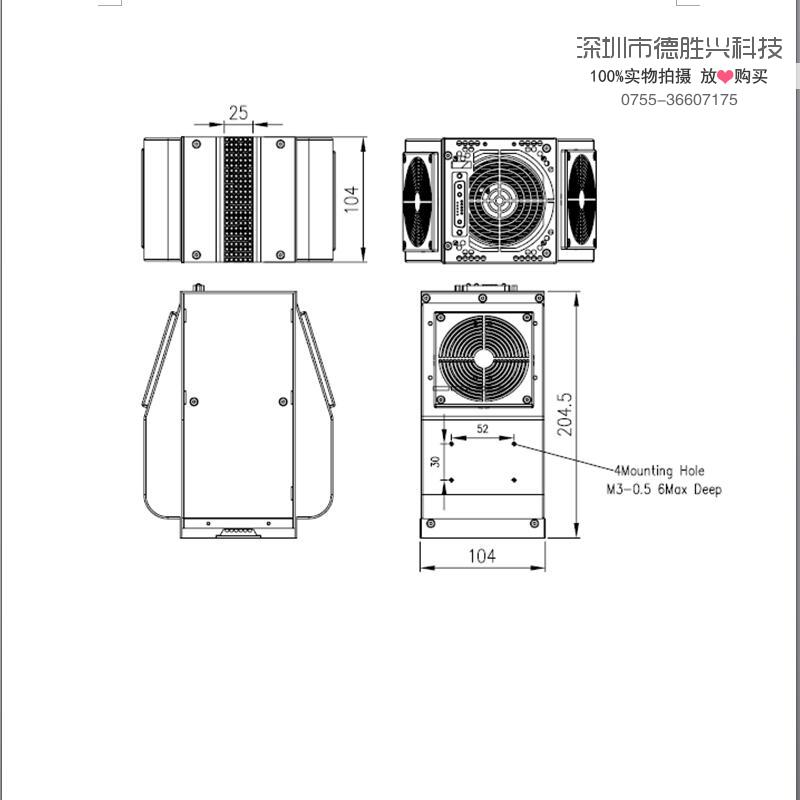

DIMENSIONS of High Power UV Coating Curing Machine without Ozone :
Units of measurement: mm
|
Dimensions
|
104 x 25
|
|
L
|
104
|
|
H
|
204.5
|
|
W
|
157.8
|
|
UV Emitting
Area
|
104 x 25
|
|
Weight(kg)
|
2.3
|
