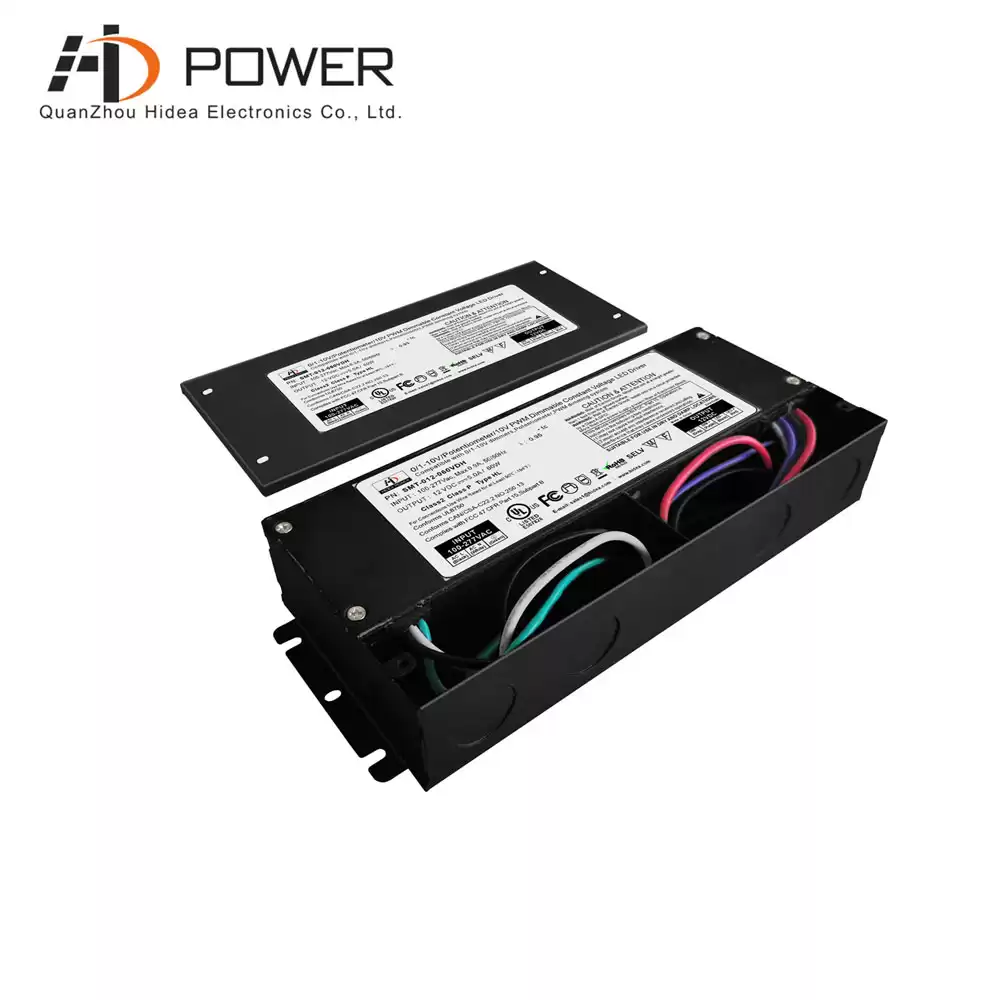

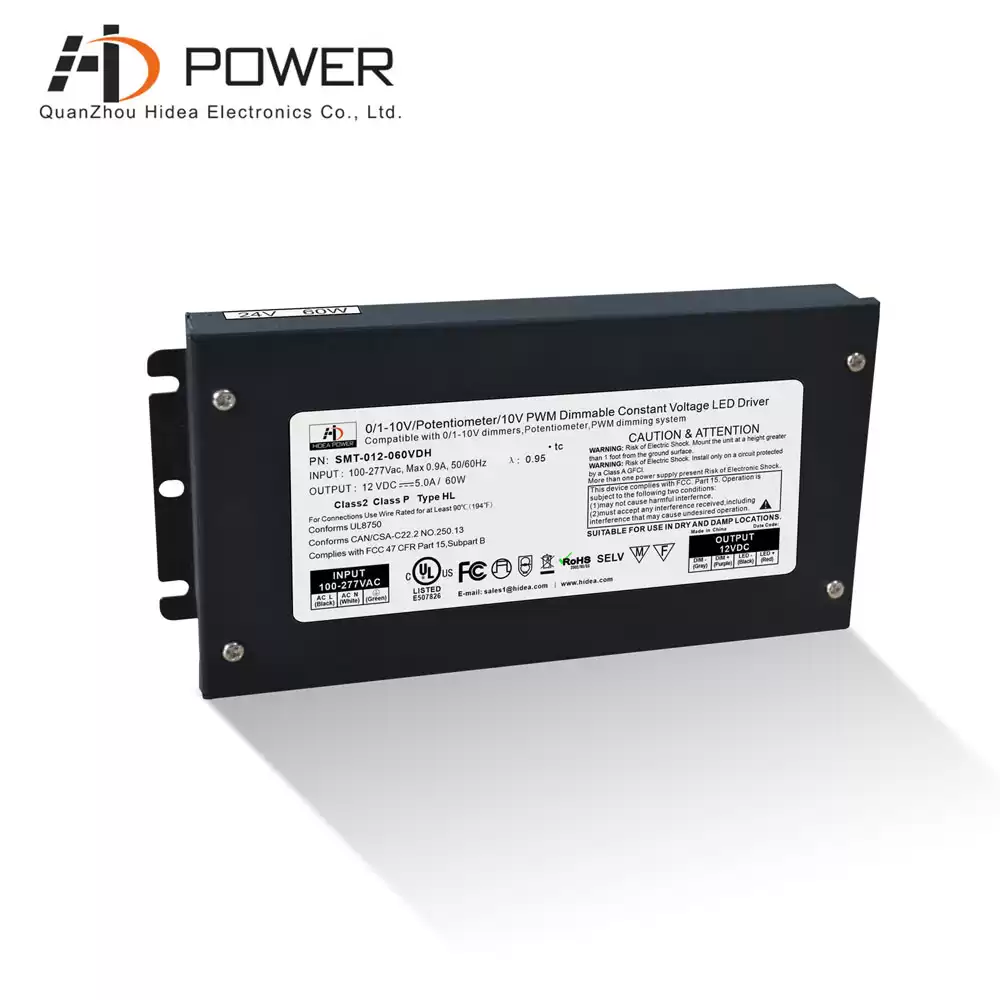

100-277vac constant voltage 24v 60w 0 10v dimmable led driver Junction Box
hideapowertech 60W dimmable led driver has short circuit/overload/overvoltage protection function
Integrated with the junction box, metal shell design, built-in PFC function, 7-year warranty
Specification
|
model
|
SMT-012-060VDH (1.0 version)
SMT-012-060VDHV2 (2.0 version)
|
SMT-024-060VDH (1.0 version)
SMT-024-060VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.)@ full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>86%
|
|
AC Current(Typ.)
|
0.9A/110VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety& EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.1Kg
|
|
Size
|
1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H)
|
|
packing
|
305*200*180mm / 10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

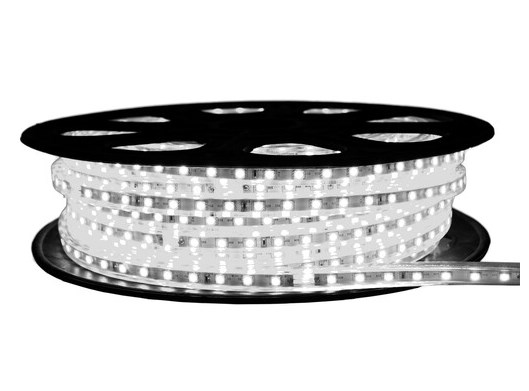

The 0 10v 60 watt led driver has long lifetime with constant voltage lamps. The driver meet safety regulations for use with LED flexible strip. Birddog Lighting LED strips is one of the options.
Related Products
|

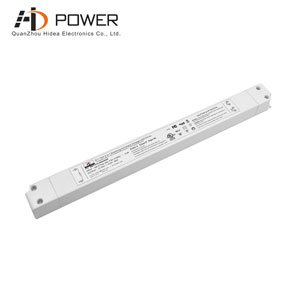

slim size 60W 0 10V dimmable led driver plastic shell design, waterproof grade ip20, using free air convection cooling, in compliance with global safety lighting regulations, 7-year warranty
