100-277vac UL listed 24v v dimmable led driver

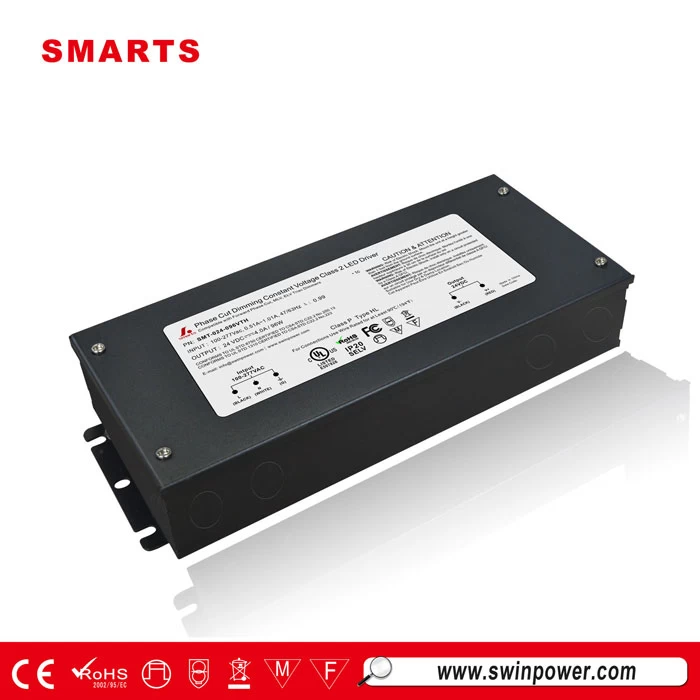

SMARTS 100-277VAC 24v dimmable led driver with built-in junction box is UL,CE,ROHS,FCC,
Class 2 listed with 7 years warranty.The 24-volt driver is encased in a low-profile aluminum enclosure to enable easy installation for under-cabinet lighting, cabinet lighting, cove lighting, showcase lighting, bookshelf lighting, cupboard lighting, or for other applications where the space is limited.
Features of 277vac to 24vdc 96w power supply :
·Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function, PF> 0.95
·Efficiency > 84% /load:0~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification of class 2 power supply 24v 96w
|
Model
|
SMT-012-100VTH
|
SMT-024-096VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
110~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF ≥0.98/110V , PF ≥0.95/277V
|
|
Full Load Efficiency
|
>84%
|
>84%
|
|
AC Current(Typ.)
|
1.3A @110VAC
|
|
Leakage current
|
< 0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≤ 140VAC(90~135V) , ≤ 270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
220*93*41mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?
Answer: 14-26 AWG
|
|

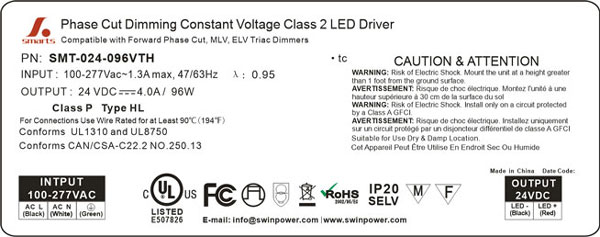

Label
|
|
