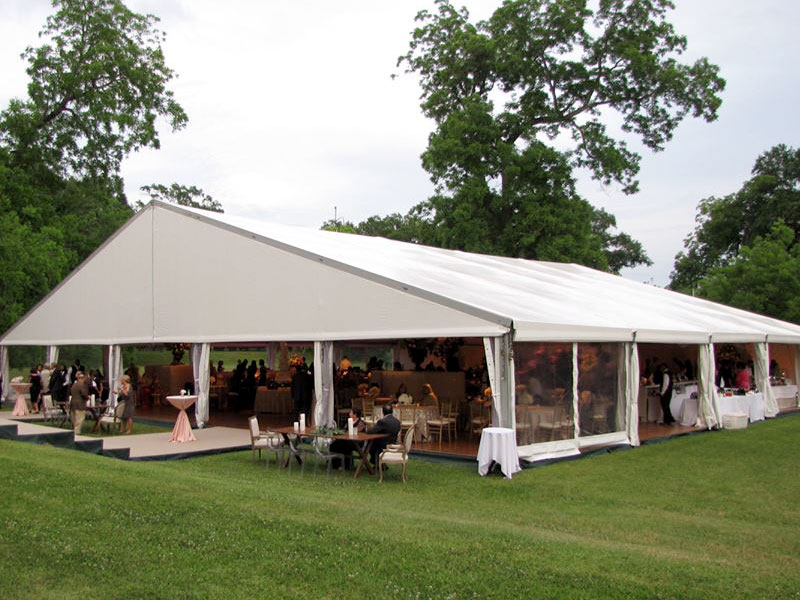

Product Name:1000 people outdoor party tent
Outdoor Party Tent can be your reliable help for celebrate any kinds of activities.. The tents inspires your innovation and imagination without limit by flexible combination of each unit, it is easy to set up. And our tent were deeply impressed by large-span, the length also can be longer or shoter, no any pole inside that you can use the interior space 100%. Widely used for diffenrent capacity party.
Outdoor Party Tents's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Outdoor Party Tents's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Outdoor Party Tents's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Outdoor Party Tents's Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.
The Specification of 1000 Peoples Outdoor Party Tents :
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
