Product Name:Luxury large PVC party tent with clear window

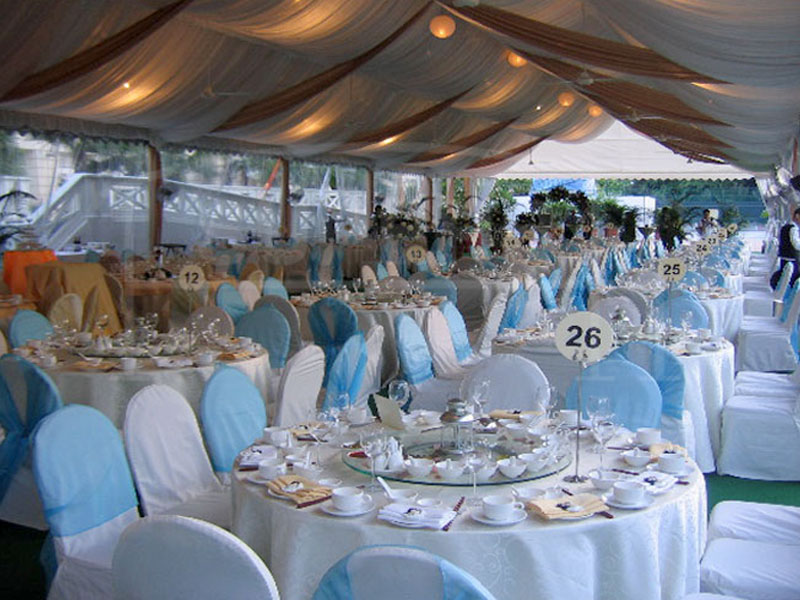

Compared with the traditional duilding halls, our tents are better to expand the space, multiple the way of display and we can move to the site where we want. The PVC sidewalls with clear windows around, you can enjoy the beautiful scenery from outside, and the people outside also can feel the atmosphere inside. We promise, with all the advantages, your wedding party will catch all eye balls from the participants.
Large Pvc Party Tents's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Large Pvc Party Tents's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Large Pvc Party Tents's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of Luxury large PVC party tent with clear window:
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
