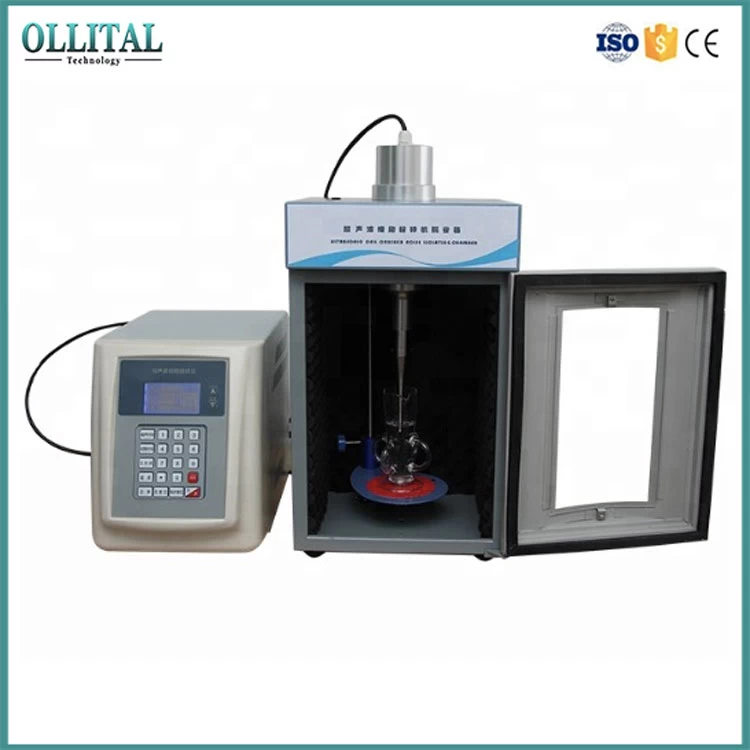

Ultrasonic cell disruption system ( crusher ) is a multi-function & multi-purpose instrument, which use high strength ultrasonic to cause cavitation effect in liquid, for material ultrasonic processing. It could be used to crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separate, homogenization, extraction, defoaming, cleaning and speed up chemical reaction,etc.
Application: biological chemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology,etc.
1.Large LCD digital display.
2.Ultrasonic probe with corrosion-resistant titanium alloy tip.
3.Mixing, blending, emulsifying, and homogenizing solutions.
4.Adjustable ultrasonic power and time.
5.Sound enclosure reduces the high-powered sound waves, while clear door permits viewing of the sample while processing.
6.A variety of optional easy-swap ultrasonic probes available.
7.Compact and lightweight, plug and play, no assembly required.
|
Model
|
OLT-UI- 30
|
OLT-UI-31
|
OLT-UI-32
|
OLT-UI-33
|
OLT-UI-34
|
OLT-UI-35
|
OLT-UI-306
|
|
Frequency
(KHz)
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
19.5-20.5KHz
Automatic tracking
|
19.5-20.5KHz
Automatic tracking
|
|
Power
(W)
|
1-150W adjustable
|
5-250W adjustable
|
10-650W adjustable
|
10-900W adjustable
|
10-1000W adjustable
|
20-1200W adjustable
|
50-1800W adjustable
|
|
Horn (mm)
|
Φ6
|
Φ6
|
Φ6
|
Φ6
|
Φ6 or Φ10
|
Φ20
|
Φ20 or Φ22
|
|
Optional Horn (mm)
|
Φ2,Φ3,Φ8
|
Φ2,Φ3,Φ8,Φ10
|
Φ2,Φ3,Φ8,Φ10,Φ12
|
Φ2,Φ3,Φ8,Φ10,Φ12,Φ15
|
Φ2,Φ3,Φ8,Φ10,Φ12,Φ15
|
Φ10,Φ15,Φ22,Φ25
|
Φ10,Φ15,Φ25,Φ28
|
|
Disruption
Capacity
(ml)
|
0.2-150
|
0.2-300
|
0.2-500
|
0.2-600
|
0.2-750
|
10-1000
|
20-1200
|
|
Store data
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
|
Temp alarm range
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
|
Instrument protection function
|
Over-temp
|
Over-temp
|
Over-temp
|
Over-temp
|
Over-temp
|
Over-temp
|
Over-temp
|
|
Duty ratio
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
|
Display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
