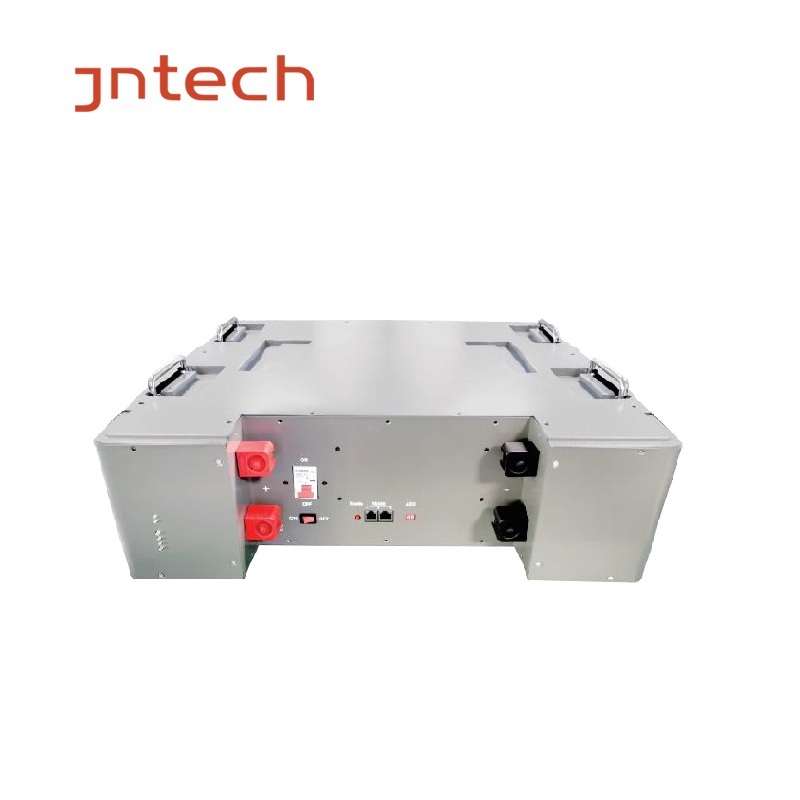

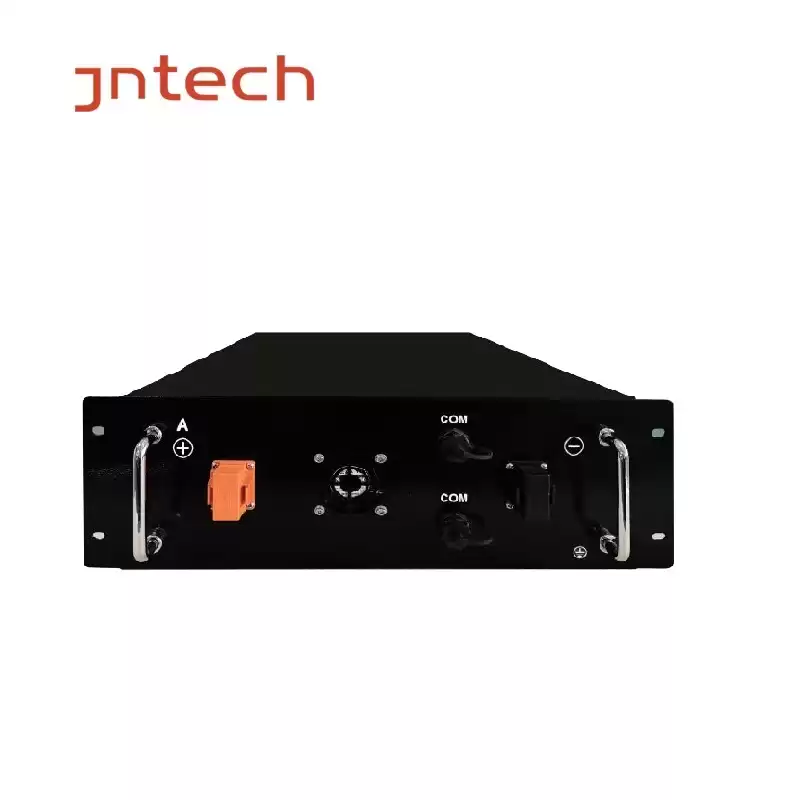

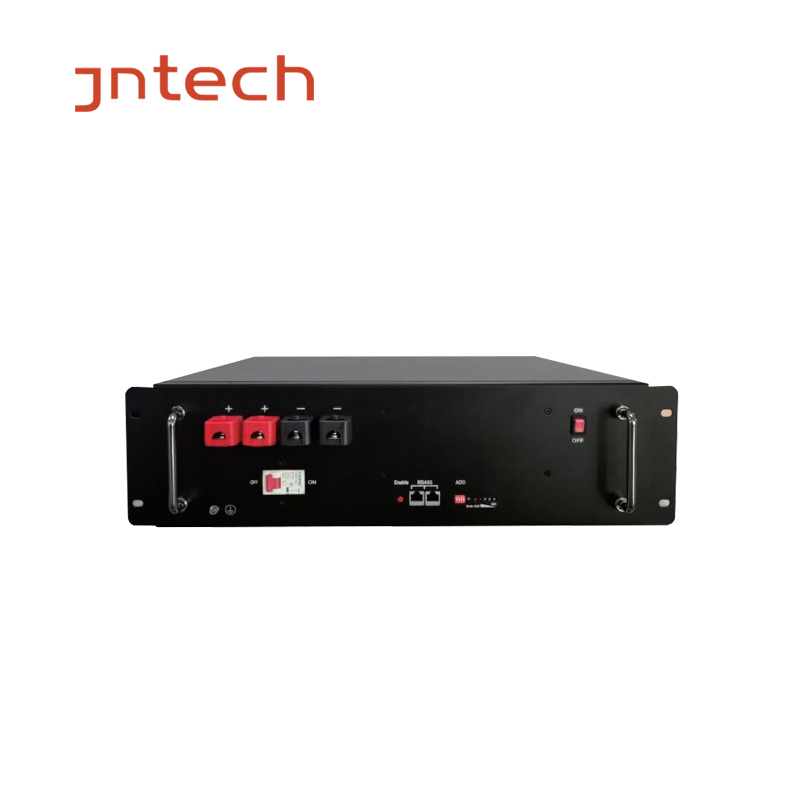

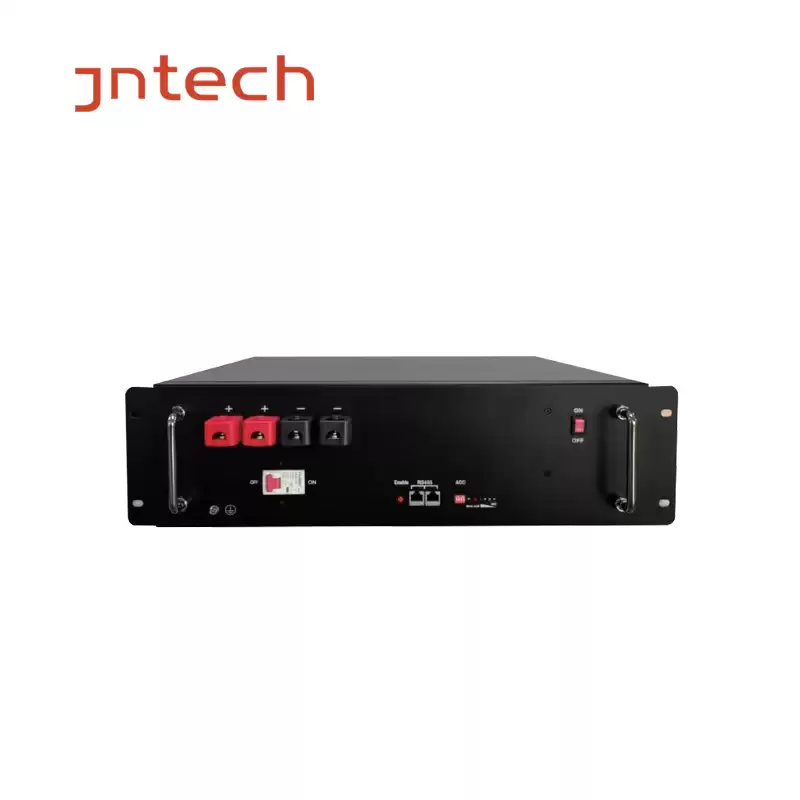

100Ah Lifepo4 Battery Pack For Solar System
Product Introduction：

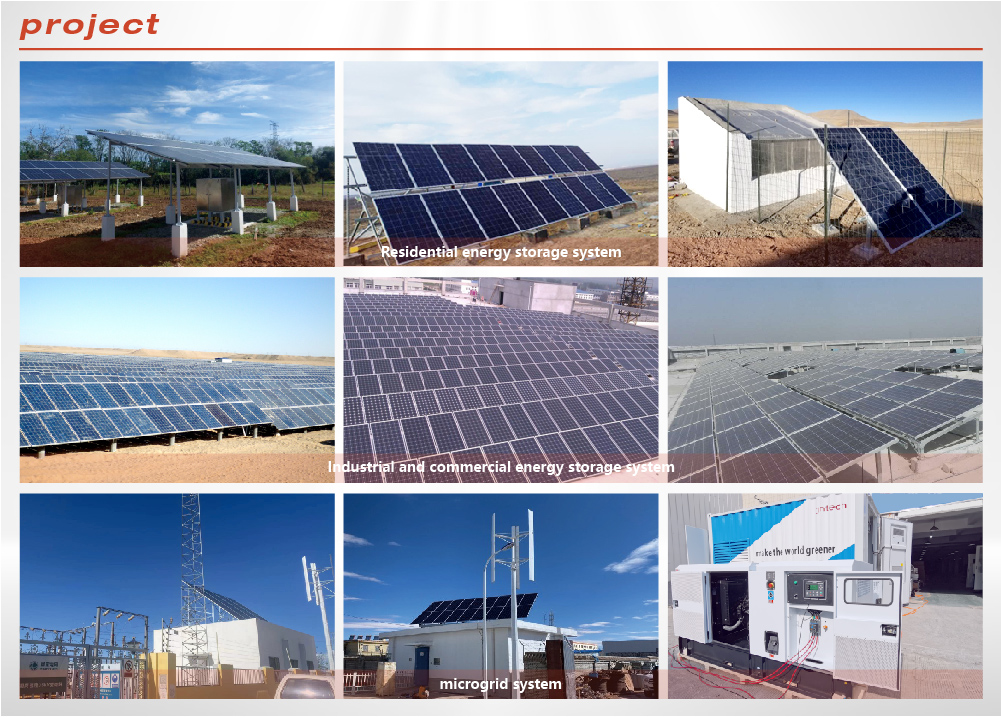

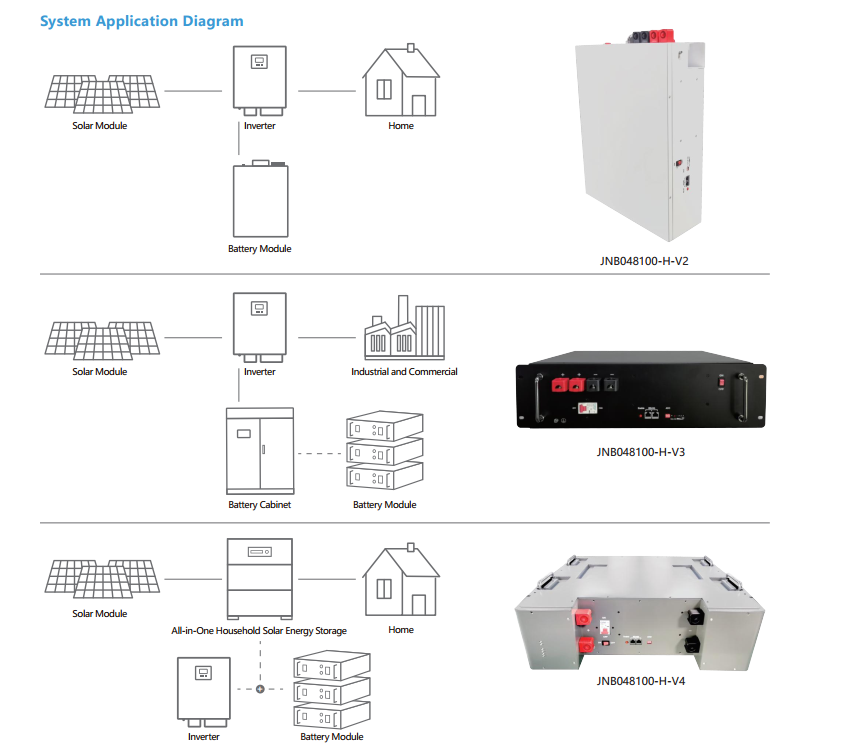

This energy storage battery widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential, commercial, and industrial energy storage applications.
Features:
●Uses lithium iron phosphate battery for increased
safety and prolonged cycle life.
●Advanced BMS with three-level protection for
comprehensive security.
●Modular design with automatic operation capabilities.
●Offers customized solutions for residential,
commercial, and industrial energy storage systems.
●Low-voltage design to meet safety and reliability
requirements for household use
●Scales easily by connecting up to 16 units in parallel.
| Battery Module Parameters |
|
| Model |
JNB048100-H-V2 |
JNB048100-H-V3 |
JNB048100-H-V4 |
| Rated capacity |
100Ah |
| Rated voltage |
51.2V |
| Rated energy |
5.2kWh |
| Battery type |
LiFePO4 |
| Max. continuous charge current |
100A (1C) |
|
| Max. continuous discharge current |
100A (1C) |
| Voltage range |
40~60VDC |
| Operating temperature |
Charge 0~45℃，discharge -25~55℃ |
| Storage temperature |
-20~60℃ |
| Box size |
610*454*157mm |
580*490*162mm |
596*532*195mm |
| Weight |
50kg |
50kg |
55kg |
| Cooling method |
Natural air cooling |
| Protecition level |
IP30 |
| Functional protection |
Undervoltage, overvoltage, overcurrent, temperature, short circuit |
| Installation method |
Wall mounted |
Rack insert |
stacked |
| Cycle life |
>4000 times(80%DOD), >7000 times(70%DOD) |
| Interface |
RS485/CAN |
| Elevation |
≤3000m |
