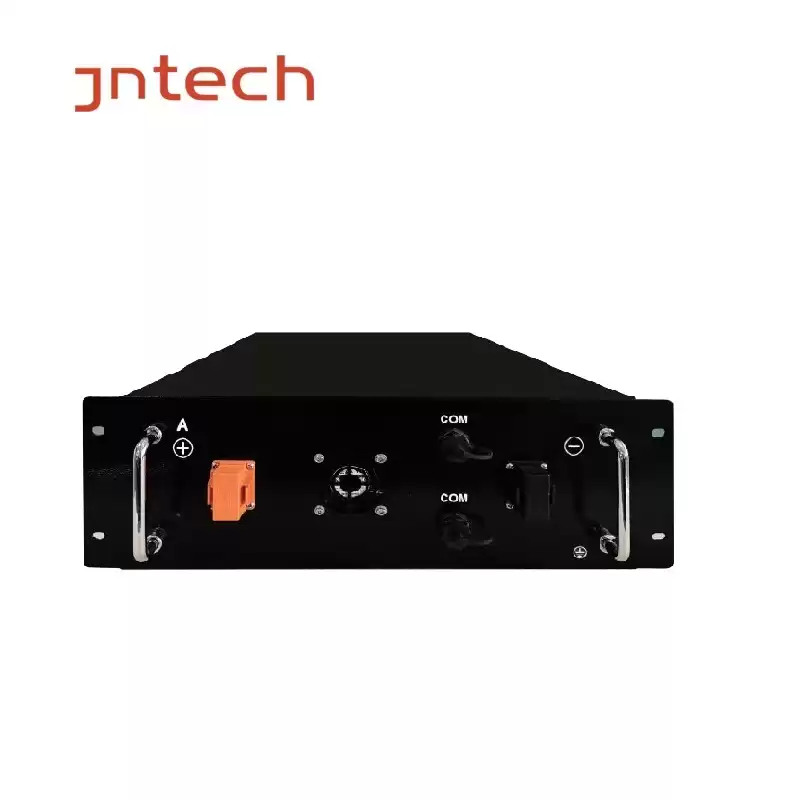

Rack Insert Battery for Energy Storage System

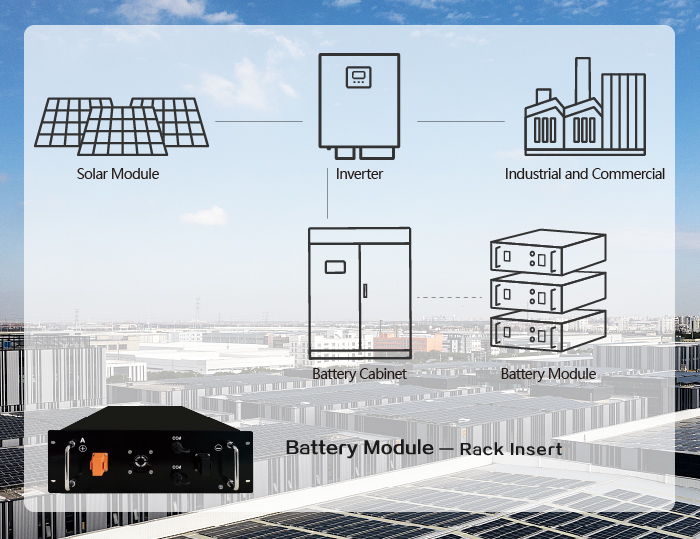

JNTECH Rack Insert Battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.





Facebook Twitter Pinterest LinkedIn 分享



Rack Insert Battery for Energy Storage System

Features：

1. Uses lithium iron phosphate battery for increased safety and prolonged cycle life;
2. Advanced BMS with three-level protection for comprehensive security;
3. Modular design with automatic operation capabilities;
4. Offers customized solutions for residential, commercial, and industrial energy storage systems.



Model
JNB048100-S-V1
Rated capacity
100Ah
Rated voltage
51.2V
Rated energy
5.2kWh
Battery type
LiFePO4
Max. continuous charge current
100A (1C）
Max. continuous discharge current
100A (1C）
Voltage range
40V-60V
Operating temperature Charge 0~45℃，discharge -25~55℃
storage temperature -20~60℃
Box size
600mm*485mm*167mm
Weight
48kg
Cooling method
Forced cooling
Protecition level IP21
Functional protection Undervoltage, overvoltage, overcurrent, temperature, short circuit
Installation method Rack Insert
Cycle life
>4000 times（80%DOD）, >7000 times（70%DOD）
Interface
RS485/CAN
Elevation ≤3000m
