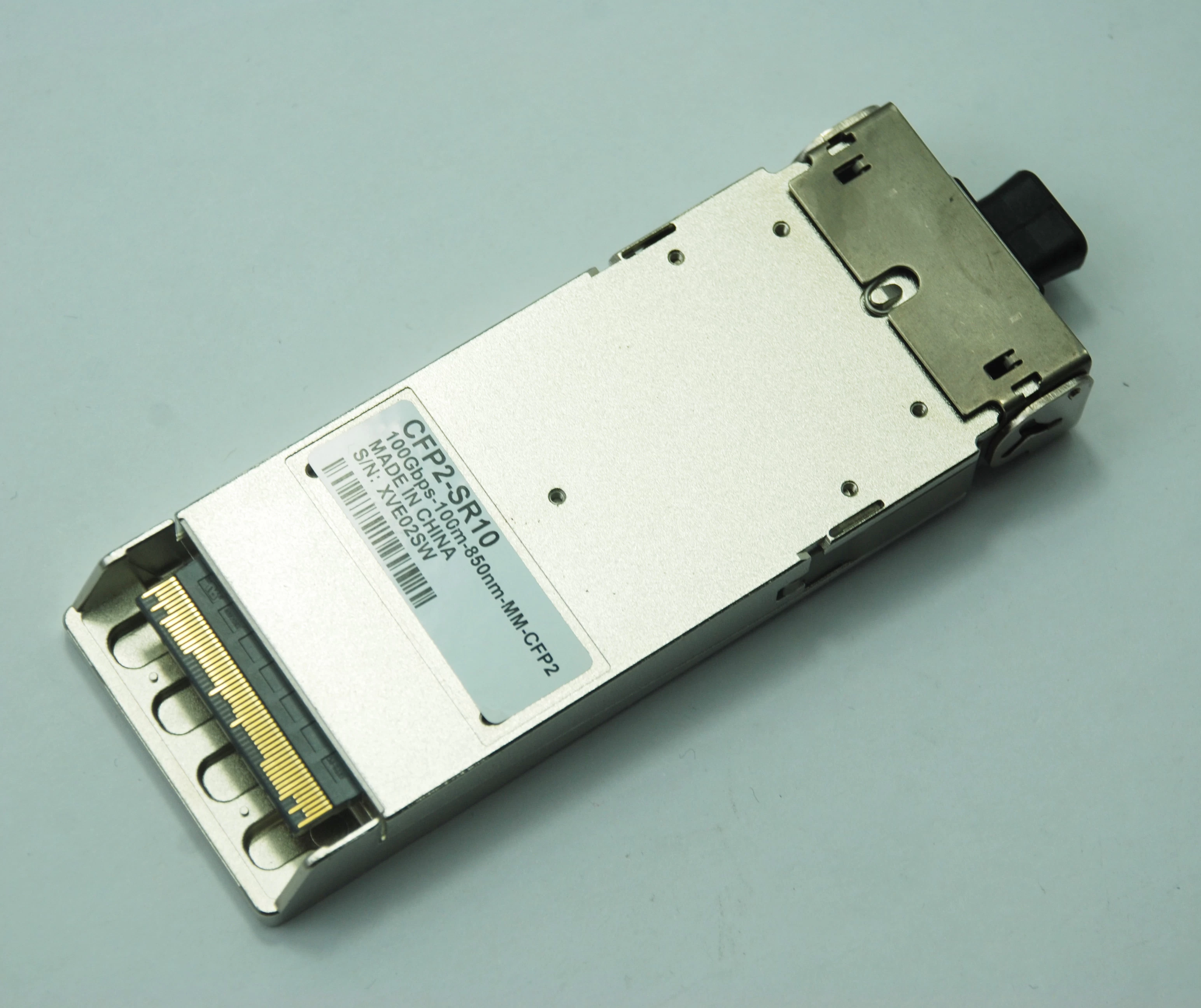

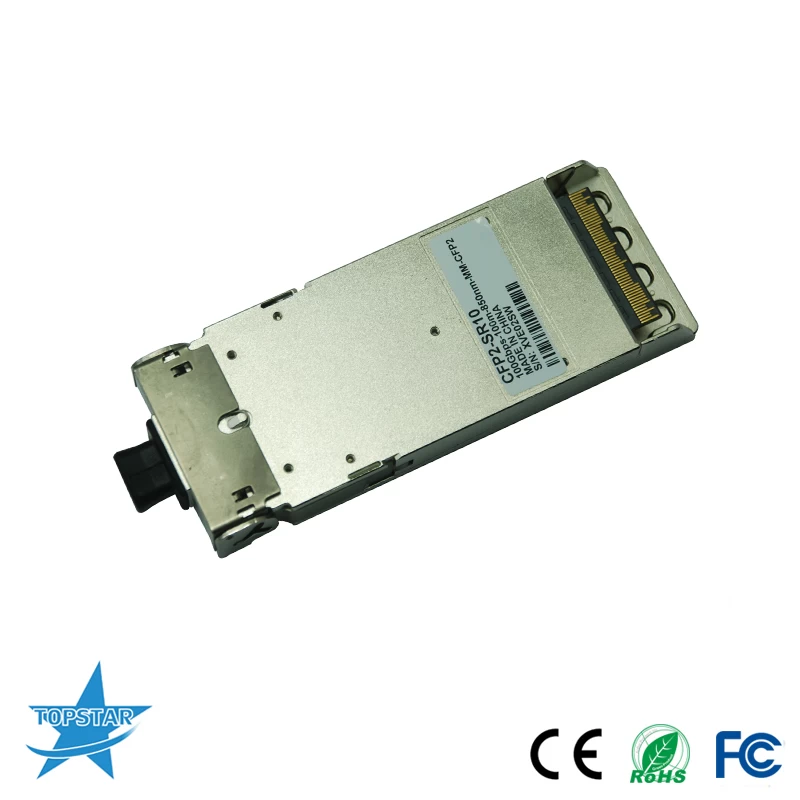

100G CFP2 100GBASE-SR10 100GBASE optical transceiver

The 100G CFP2 100GBASE-SR10 Optical Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.

Features

Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.2
Compliant to the IEEE 802.3ba(100GBASE-SR10)
Transmission data rate up to 11.18Gbit/s per channel
Up to 300m on OM3 and 400m on OM4 MMF
Power class 1 (<8W max)
OTU4 compatible
10 channels 850nm VCSEL array transmitter
10 channels PIN photo detector array receiver
MDIO digital diagnostic interface and control capabilities.
TX input and RX output CDR retiming
Hot pluggable electrical interface
Operating case temperature:0°C~ +70°C
Single 3.3V power supply
RoHS 6 compliant(lead free)
Utilizes a standard 24/20 lane optical fiber with MPO connector

Applications

100GBE interconnects
High-speed core router connections&Datacom/Telecom switch
Data aggregation and backplane applications
Proprietary protocol and density application

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

Compatibility

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.

OEM& ODM

Customized label and package , OEM and ODM service offered
