EC28510X-3MCD01

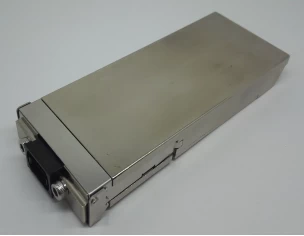

100Gb/s CFP2 SR10 850nm 100m Optical Transceiver

Features

Ø Supports 103.1Gb/s to 112Gb/s bit rates

Ø Applicable for 100m with OM3 MMF and 150m with OM4 MMF

Ø MPO 24 receptacle optical interface

Ø CPPI electrical interface

Ø
Uncooled 10x10Gb/s 850nm transmitter

Ø 10 parallel electrical serial interface

Ø Low power consumption <4W

Ø Digital Diagnostic Monitor Interface

Ø MDIO Communication Interface

Ø Compliant with 100GBASE-SR10

Ø Operating case temperature:

Ø Commerical:0 to 70 °C

Applications

Ø  100GBASE-SR10 Ethernet

Ø 10x11.2Gb/s Multimode OTN

Ø 10x 10GE-SRLite Ethernet

Standards

Ø  Compliant with IEEE 802.3ba

Ø  Compliant with CFP2 MSA hardware specifications

Ø Compliant with CFP2 MSA management specifications

General Description

ETU-LINK 100G CFP2 SR10 transceiver modules EC28510X-3MCD01 are designed for use in 100 Gigabit Ethernet links and 10x11.2G OTN client interfaces over multimode fiber. They are compliant with the CFP2 MSA and with IEEE 802.3ba 100GBASE-SR10. Digital diagnostics functions are available via the MDIO interface.
