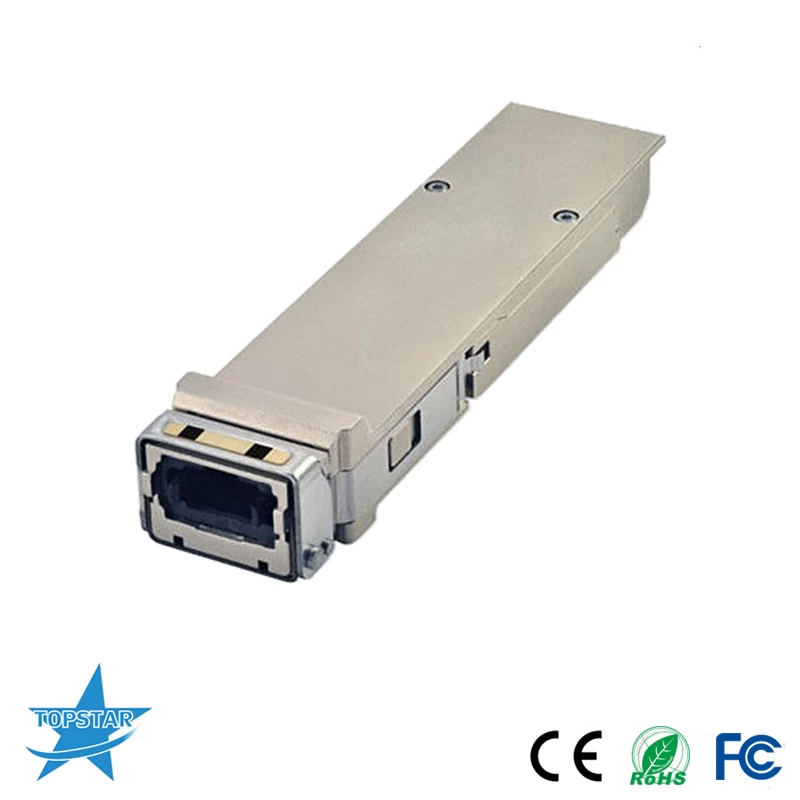

100G CFP4 100GBASE-SR4 100Gbase 100M 850nm Transceiver

The 100G CFP4 100GBASE-SR4 Transceiver is compatible with Dell Juniper Huawei etc. switch for telecom/ datacom network solution.

Features

Hot pluggable CFP4 MSA form factor
Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates
Compliant to IEEE 802.3bm 100GBASE-SR4
Power class 2 (<2.5W max)
Up to70m on OM3 and 100m OM4 MMF transmission
Up to 28Gb/s data rate per channel
Operating case temperature: 0~70oC
4x28G Electrical Serial Interface (CEI-28G-VSR)
MDIO management interface with digital diagnostic monitoring
Maximum power consumption 2.5W
Utilizes a standard 12/8 lane optical fiber with MPO connector
RoHS 6 compliant(lead free)
4×28Gb/s 850mm VCSEL-based transmitter

Applications

100GBE interconnects
High-speed core router connections&Datacom/Telecom switch
Data aggregation and backplane applications
Proprietary protocol and density application

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

Compatibility

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.

OEM& ODM

Customized label and package , OEM and ODM service offered
