100kva 250kva 300kw Volvo Stamford Silent Diesel Generator 500kva 280kw
The TAD530GE TAD733GE TAD1344GE-B is a powerful, reliable and economical Generating Set Diesel Engine built on the dependable Volvo inline six concept.
The TAD1341GE-B, TAD1342GE-B and TAD1343GE-B are emission certified. An electronically controlled viscous fan drive is available giving substantially lower noise and fuel consumption. Easy service and maintenance Easily accessible service and maintenance points contribute to the ease of service of the engine.

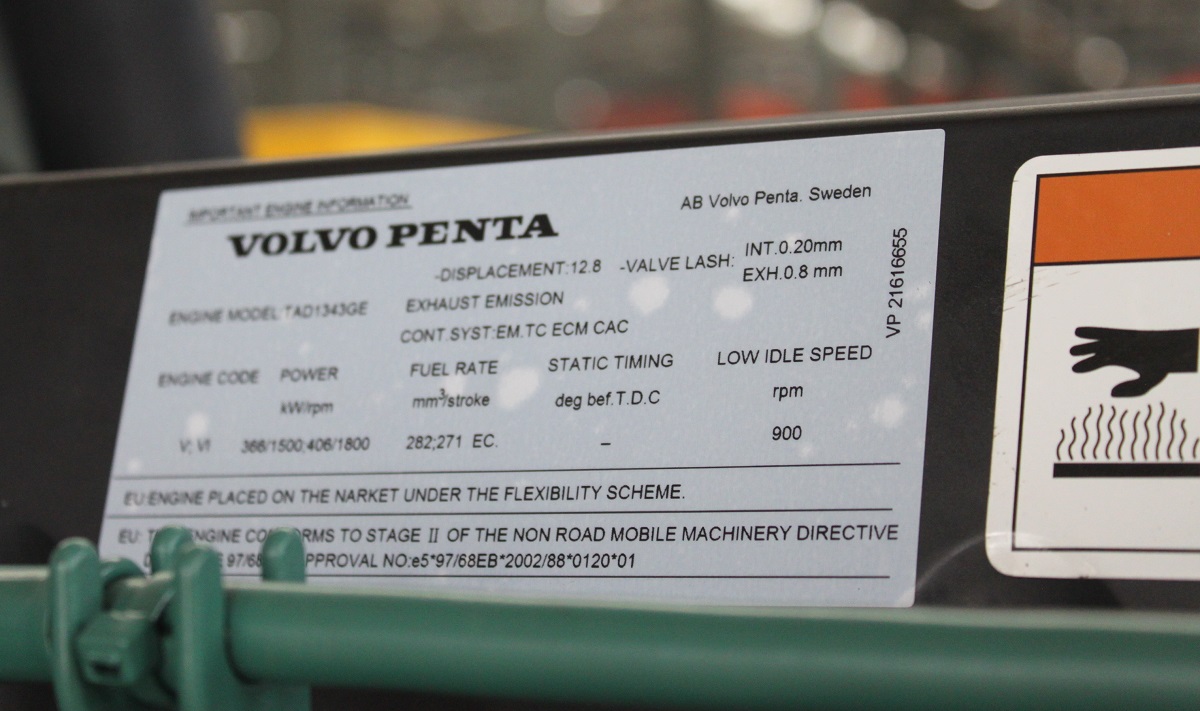

Volvo Engine Specification
|
Manufacturer
|
Volvo Engines Company Limited
|
|
Model
|
TAD1343GE
|
|
Engine speed, RPM
|
1500rpm
|
|
Engine power, KW
|
|
|
----------------------------Max. Standby power
|
356 kw
|
|
----------------------------Prime power
|
325 kw
|
|
Type
|
4 stroke cycle , Vertical in-line, 6 cylinder
|
|
Aspiration
|
Naturally aspirated
|
|
Bore * Stroke
|
131*158 mm
|
|
Displacement
|
12.78 L
|
|
Compression ratio
|
18.1 : 1
|
Volvo engine fuel consumption
|
Load
|
Type of operation and application
|
|
g/kWhr
|
l/hr
|
|
Standby 100%
|
194
|
69.29
|
|
Prime 100%
|
192
|
68.57
|
|
75% prime
|
193
|
68.93
|
|
50% Prime
|
200
|
71.43
|
|
25% Prime
|
222
|
79.29
|
♦ Assembled by Volvo diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V or 24V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.

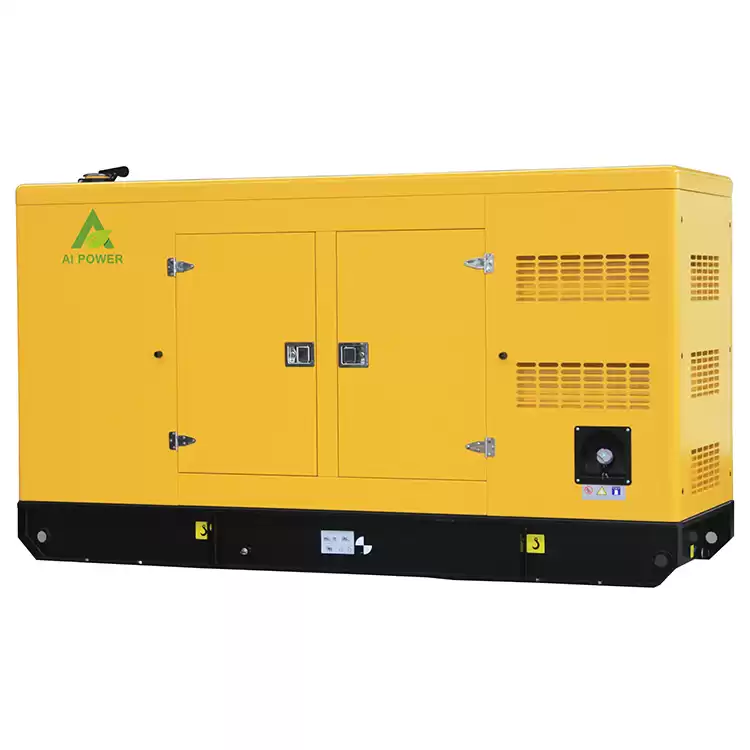

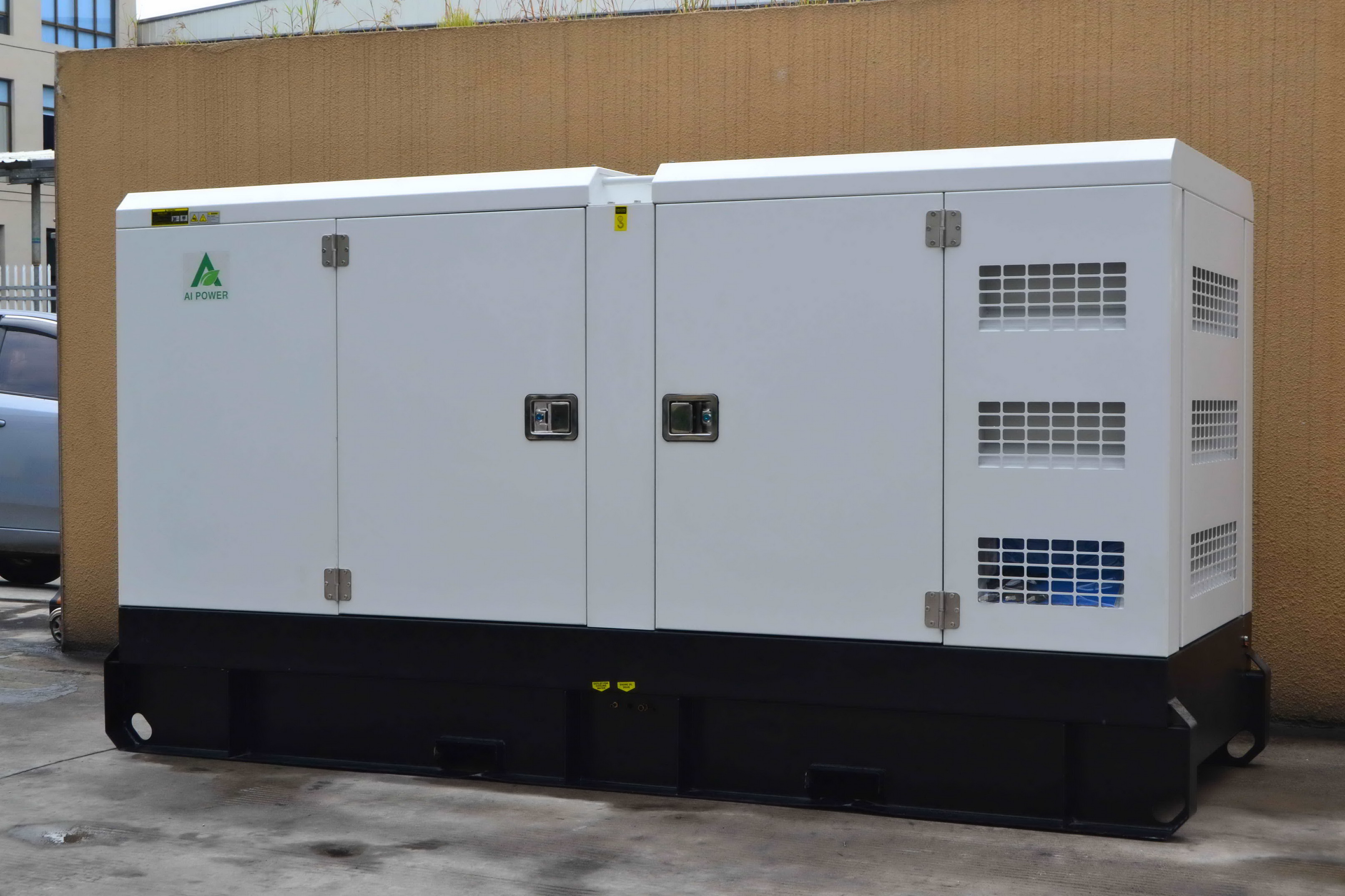

♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

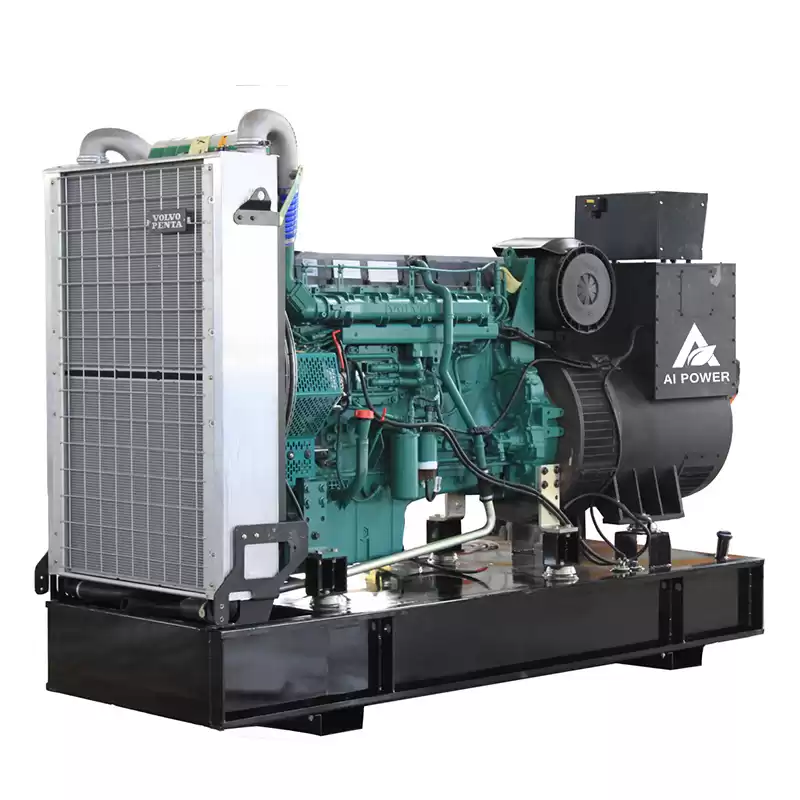

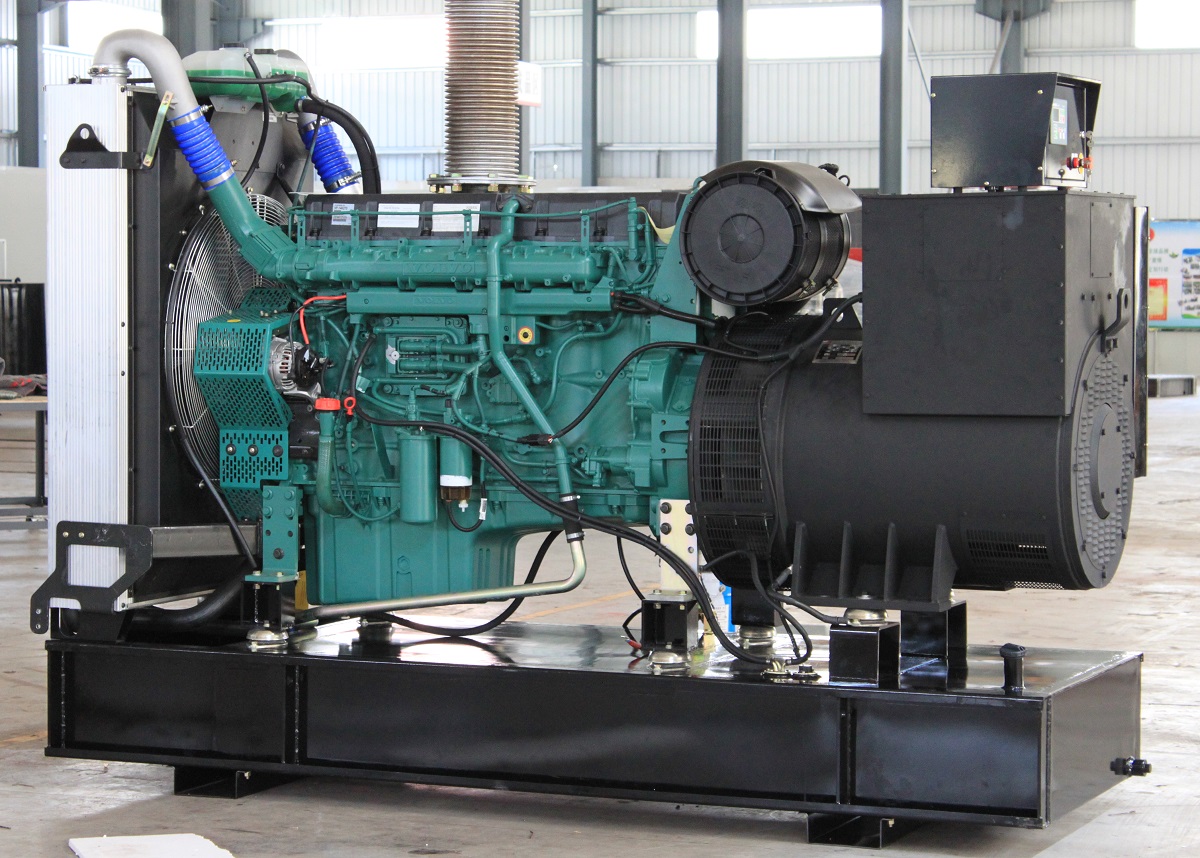

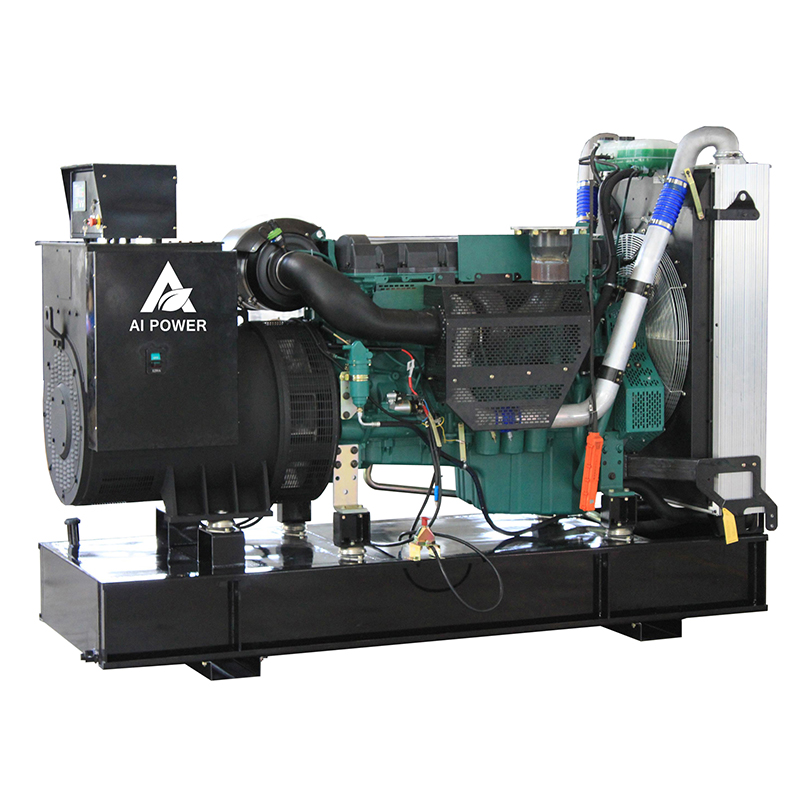

Volvo Generator Photos

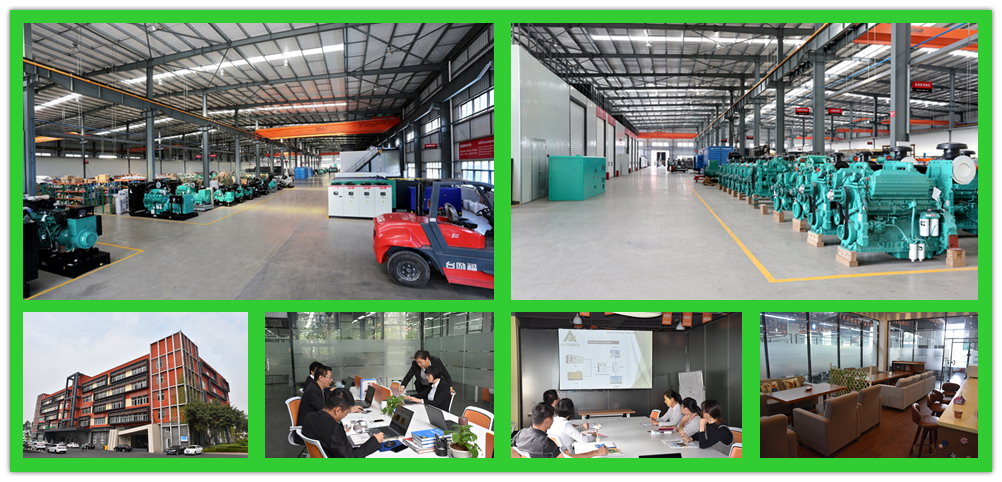

Ai Power Factory Overview
