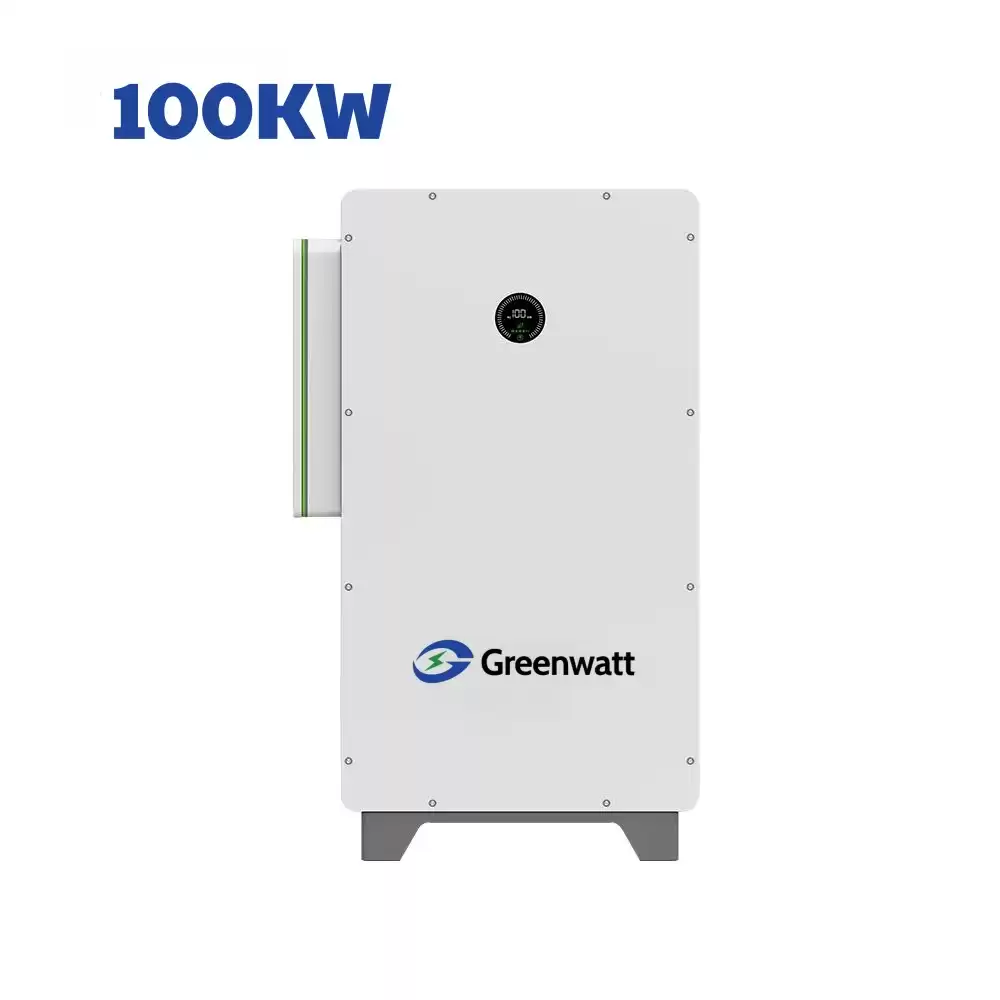

100kw 200kw commercial three phase battery storage solar hybrid inverter price

Greenwatt 100kw three phases energy storage hybrid inverter with leading functions,built-in UPS and black start,100% unbalanced output,110% continuous AC overloading,type II SPD on DC and AC side. Multiple MPPTs input

DC/AC Ratio up to 2.0,max. efficiency up to 98% can reach high yields.Scalable up to 300kW,support lithium and lead-acid battery,remote control of DG can reach the solar system's flexibility.

Facebook Twitter Pinterest LinkedIn 分享



100kw hybrid solar inverter



Features of WIT 50-100K-HU/AU

Scalable system configuration, extend to 300kW

Support UPS function and black start

100% unbalanced load when backup

110% continuous AC overloading capacity

Support remote control of DG

Multiple MPPTs input

Grid-support functions

Datasheet WIT 50-100K-HU/AU
Input Data (PV)
Max. recommended PV power(for module STC) 156kW
Start voltage 195V
Max. Input Voltage 1100V
MPPT nominal voltage/range 550V,180V~800V
Max. input current per MPP tracker 32A
Max. short-circuit current per MPP tracker 40A
No. of PV strings per MPP tracker 2
No. of MPP trackers 10
Output Data (AC)
AC nominal power 100kW
Max. AC apparent power 110kVA
Nominal AC voltage/range 380/400/415V,-15%~+10%
Nominal AC grid frequency/range 50/60Hz,45-55Hz/55-65Hz
Max. output current 166.7A
Adjustable power factor -1…+1
THDi <3%
AC grid connection type 3P3W+PE/3P4W+PE
Input Data (AC)
AC nominal power 100kW/200kW
Max. AC apparent power 110kVA/200kVA
Nominal AC voltage/range 380/400/415V,-15%~+10%
Nominal AC grid frequency/range 50/60Hz,45-55Hz/55-65Hz
Max. input current 166.7A/303A
Battery Data (DC)
Continuous charging and discharging power 113.5kW
Battery voltage range 600-1000V (for 3P3W) / 680-1000V (for 3P4W)
Recommended battery voltage 768V
Max charging and discharging current 167A
BMS communication RS485/CAN
Backup Power (AC)*
Rated AC output power 100kW
Max. AC apparent power 120kVA
Rated AC output voltage 220V/230V/240V(L-N),380V/400V/415V(L-L)
Nominal AC output frequency 50/60 Hz
Load connection 3W+N+PE
Max. output current 181.8A
THDv <3% (Linear load)
Load unbalance 100% three-phase unbalanced
Overload capacity ≤110% ：Continues; 110%~120% ：<1min; >120% ：200ms
On/off grid transfer time ≤20ms
Efficiency
Max. efficiency 98.2%
