Residential 5kw 5000w 5kva off grid hybrid solar energy power inverter

An off-grid inverter is a critical component in standalone solar power systems, converting DC (direct current) electricity from batteries (charged by solar panels, wind turbines, or generators) into AC (alternating current) for household or commercial use. Unlike grid-tied inverters, off-grid inverters operate independently from the utility grid.

Facebook Twitter Pinterest LinkedIn 分享

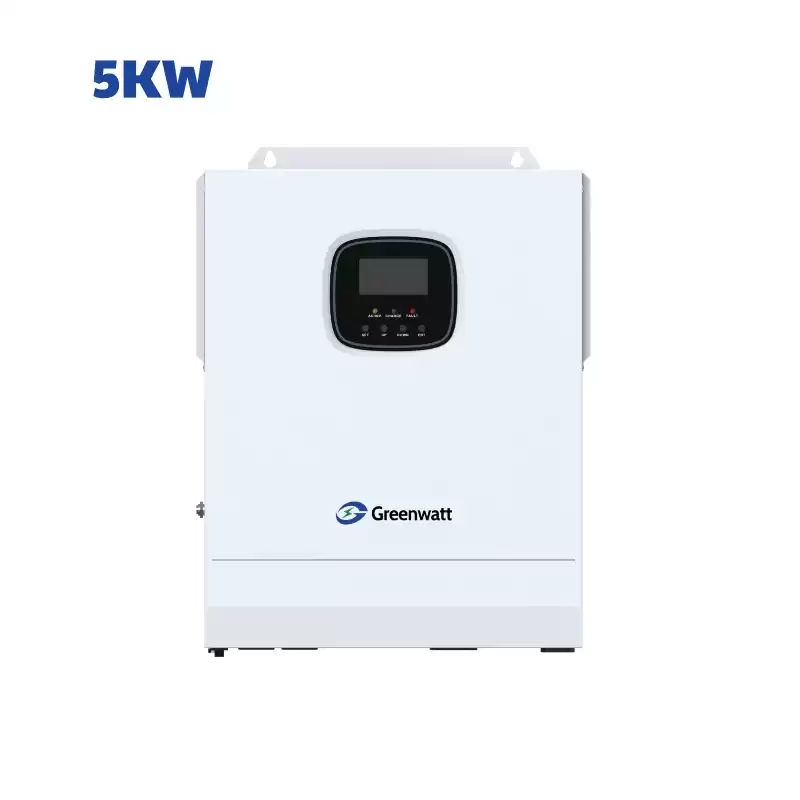

5kw off grid hybrid solar inverter

Features of HSI 5500P

Up to 6 units in parallel for 5500P model
Max. PV charging current up to 100A
Support remote monitoring
Up to 99.9% MPPT tracking efciency
Support Li-ion battery BMS communication and BMS dual activation

MODEL                                                             HSI5500P HSI5500
INVERTER OUTPUT
Rated Output Power 5,500W
Peak Power 11,000VA
Rated Output Voltage 230Vac, single-phase or three-phase
when in parallel		 230Vac, single-phase
Load Capacity of Motors 4HP
Rated AC Frequency 50Hz/60Hz
Waveform pure sine wave
Switch Time 10ms（typical）
BATTERY
Battery Type Lead-acid / Li-ion / User-defined
Rated Battery Voltage 48V
Voltage Range 40～60Vdc
Max. PV Charging Current 100A
Max. Utility/Generator
Charging Current		 60A
Max. Hybrid Charging
Current		 100A
PV INPUT
Num. of MPPT 1
Max. PV Array Power 6,000W
Max. Input Current 22A
Max. Open-circuit Voltage 500Vdc
MPPT Voltage Range 120~450Vdc
UTILITY / GENERATOR INPUT
Input Voltage Range UPS mode：170～280Vac；APL mode：90～280Vac
Frequency Range 50/60Hz
Bypass Overload Current 40A
GENERAL
Num. of Parallel 1～6 units /
Dimensions 426*322*124mm 426*322*126mm
Weight 10.5kg 10.5kg
Protection Degree IP20, indoor onIy IP20, indoor onIy
Operating Temp. Range -10℃~55℃ -10℃~55℃
Cooling Method intelligent fan intelligent fan
COMMUNICATION
Embedded Interfaces RS485 / USB / Dry contact RS485 / USB / Dry contact
External Module (optional) Wi-Fi / GPRS Wi-Fi / GPRS
