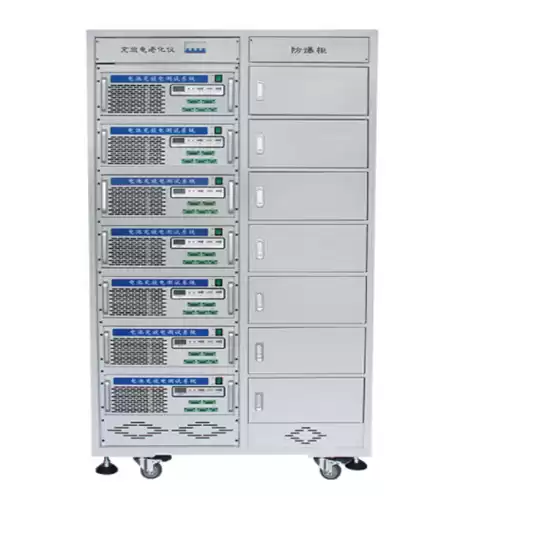

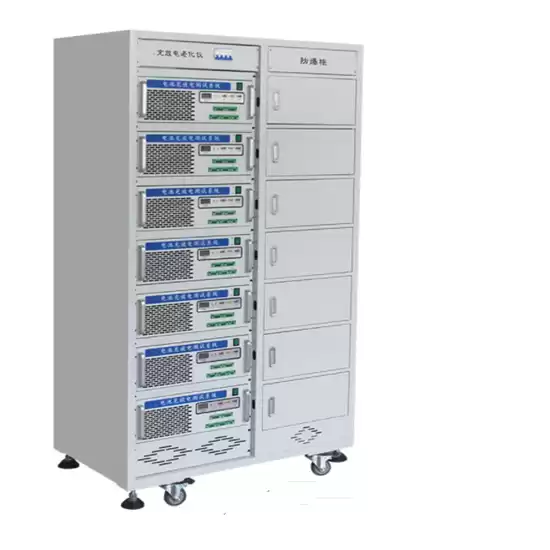

100V 10A 20A Battery Pack Charge and Discharge Aging Machine



FEATURE

The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.


SPECIFICATION

Technical Parameter



Input Power Supply

Measuring Range

10-100V

Accuracy

±(0.2% of reading +0.2% of range)





Current

Charging Range

50-10000mA

Charging Accuracy

±(0.2% of reading +0.2% of range)

Discharge Range

50-20000mA

Discharge Accuracy

±(0.2% of reading +0.2% of range)

Charge

Constant Voltage Cut-off Current

Minimum 50mA

Capacity

Accuracy

±1%

Power

Discharge Power

≤1400W

Time

Inspection Time

Real-time Collection<2S

Timing Range

0-999h/step

Data Recording Interval

≥5S

Middle Machine Version

1:1 series

Number of Passages Per Cabinet

Seven channels, seven rows and one column



Charge

Charging Mode

Constant Current and Constant Voltage Charging

Cut-off condition

Voltage, Current, Relative Time, Overcharge Protection

Discharge

Discharge mode

Constant current discharge



Cut-off condition

Voltage, Relative Time and Over-discharge Protection

Loop

Cyclic measurement range

1-999 times

Single cycle step number

100

Voltage and Current Detection Sampling

Four-wire sampling

Data Base

Using SQL database to manage test data

Upper computer communication mode

Based on TCP/IP Protocol/Serial Port

Data Output Mode

EXCEL/TXT/Chart

Communication Interface

Mesh port

Chassis dimensions

450x450x170mm

Cabinet size

980x600x1820mm

Spatial Dimension of Discharge Battery

370x550x190mm
