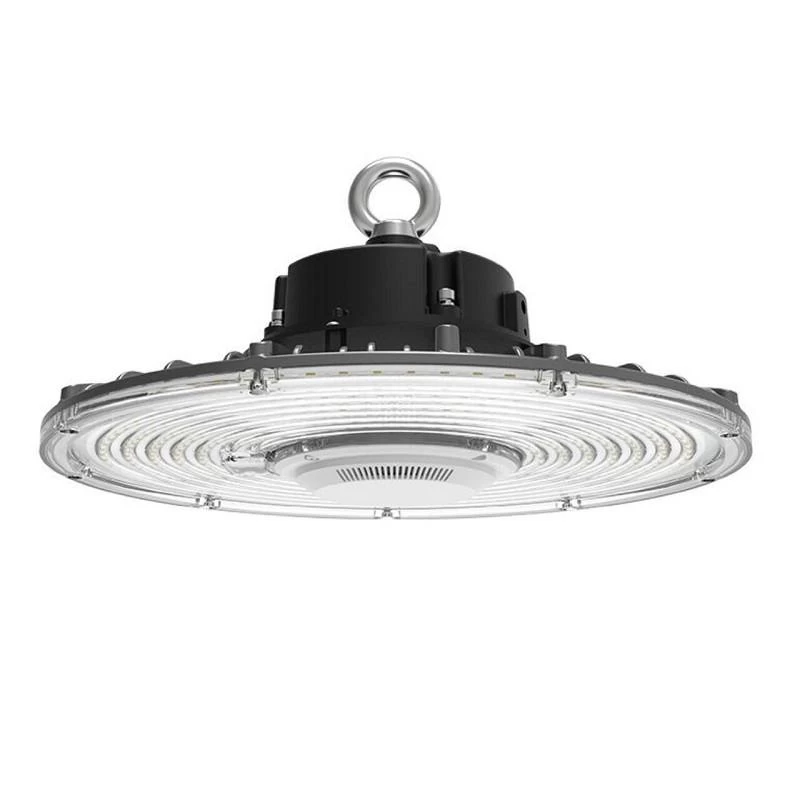

Product Item: 100W Graphene UFO High Bay Lights For High Ceiling Lighting
Overview:
This super slim design Graphene UFO LED high bay light is a innovative new UFO product. Thermal conductivity of this Graphene is 80-110W/m•k, much higher than 30-90W/m•k of traditional die-casting Aluminum heat sink. With better thermal management of the heat sink, the UFO highbay LED luminaire lifespan can be greatly prolonged, and size can be thus minimized. The ultra-thin UFO luminaire body weight is also at least 30% lighter, which saves freight cost and makes easier for installation. Light efficiency is as high as 150-160LM/W and more energy-saving. It's a perfect replacement for metal halide lamps, incandescent lamps and mercury vapor lamps in industrial and commercial lighting.
Specifications:
|
Model
|
SR-HBUG-100W
|
Power
|
100W
|
Lumen Output
|
16,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|

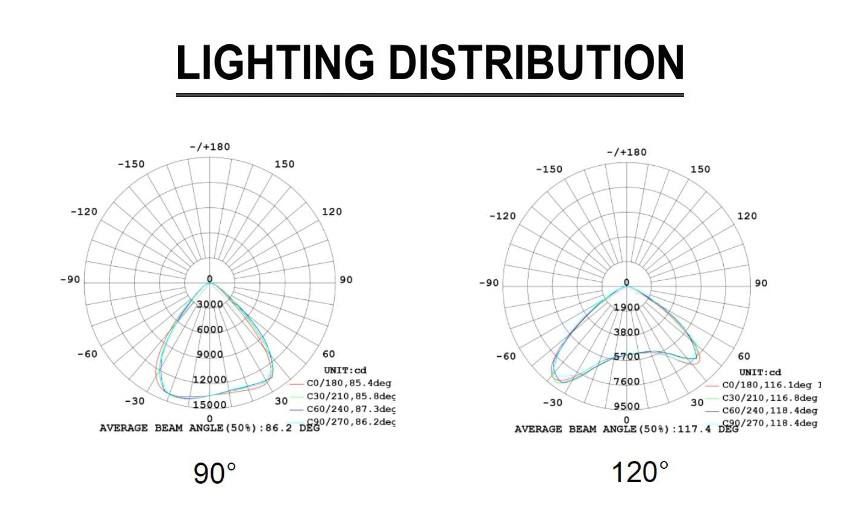

Beam Angle
|
60°/90°/120°
|
Driver
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC 90-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|
φ288.5x150mm
|
Weight
|
2KG
|
Warranty
|
5 years warranty
|
Features:
-

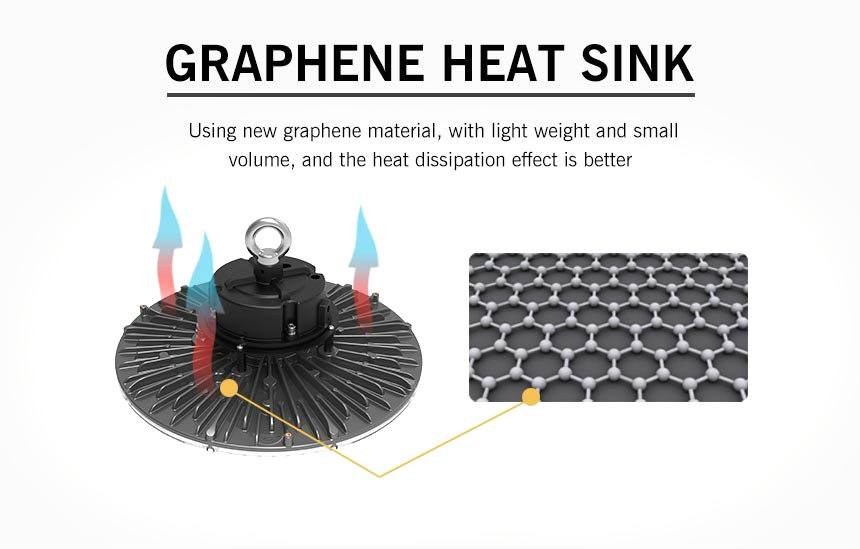

Latest LED heat dissipation technology of Graphene material, higher heat conductivity, better LED junction temperature control.
-
Lamp material: High thermal conductivity Graphene&6061 Aluminum, advantages of two kinds of material combined, faster heat disperse, and slim lamp body. Light weight, at least 30% less weight than die-casting Aluminum heat sink.
-
Wattage: 80W/100w/150W, beam angle 90°/120°(60° customized upon request).
-
Super bright Lumileds LED chip and highly efficient lens, luminous efficacy as high as 150-160LM/W, with superior lighting uniformity.
-
Ultra slim UFO design, lamp fixture heat sinks' maximum 38mm to 51mm thickness from 80W to 150W, with aesthetics.
-

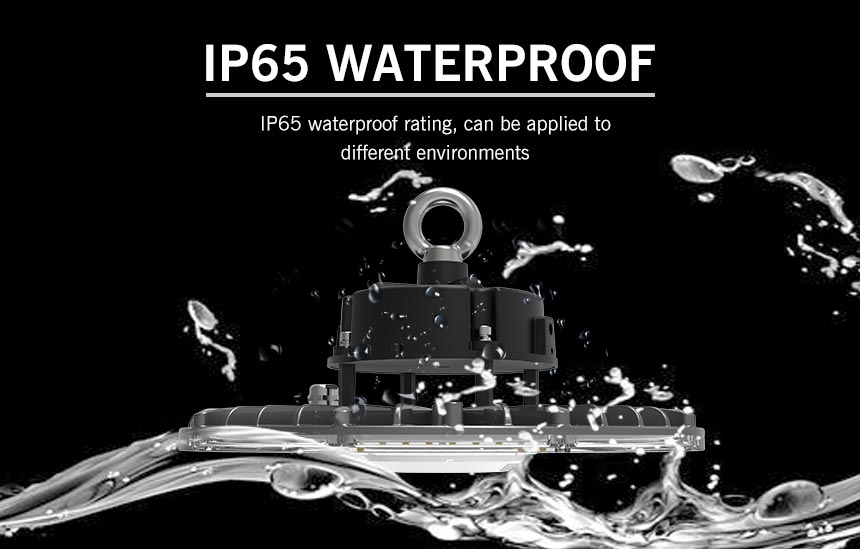

IP65 protection rating, anti-corrosion lamp surface, better durability under tough environment.
-

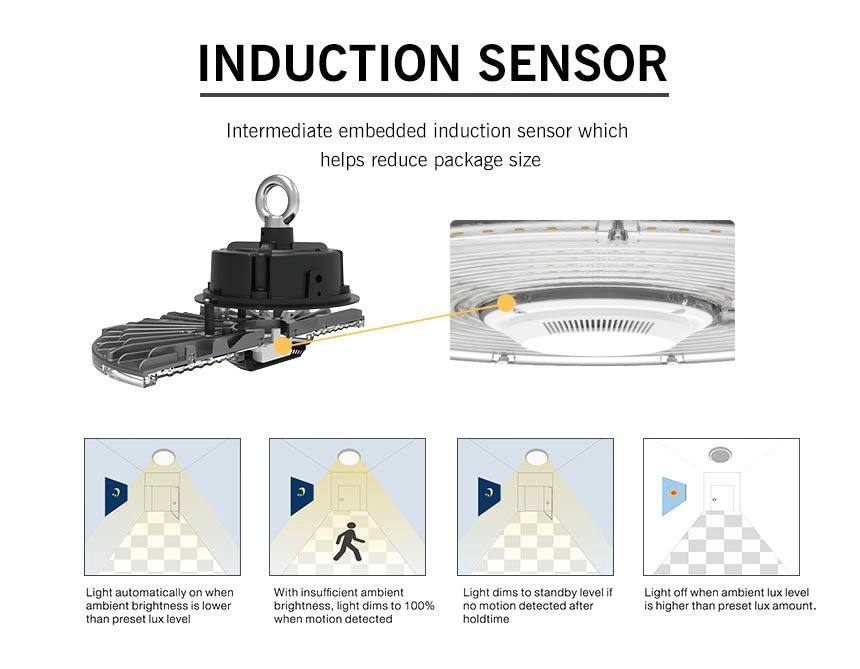

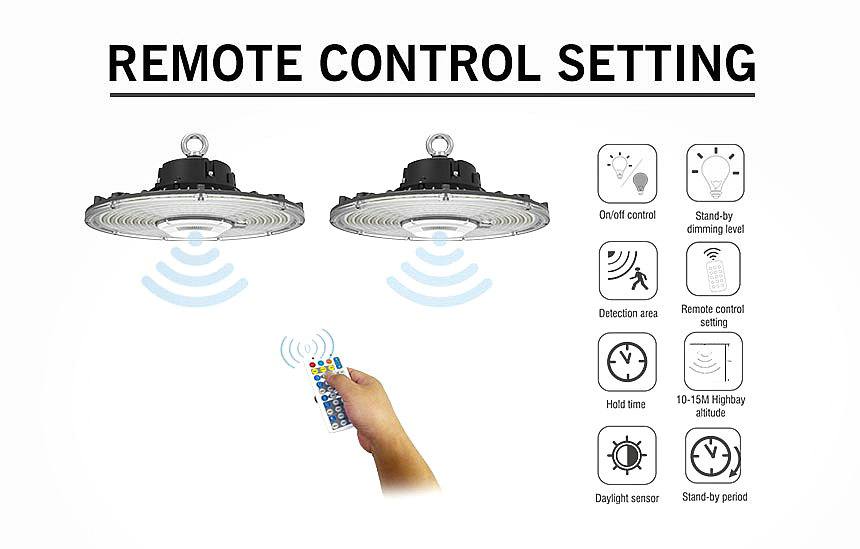

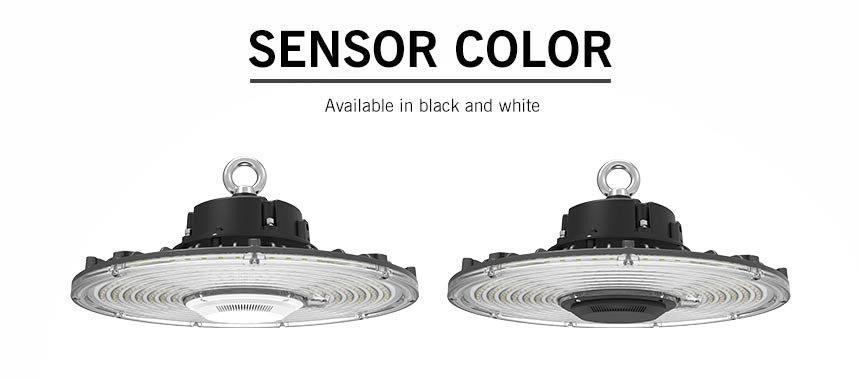

1-10V dimmable, DALI dimmable, Zigbee wireless control, microwave sensor available.
-
More energy savings but less maintenance cost in the long run.
-
This LED UFO bay light is widely applied in factory warehouses, garages, shopping centers, underground car parks, workshops, fitness centres, etc.
Comparison between Graphene and Die-casting Aluminium:
|
Feature
|
Graphene High Thermal Conductivity
|
Die-casting
Aluminium
|
Remark
|
|
Thermal Conductivity(w/m•k)
|
80-110
|
30-90
|
Able
to replace die-casting Aluminium
|
|
Density(g/cm3)
|
1.7-1.8
|
2.7
|
38%
weight reduced for same design
|
|
Radiant Coefficient(w/m2•K4)
|
0.94
|
0.46
|
Heat
dissipation 20% better for same area
(taking 70℃ for example).
|
|
Anti-corrosion
|
Acid-resistant
|
Non-acid-resistant
|
Better
environment adaptability, higher
stability in acid or marine salt environment.
|
|
Energy Consumed for Heat Sink Manufacturing(KWH/Ton)
|
2,000
|
16,000
|
CO2 discharged in the
process from Beauxite to Aluminium and then to
Aluminum heat sink is 8 times
as much as from Graphite ore to Graphene
and then to Graphene heat sink.
|
|
CO2 Emission for 1KG Heat Sink Manufacturing(KG)
|
1.57
|
12.56
|
Innovative Graphene Lighting:
This 100W Graphene UFO LED light is a adopts the super high thermal dissipation material Graphene and Aluminum as the heat sink, as data in list, compared with formerly traditional die casting Aluminum, this new heat sink can have unparalled advantages. LED UFO life expectancy can be prolonged.
Graphene Heat Sink Specifications:
Properties
|
Standard
|
Unit
|
Value
|
|
Bulk Density
|
ASTM D1985
|
--
|
0.77
|
|
Specific Gravity
|
ASTM D792-13
|
g/cm3
|
1.7-1.8
|
|
Horizontal Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
80
|
|
Vertical Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
110
|
|
Radiant Coefficient
|
---
|
---
|
0.94
|
|
Flexural Strength
|
ASTM D790-17
|
MPa
|
32.7
|
|
Rockwell Hardness
|
ASTM D785-08(2015)
|
L
|
106
|
|
Shore Hardness
|
ISO 868:2003
|
Shore A
|
100
|
ISO 868:2003
|
Shore D
|
79
|
Compressive Strength
|
ASTM D695-15
|
MPa
|
53.0
|
|
Differential Coefficient of
Linear Thermal Expansion
|
ASTM E831-14-40℃
|
μm/(m・℃)
|
22.2
|
ASTM E831-14+120℃
|
μm/(m・℃)
|
52.8
|
|
Deflection Temperature under Load
|
ASTM D648-16
|
℃
|
280
|
|
Molded Shrinkage
|
ASTM D955
|
%
|
0.4
|
Surface Resistance
|
ASTM D257-14
|
Rs(Ω)
PSΡs(Ω/sq)
|
≤10 4
≤10 5
|
|
Chemical Resistance
|
ASTM D543-14
10%(m/m)HCI
|
Change rate of mass%
|
≤0.2
|
|
ASTM D543-14
10%(m/m)NaOH
|
Change rate of mass%
|
≤0.19
|
UL Flammability
|
UL94-2013 Rev.7-2017
|
|
V-0
|
|
RoHS
|
RoHS
|
---
|
All N.D
|

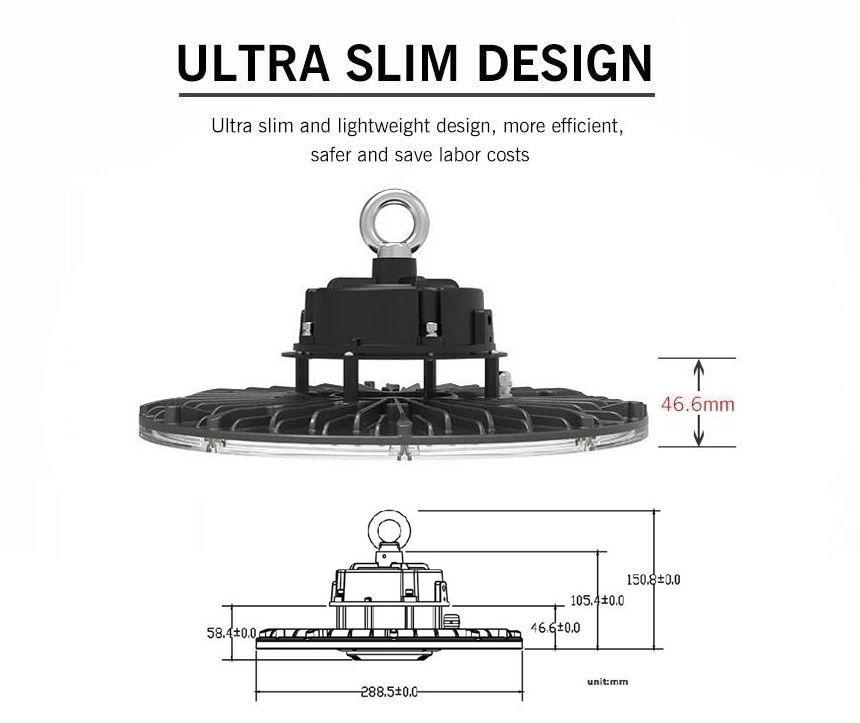

Ultra-thin&Good ventilation:
Thickness of this 100W UFO from the bottom to the top of the driver installtion pillar is only 46.6mm. The space between the driver and the heat sink leaves for excellent ventilation and natural cooling of the luminaire.
