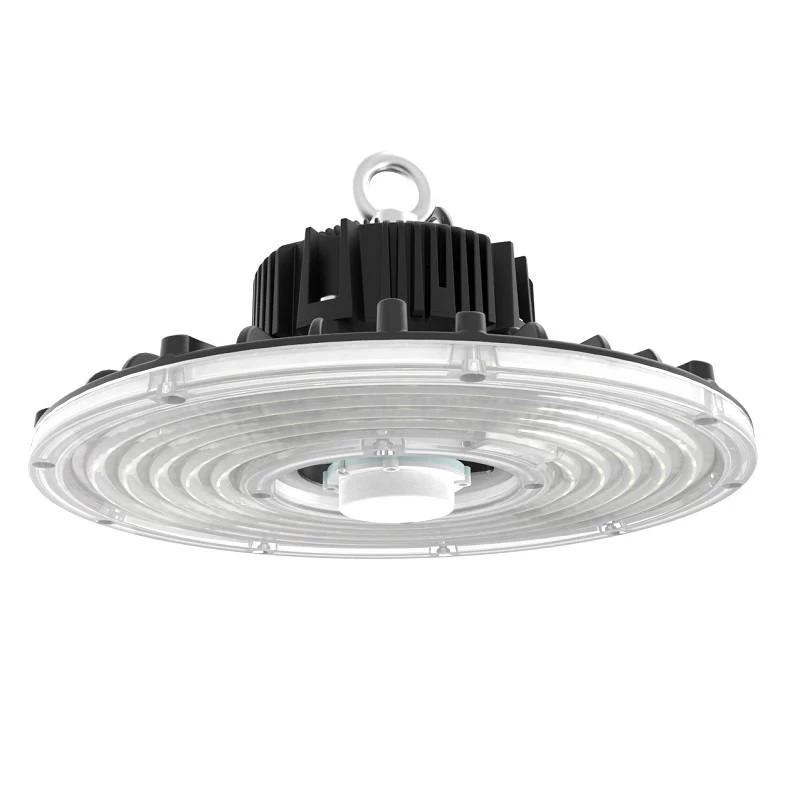

Product Item: 80W Graphene UFO LED Dimmable High Bay Lights For Factory Warehouse Lighting
Overview:
This super slim design Graphene UFO LED high bay light is an innovative new UFO highbay luminaire. Thermal conductivity of this Graphene is 80-110W/m•k, much higher than 30-90W/m•k of traditional die-casting Aluminum heat sink. With better thermal management of the heat sink, the Graphene UFO high-bay LED luminaire lifespan can be greatly prolonged, and size can be thus minimized. The ultra-thin UFO luminaire body weight is also at least 30% lighter, which saves freight cost and makes easier for installation. Light efficiency is as high as 150-160LM/W and more energy-saving. It's a perfect replacement for metal halide lamps, incandescent lamps and mercury vapor lamps in industrial and commercial lighting.
Specifications:
|
Model
|
SR-HBUG-80W
|
Power
|
80W
|
Lumen Output
|
12,800lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
Driver
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC 90-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|
φ263x135mm
|
Weight
|
1.8KG
|
Warranty
|
5 years warranty
|
Features:
-
Latest LED heat dissipation technology of Graphene material, higher heat conductivity, better LED junction temperature control.
-

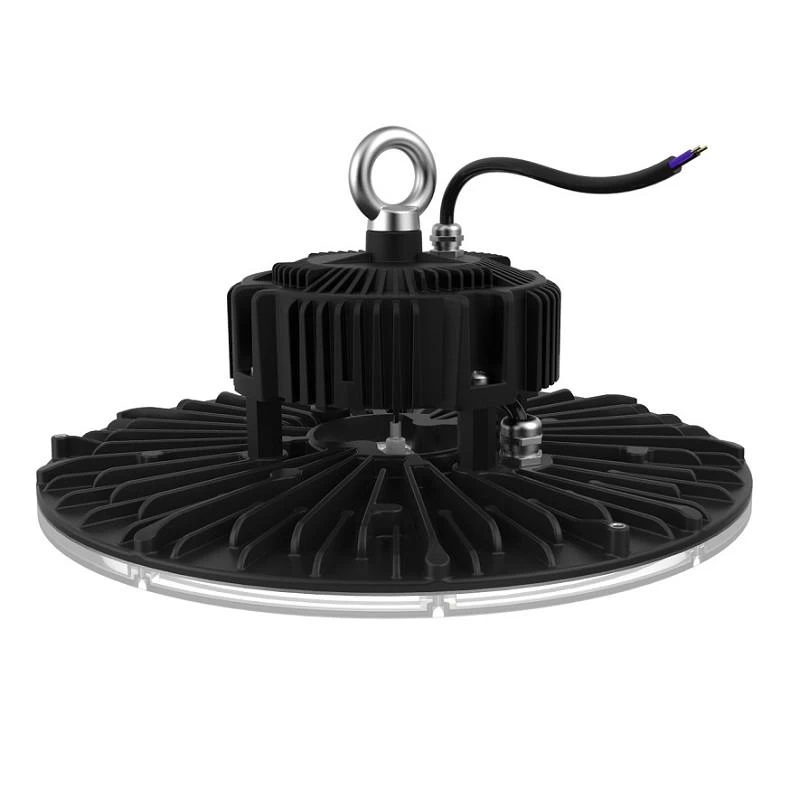

Lamp material: High thermal conductivity Graphene & 6061 Aluminum, advantages of two kinds of material combined, faster heat disperse, and slim lamp body. Light weight, at least 30% less weight than die-casting Aluminum heat sink.
-
Wattage: 80W/100w/150W, beam angle 90°/120°(60° customized upon request).
-

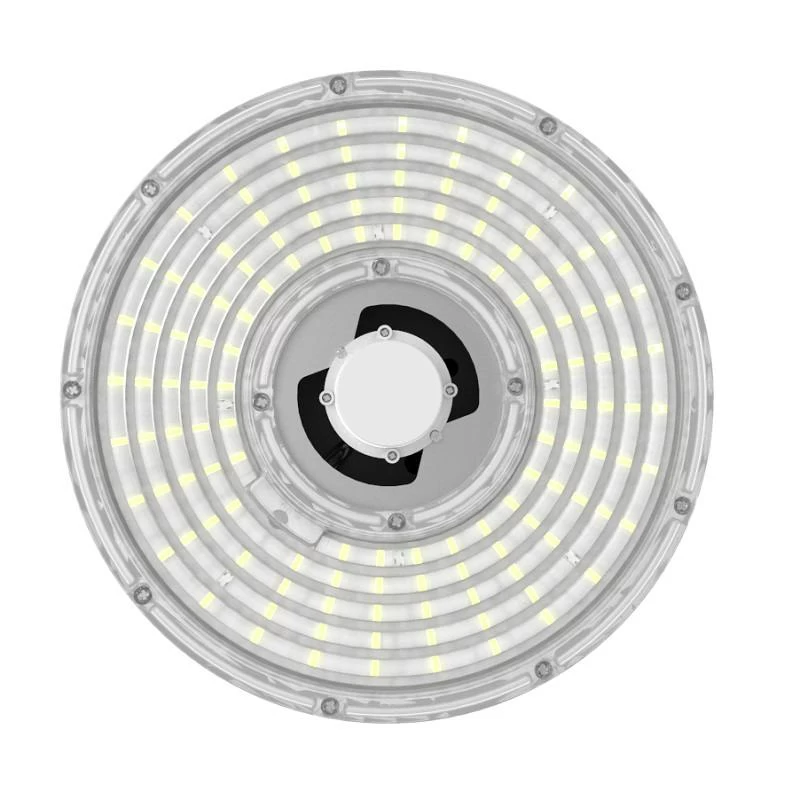

Super bright Lumileds LED chip and highly efficient lens, luminous efficacy as high as 150-160LM/W, with superior lighting uniformity.
-
Ultra slim UFO design, lamp fixture heat sinks' maximum 38mm to 51mm thickness from 80W to 150W, with aesthetics.
-
IP65&IK08 protection rating, anti-corrosion lamp surface, better durability under strong acid or seaside salt tough environment.
-
1-10V dimmable, DALI dimmable, Zigbee wireless control, microwave sensor available.
-
More energy savings but less maintenance cost in the long run.
-
Widely applied in factory warehouse lighting, garage lighting, shopping center lighting, underground car park lighting, workshop lighting, etc.

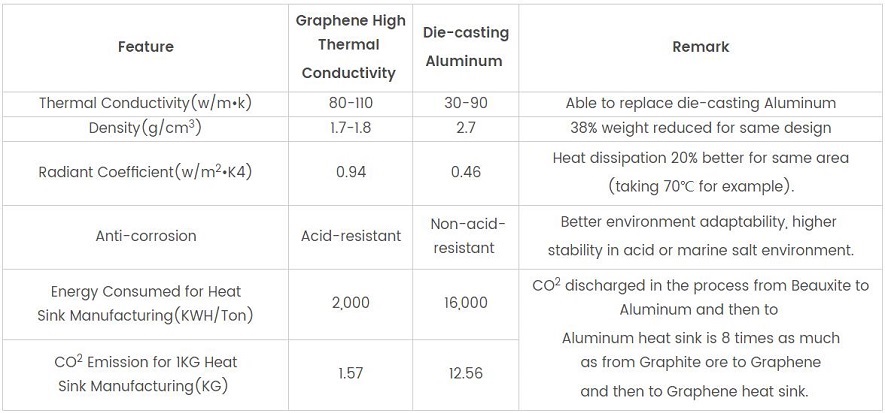

Comparison between Graphene and Die-casting Aluminum:
Innovative Graphene Lighting:
Graphene is a new heat sink material, compared with traditional die casting Aluminum, thermal performance better, and this model of Graphene UFO high bay light combines the advantages of both Graphene and Aluminum, heat can be fast and evenly transferred from PCB board to lamp body for natural cooling.
Graphene Specifications:
Properties
|
Standard
|
Unit
|
Value
|
|
Bulk Density
|
ASTM D1985
|
--
|
0.77
|
|
Specific Gravity
|
ASTM D792-13
|
g/cm3
|
1.7-1.8
|
|
Horizontal Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
80
|
|
Vertical Thermal Conductivity
|
EFD Thermal Simulation
|
W/m・K
|
110
|
|
Radiant Coefficient
|
---
|
---
|
0.94
|
|
Flexural Strength
|
ASTM D790-17
|
MPa
|
32.7
|
|
Rockwell Hardness
|
ASTM D785-08(2015)
|
L
|
106
|
|
Shore Hardness
|
ISO 868:2003
|
Shore A
|
100
|
ISO 868:2003
|
Shore D
|
79
|
Compressive Strength
|
ASTM D695-15
|
MPa
|
53.0
|
|
Differential Coefficient of Linear
Thermal Expansion
|
ASTM E831-14-40℃
|
μm/(m・℃)
|
22.2
|
ASTM E831-14+120℃
|
μm/(m・℃)
|
52.8
|
|
Deflection Temperature under Load
|
ASTM D648-16
|
℃
|
280
|
|
Molded Shrinkage
|
ASTM D955
|
%
|
0.4
|
Surface Resistance
|
ASTM D257-14
|
Rs(Ω)
PSΡs(Ω/sq)
|
≤10 4
≤10 5
|
|
Chemical Resistance
|
ASTM D543-14
10%(m/m)HCI
|
Change rate of mass%
|
≤0.2
|
|
ASTM D543-14
10%(m/m)NaOH
|
Change rate of mass%
|
≤0.19
|
UL Flammability
|
UL94-2013 Rev.7-2017
|
|
V-0
|
|
RoHS
|
RoHS
|
---
|
All N.D
|

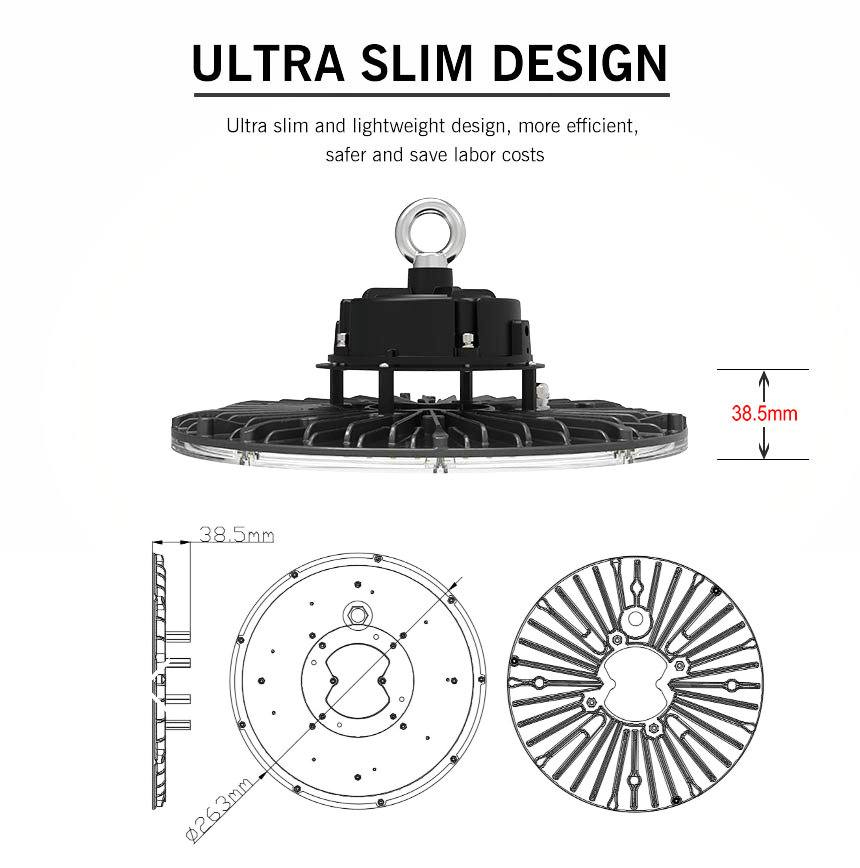

Super Slim fixture:
As Graphene is excellent in thermal conductivity and dissipation, UFO lamp body is of small thickness. Moreover, this LED luminaire has light weight, as this Graphene heat sink density is only 1. 7g/c m³.

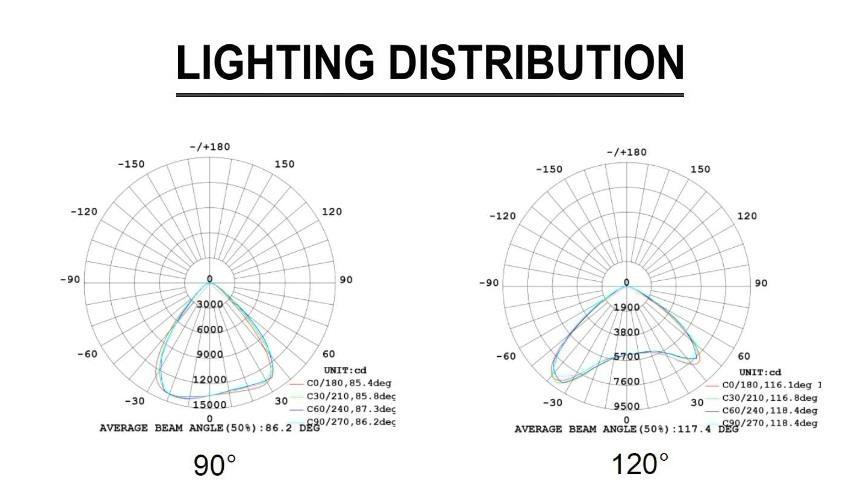

Lighting Distribution:
This Graphene UFO light has beam angles 90° and 120°, and 60° is also available for customization.
Microwave Induction Sensor:

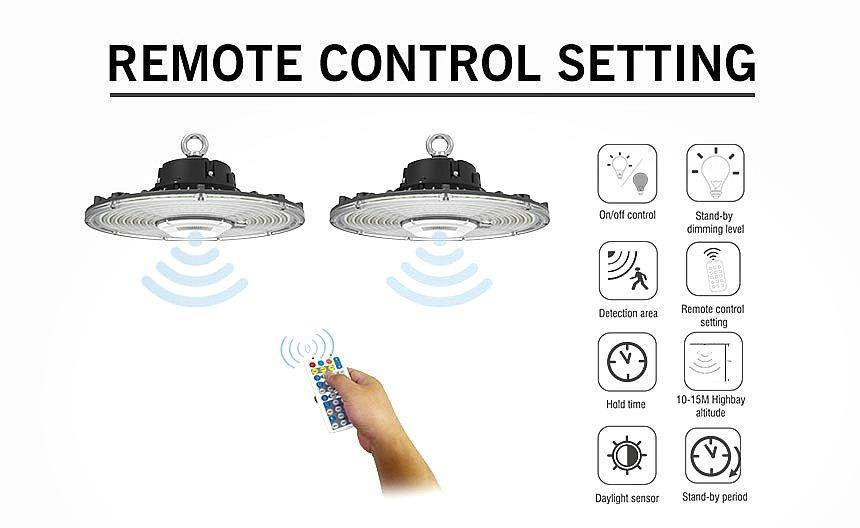

This LED fixture can match a embedded microwave switch to make it a microwave Graphene UFO high bay light. Sensor colours available are black and white. And can also match a remote controller or intelligent Zigbee system.
IP 65 Rated:
High protection rating for harsh environment lighting projects.
