100W microwave sensor UFO high bay

The 700A Series UFO high bay luminaires are equipped with Sosen electronic driver, 2835 Samsung as light source, offering enough flexibility to meet varying illumination needs with great potential to reduce energy and maintenance costs.



100W Lightweight UFO High Bay

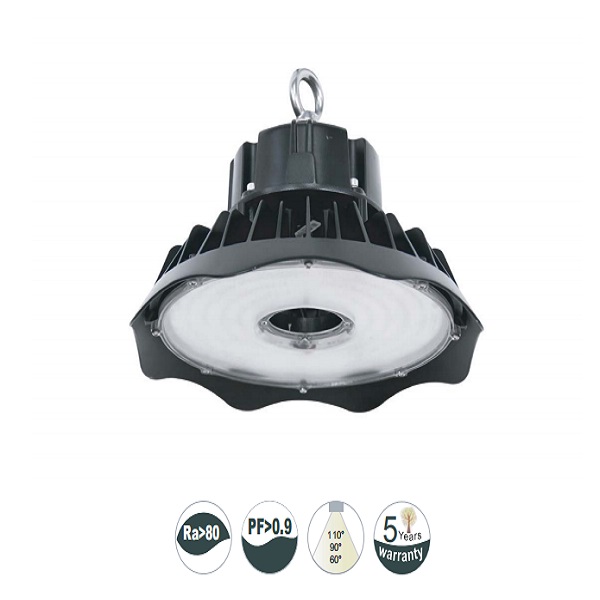

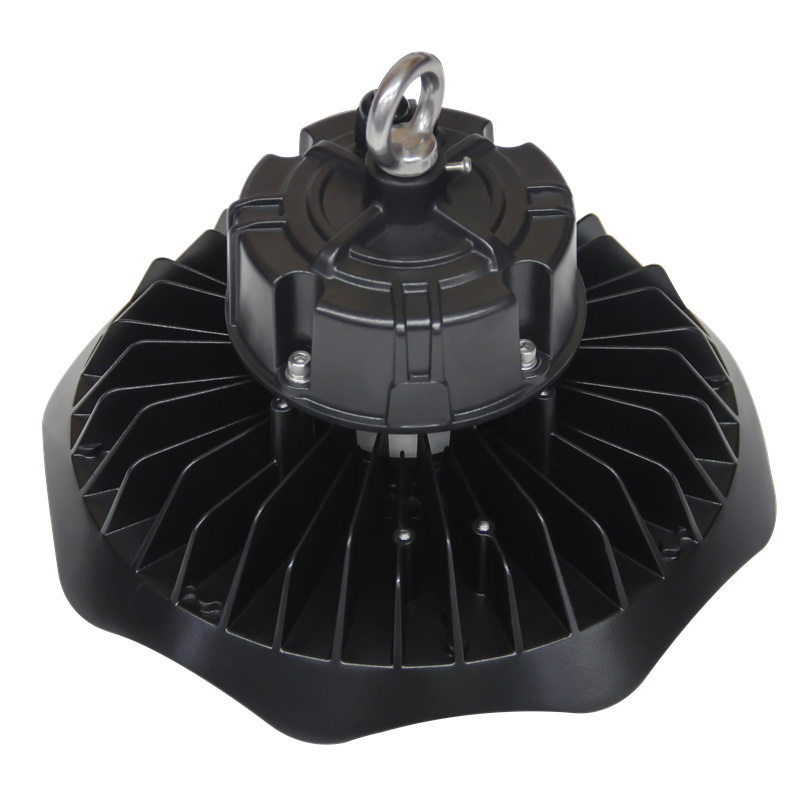

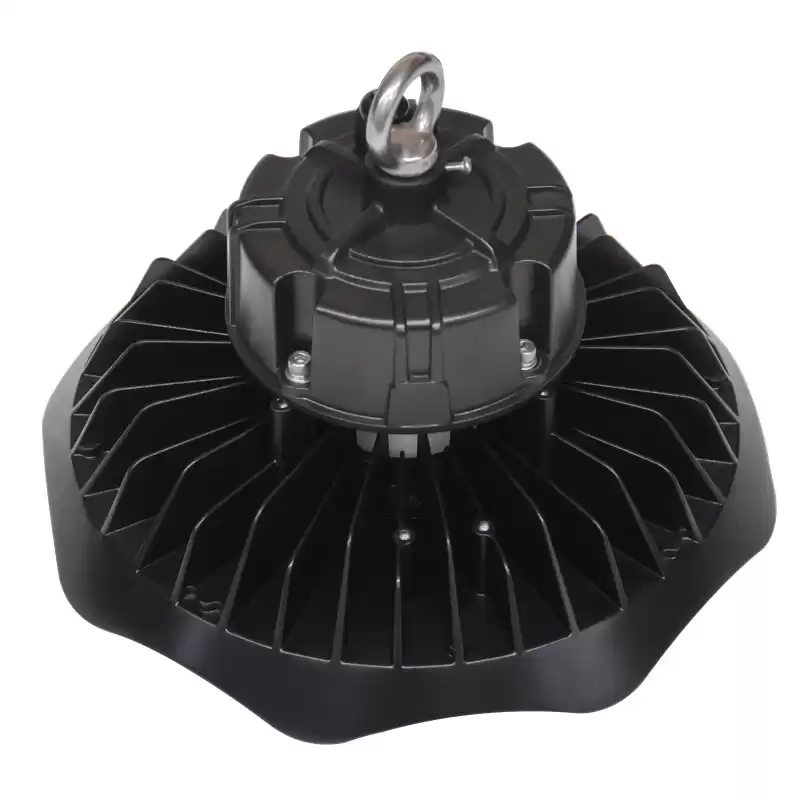

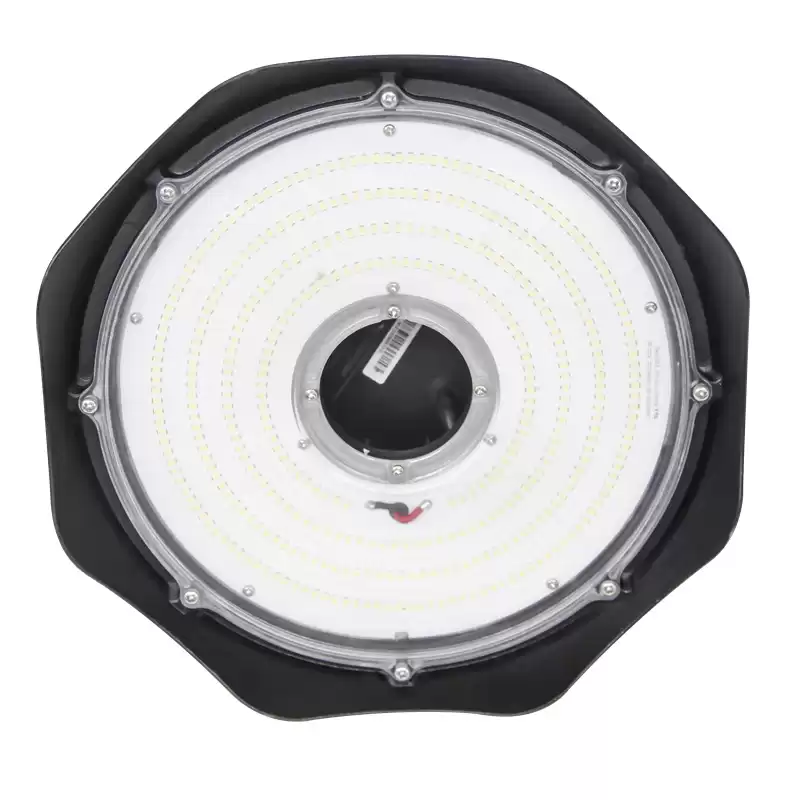

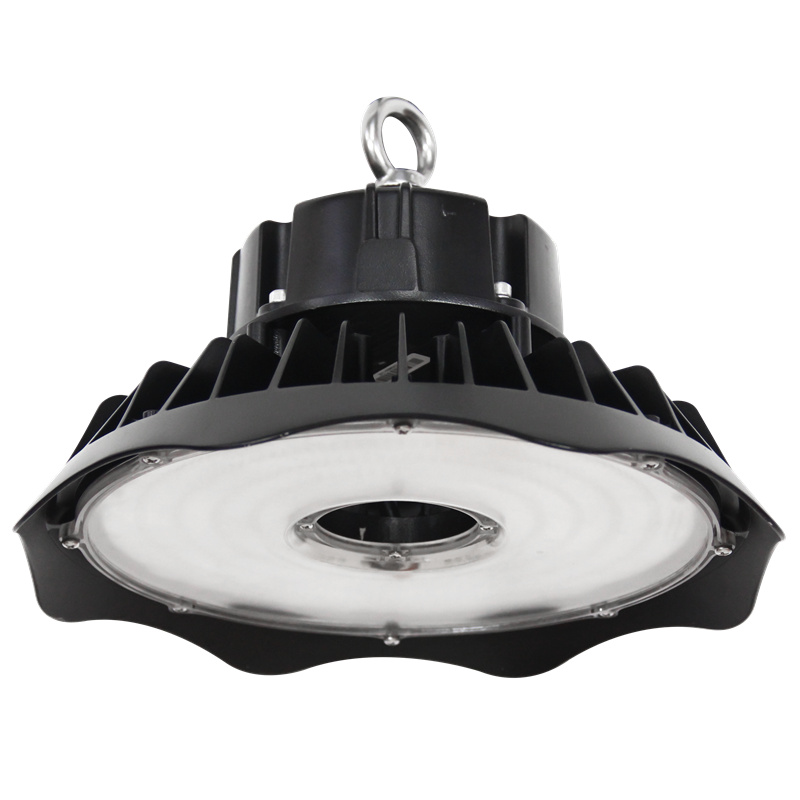

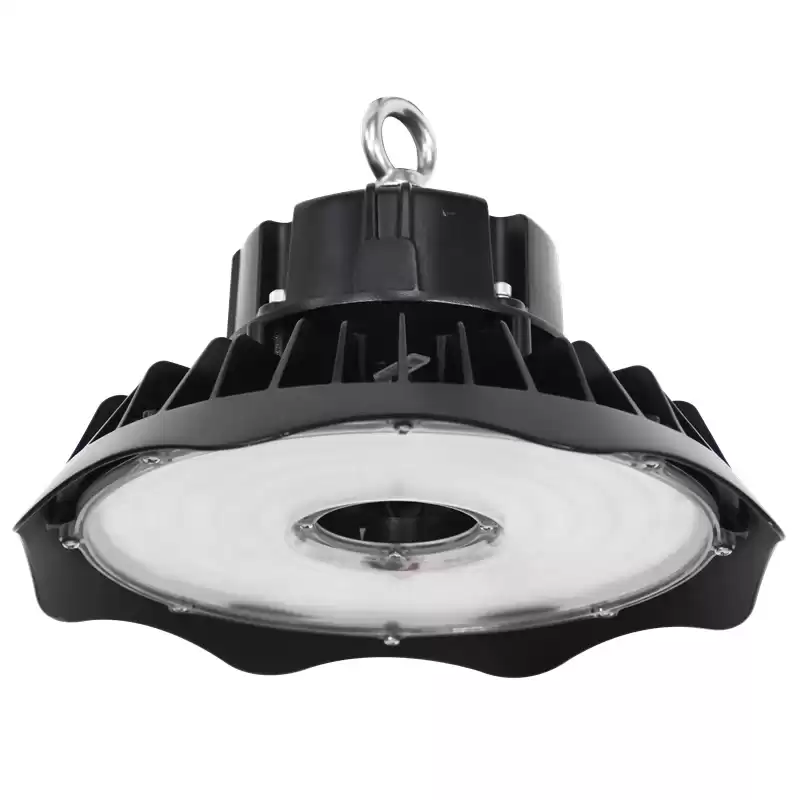

the appearance of ufo high bay light


      The  IP65 Waterproof UFO High Bay Luminaire offers several industry-standard mounting options allowing the product to be positioned for upgrade opportunities or new installations in a wide range of industrial applications. High Heat Dissipation High Bay Light provides direct uniform white light that enhances interior aisles and displays, making it an ideal choice for retail and commercial applications. A highly-efficient optical design, advective holes and grooves in each fin, integrating with an high light reflectivity reflectors results in a quality of light with precise control and color-mixing.

   The 100W Intelligent UFO High Bay is designed to deliver high lumen packages with microwave control to illuminate the most challenging applications and meet with different demands of lighting solution. Tuya Technology  can be used in conjunction with MORSTAR wireless lighting control system to control fixtures. Besides, lightweight construction and optional mounting make installations near effortless. Ideal for industrial, retail, manufacturing, warehouse, grocery and gymnasium applications.


PRODUCT SPECIFICATION AND FEATURES


Efficacy: 130 lm/W
CRI: 80
Color Temperature: 4000K /5000K / 5700K
Input Voltage: 100-277V, 277-480V

SPECIFICATION

HHB401A-100W

HHB402A-150W

HHB403A-200W

HHB404A-240W

Power Consumption

100W

150W

200W

240W

Equivalent Wattage

250W HID

400W HID

400W MH

500W MH

Lumens Delivered

13,000 lm

19,500 lm

26,000 lm

31,200 lm


FEATURES



• Fins design, advective holes and grooves in each fin, good for heat dissipation
• Professional light distribution technique, high light reflectivity reflectors

• The wide input voltage range AC100-277V(1-10V dimming)

• Sosen driver, 2835 Samsung LED as light source

• 110 beam angle available

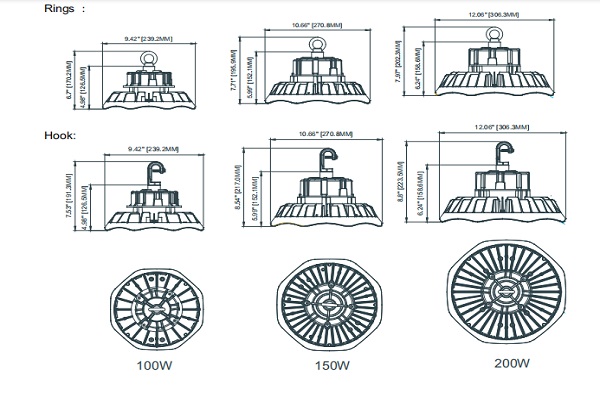

PRODUCT DIMENSION:

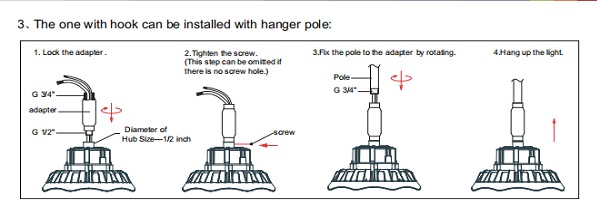

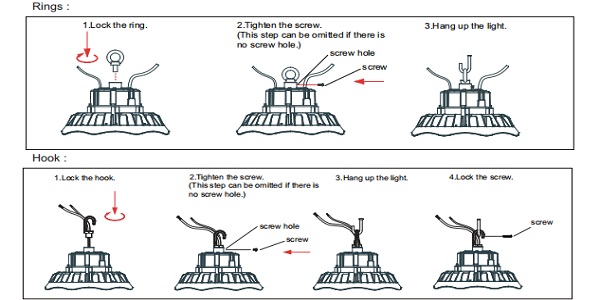

TRINSTALLATION INSUCTION


installation instruction of ufo high bay light



installation instruction of ufo high bay light

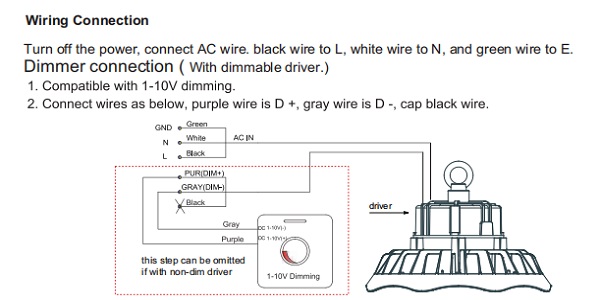

WIRING CONNECTION


wiring connection of ufo high bay light

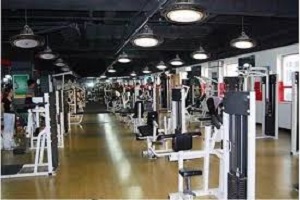

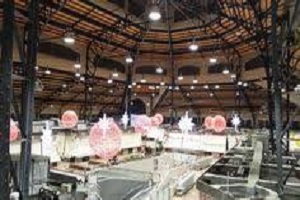

PRODUCT APPLICATION


the application of ufo high bay lightthe application of ufo high bay light


FAQ


1. How can smart lamps save money?

A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.

*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.

*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.


2.Can smart lamps provide security in usage scenarios?

A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.


3.What are the options for smart bulbs?

A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.


4.Can smart lamps be dimmed?

A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
