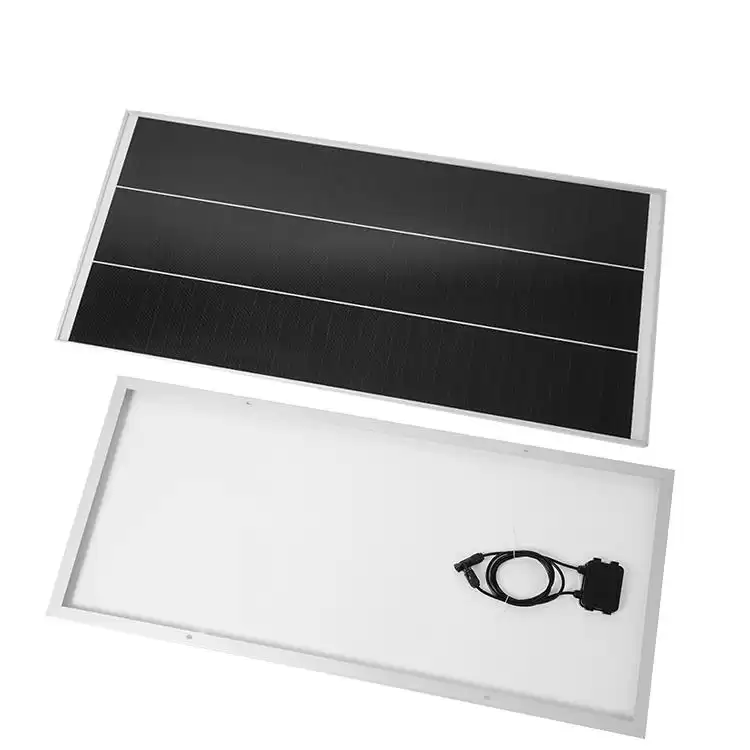

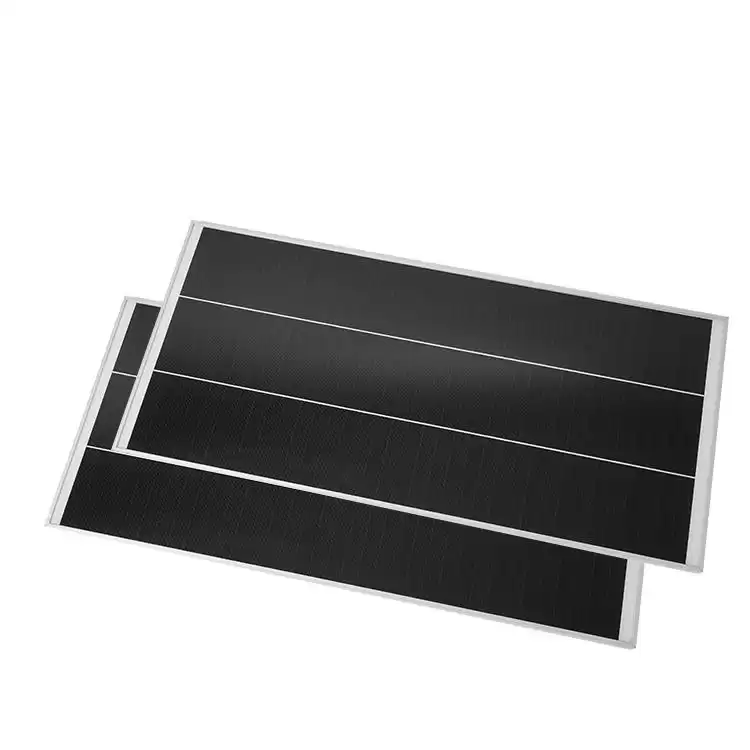

100W Shingled Overlap Solar Module

We can custom shingled solar panel from 3w to 645w,flexible shingled solar panel and bifacial dual glass shingled solar panel are available.We can meet your customized needs.


  • CertificateTUV, CE, IEC,
  • Warranty25 years linear warranty

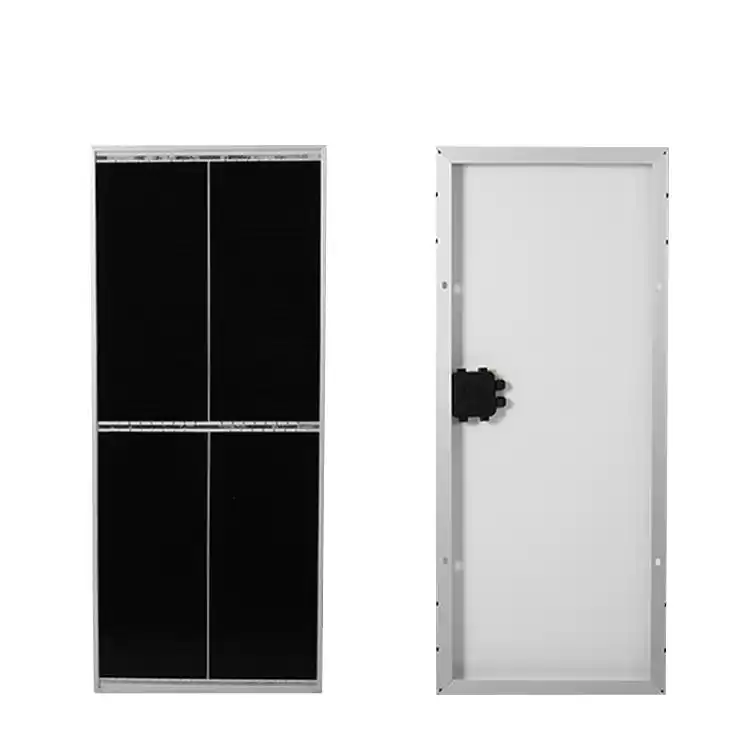

Monocrystalline PERC black frame Singled solar Panel

Product Details

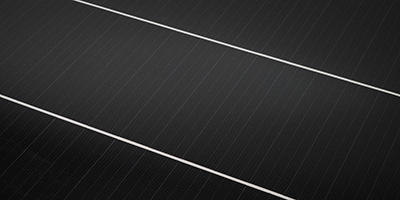

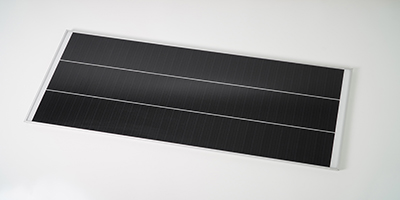

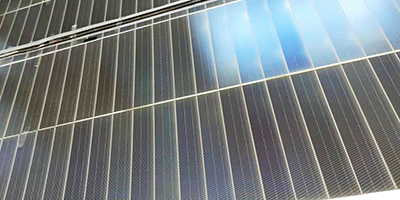

Beautiful appearance Innovative structure technology

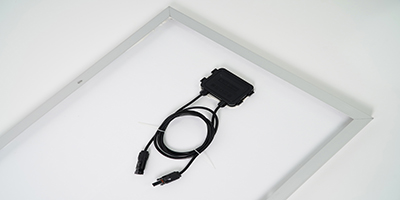

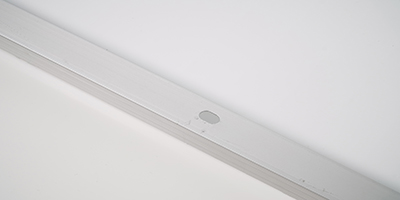

IP67 Junction box with Mc4 connector Mounting hole

1.More than 7% more electricity: Benefiting from the metal-free grid line design, the shingled module can reduce the line loss by 3% and increase the

 light-receiving area by 4% (including reducing the grid line reflection and the gap between the cells),therefore, the power generation can be increased by at least 7%.

2.Extended service life: Breaking through the traditional connection method, the front and rear laminations are used for surface connection, which greatly

 improves the reliability of the connection, eliminates the hidden danger of metal grid line breakage, and reduces the risk of metal grid line corrosion and cell cracking.


Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon
NO. of Cells 105(36*10)
Dimensions 1110*500*30mm
Weight 5.6kg
Junction Box IP67 rated
Front Glass  AR coating tempered glass, 3.2mm
Frame Anodized aluminum profile
Output Cables 4.0mm²,900mm(Be customized by customers)
Connectors MC4
ELECTRICAL PARAMETERS

100
Rated Maximum Power (Pmax) [Wp] 100
Open Circuit Voltage (Voc) [V] 23.25
Short Circuit Current (Isc) [A] 5.7
Maximum Power Voltage (Vmp) [V] 18.75
Maximum Power Current (Imp) [A] 5.34
Module Efficiency [%] 22%
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating  20
Application Class Class A


Difference

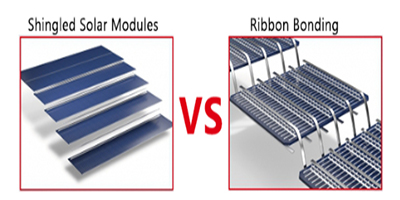

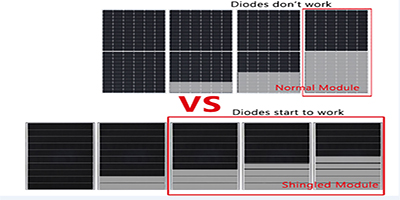

Different welding methods When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.

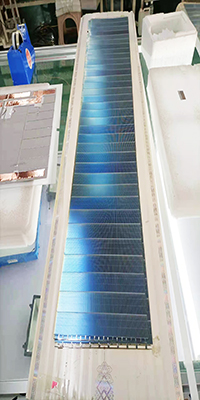

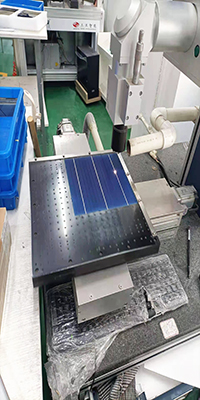

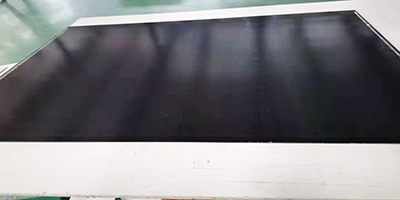

Factory Production

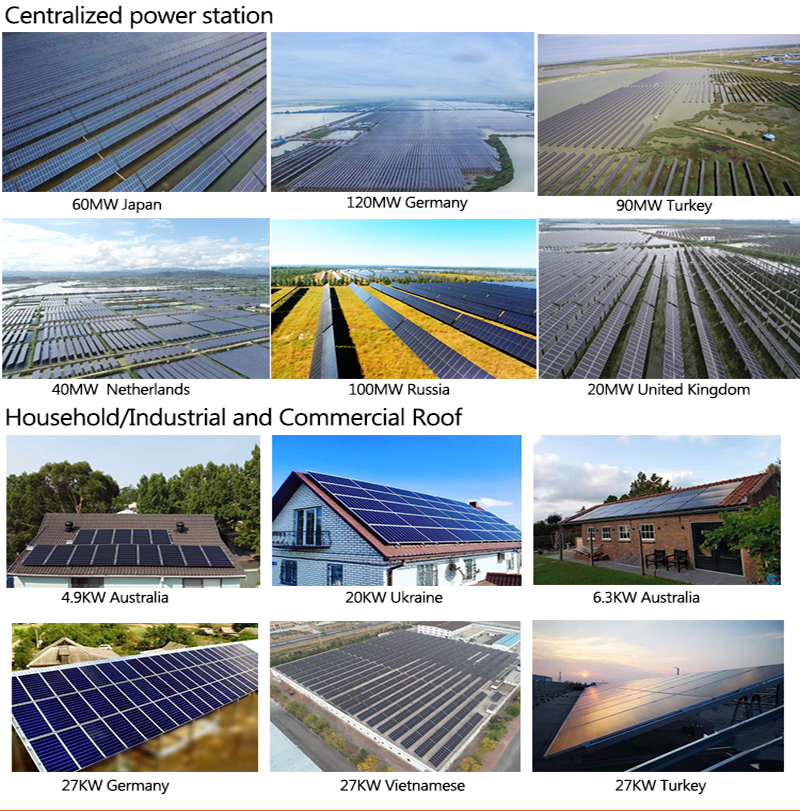

Projects
