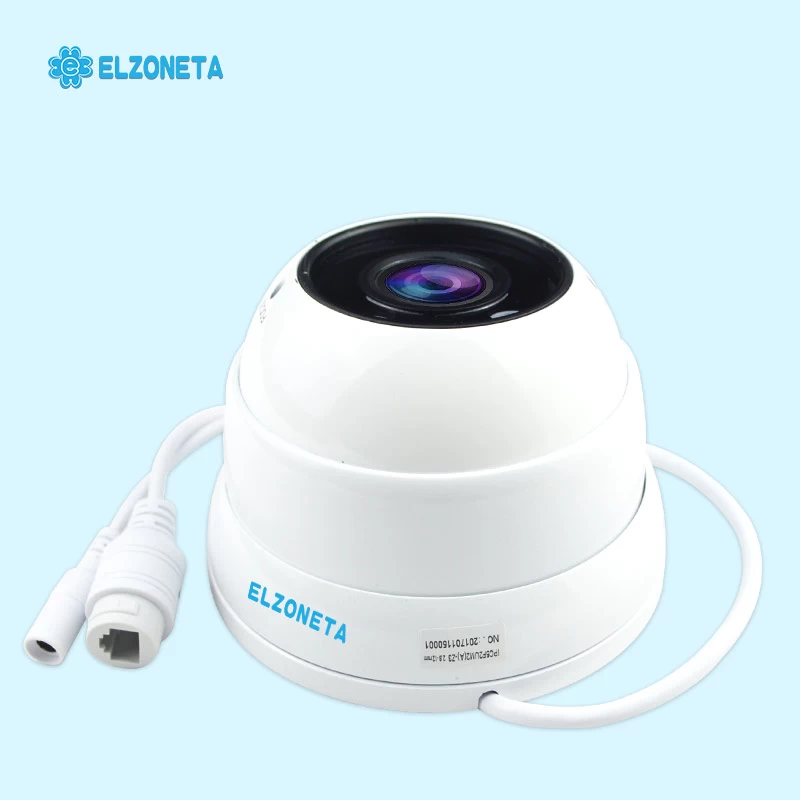

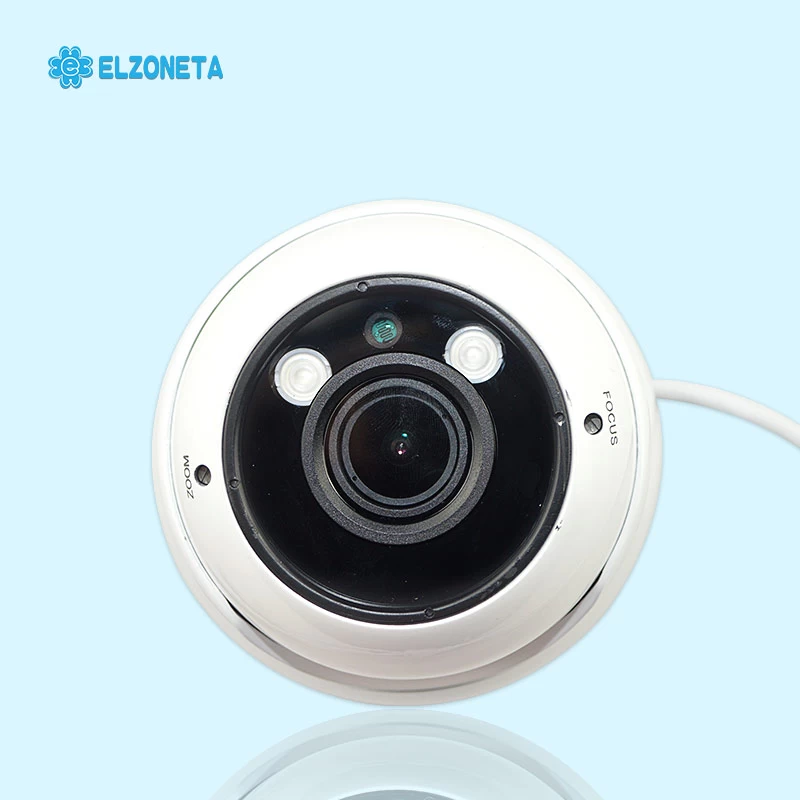

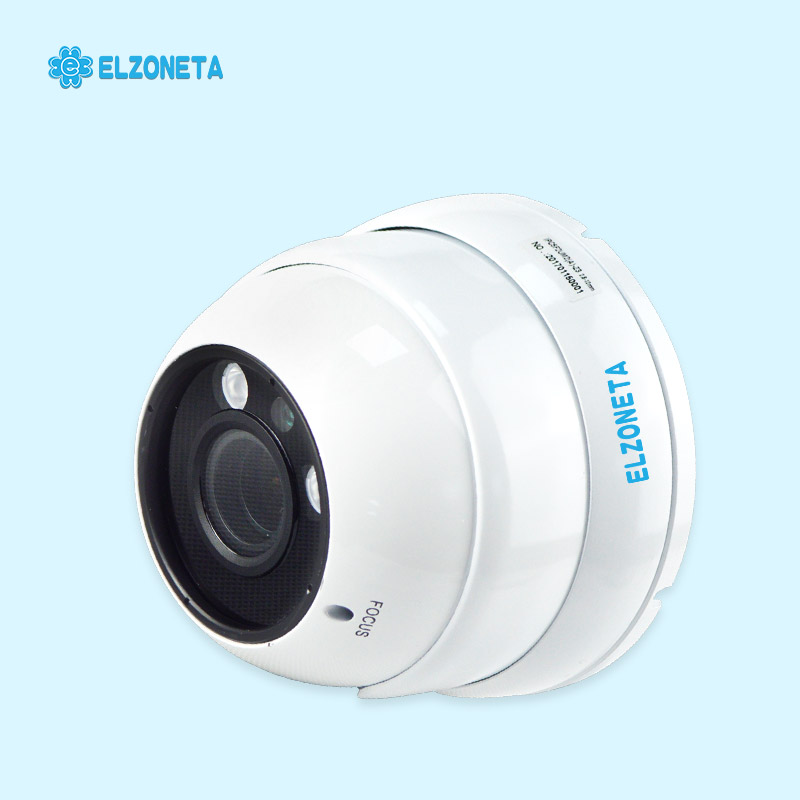

EC-B02M 1.3MP Metallic Dome Camera
IK10 metallic outdoor vandal proof dome camera can avoid the malicious damage from the thieves or other ill-disposed persons.
Features:
1. 1/3" 1.3M AR0130 CMOS; ICR
2. 0.1Lux@F1.6(Color), 0.01Lux@F1.6(B/W IR on)
3. 1.3M/960p@25/30fps; 2M HD Lens
4. H.264/MJPEG, Mobile phone, UPNP
5. Support ONVIF (Profile S)
6. Product Guarantee for 2 years
Specifications:
|
Model
|
EC-B02M
|
|
Image Sensor
|
1/3" 1.3M AR0130 CMOS
|
|
Lens
|
2.8-12mm
|
|
Electronic shutter
|
1/25s-1/30,000s
|
|
Low Lux
|
0.1Lux@F1.6(Color), 0.01Lux@F1.6(B/W IR on)
|
|
IR Light
|
2 Array LEDS, up to 30m IR distance
|
|
WDR
|
DWDR
|
|
Video parameter
|
Rotate mode, Rotate mode, Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer
|
|
Audio-video coding parameters
|
|
Compression
|
H.264/MJPEG
|
|
Video bit rate
|
0.1M-16Mbps, customized
|
|
Triple Bit stream type
|
Support
|
|
Audio compress
|
G.726, G.711
|
|
Audio bit rate
|
16Kbps
|
|
|
|
Video resolution
|
1280*960P
|
|
Video flame rate
|
PAL: 1-25 FPS, NTSC: 1-30FPS
|
|
Function
|
|
Intellectual alarm
|
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, NAS, P2P
|
|
Basic functions
|
Heartbeat mechanism, One-key reset, password protection, watermark technology, IP auto pop-out at customer end
|
|
Interface
|
|
Audio
|
Optional(1ch in/out)
|
|
TF Card
|
N/A
|
|
RS485
|
N/A
|
|
Network port
|
1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port
|
|
Wireless network
|
|
Cell phone monitor
|
Support
|
|
WIFI
|
N/A
|
|
Others
|
|

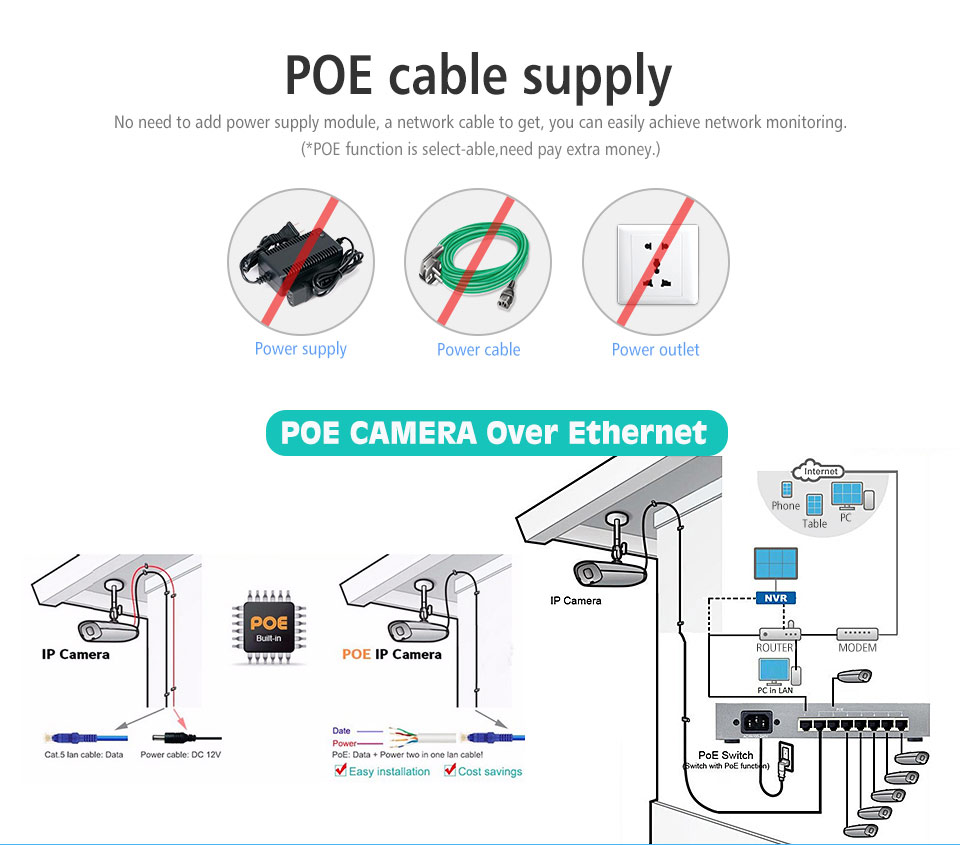

POE
|
Optional
|
|
Power supply
|
DC12V/1.5A
|
|
Power consumption
|
<6W
|
|
Working temp.
|
-10℃ ~ +55 ℃
|
|
Dimension
|
ø120.2*83.7mm
|
|
Net Weight
|
706g
|
|
Color Box Size
|
150*150*135mm
|
|
Gross Weight
|
860g
|

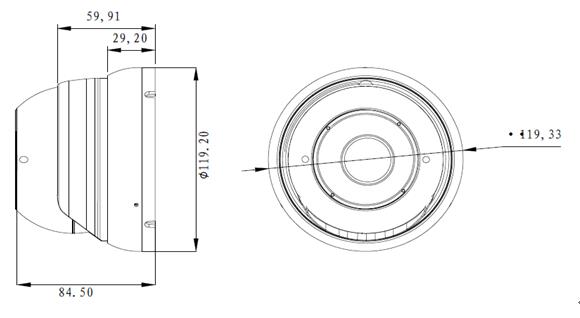

Structure:
More Information:
