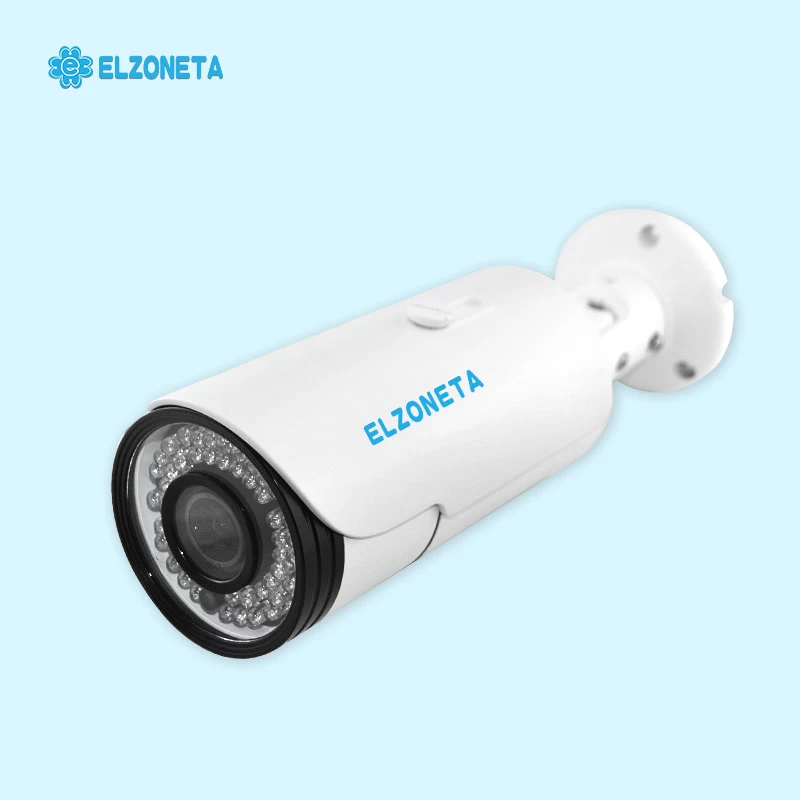

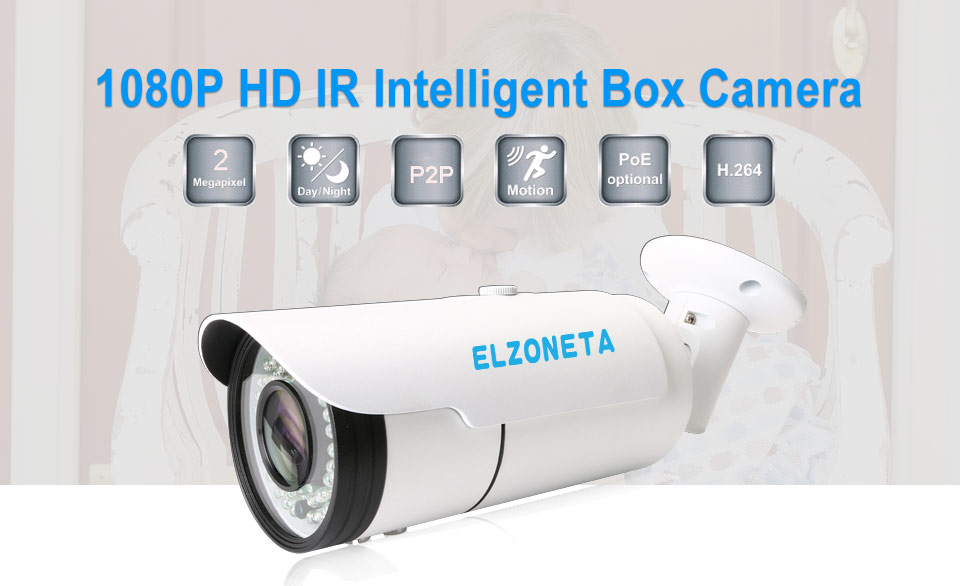

EC-G02S SONY IMX291 sensor security camera
1080P HD security camera includes SONY IMX291 sensor and 40M long range IR distance.
Features:
1. 1/2.8" 2.0M IMX291 CMOS; ICR
2. 2.8-12mm manual zoom Lens

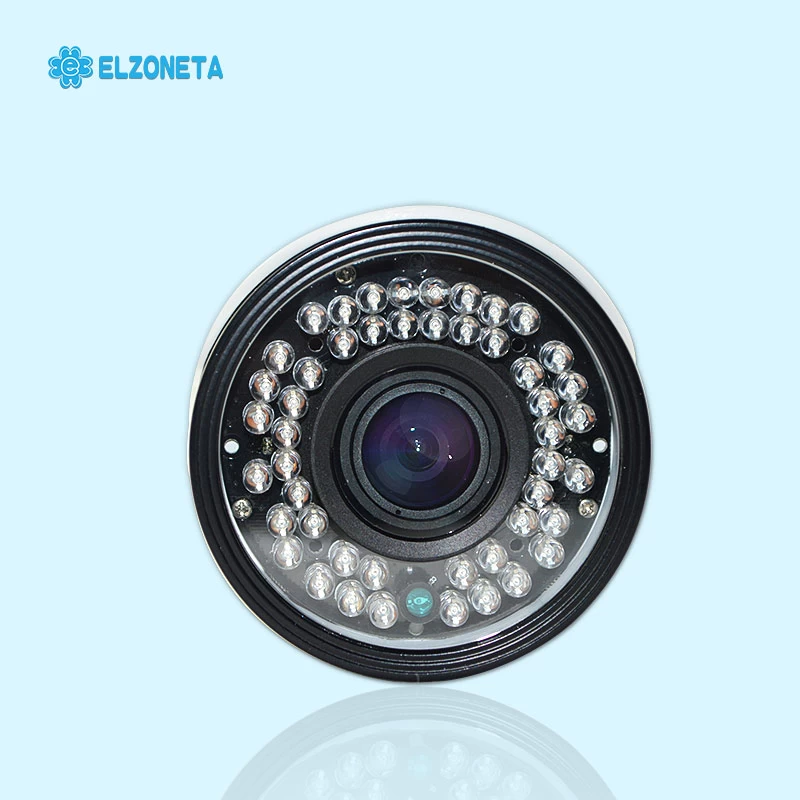

3. 48 ф5mm LEDS, up to 40m IR distance
4. 2.0M@30fps,H.264/MJPEG video compression
5. Support three streams, 3D DNR,D-WDR ,ROI and BLC
6. Support ONVIF (Profile S), CGI, Hikvision, Dahua, XM
7. Support Motion detection, Video blocking intelligent alarm function
8. Support P2P Cloud Services
9. Remote control、Playback and Preview
10. Support Multi-user online access
11. Support mobile phone ( iOS&android) monitoring
12. Support POE power supply (optional)
Specifications:
|
Model
|
EC-G02S
|
|
Camera
|
|
Image Sensor
|
1/2.8" 2.0M IMX291 CMOS
|
|
Electronic shutter
|
1/25s-1/10,000s
|
|
Min. Illumination
|
0.1Lux@F1.6(Color),0.01Lux@F1.6(B/W IR on)；
|
|
Lens
|

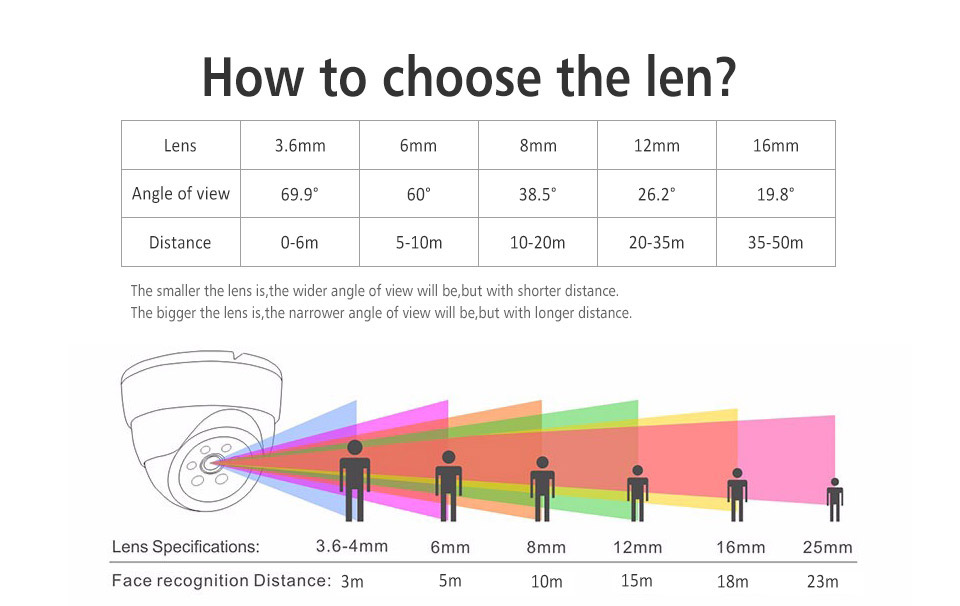

2.8-12mm manual zoom Lens
|
|
IR Light
|
48 ф5mm LEDS, up to 40m IR distance
|
|
WDR
|
D-WDR
|
|
Day& Night
|
ICR
|
|
Audio-video coding
|
|
Video Compression
|
H.264/MJPEG
|
|
Video bit rate
|
16 Kbps - 20 Mbps
|
|
Three-stream
|
Support
|
|
Audio compression
|
G.726, G.711A
|
|
Audio bit rate
|
16Kbps
|
|
|
|
Max. Video resolution
|
1920*1080
|
|
Frame Rate
|
1920*1080, 1280*960, 1280*720@30fps
|
|
Image Settings
|
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
|
|
BLC
|
Support
|
|
ROI
|
Support
|
|
3D DNR
|
Support
|
|
Network Function
|
|
Intelligent Alarm
|
Motion detection, Video blocking, Network disconnection , IP conflict, Storage exception
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, P2P
|
|
Security
|
Heartbeat mechanism, One-key reset, password protection, privacy mask , watermark technology
|
|
System Compatibility
|
ONVIF, CGI, Hikvision,Dahua,XM
|
|
Interface
|
|
Audio input
|
1CH (optional)
|
|
TF Card
|
N/A
|
|
RS485
|
Support
|
|
Network
|
1 RJ45 10M/100Mbps self-adaptable Ethernet port
|
|
Reset
|
Support
|
|
Wi-Fi
|
|
WIFI
|
N/A
|
|
Others
|
|
POE
|
Support (Optional), PoE (802.3af)
|
|
Power supply
|
DC12V±10% /1.5A
|
|
Working temp.
|
-10°C ~ 50 °C
|
|
Color Box Size
|
266*156*130mm
|
|
Gross Weight
|
893~1100g
|

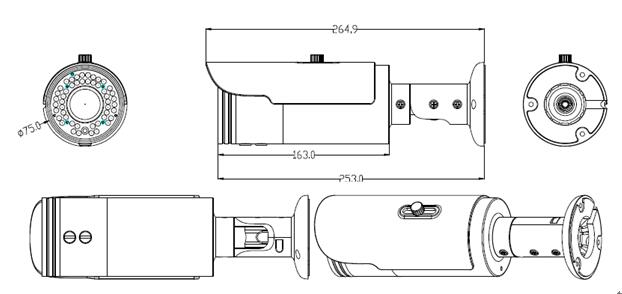

Structures:
