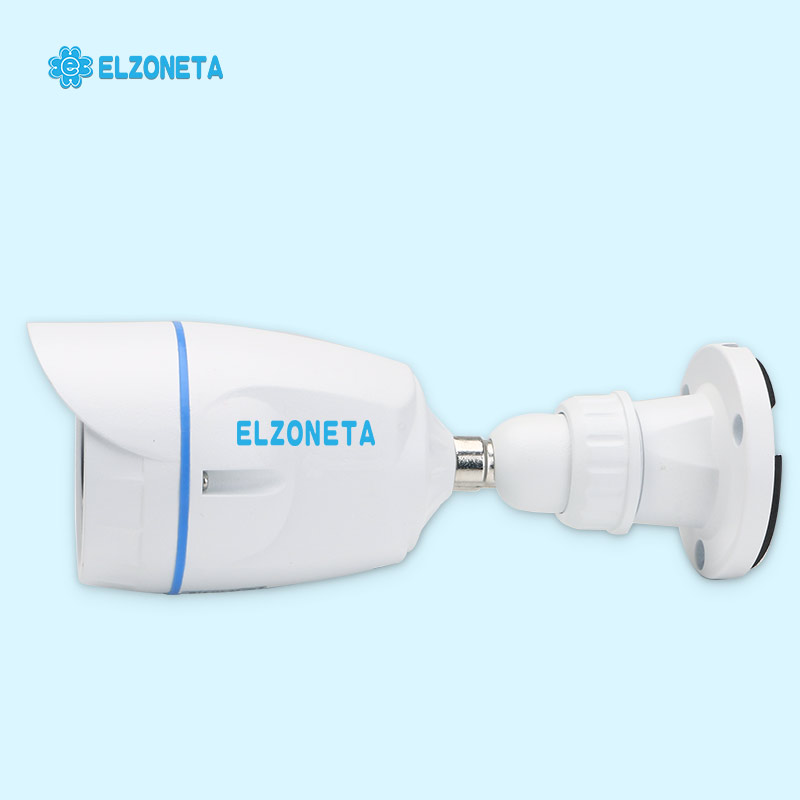

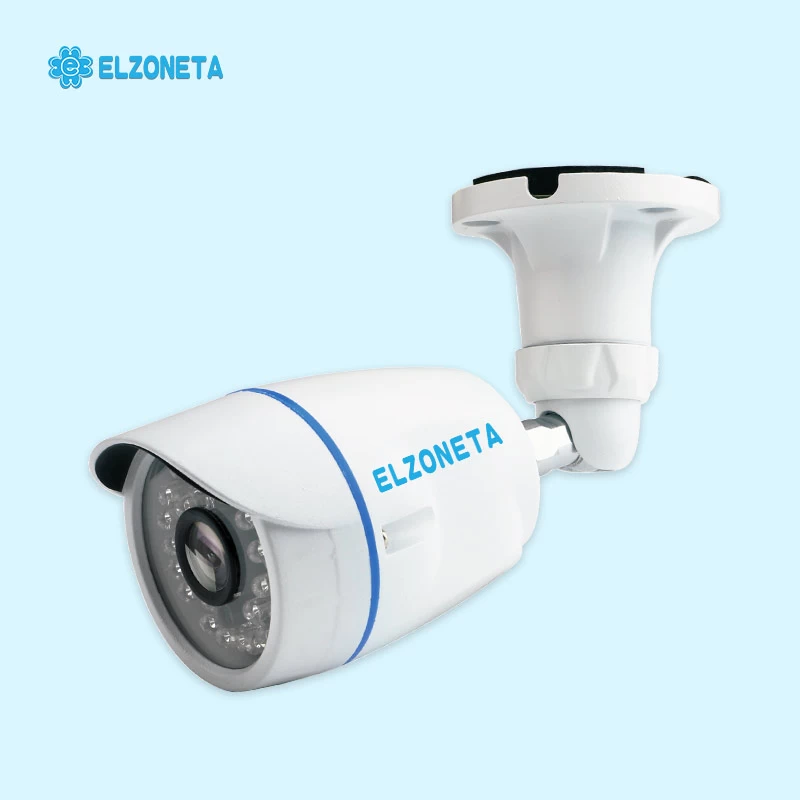

EC-G01 Bullet ICR camera outdoor
720P outdoor IP bullet security camera,ideal for monitoring homes,small offices and retail businesses.
Features:
1. 1/4" 1.0M CMOS; ICR
2. Color:0.05Lux@F1.2; B/W: 0.01Lux@F1.2
3. 1.0M/720p@25/30fps; 2M HD Lens

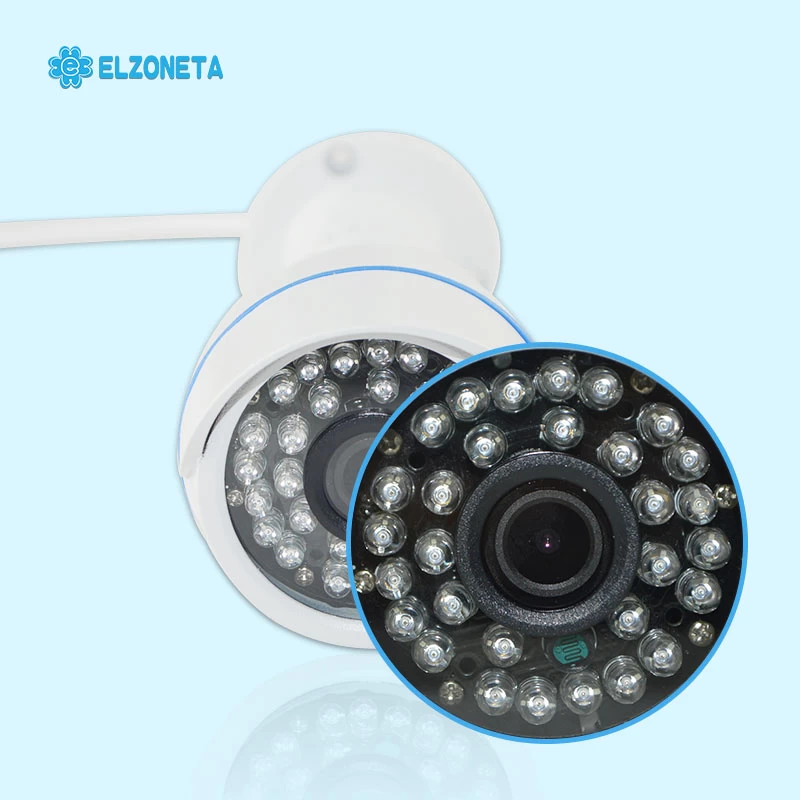

4. 30 pcs IR Leds/25M IR distance
5. IP66 waterproof

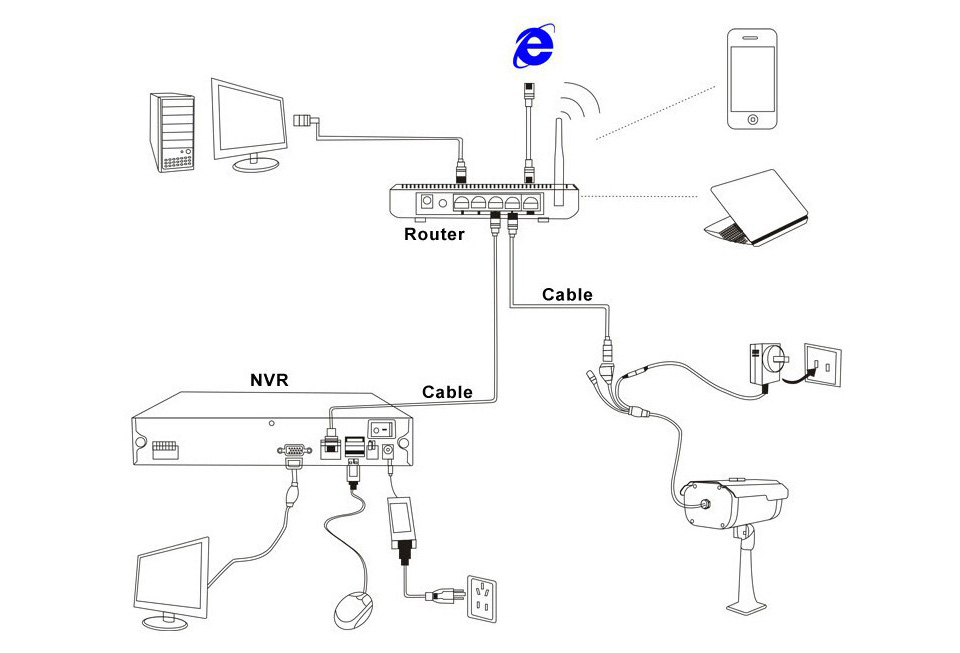

6. Support Onvif 2.4, compatible any onvif NVR
7. IP self-adaption function, assign IP address automatically
8. Support smart phone, Pad, remote surveillance
9. Support Motion detection
Specification:
|
Model
|
EC-G01
|
|
Effective Pixels
|
1.0MP,1280(H)*720(V)
|
|

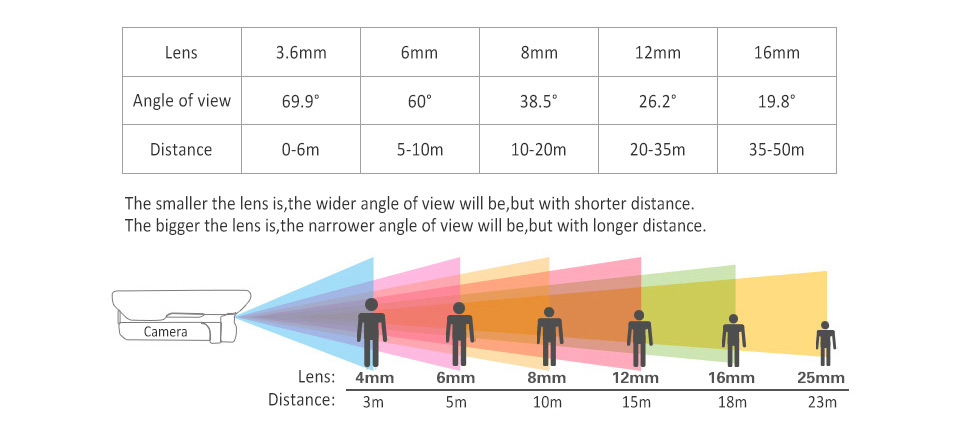

Lens
|
3.6mm
|
|
Sensor
|
1.0MP 1/4” CMOS
|
|
Min. Illumination
|
Color:0.05Lux@F1.2; B/W: 0.01Lux@F1.2
|
|
Electronic Shutter
|
NTSC: 1/30---1/10000S; PAL: 1/25---1/10000S
|
|
Day/Night
|
ICR /manual
|
|
BLC
|
Auto/Manual
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto/Manual
|
|
DNR
|
3D
|
|
ROI
|
8
|
|
|
|
Compression
|
H.264
|
|
Coding Type
|
BaseLine Profile / Main Profile / High Profile
|
|
Coding Rate
|
32 Kbps~8Mbps
|
|
Frame Rate
|
50HZ: 25fps; 60HZ: 30fps
|
|
Resolution
|
1280*720(1.0MP)/720*576(D1)/640*480(VGA)/352*288（CIF）/ 176*144(QVGA)
|
|
Picture Quality
|
High/middle/low
|
|
Image Setting
|
brightness/contrast/chroma/saturation
|
|
Mirror Image
|
Horizontal/Vertical/Opposite Angles/Normal
|
|
Network
|
|
Protocol
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS,DDNS, RTP, RTSP, RTCP,
|
|
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X
|
|
Onvif version
|
2.4
|
|
P2P Function
|
Mobile Phone/ PC/ PAD/Web
|
|
Smart Alarm
|
motion detection/shelter alarm/IP cable no connection/IP address conflict
|
|
General Function
|
double stream/ heartbeat/ mirror/ shelter / anonymous access
|
|
General
|
|
Working
|
-30℃～60℃;< 95%RH
|
|
Power Supply
|
DC12V
|

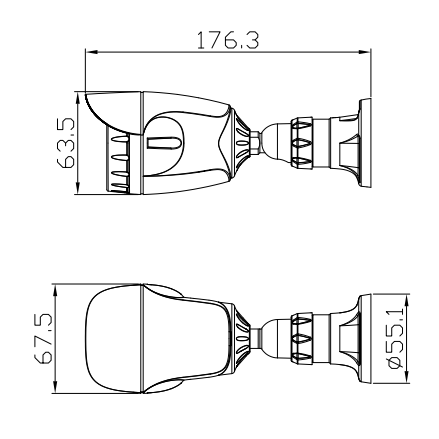

Size:
More Information:
