EC-B03S-GJ 120° Wide Angle Dome Camera
2MP HD security CCTV 120 degree Wide Angle Dome Camera is suitable for large areas such as warehouses, companies etc. Its angle is wider than the general camera, there is almost no blind spot, so the whole area can be better monitored.

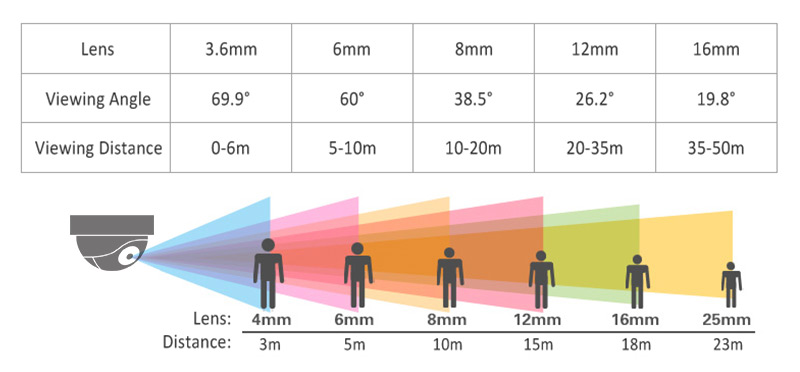

In the surveillance security cameras, the viewing angle and the focal distance are relative. If you want to view wider, then the distance will be short; if you want to view longer, then the angle will be narrow. General Speaking, the smaller the focal distance, the better the wide angle effects.
Please looking at the following picture, there will be a deeper and clearer understanding.
Product information
Image sensor:1/2″CMOS
Video resolution:1920×1080
Pixel:2.0MP
Compression:H.264+/JPEG
Frame rate:up to 25fps
Video bit rate:88Kbps～6Mbps adjustable
Lens

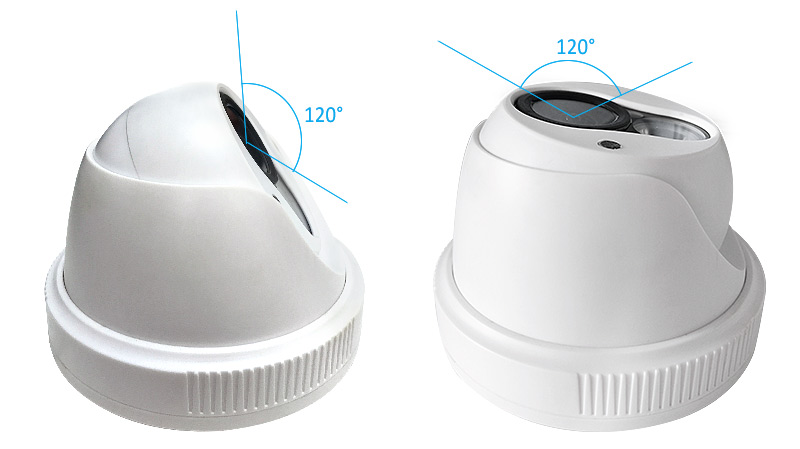

Viewing angle:super wide angle 120°
Features
Auto exposure:Support
Auto gain control:Support
Auto white balance:Support
3D DNR:Support
OSD information setting:Support OSD big font function , OSD and time can be set separately
Network timing:Support
QR code scan:Support to create the QR code and scan to add equipment
Timing restart:Support
Intelligent fog removal:Support
ROI coding:Support ROI enhancement coding and enhancement exposure
Privacy masking:Can mask 4 areas at the same time
Motion detection:Support
Image setting:Contrast, Brightness, Saturation, Acutance are adjustable
Scene switching:Support 4 scene switches: indoor, outdoor, default and soft
Day and night function:ICR auto switch
Screen setting:Support exposure time setting
Night vision optimization:Support
Software WDR:Support
Picture setting:Mirror image, reversal image
IP adaptive technology:Support automatically adapt IP address optional function
Detection alarm:Email alarm push, clients alarm push
Remote control:System management, Bit stream management, User management, Network management
External extended interface:Audio Input
Network
Network:1 RJ45 10M/100Mbps self-adaptable Ethernet port
Video coding:1080P, 720P, Internet
Network Protocol:HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
Control protocol:ONVIF
Web Browser:Support IE8+,Chrome18+,Firefox5.0+,Safari5.02+ . Support Chinese and English
User rights:Administrator, Ordinary user, Visitor
Other Features
Infrared light:1pcs Array Light
IR distance:20-40M
Power supply:DC 12V
Operating Temperature:-20℃~+60℃
Operating Humidity:10%~90%
Power consumption:Daytime: ＜3W; Night: ＜6W
Color / Material:White / Plastic

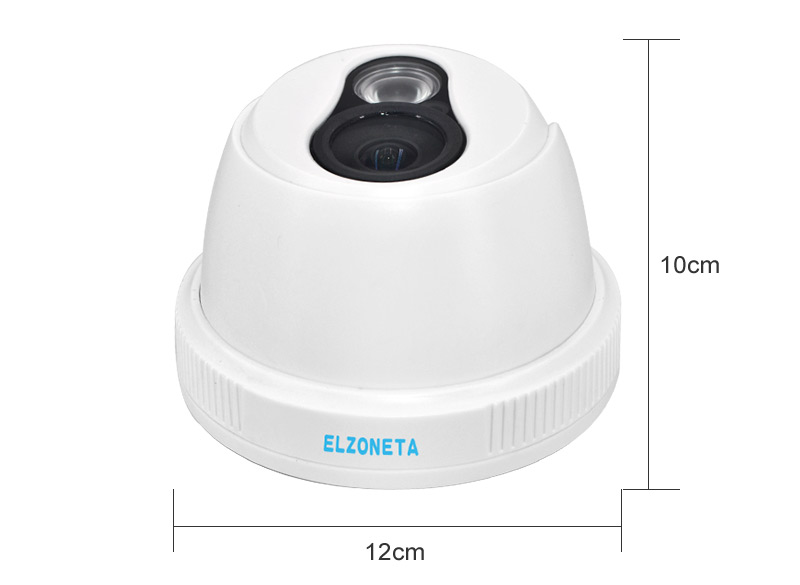

Size(W×H×D)(mm):120*95*120mm
Weight:229g
Product Guarantee:2 years
