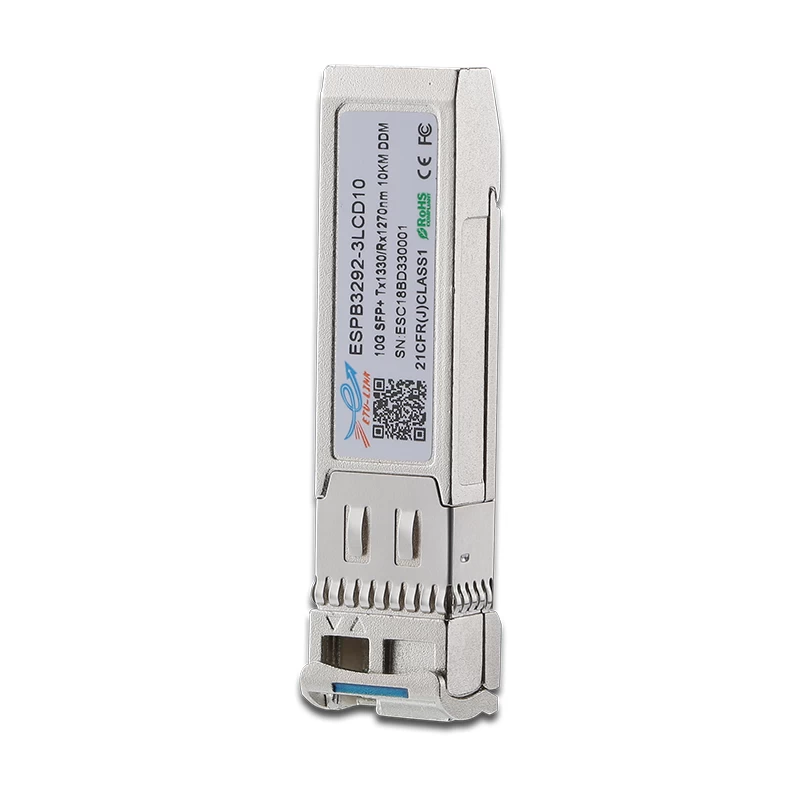

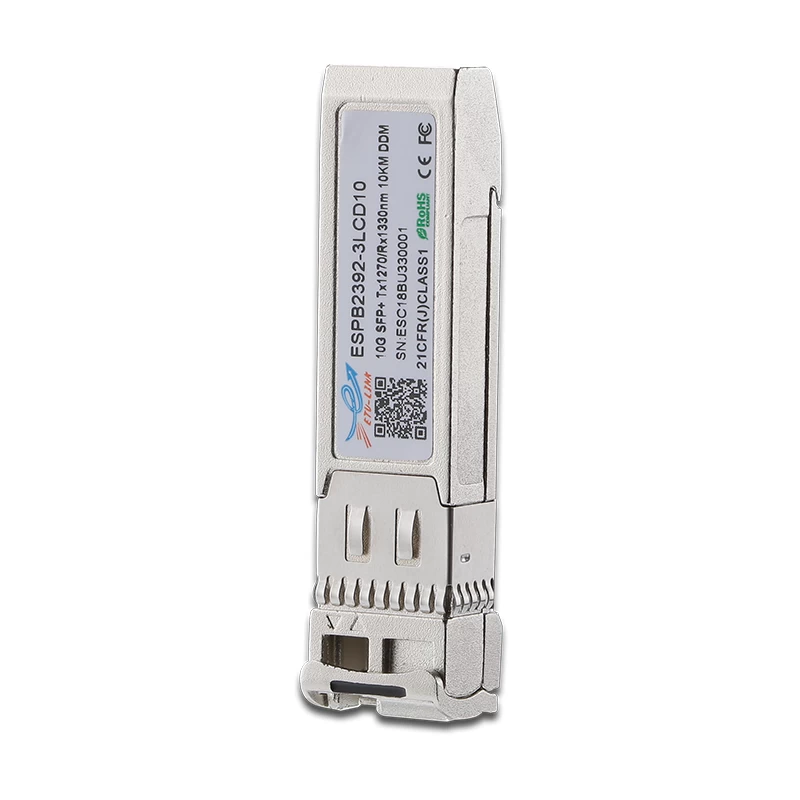

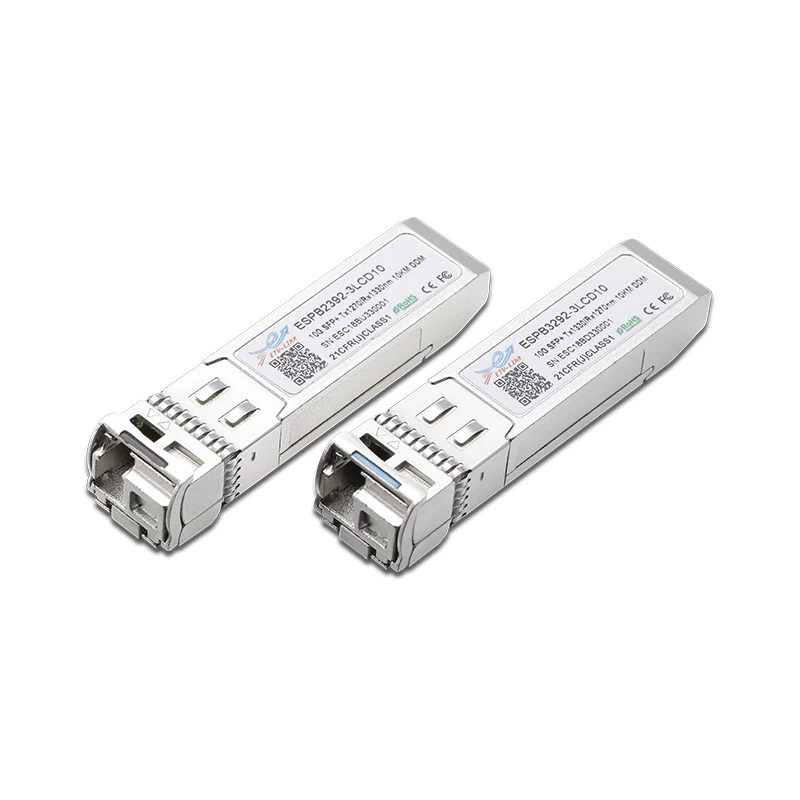

ESBxxX-3LCD10
10Gbps 10KM SFP+ Bi-Directional Transceiver
Features
- SFP MSA package with Single LC connector
- Very low EMI and excellent ESD protection
- Digital Diagnostic Monitor Interface
- Hot pluggable
- 10Gb/s serial optical interface
- Up to 10km distance
- Compliant with SFP+ MSA
- High transmission margin
- +3.3V single power supply
- Below 0.8W power consumption
- SFP mechanical interface
Standard
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15,Class B compliant
- FDA 21 CFR 1040.10 and 1040.11,class1 compliant
- RoHS compliant
Applications
- 10G Base-ER/EW
- 10G Fiber Channel
Description
ETU-LINK’s ESBxxX-3LCD10 optical transceivers with CDR are designed for 10Gb/s serial optical interfaces for telecommunication and data communication With single mode fiber (SMF).The transceiver can support 9.953-11.1Gb/s
The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication
