10G XFP SR Transceiver

Description: The ETU-Link is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

Facebook Twitter Pinterest LinkedIn 分享

EX85X-3LCD03

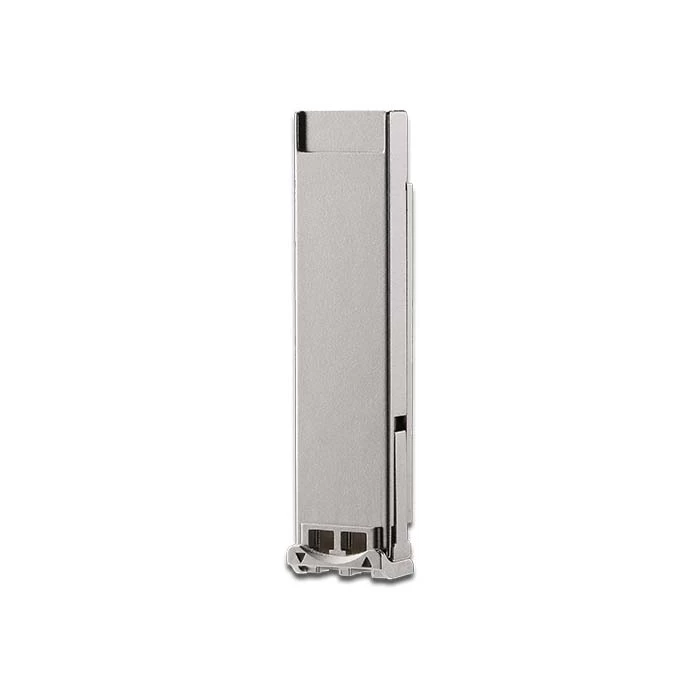

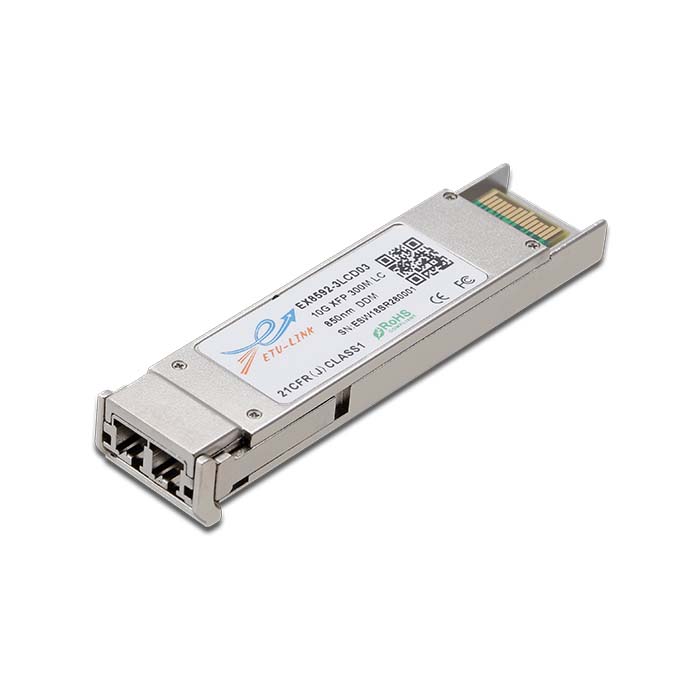

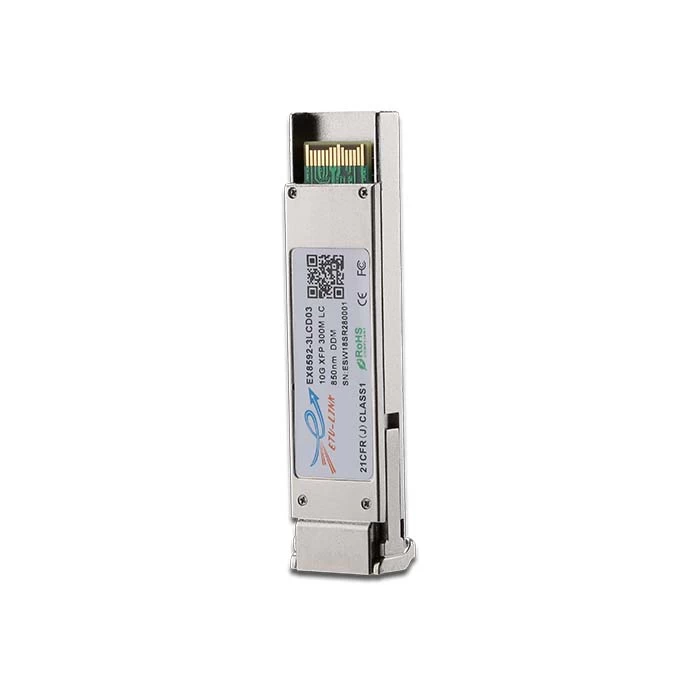

10Gbps 300M 850nm XFP Optical Transceiver


Features

  • Supports 9.95Gbps to 11.1Gbps bit rates
  • Maximum link length of 300m (50um,MMF,2000MHz.Km)
  • 850nm VCSEL laser and PIN receiver
  • XFP MSA Rev 4.5 Compliant
  • No reference clock required
  • +1.8V,+3.3V Supply Voltage
  • Low Power Dissipation 1.5W Maximum
  • XFI and lineside loopback Mode Supported
  • 0ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature,
  • Supply Voltages, laser bias current, transmit optical power, and receive optical power
  • RoHS6 compliant (lead free)

Applications

  • 10GBASE-SR/SW 10G Ethernet
  • 1200-Mx-SN-I 10G Fiber Channel
  • Other optical links

Description

  • ETU-Link EX85X-3LCD03 is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
  • The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems.
