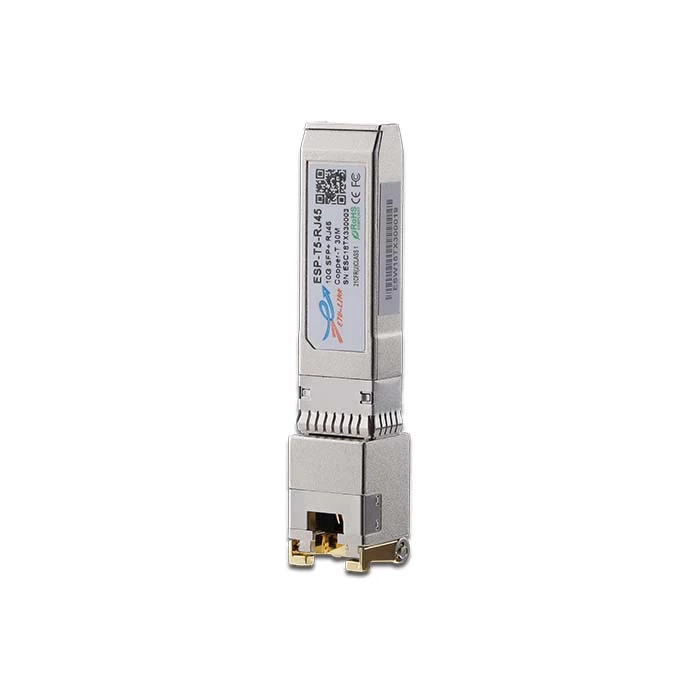

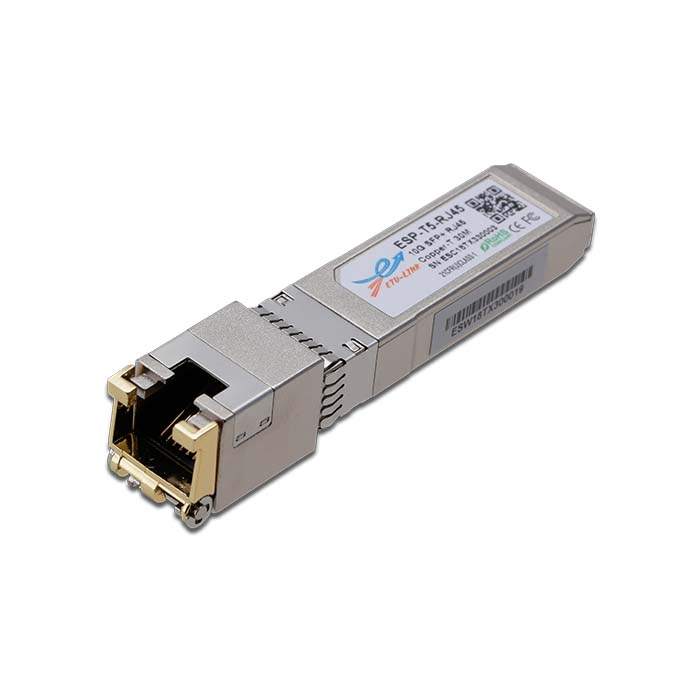

ES-T5-R
10GBASE-T SFP+ Copper Transceiver
Features
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°C
Product Description
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
