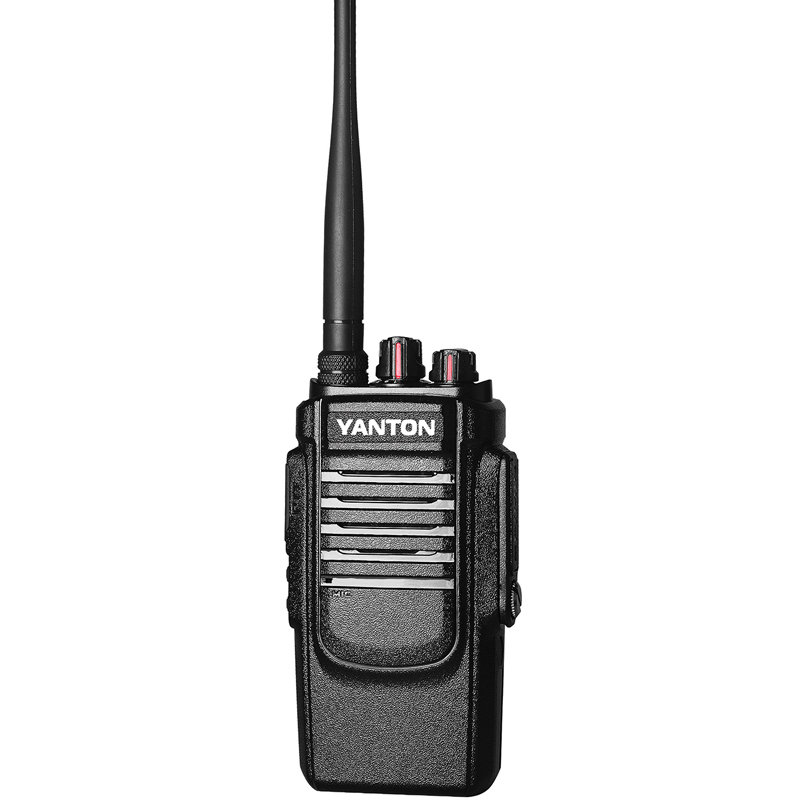

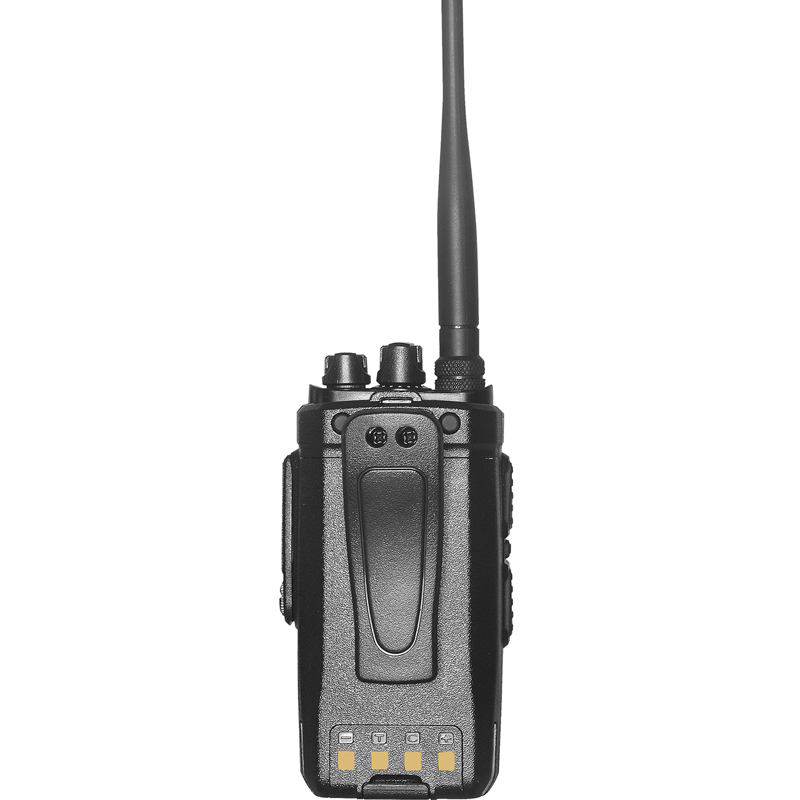

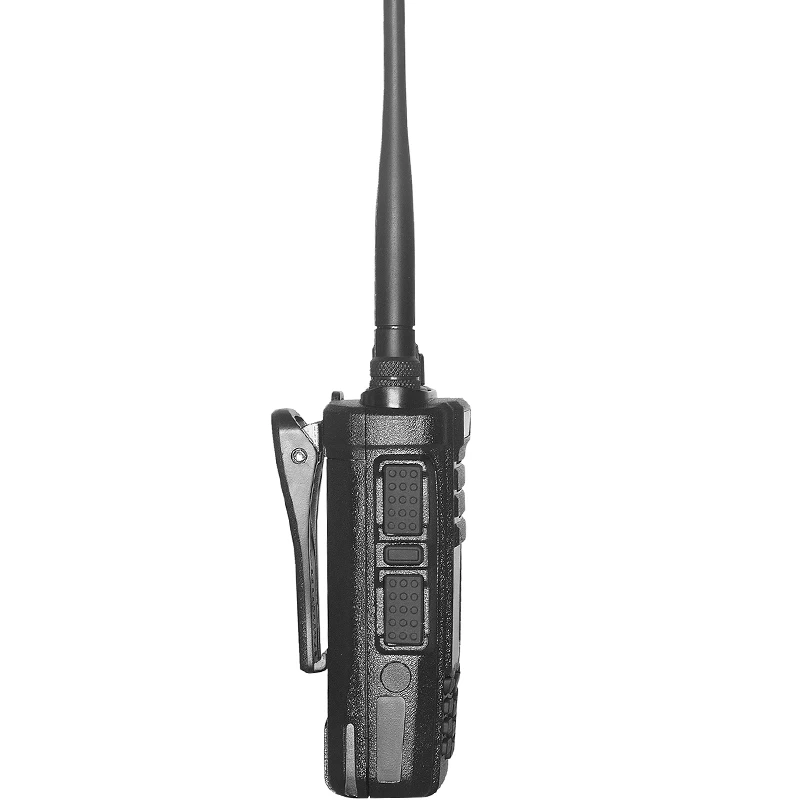

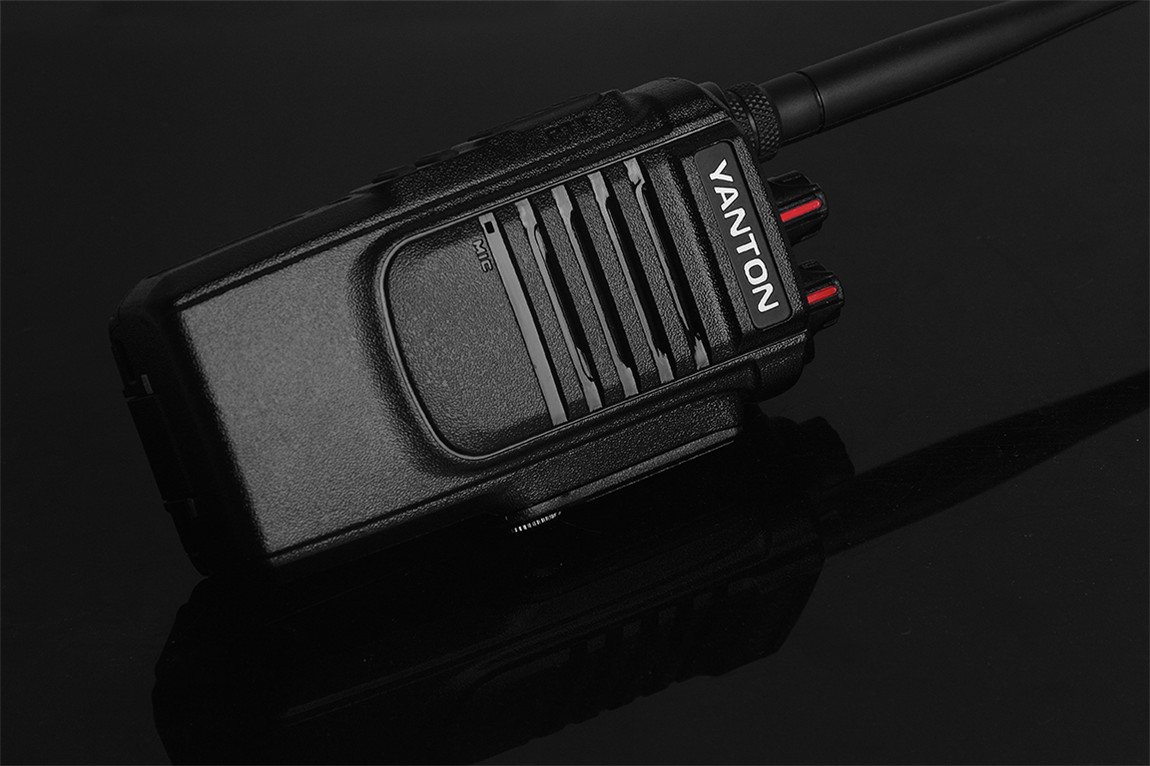

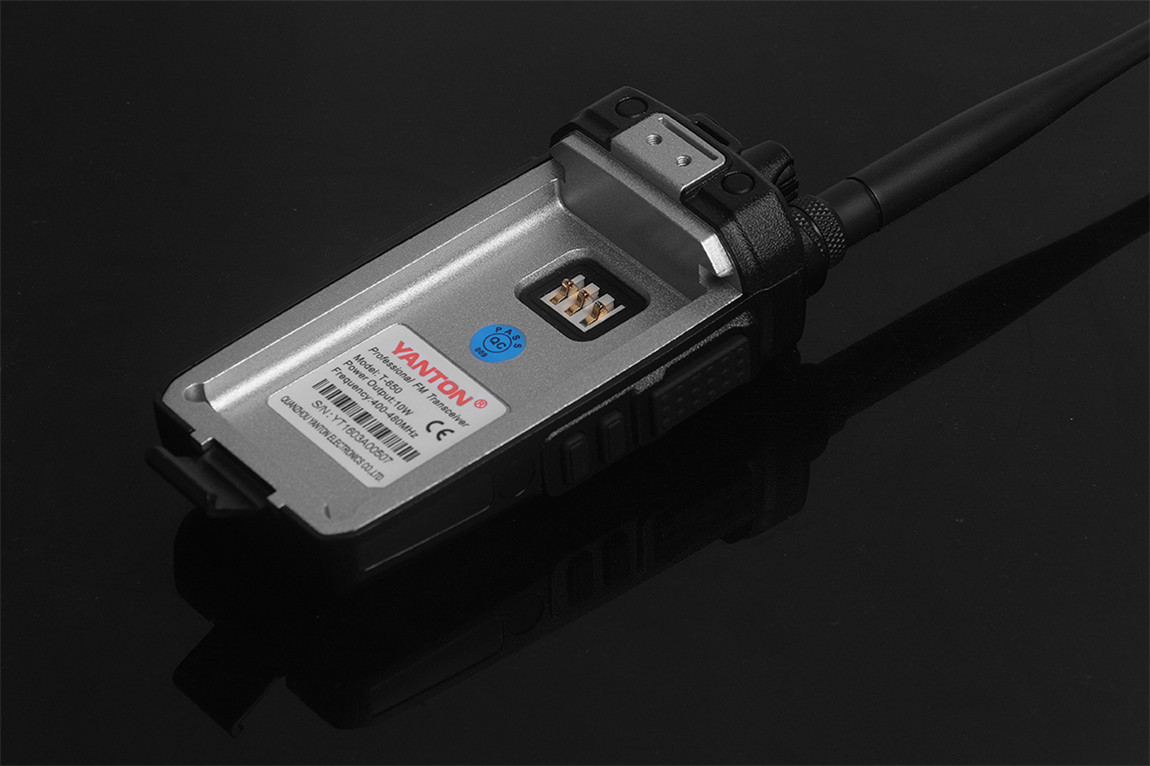

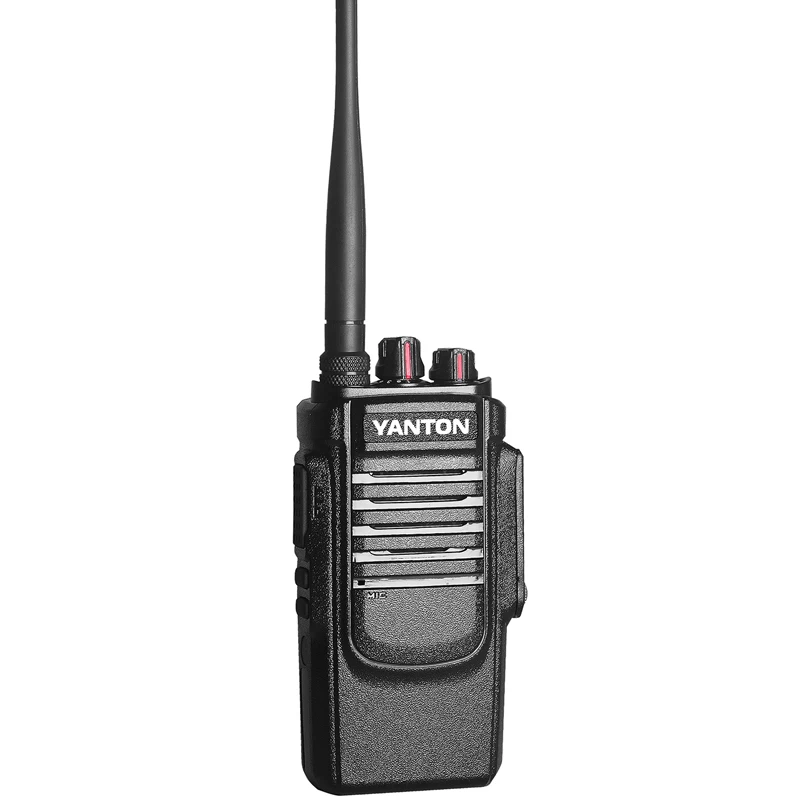

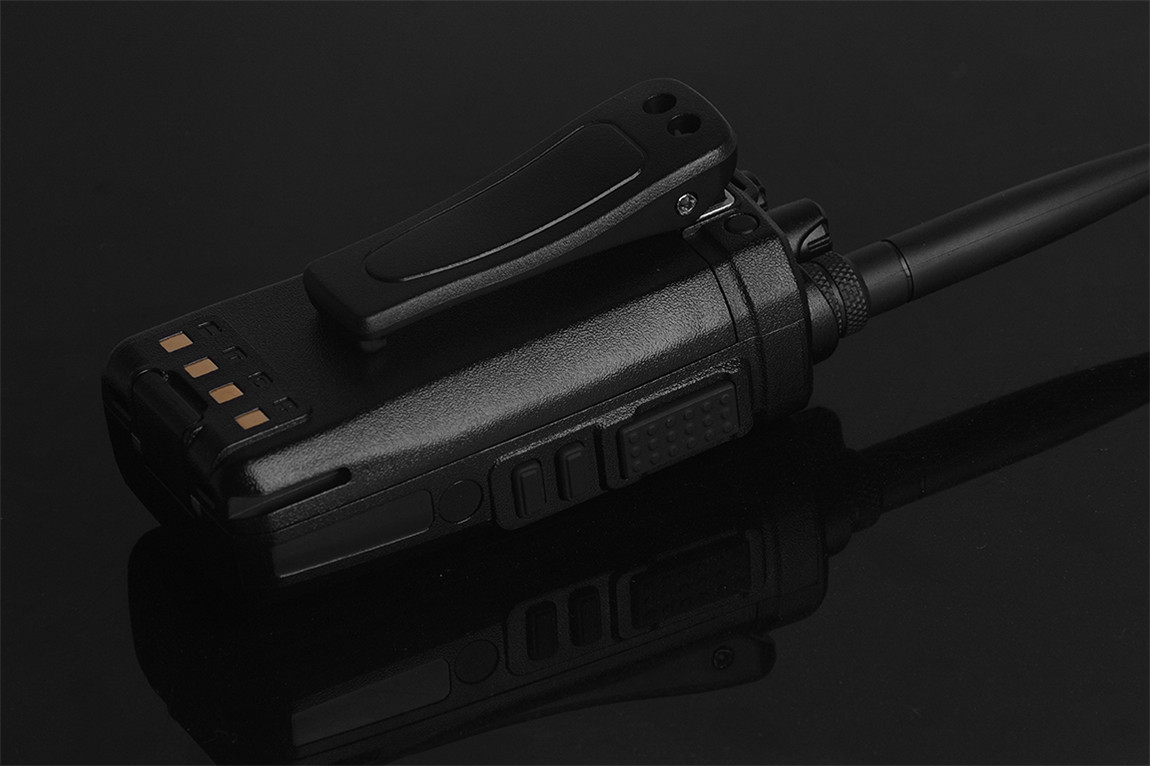

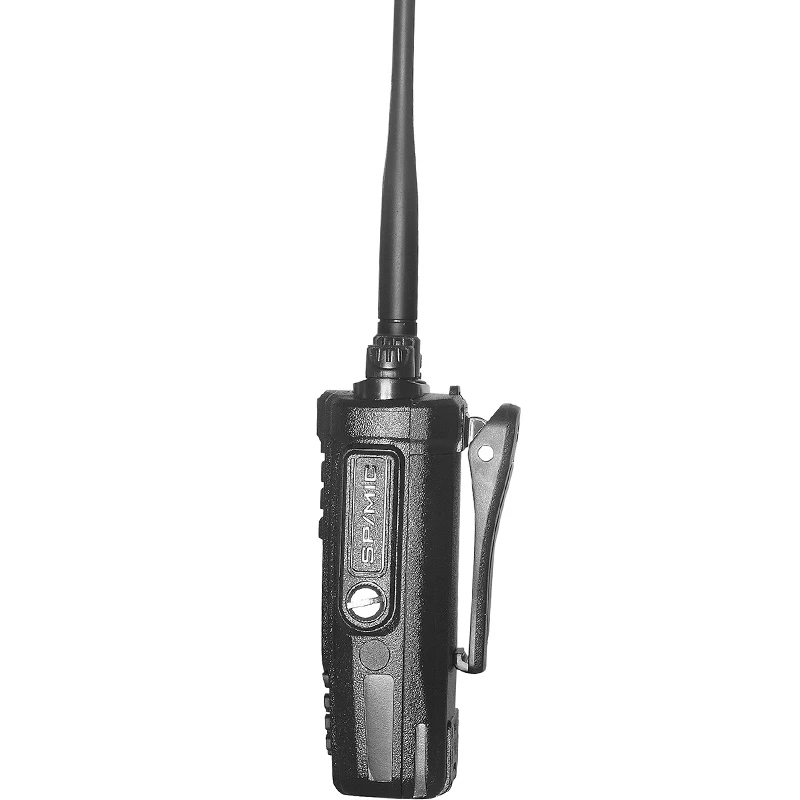

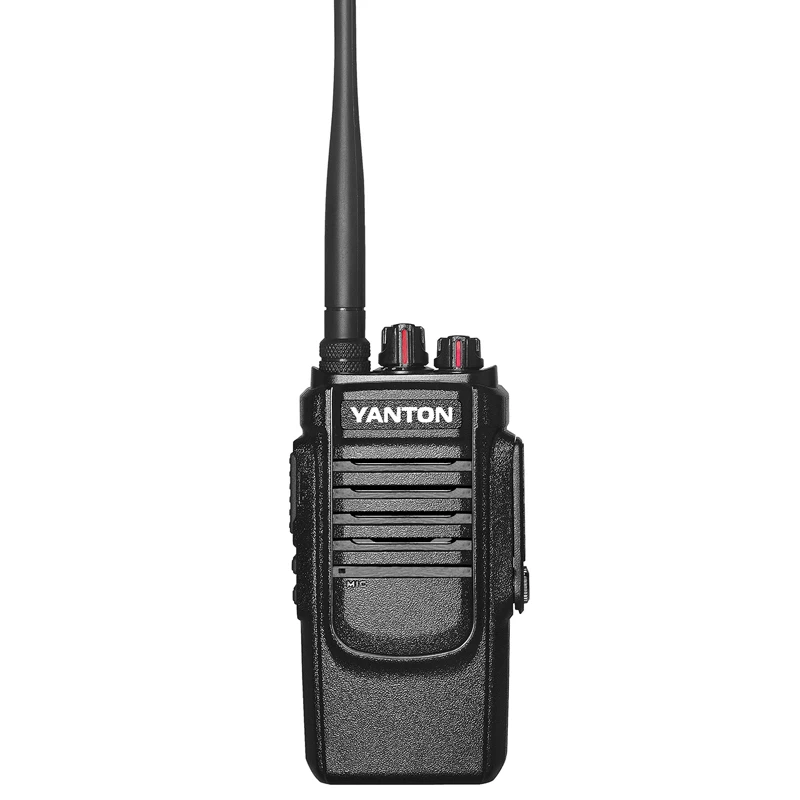

10W High Power Walkie Talkie UHF Portable Radio Transmitter

Long Range Handheld 10W Walkie Talkie 15KM,YANTON's voice compander audio enhancement and a powerful 1W speaker ensure superb clear, crisp sound, even in noisy environments. Its sleek, ergonomic design makes.



10W High Power Walkie Talkie UHF Portable Radio Transmitter

Long Range Handheld 10W Walkie Talkie 15KM,YANTON's voice compander audio enhancement and a powerful 1W speaker ensure superb clear, crisp sound, even in noisy environments. Its sleek, ergonomic design makes.

Quick Details

1.16channels
2.10W/5W/2W Power Switch with Side-key operation
3.Chinese/English Voice Announcement
4.Wide/Narrow Bandwidth Selection 12.5KHz/25KHz
5.CTCSS&DCS non-standard code
6.Battery Saver
7.Low Battery Alert
8.Check battery capacity by handheld operation and will annouce the capacity in current status
9.VOX on/off, VOX level setting, VOX delay time setting
10.DTMF/PTT ID
11.Busy Channel Lockout
12.Scan, Auto scan, Priority Channel Scan, Scan Add, Scan Delete
13.TX Power Level Adjustment by hand operation
14.Monitor / Monitor Momentary
15.Squelch level report, Squelch level adjustment
16.TOT function
17.Emergency Alarm
18.2 Tone
19.Remote Kill,Stun,Activate&Revive
20.Tail Tone Eliminate
21.Auto Power Off
22.Wire Clone
23.PC Software Program

Specification

GENERAL

Frequency Range


         136-174MHz&400-480MHz&450-520MHz

Operating Temperature

 -20℃to +55℃

Frequency Combination

  please lock frequency synthesize

Frequency Stability

 ±2.5ppm

Memory Channel

 16

Working voltage

 7.4

Antenna Impedance

 50Ω

Operating Mode

 simplex of co-frequency or alien

Dimensions

 135*70*38mm


Weight

 255G

TRANSMIT PART

RF power

 10W

Modulate Mode

  F3E

Max.Freq.Deviation

 ≤5KHz

Remain Wave Radiation

 ≤60db

Transmitting Current

 ≤1000mah

RECEIVER PART

Sensitivity

 <0.20uV (12dB SINAD)

Squeich Sensitivity

 <0.20uV

Intermodulation Antijamming

 50db

Audio Power output

 500mW

Receiving Current

  ≤100mh

Squelch Stangby

 20ma


Long Range Handheld 10W Walkie Talkie 15KM

10W Walkie TalkieWalkie Talkie UHFPortable Radio Transmitter

Service


Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping



Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
