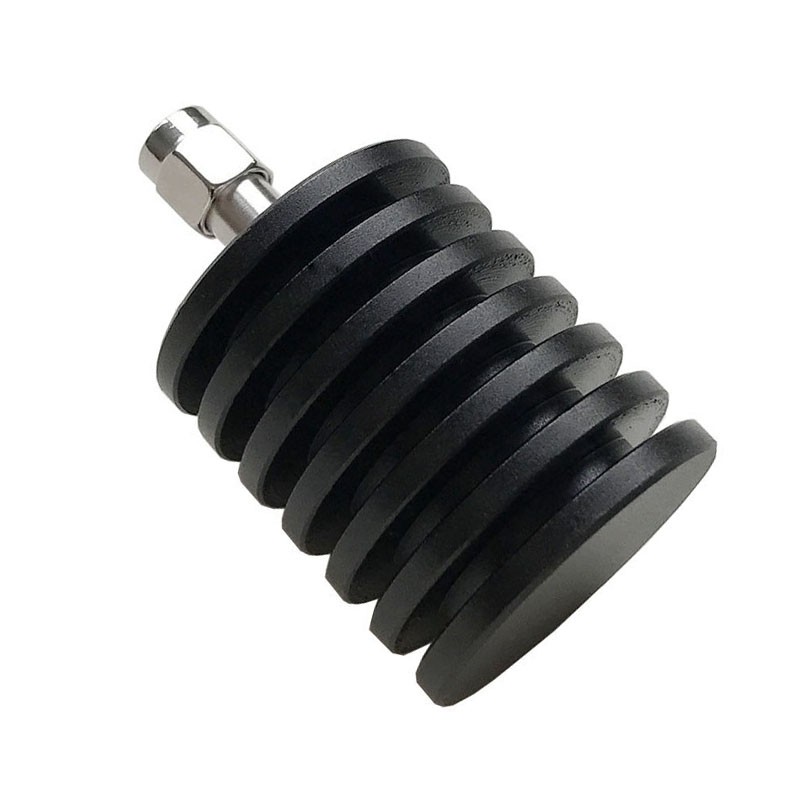

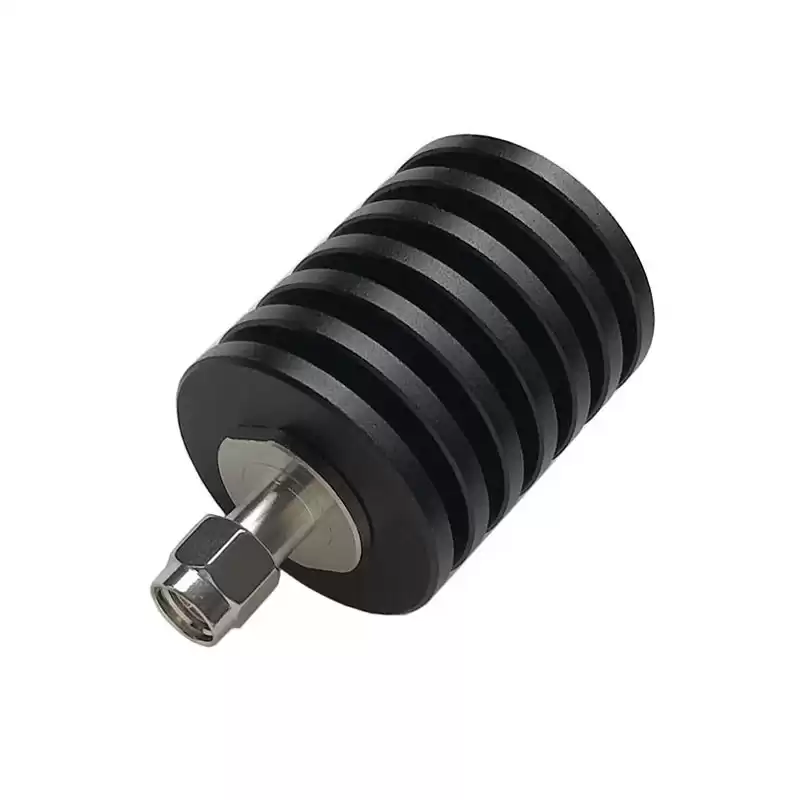

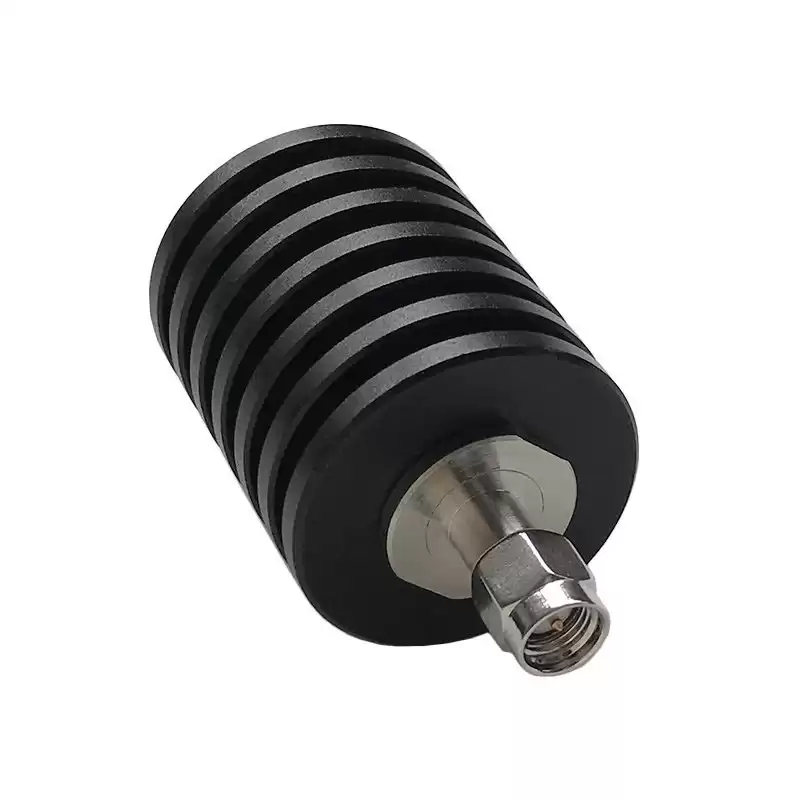

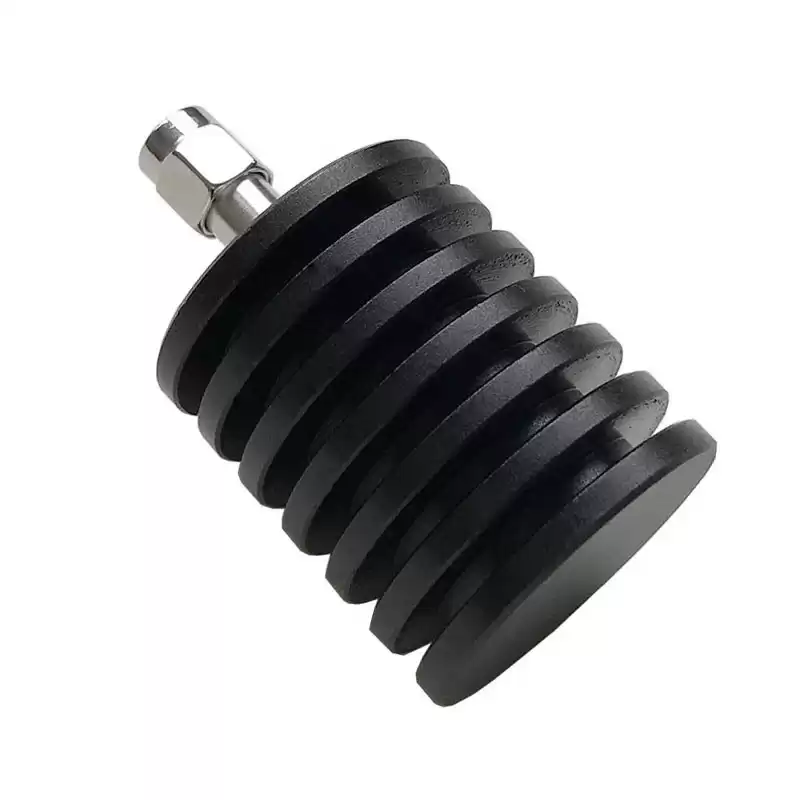

10W SMA Male DC-3GHz Connector RF Termination Load 50ohm Dummy Load

Features:

  • Wide Frequency Band;
  • 2G/3G/4G/LTE Coverage;
  • Low VSWR;
  • Widely used for In-building Solutions;
  • Low  Insertion Loss.



10W SMA Male DC-3GHz Connector RF Termination Load 50ohm Dummy Load



The 10W SMA dummy load (also known as 10W SMA termination or 10W SMA RF load ) has a SMA connector that is male. This 10W SMA male load / termination is rated for a maximum frequency of 3GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 10W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector SMA Male
VSWR ≤1.2
Power 10W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators


Product Tags 10W SMA Male Terminator          SMA Male Termination load          10W dummy load 3GHz          10W SMA dummy load          10W SMA Terminator          SMA Dummy load 3GHz
