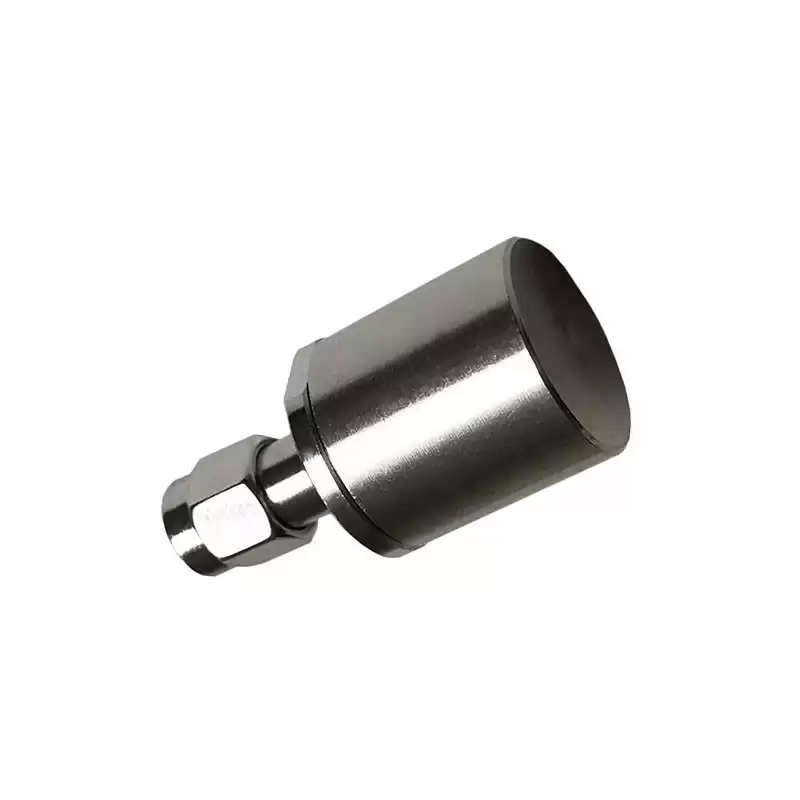

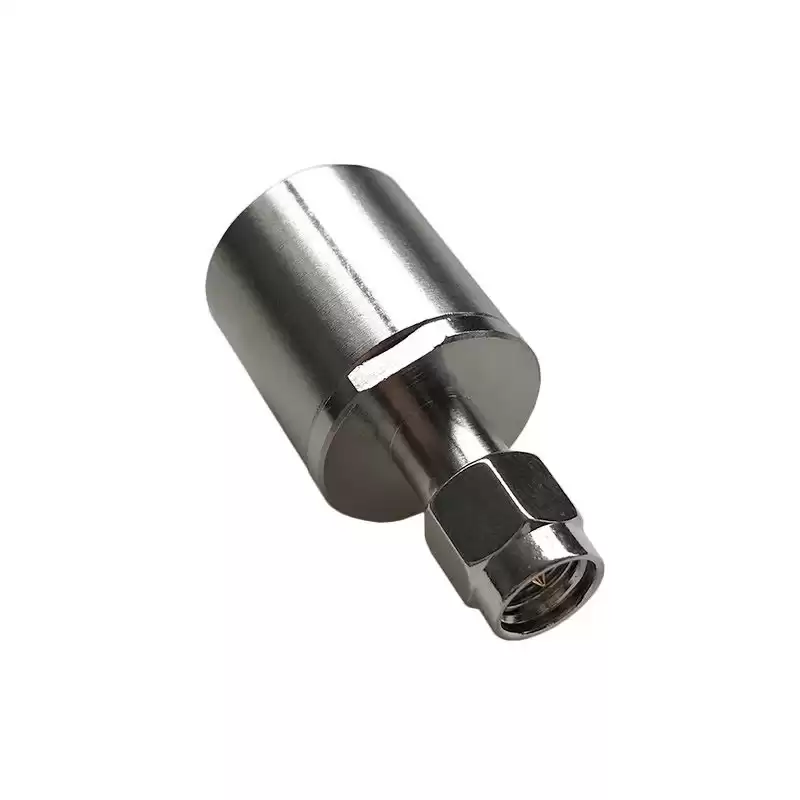

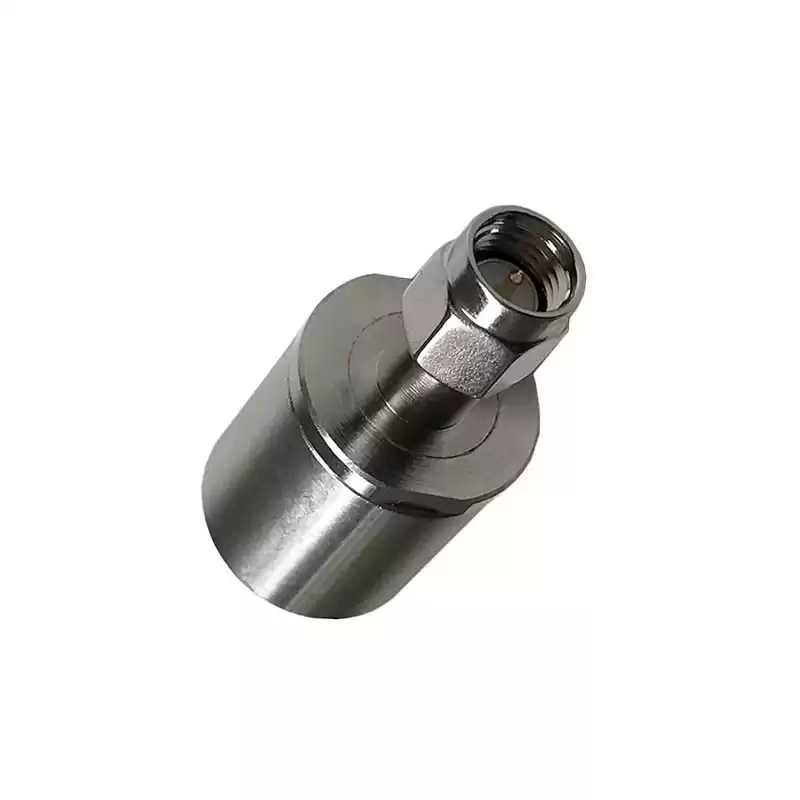

2W SMA Male Connector Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator

Features:

  • Wide Frequency Band;
  • 2G/3G/4G/LTE Coverage;
  • Low VSWR;
  • Widely used for In-building Solutions;
  • Low  Insertion Loss.



2W SMA Male Connector Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator



The 2W SMA dummy load (also known as 2W SMA termination or 2W SMA RF load ) has a SMA connector that is male. This 2W SMA male load / termination is rated for a maximum frequency of 6GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 2W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/6GHz
Connector SMA Male
VSWR ≤1.2
Power 2W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate or Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
