10x20 Party Outdoor Canopy Tent
Party Tent 10x20 's Application:

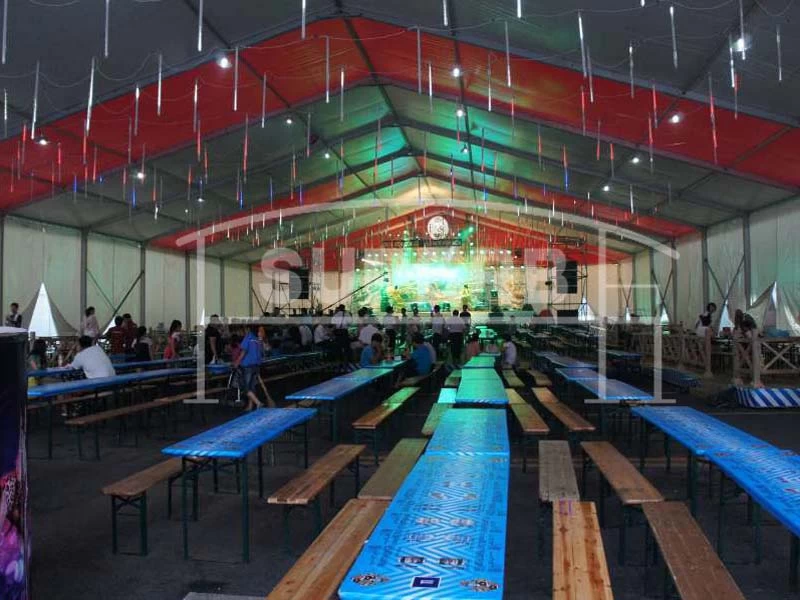

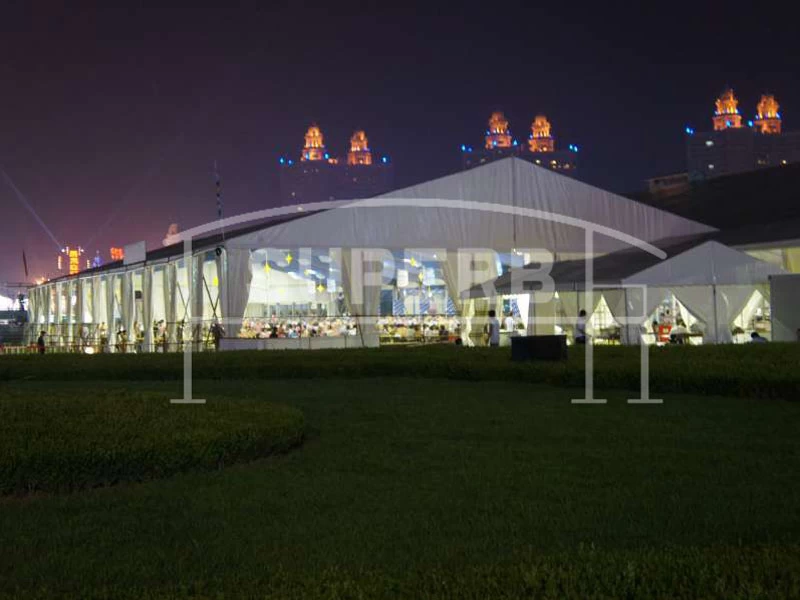

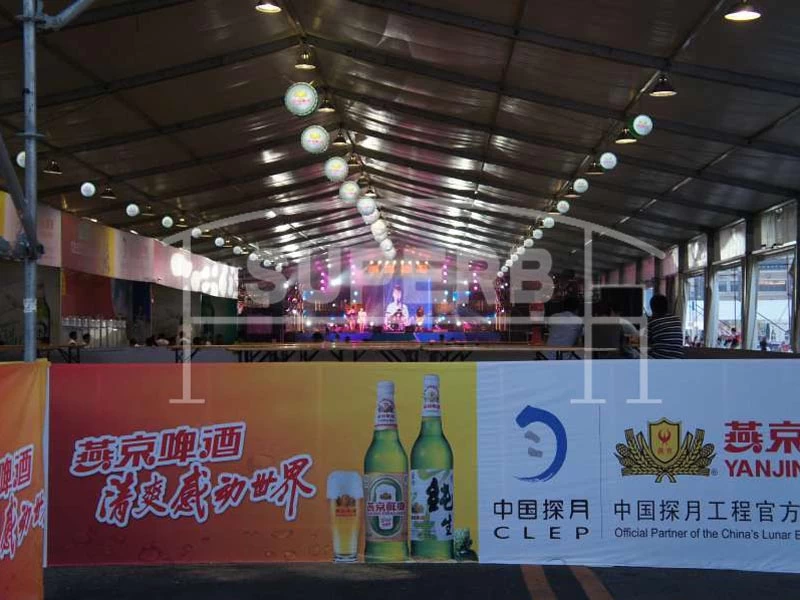

Widely used for temporary outdoor exhibitions, wedding parties, festival celebrations, conferences, sports and other events, and also good solution of temporary warehouse, workshop and temporary emergency relief and other purposes.
Party Tent 10x20 's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Party Tent 10x20 's Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.
Party Tent 10x20 's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Party Tent 10x20 's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
LS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
LS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
