110v 120 volt ac dc 12v led strip power supply 10 amp

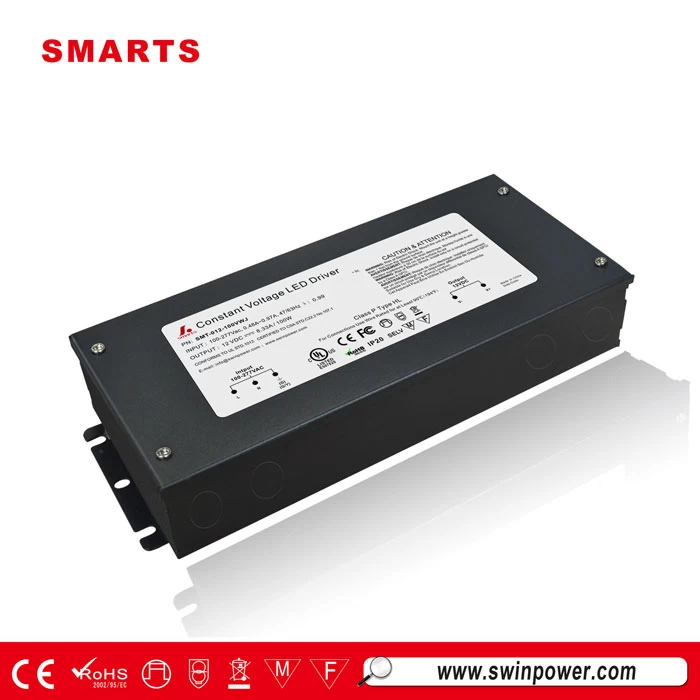

SMT-012-120VWJ is a input voltage 100-277vac, output 12v 10a 120w non dimmable non class 2 led driver / power supply. This model follows UL 8750 standard, pass FCC certificate, withstandard voltage 3.75KV, provide 7 years warranty. avaliabel to be widely used in LED indoor applications for LED puck light, LED chandelier, led modules etc..
Specifications
|
model
|
SMT-012-120VWJ
|
SMT-024-120VWJ
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
Full Load Efficiency（Typ.）
|
80%@120V 84%@230V 84%@277V
|
85%@120V 88%@230V 88%@277V
|
|
AC Current（Typ.）
|
1.71A@100VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over voltage
|
≦140VAC(100~130V) , ≦270VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750, UL1012
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
220*93*41mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

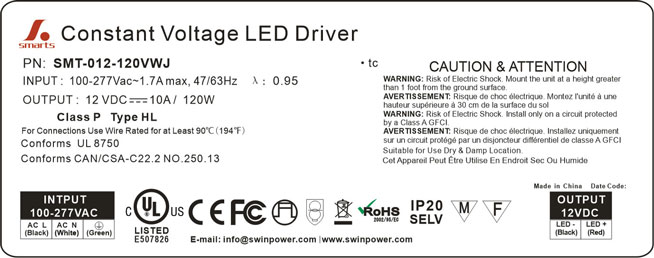

Label
|
|

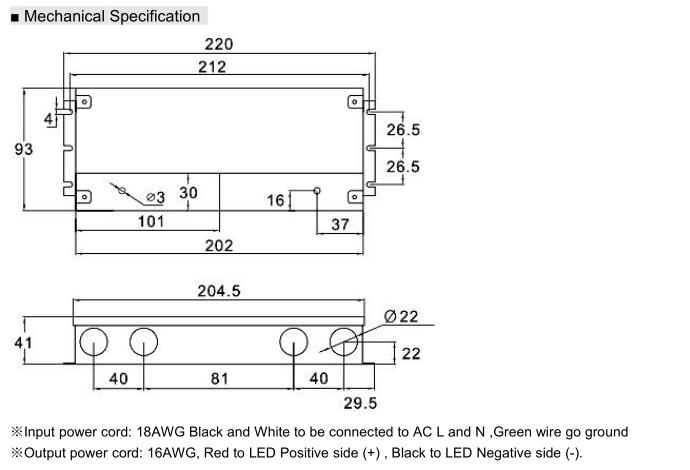

Dimension of our 12v 10a UL power supply with junction box:
FAQ: How can we connect multi-LEDs to one led driver?
Answer: During the LED applications, its a common to make the connection of 1 driver for 1 LEDs, but if you would want to connect multi-LEDs to one LED driver, that is acceptable as well. but kindly note just connected the LEDs in parallel to a constant voltage LED driver, so that the brightless of each LEDs will be the same and won't cause drop voltage problem. see below connection diagram:
More questions about LED driver connection, don't hesitate to contact us, we will have engineer team to work for you.
