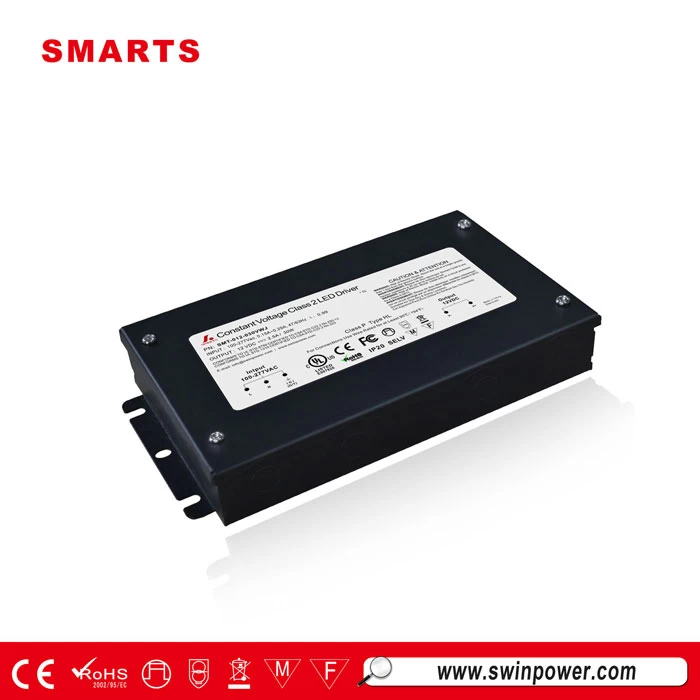

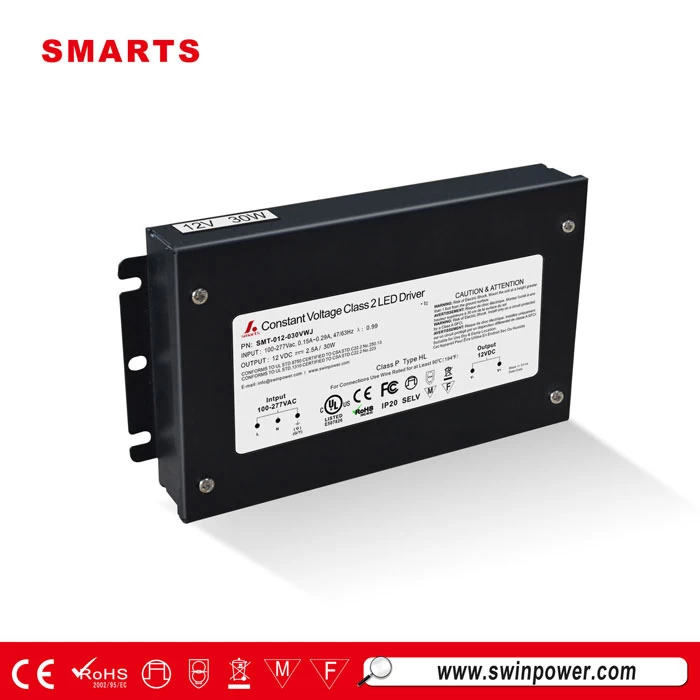

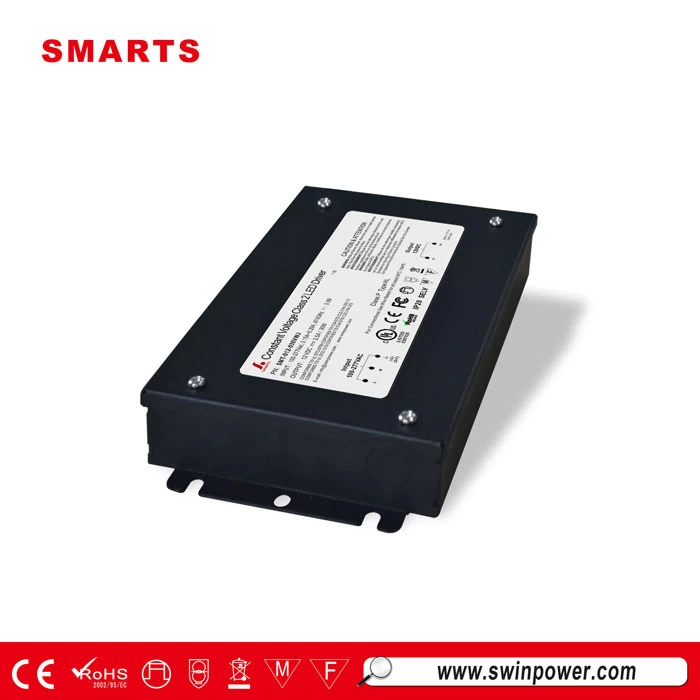

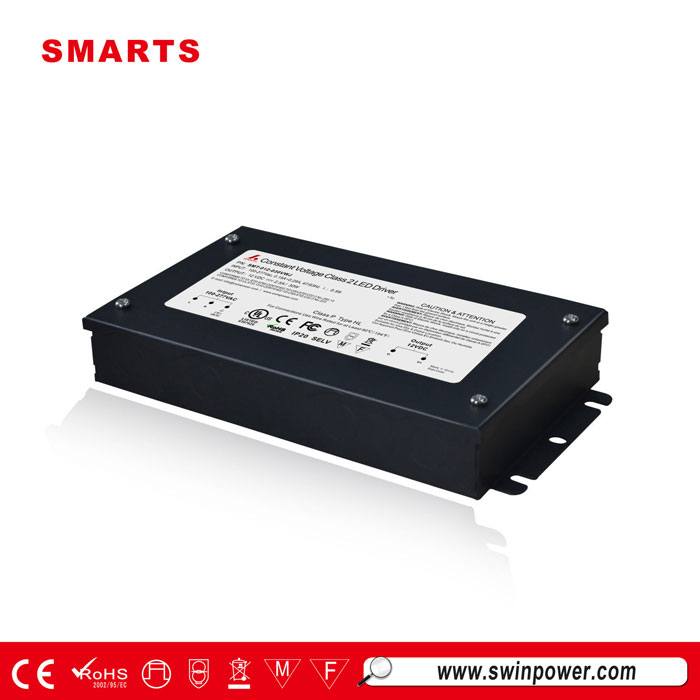

277v input 12v 24v UL led driver junction box constant voltage 30w

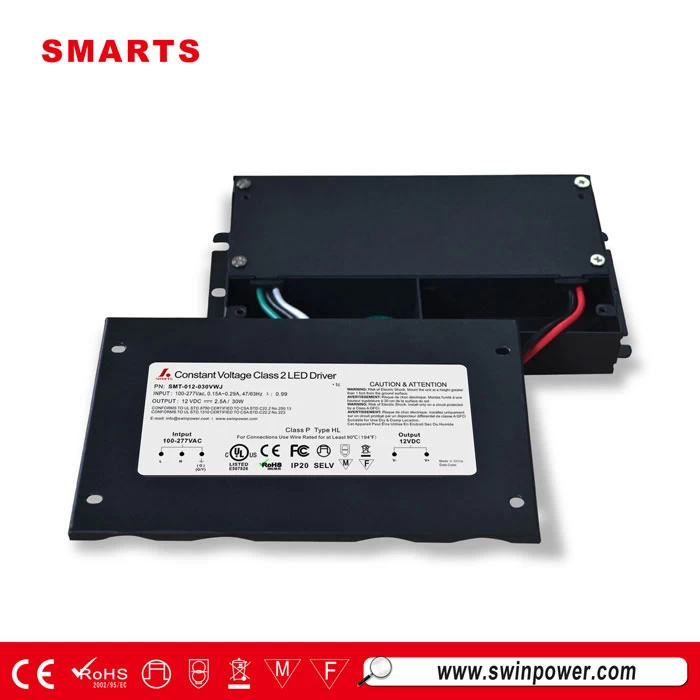

Compatiable with hardwire led driver power supply, SMARTS UL series led drivers are designed with small dimension with Junction box to be easy fix in LED profiles or some other applications.
Specifications
|
model
|
SMT-012-030VWJ
|
SMT-024-030VWJ
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
1.66Amp
|
0.83Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.99@120V ;0.98@230V ;
0.98@277V
|
0.99@120V ; 0.98@230V ;0.96@277V
|
|
Full Load Efficiency（Typ.）
|
>87%
|
>88%
|
|
AC Current（Typ.）
|
0.51A/110VAC / 0.43A/277VAC
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|

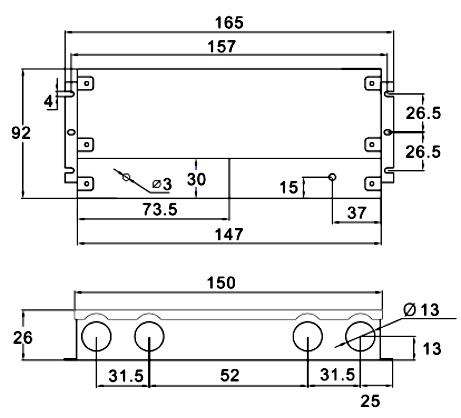

Dimension
165*92*26mm (L*W*H)
What is the standard can our UL led drivers reach?
For this UL series led driver and junction box intergrated 12v 24v 30w power supply, its pass UL standard 1310 class 2, class p and type HL standard, FCC approved as well, suitable for damp location only. Not able to work in wet location.
If you would need LED drivers for outdoor use and suitable for wet locations, we would recommend you take our super slim type 30w UL led drivers.
More details and product inquiry, let us know the specifications.
