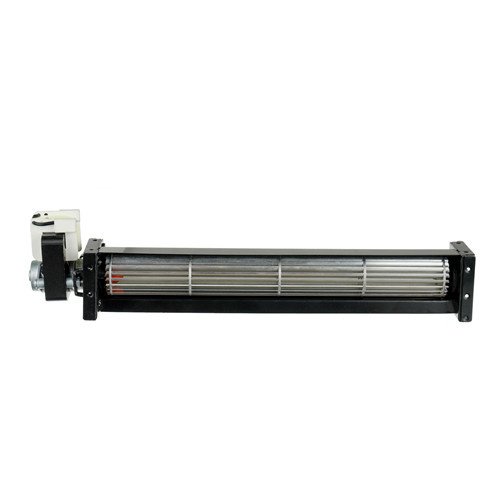

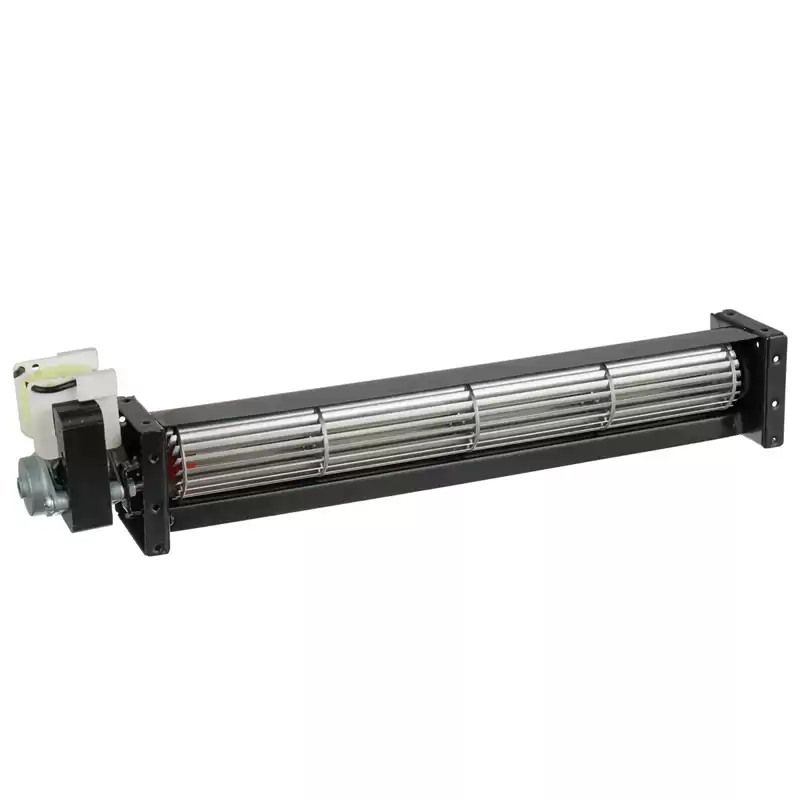

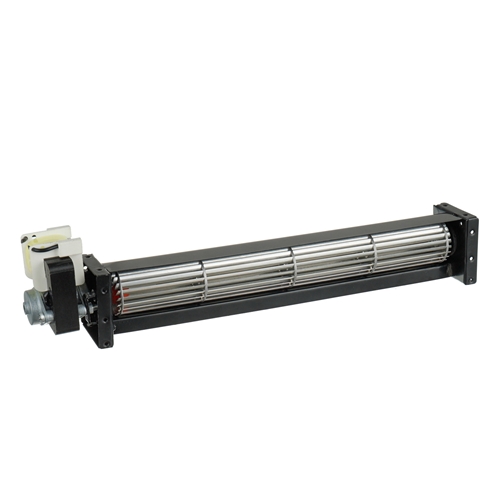

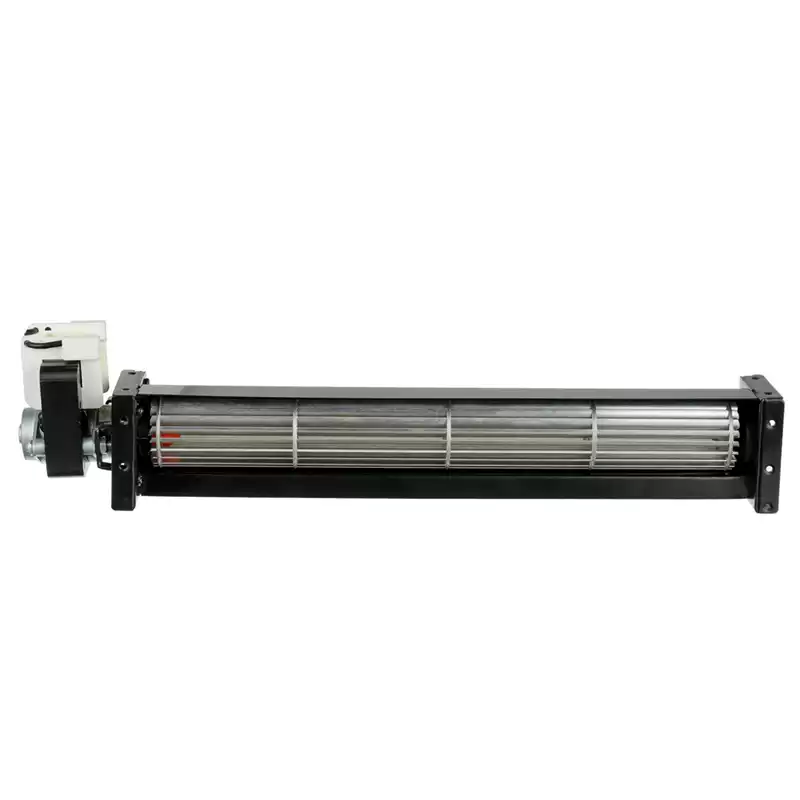

110V/220V Air Circulation Exhaust Cross Flow Tangential Fan

The ventilation cross flow fan has a strong power motor, and the metal fan blades have large air volume, uniform inlet and outlet air, wear resistance, high temperature resistance.




AC Motor 110/60Hz 220V/50Hz Air Radiator Ventilation System Cross Flow Exhaust Fan. The fans are constructed from a temperature-resistant aluminum alloy to withstand high heat environments.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 210 mm x 190 mm x 30 mm / The size of fan in inch is 8.26 in x 7.48 in x 1.18 in; The center to center distance beween the mountiong holes is 210 ± 1 mm / 8.26 in.
  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.10 Amp | Speed: 2500 RPM | Airflow: 24.83 CFM | Noise: 39 dBA | Pressure: 0.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

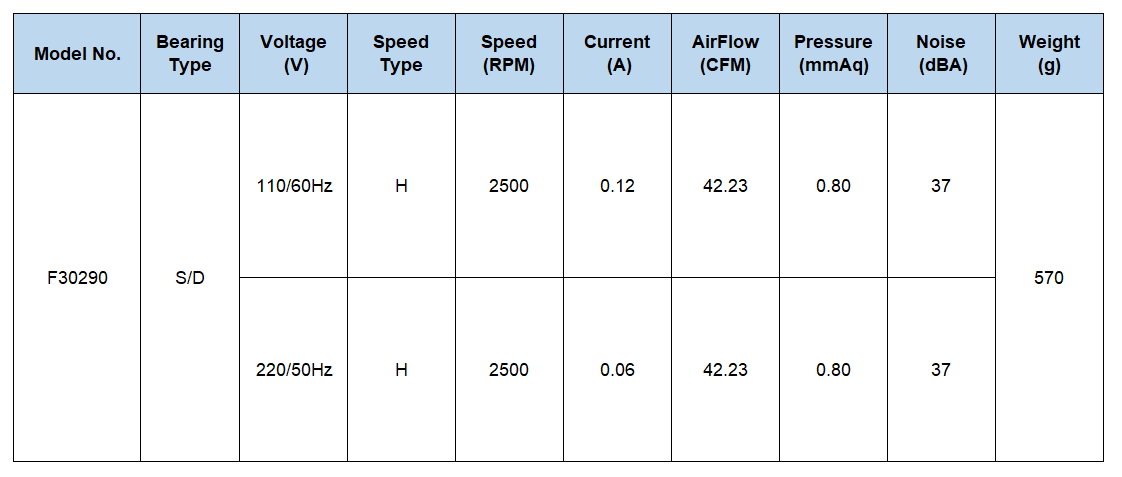

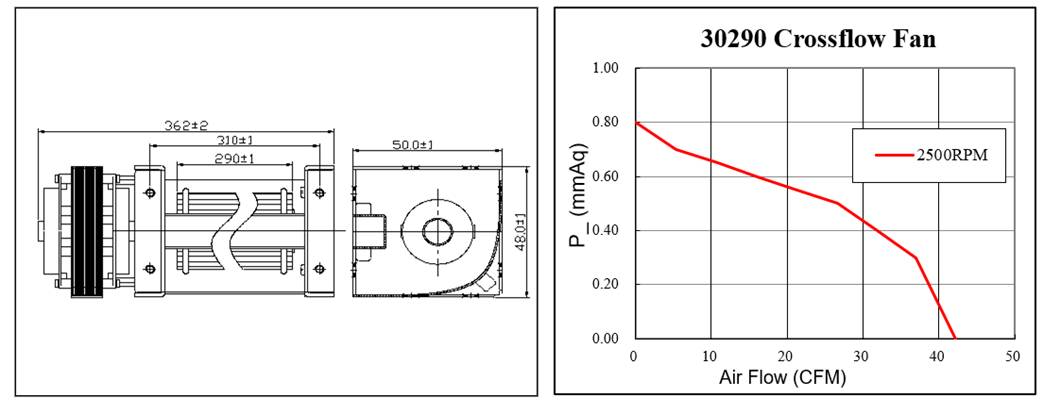

AC Cross Flow Fan 310x290x30mm

 Low Noise Diameter 30mm Small Tangential Cross Flow Fan aluminum impeller ac cross flow fan

General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


    air curtain cross flow fan 110v 220v

       large air flow ac crossflow fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Strict Waterproof & Dustproof Test;
  • Has a long lifespan, which is over 50,000 hours at 25 ℃;
  • Low noise, low vibration, high power, high efficiency, good insulation;
  • Our products are customized accroding to customer's requirements;
  • These tangential fans are equipped with ball or sleeve bearings that ensure smooth operation.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Crossflow Fan F25090 109x90x25mm AC Crossflow Fan F30190 210x190x30mm
F30090 108x90x30mm F30290 310x290x30mm
F30090(PBT) 108x90x30mm F60180 200x180x60mm
F30150 168x150x30mm F60240 260x240x60mm
F30190 210x190x30mm F60300 320x300x60mm
F30250 270x250x30mm

F30290 310x290x30mm

F40150 170x150x40mm

F40300 320x300x40mm

F50100 132x90x50mm

F50200 263x200x50mm



Application

Cross flow fans can be used for cooling, heat dissipation and ventilation of photocopiers, projectors, refrigeration and display cabinets, air-conditioning fans, heaters, air humidifiers, clothes dryers, electric ovens and other electrical equipments.

tangential cross flow fan ac motor

  • Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
  • Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
