110Vac power supply 12V 5a 60W triac dimmable led driver for led lighting
60W triac dimmable led driver are devide 12v and 24v output voltage led driver.we give 7 years warranty. it is suitable for American market that is UL CE ROHS approval
Features
-Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.97
·Efficiency >80% / Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·PWM output, does not change the color index
·IP20 design for indoor installations
·Cooling by free air convection / Flicker-free
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·7 years warranty
Specification
|
model
|
SMT-012-060VTH
|
SMT-024-060VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Rated current
|
5.00A
|
2.50A
|
|
|
Load Regulation
|
±1%
|
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>83%
|
|
|
AC Current（Typ.）
|
0.9A/110VAC
|
|
|
Inrush Current （Typ.）
|
14A, 50%, 780us
|
|
|
Leakage current
|
<0.50mA
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦285VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 1.1Kg
|
|
|

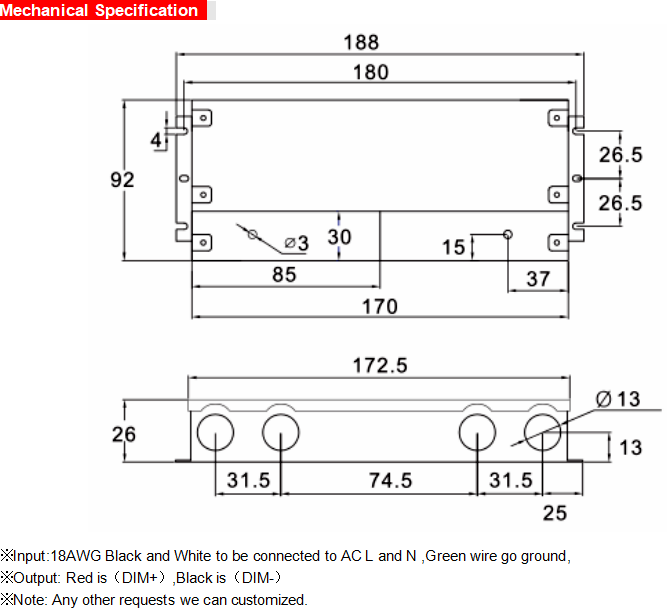

Size
|
188*92*26mm（L*W*H）
|
|
|
packing
|
10PCS/CTN
（L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
