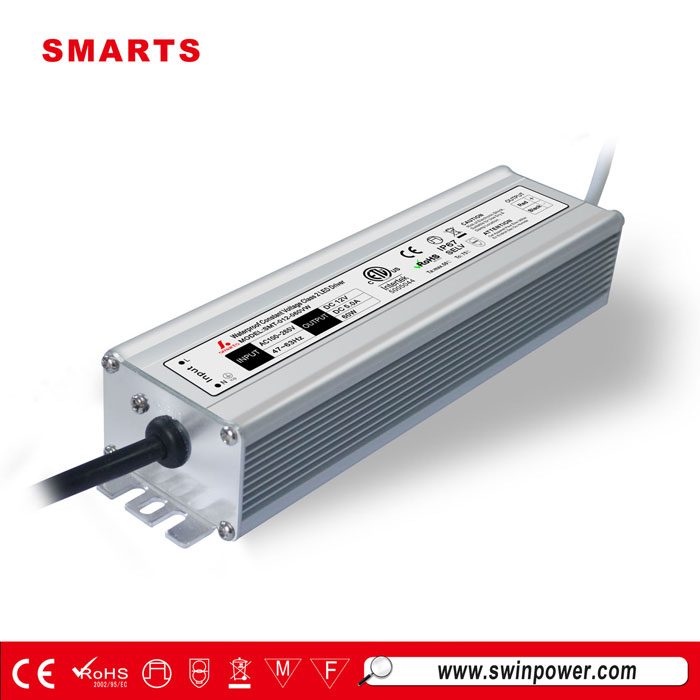

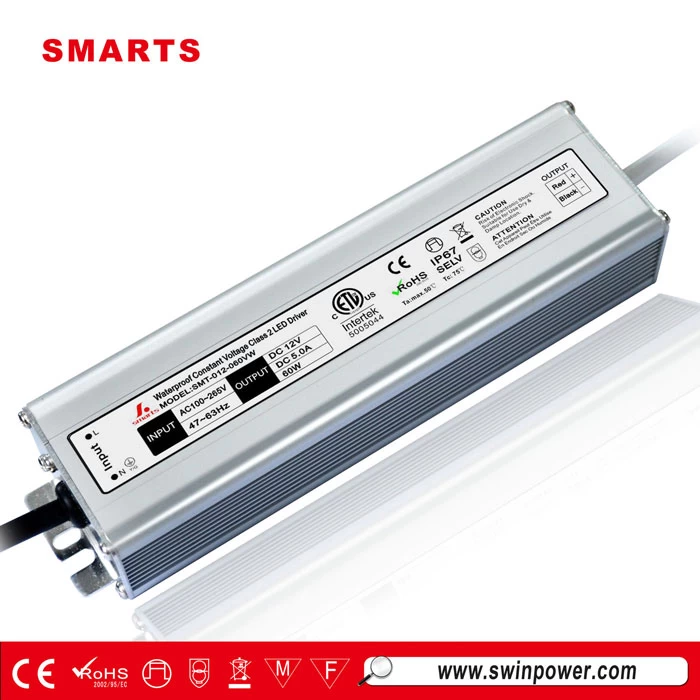

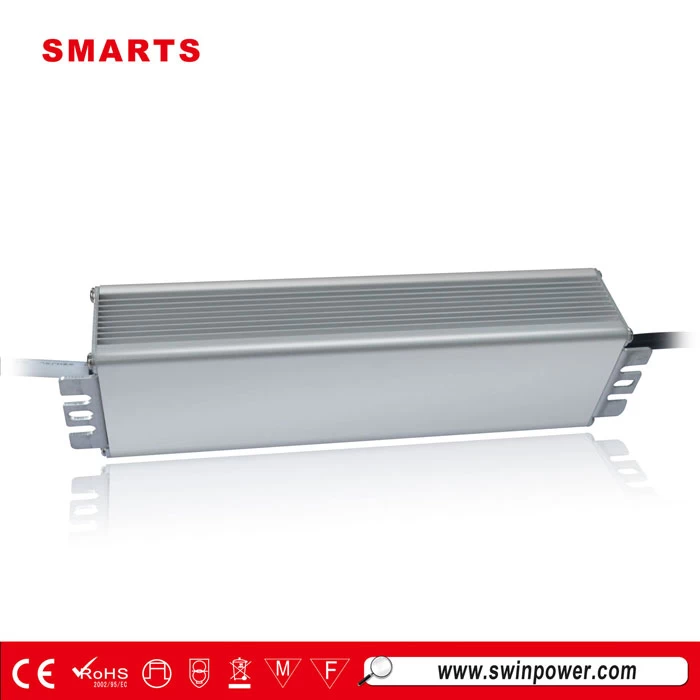

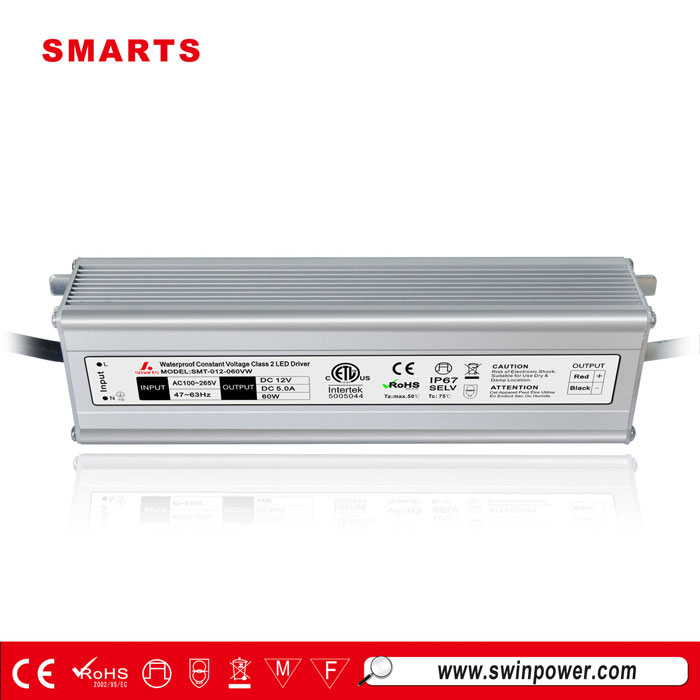

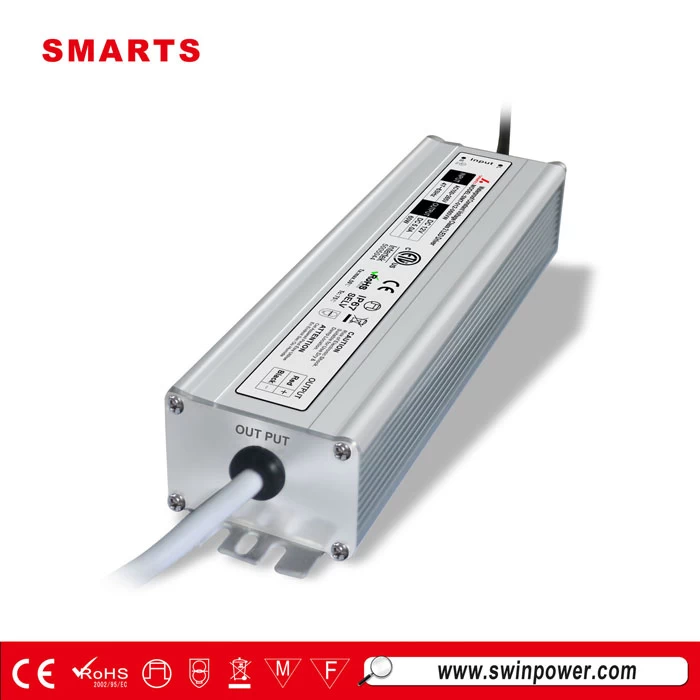

110VAC waterproof power supply 12V 5A 60W LED driver with ETL approval

waterproof 12v 60w constant voltage LED driver takes about 2 years warranty,and it is have short circuit/overload/over temperature protection.Through 100% full load burn-in test.


  • Dimming modenon-dimmable
  • Working Modeconstant voltage
  • Output Current5A
  • Output Voltage12
  • Input Voltage100-265Vac
  • Size190*48*34mm
  • CertificationETL CE ROHS

110VAC waterproof power supply 12V 5A 60W LED driver with ETL approval

110VAC waterproof power supply constant voltage led driver are our strengh product,the input voltage range:100-265vAC,the output voltage 12vDC & 24VDC.



 Features

  1. IP67 design for indoor or outdoor installations
  2. Protections:Short circuit/Overload/Over temperature
  3. Cooling by free air convection
  4. 100% full load burn-in test
  5. Suitable for LED lighting
  6. Products through UL,CE,RoHS Certification
  7. 2 years warranty


 Environment

      1.Working Temperature : -25 ~ +50°C

      2.Working Humidity : 20 ~ 90% RH non-condensing

      3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

      4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

      5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

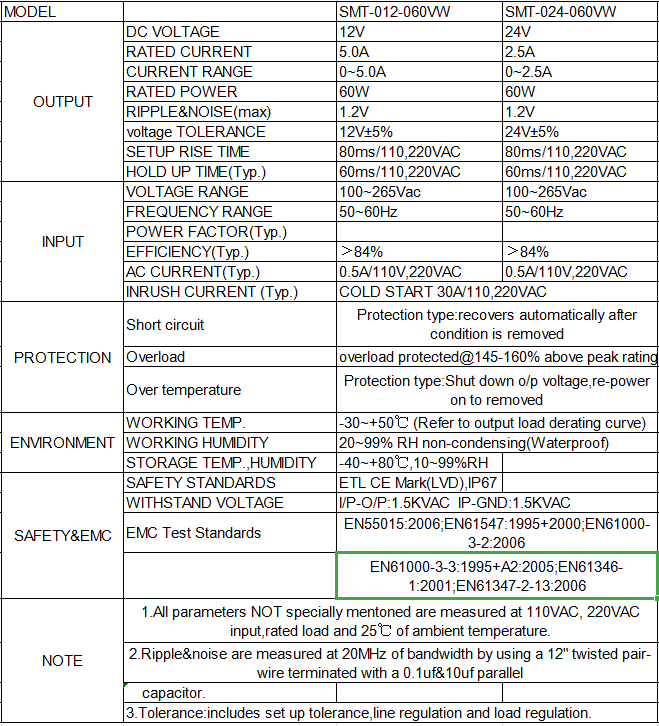

 Product parameters

constant voltage led driver
