The KT-5800, a new analog dual band VHF UHF mobile ham radio, uses dual voltages of 12V and 24V, suitable for cars, taxi, lorries and trucks.

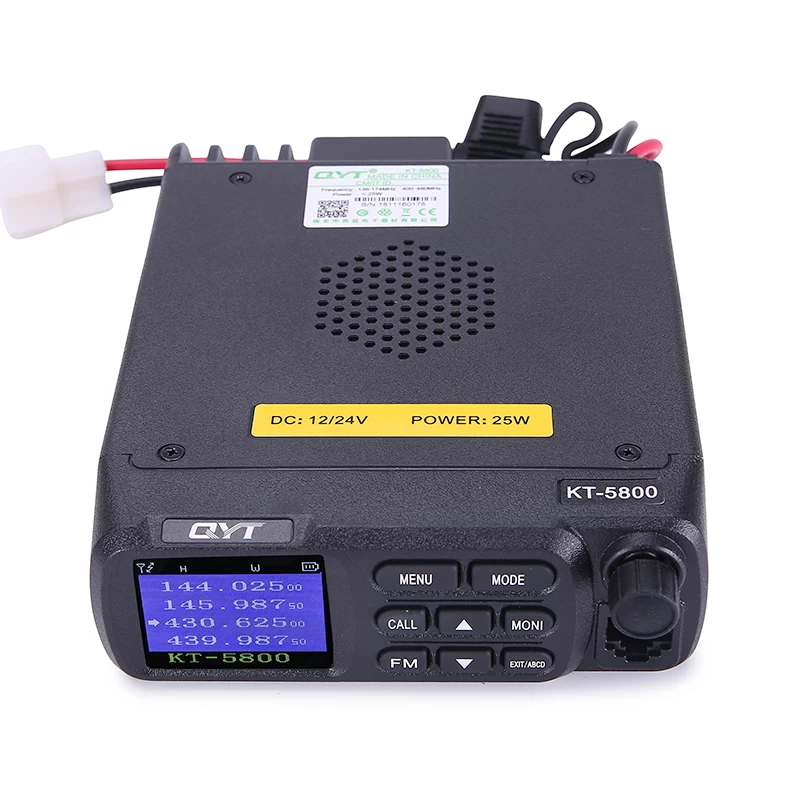

Mini mobile base radio have fashionable exterior with color screen, used dual band quad standby.
The KT-5800 vehicle mounted 2 way radios External Speaker/PTT, remote Stun, Remote Kill& Remote Revive, DTMF, 2 Tone, 5 Tone.
Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.

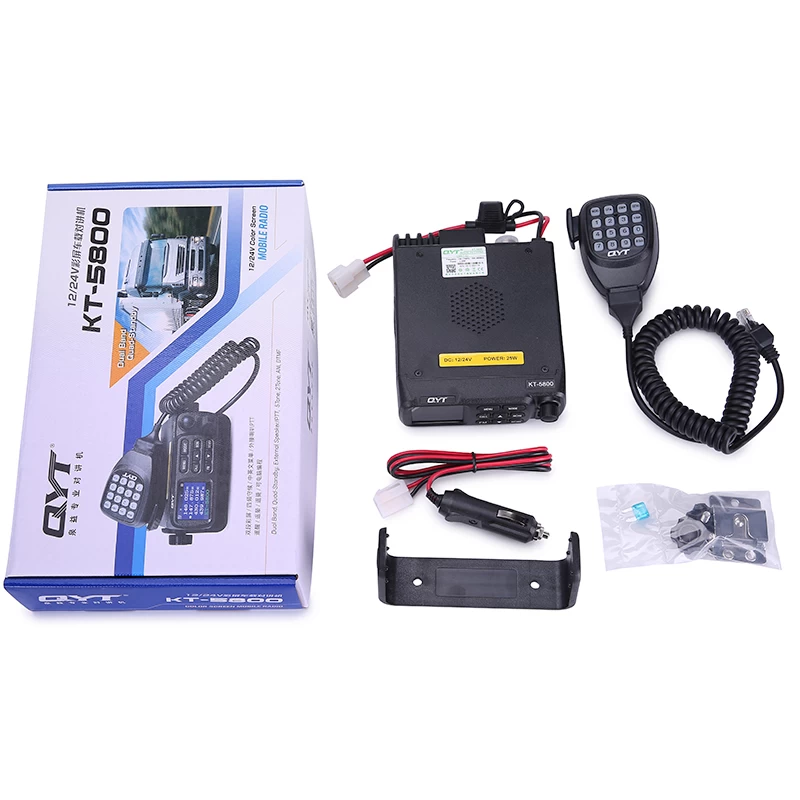

The KT-5800 Kit includes:
-
Radiostation
-
Microphone
-
DC power cable
-
Mobile mounting bracket
-
Mounting hardware
-
User's manual
|
General Specifications
|
|
Frequency Range
|
VHF: 136-174MHz UHF: 400-470MHz
|
|
Channel Capacity
|
200 channels
|
|
Channel Spacing
|
25KHz, 20KHz, 12.5KHz
|
|
Channel Step
|
2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 25KHz
|
|
Working Voltage
|
13.8V DC ±15%
|
|
Squelch way
|
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20℃~+60℃
|
|
Dimension(W*H*D)
|
123(W)*44(H)*158(D)mm
|
|
Weight
|
0.66KG
|
|
Receiver (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Sensitivity
|
≤0.25μV
|
≤0.35μV
|
|
Channel chioce
|
≥70dB
|
≥60dB
|
|
Intermodulation
|
≥65dB
|
≥60dB
|
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.55KHz)
|
|
Signal to noise ratio
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
≤5%
|
|
Audio output power
|
≥2W±10%
|
|
Transmitter (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Output power
|
25W/20W(VHF/UHF)
|
|
Modulation Mode
|
16KΦF3E
|
11KΦF3E
|
|
Channel Power
|
≥70dB
|
≥60dB
|
|
Signal noise ratio
|
≥40dB
|
≥36dB
|
|
Parasitic harmonic
|
≥60dB
|
≥60dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.25KHz)
|
|
Audio distortion
|
≤5%
|
