The Analog Mobile Ham Radio Base Station Kit from QYT is your ticket to experience two way radio fun.
Manufacture by QYT for hams, this kit has everything you need to get you started as an analog amateur radio operator at fabulous cost!

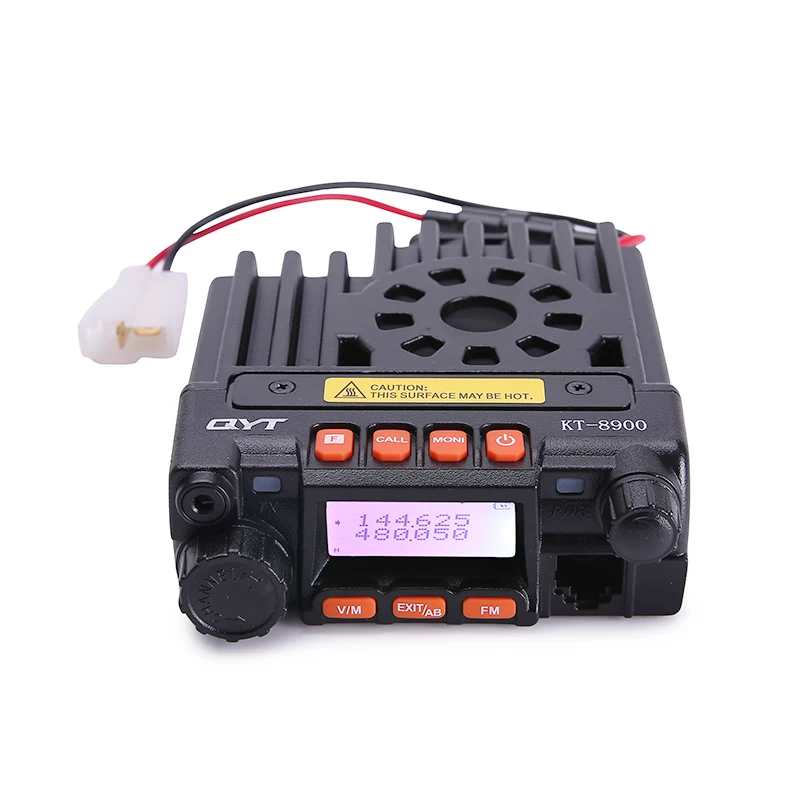

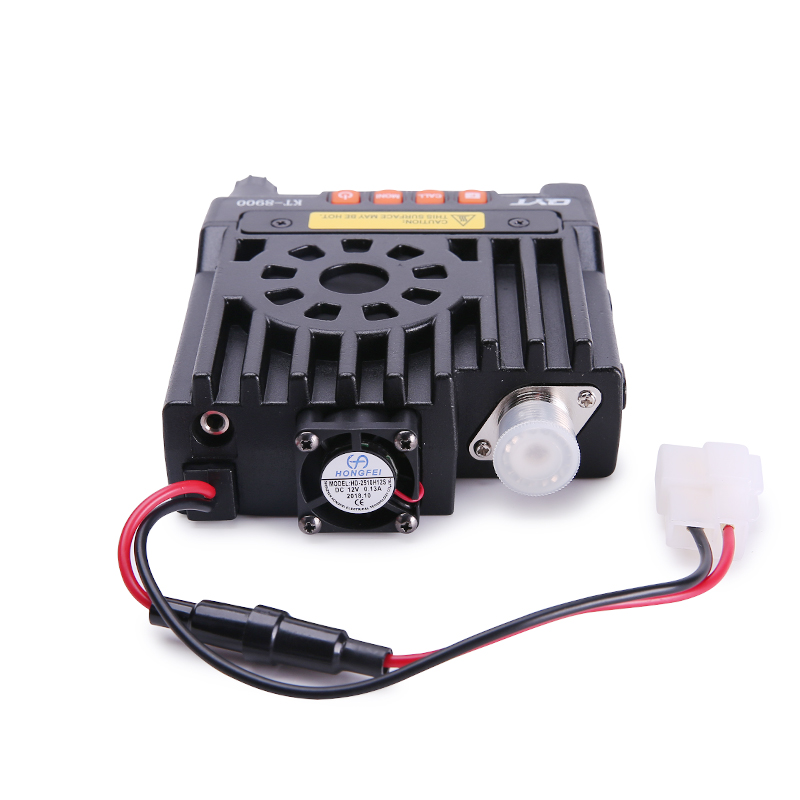

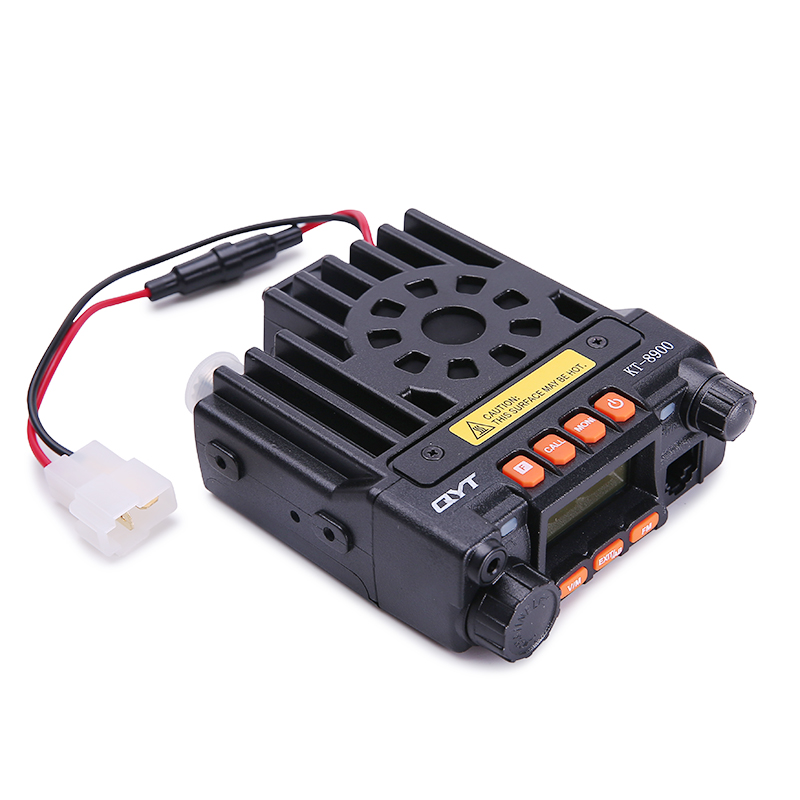

The KT-8900 is a mini dual band VHF and UHF mobile radio. Which is a great training radio for an amateur radio club instructional program. It comes in handy for hams who are new to two way radio and want to build a ham shack on a budget. It's the perfect gift for that ham in your life who wants an analog mobile or base station radio to Get On The Air.
The KT-8900 could be used as commercial mobile radio, public mobile radio even taxi two way radio.
The QYT KT-8900 offers up to 25 watts VHF and 20 watts UHF operation in High output mode. It features 256 Channels, with CTCSS and DCS, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability. The KT-8900 has an LCD display, programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.
The QYT KT-8900 is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.
Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.
USB Programming Cable to connects your QYT radios to your computer and software to programming your radio!

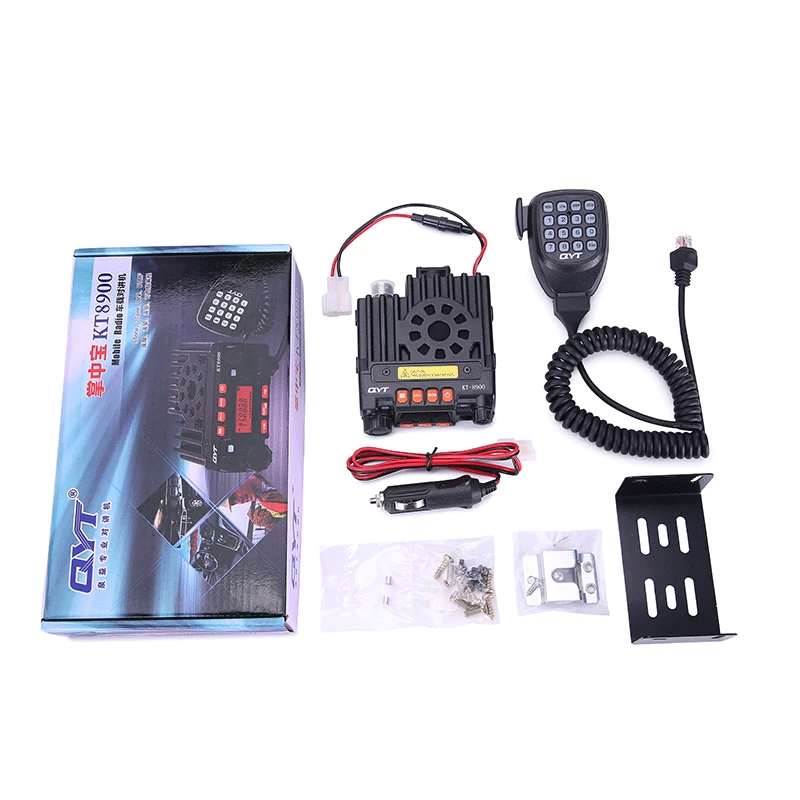

The KT-8900 Kit includes:
-
Radiostation
-
Microphone
-
DC power cable
-
Mobile mounting bracket
-
Mounting hardware
-
User's manual
|
General Specifications
|
|
Frequency Range
|
VHF: 136-174MHz
UHF:400-480MHz
|
|
Channel Capacity
|
200 channels
|
|
Channel Spacing
|
25KHz, 20KHz, 12.5KHz
|
|
Channel Step
|
5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
|
|
Working Voltage
|
13.8V DC ±15%
|
|
Squelch way
|
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20℃~+60℃
|
|
Dimension(W*H*D)
|
140(W)*43(H)*172(D)mm
|
|
Weight
|
1030g
|
|
Receiver (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Sensitivity
|
≤0.25μV
|
≤0.35μV
|
|
Channel chioce
|
≥70dB
|
≥60dB
|
|
Intermodulation
|
≥65dB
|
≥60dB
|
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.55KHz)
|
|
Signal to noise ratio
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
≤5%
|
|
Audio output power
|
≥2W±10%
|
|
Transmitter (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Output power
|
25W/20W (VHF / UHF)
|
|
Modulation Mode
|
16KΦF3E
|
11KΦF3E
|
|
Channel Power
|
≥70dB
|
≥60dB
|
|
Signal noise ratio
|
≥40dB
|
≥36dB
|
|
Parasitic harmonic
|
≥60dB
|
≥60dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.25KHz)
|
|
Audio distortion
|
≤5%
|
