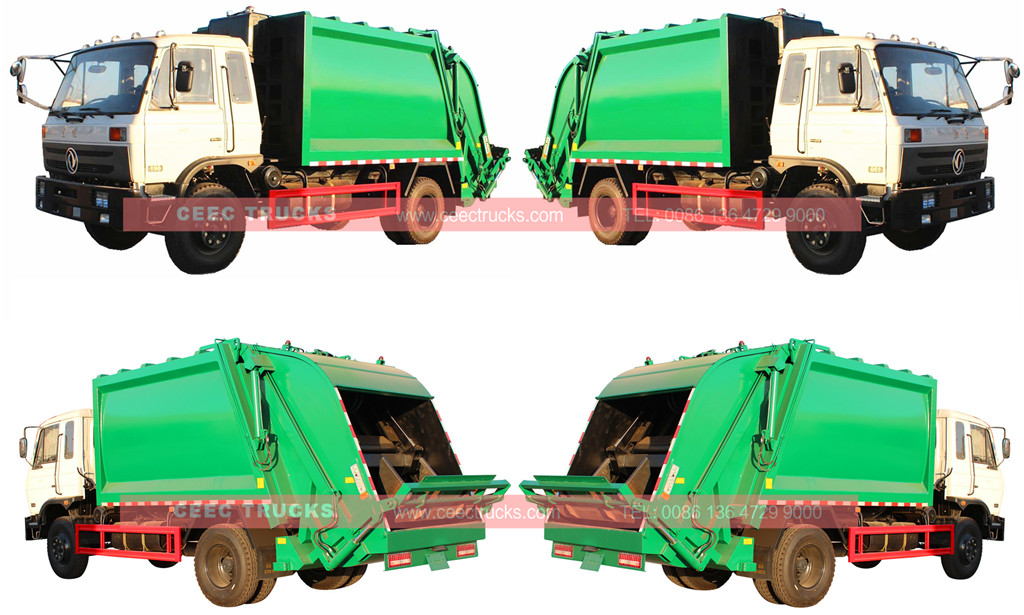

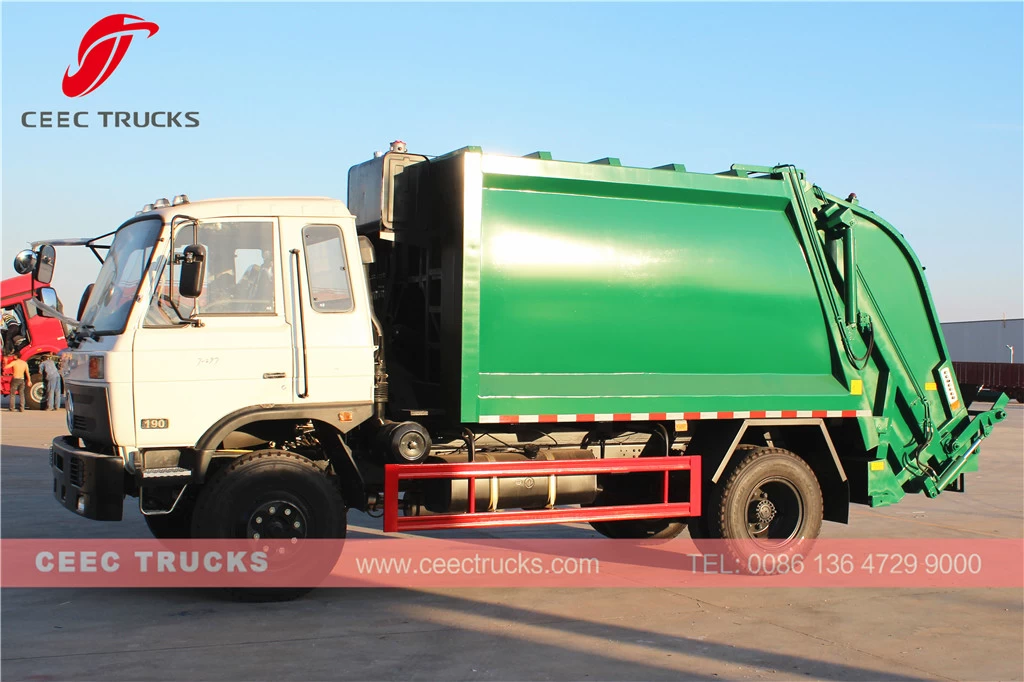

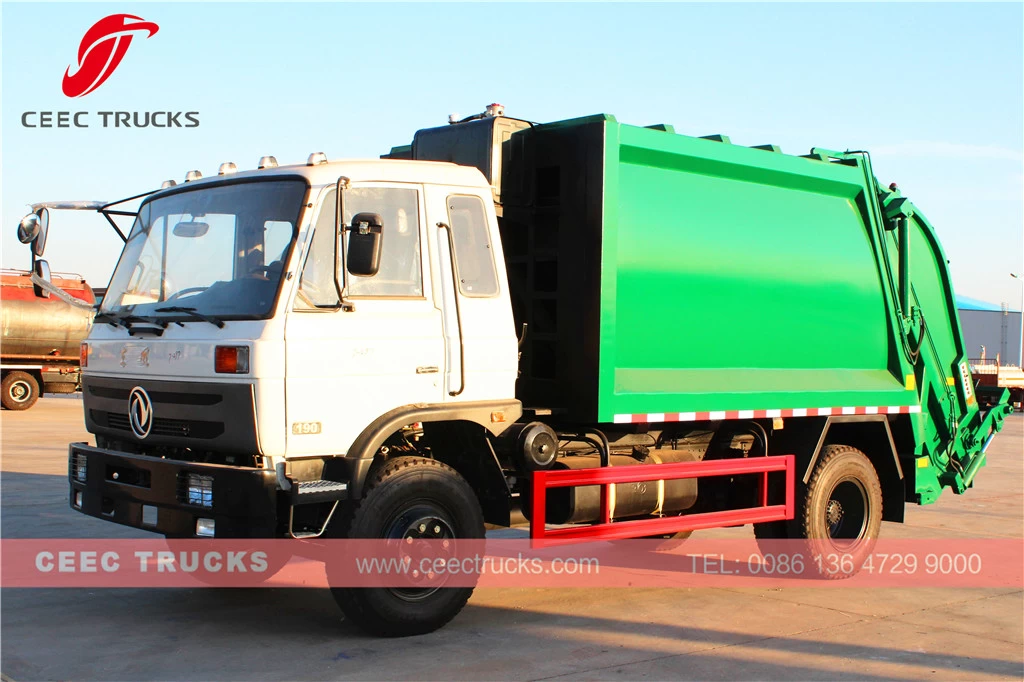

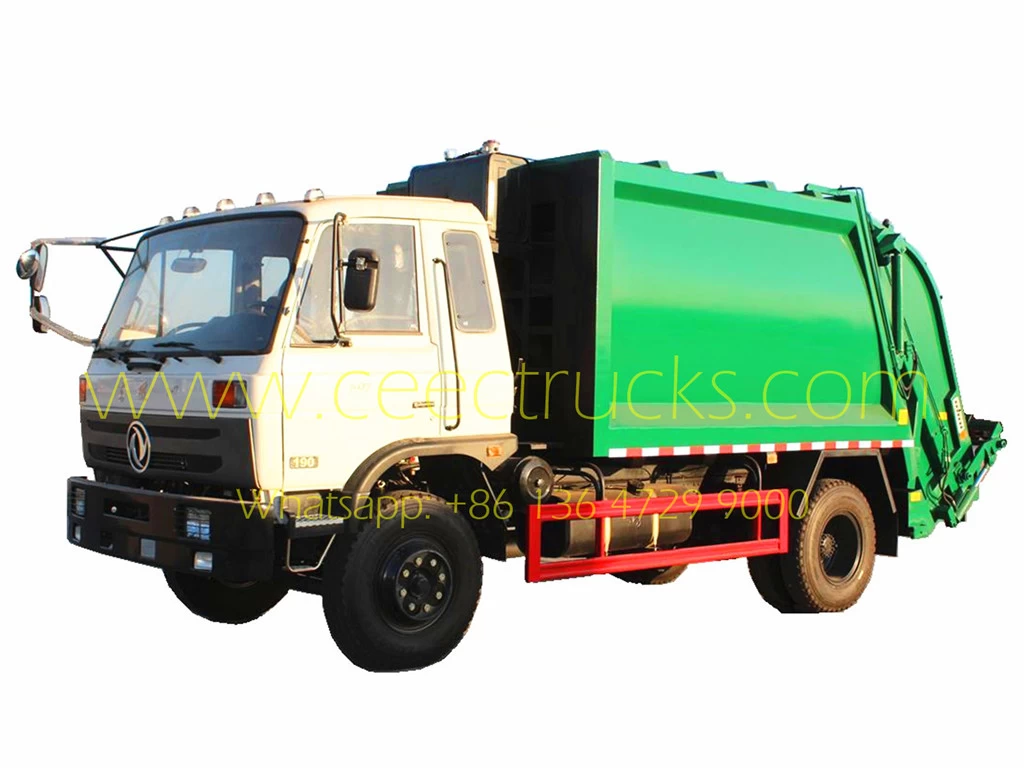

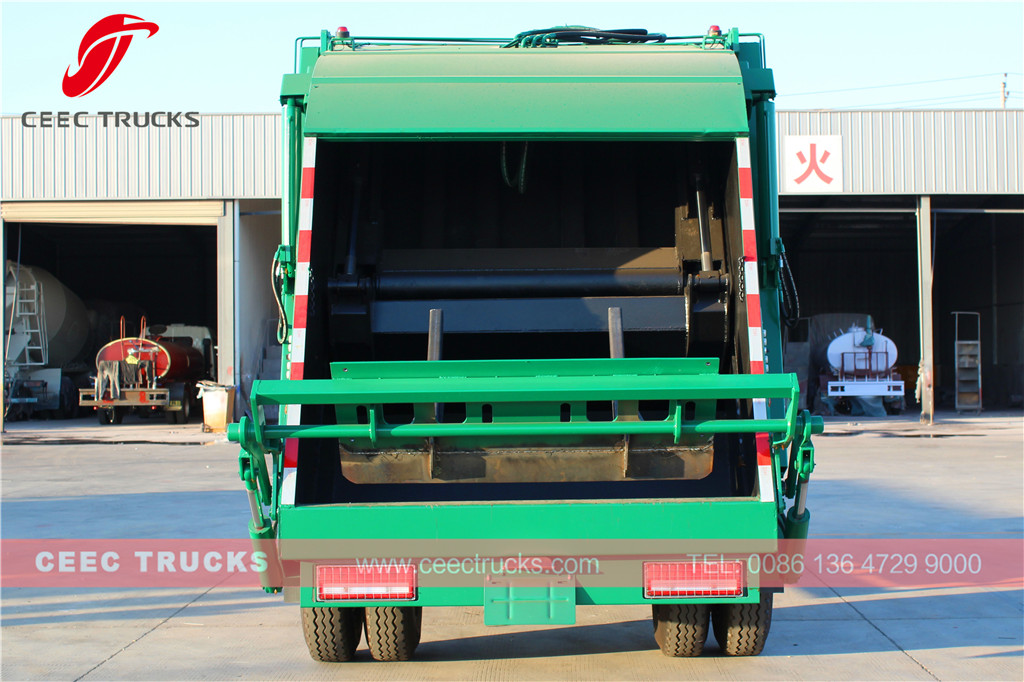

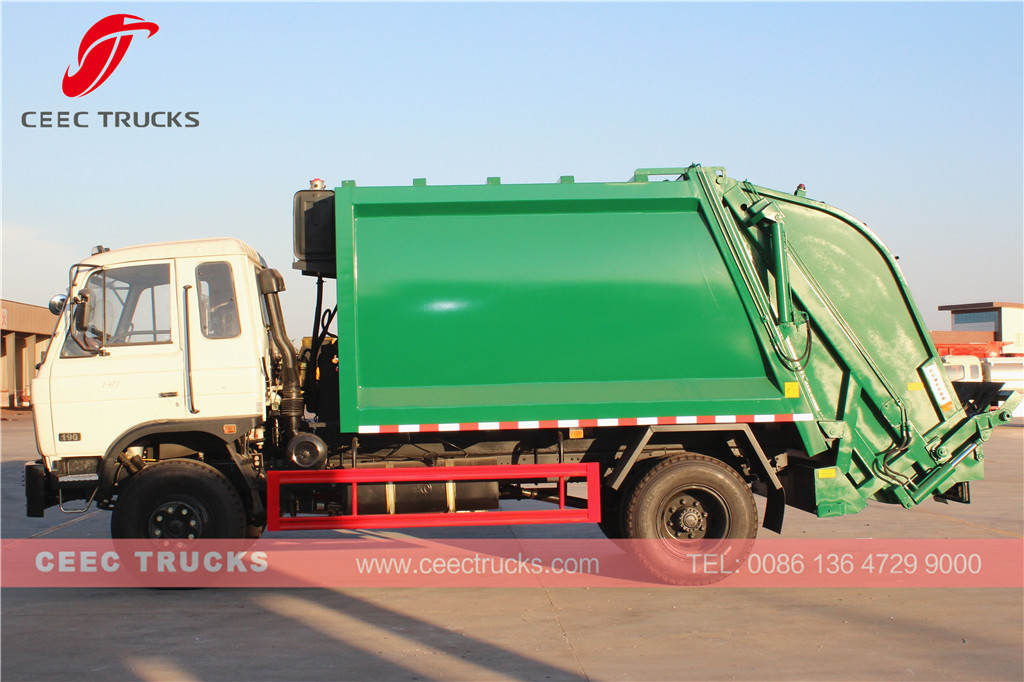

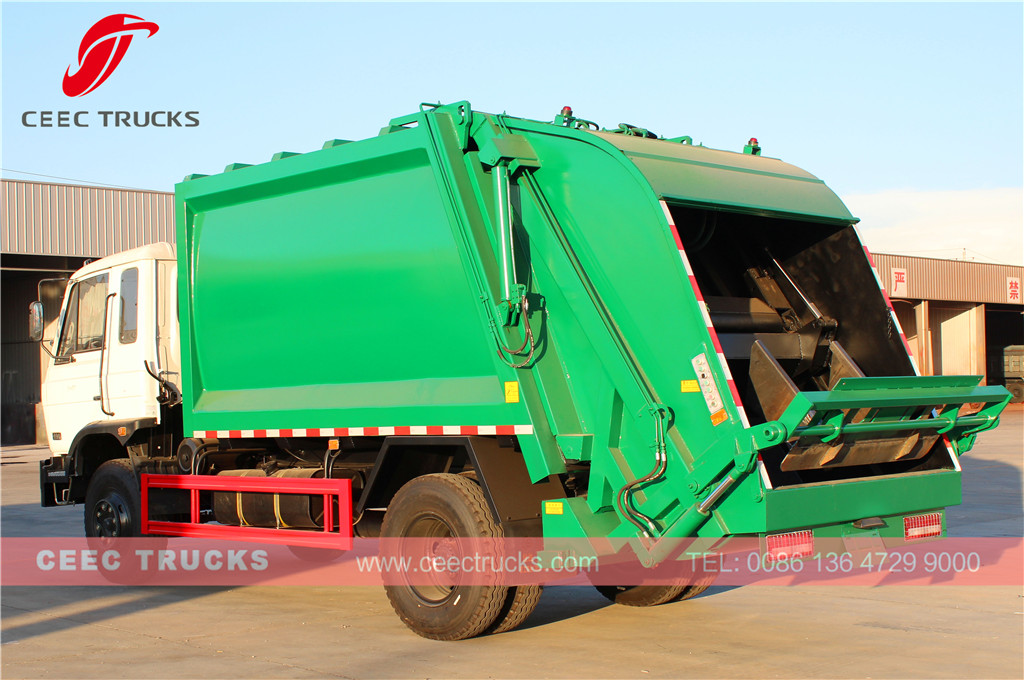

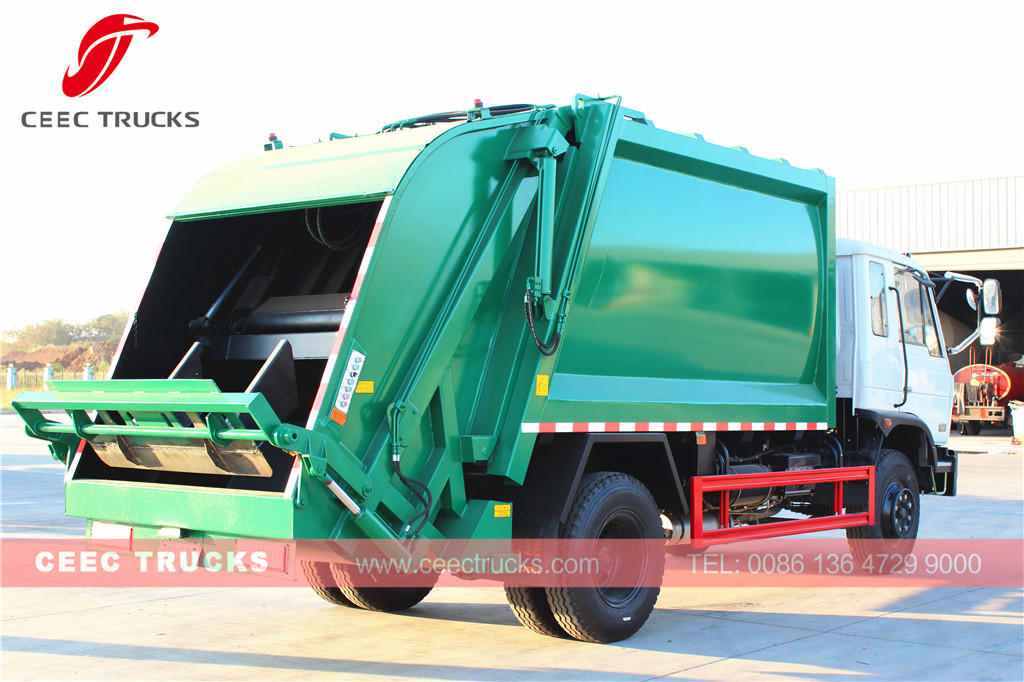

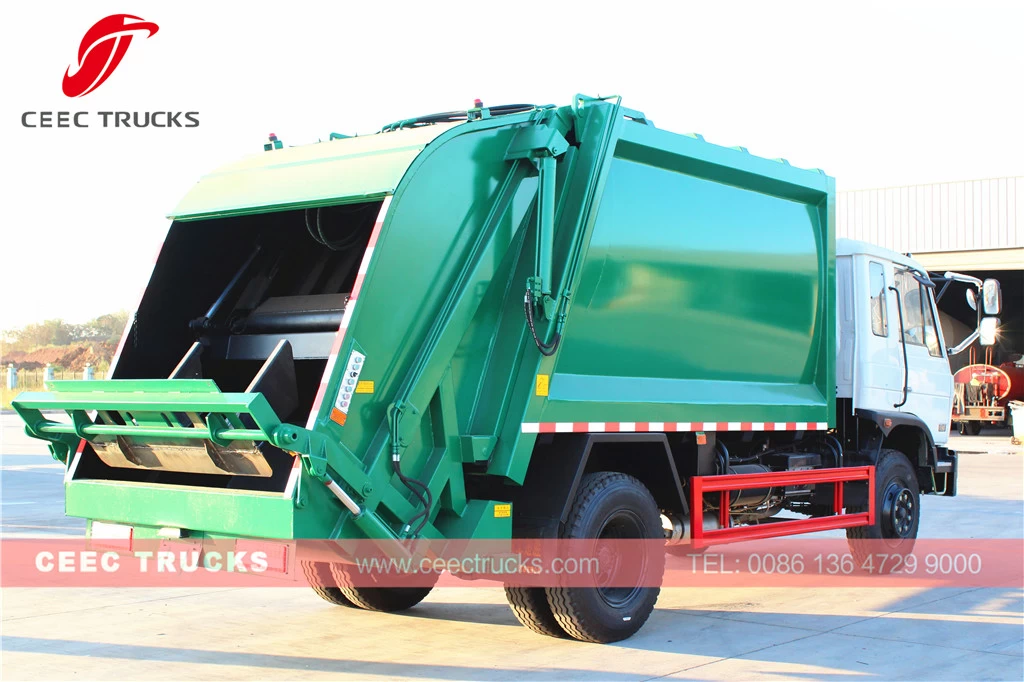

12 CBM dongfeng waste compactor truck

Famous China brand Dongfeng 12cbm garbage compactor truck, which use CUMMINS brand diesel engine, with engine power 170HP and 190HP optional, Manual 6-shift gearbox for easy operation, strong quality steel material compactor body with inside and outside antirust painting, all logos as required





Dongfeng 12cbm compactor truck sale



 Applications:



Garbage compactor truck Dongfeng (also called Garbage compressed truck, hydraulic pressing garbage truck, rear loading garbage truck, compactor garbage truck, trash compressor truck, back loading garbage compression truck, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS diesel engine, super powerful, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Dongfeng Garbage compactor truck (12 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

8200 * 2500 * 2980 mm

GVW / Kerb Weight

16,000kg / 8,300kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

190 HP (140 KW)

Displacement

5900 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

9.00-20

Tire Number

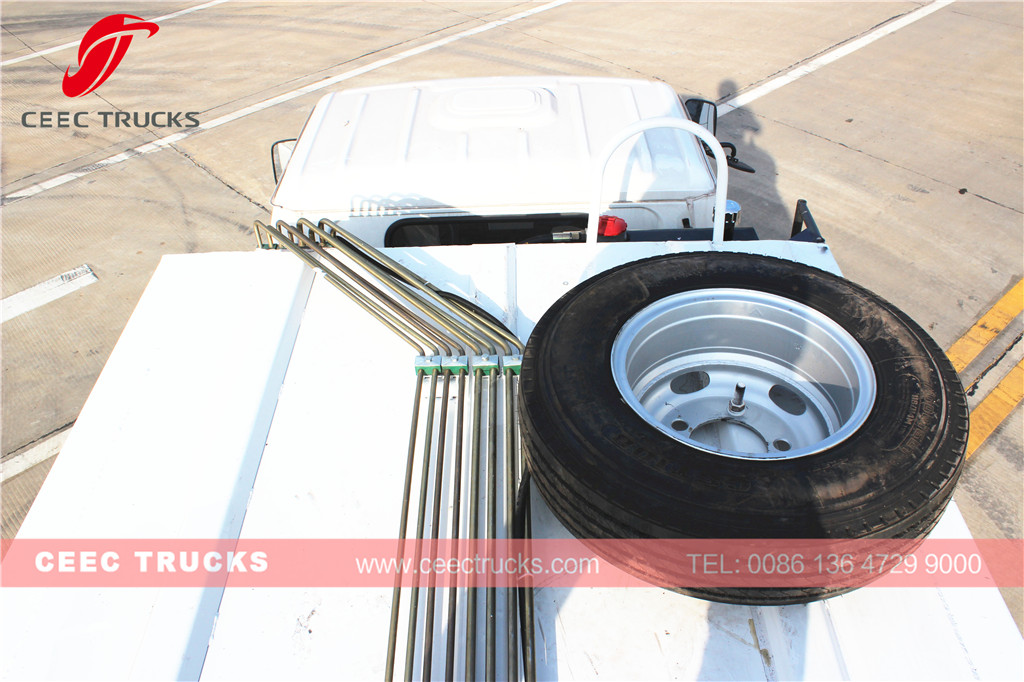

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

12 cbm

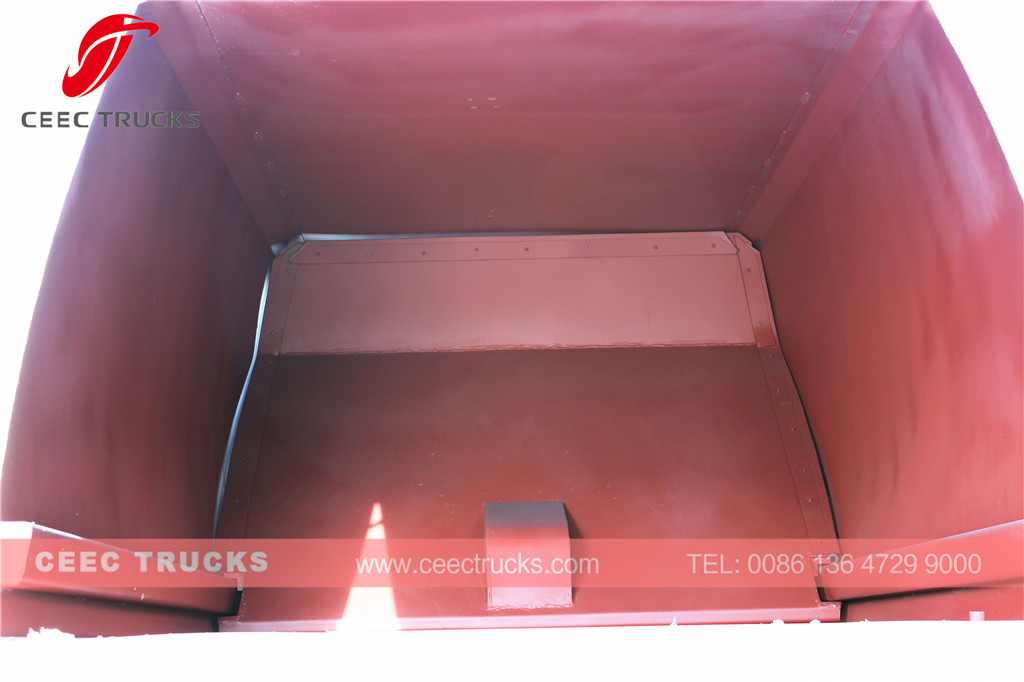

Fill Hopper capacity

1.3 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

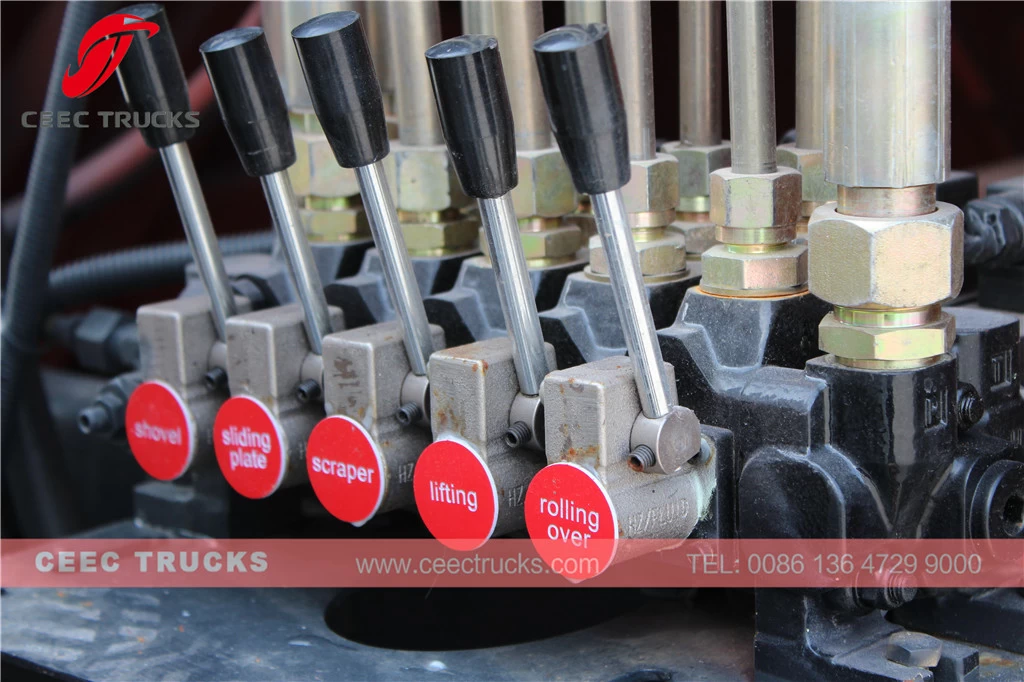

Electrically Hydraulic control

Manual hydraulic control

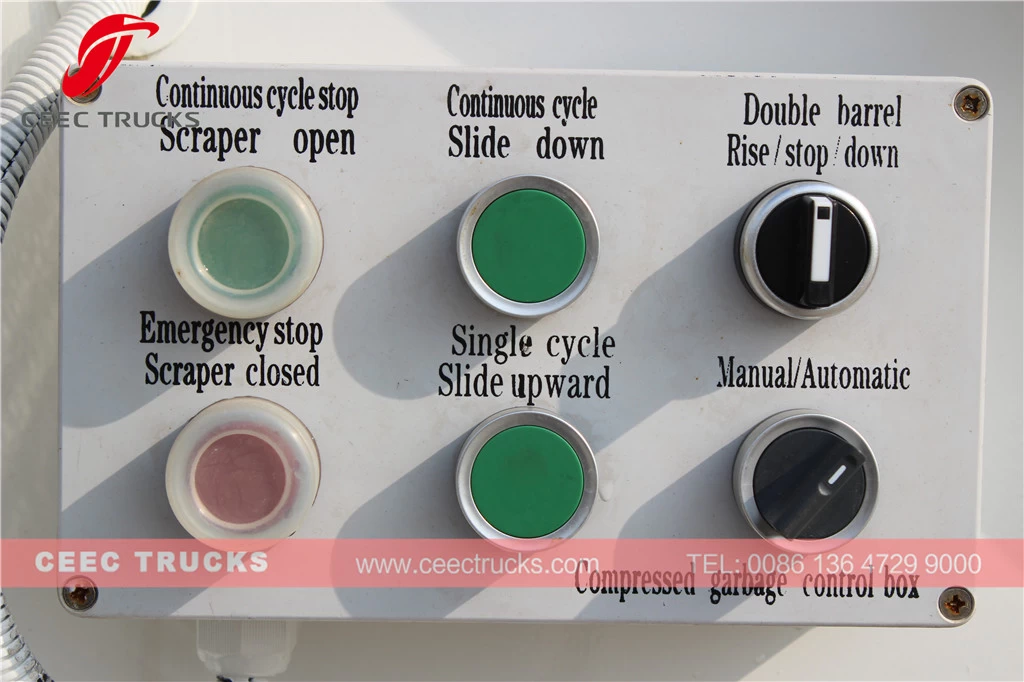

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
