ISUZU Garbage compactor truck (also named isuzu waste compactor truck, dongfeng garbage compactor, beiben trash compactor, north benz refuse collection truck, Jac compactor garbage truck). the ISUZU 8 CBM compressed garbage trucks are designed to collection, compression and transportion municipal solid waste.

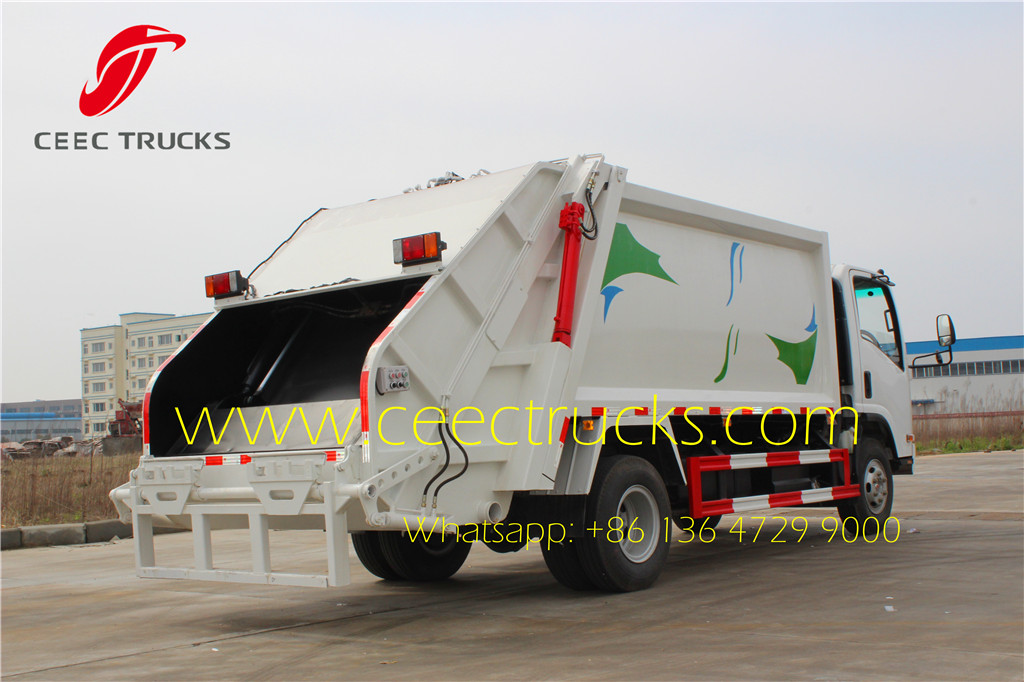

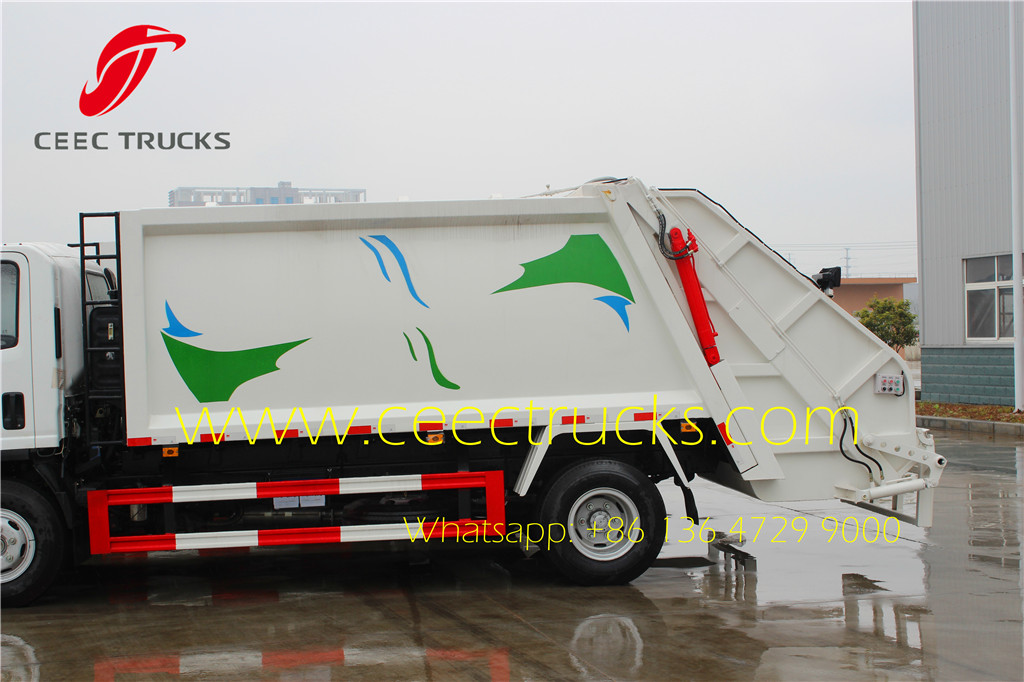

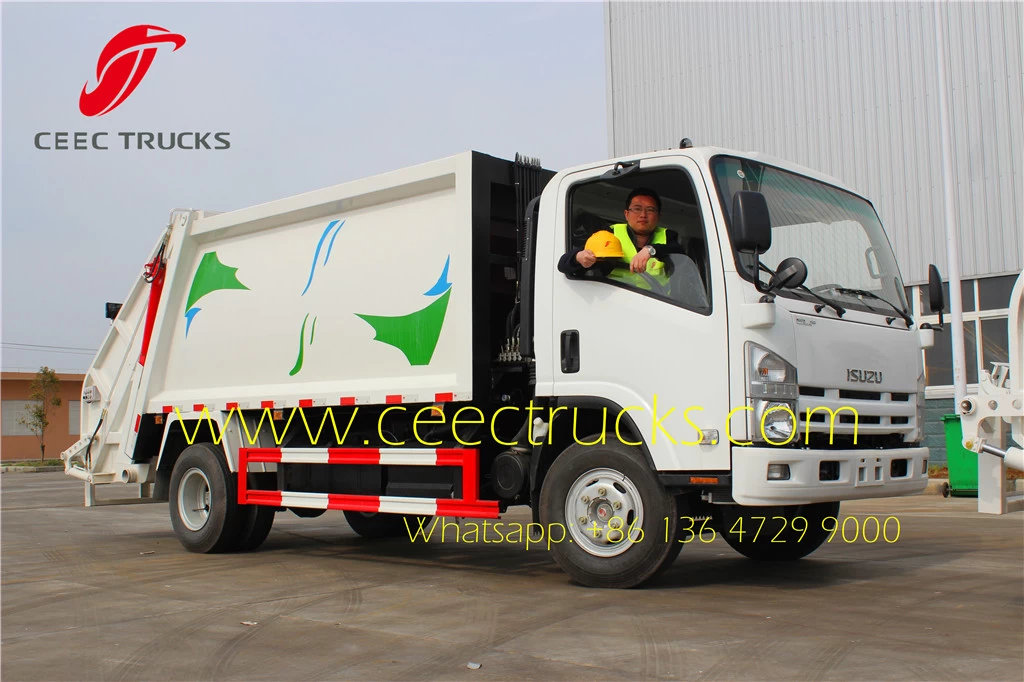

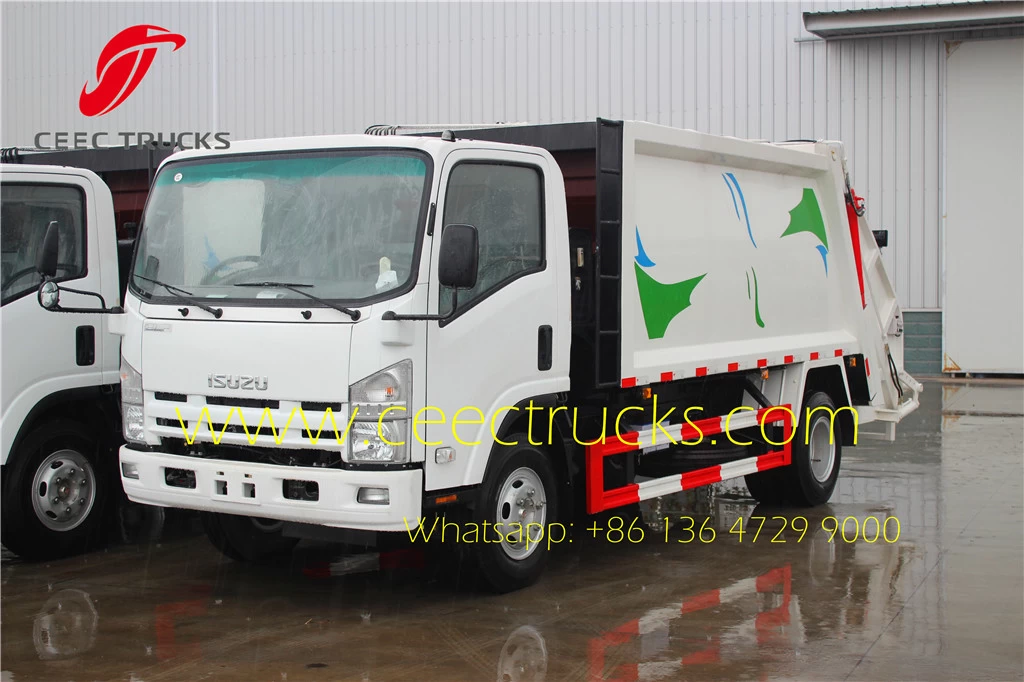

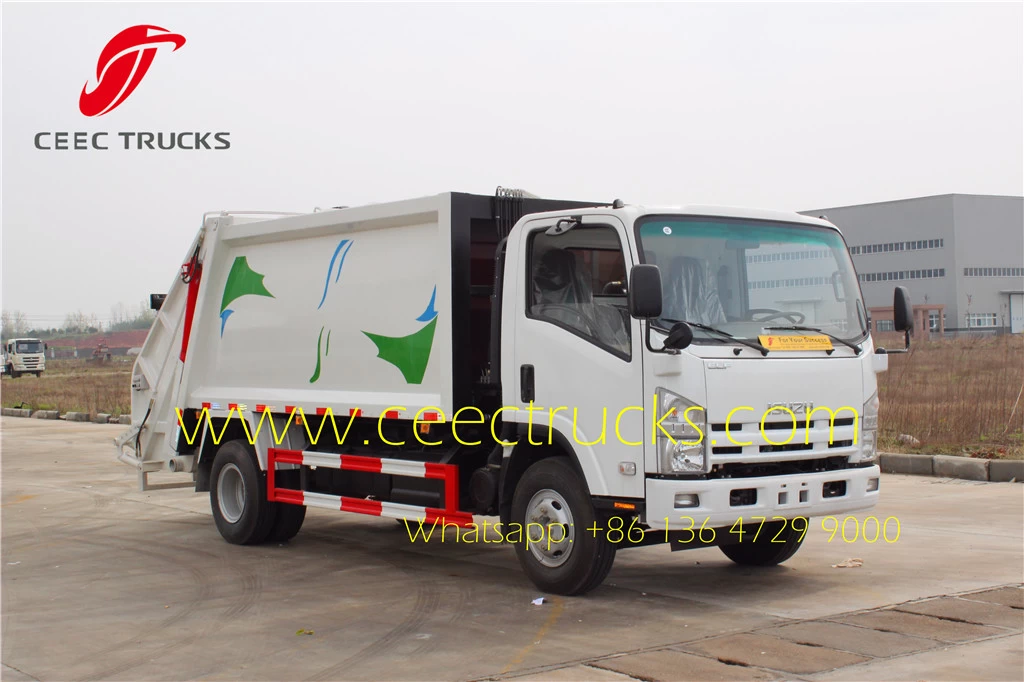

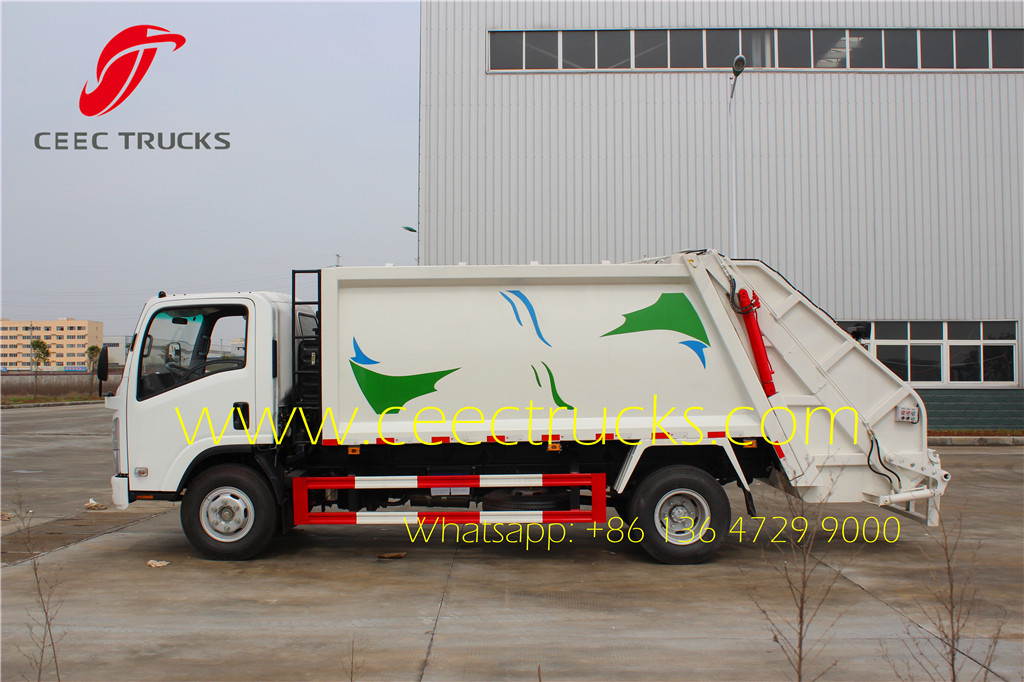

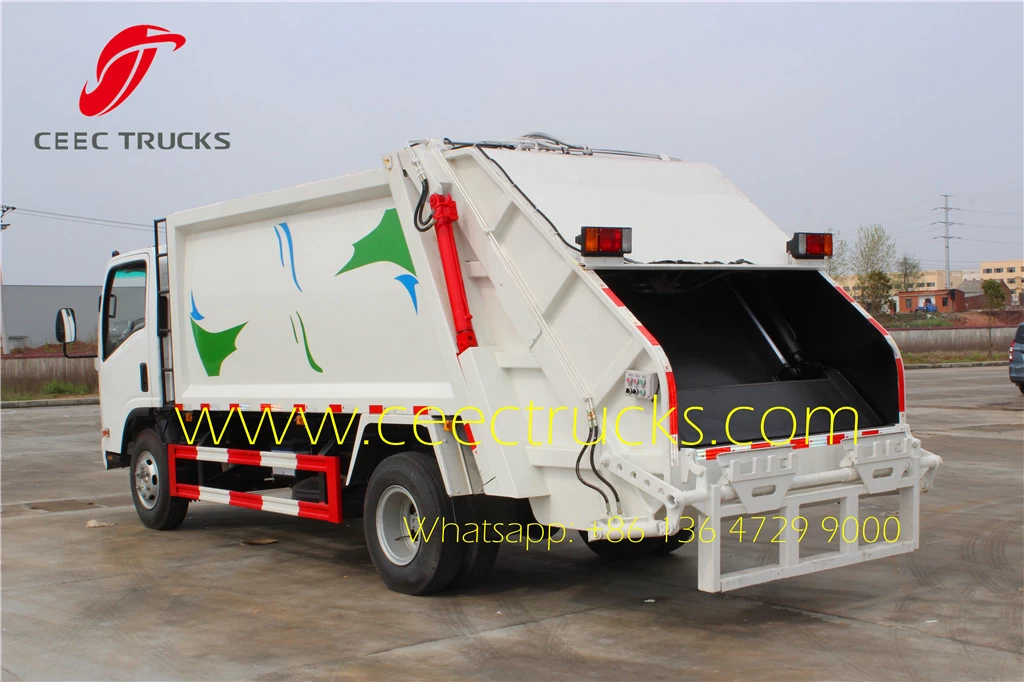

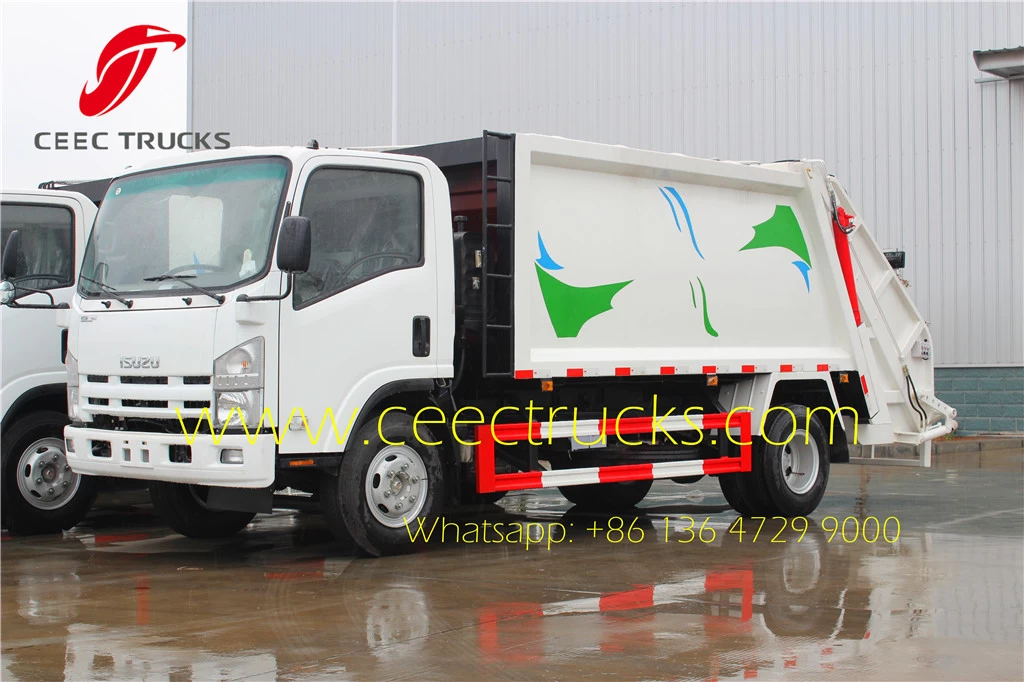

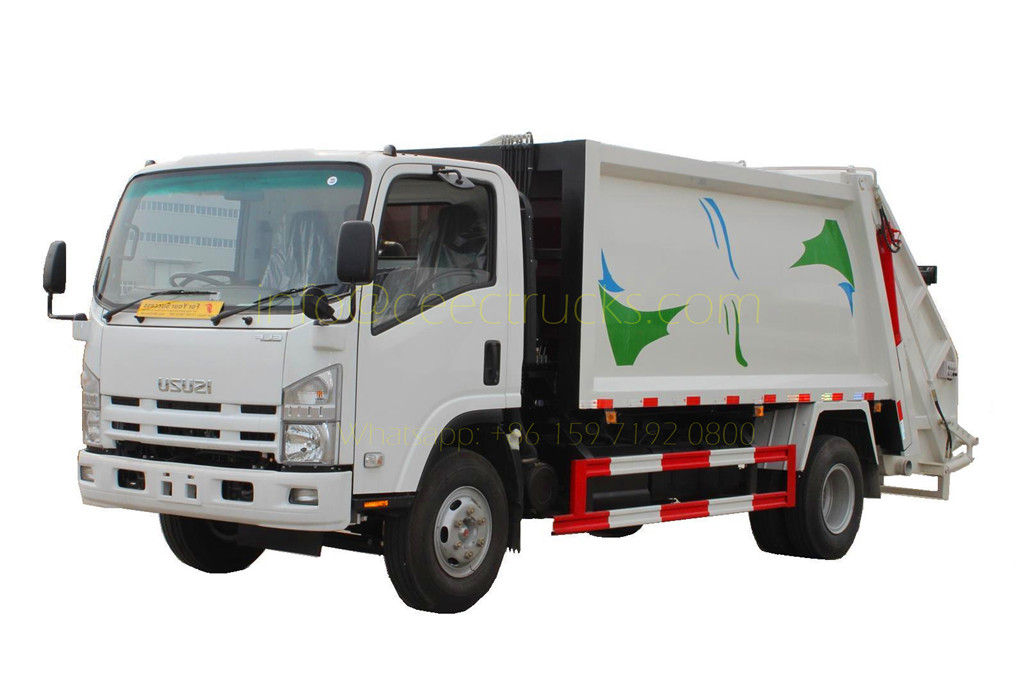

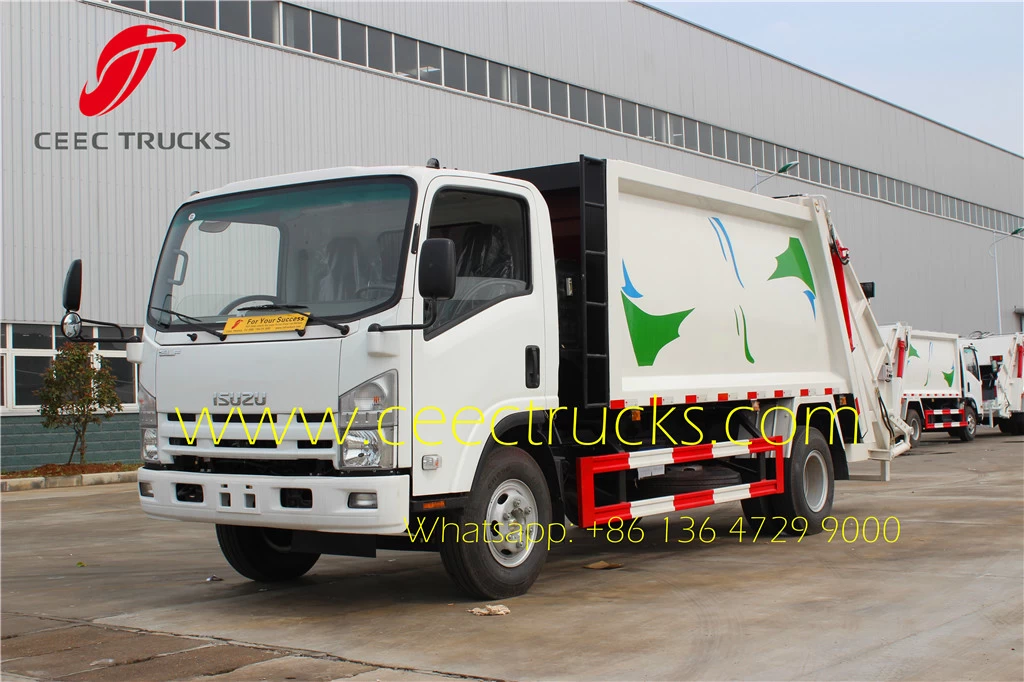

ISUZU 8CBM garbage compactor truck

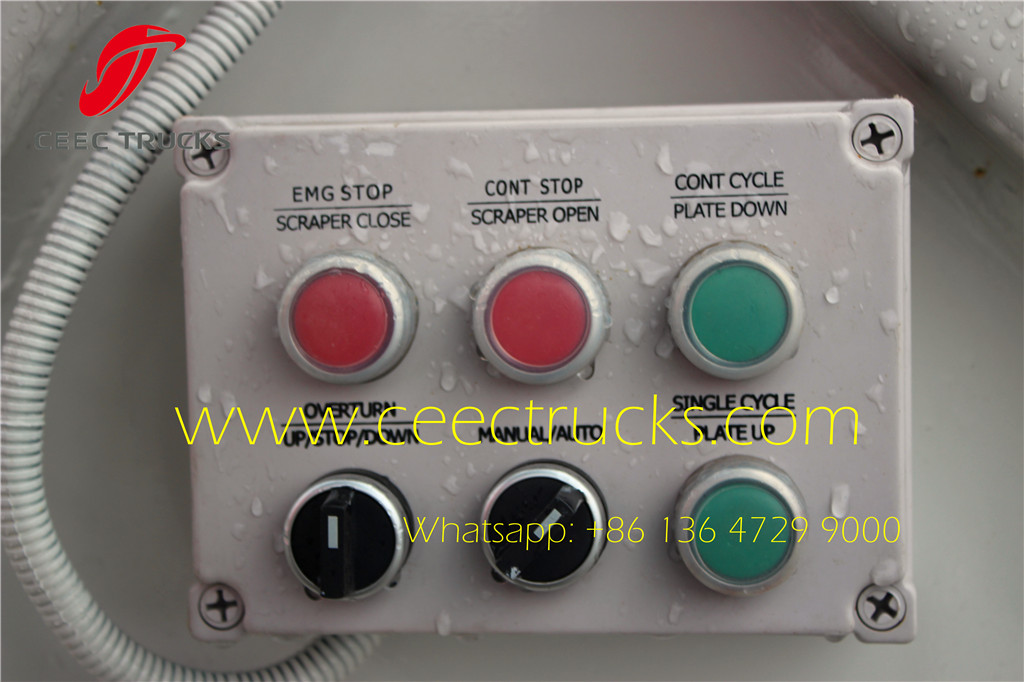

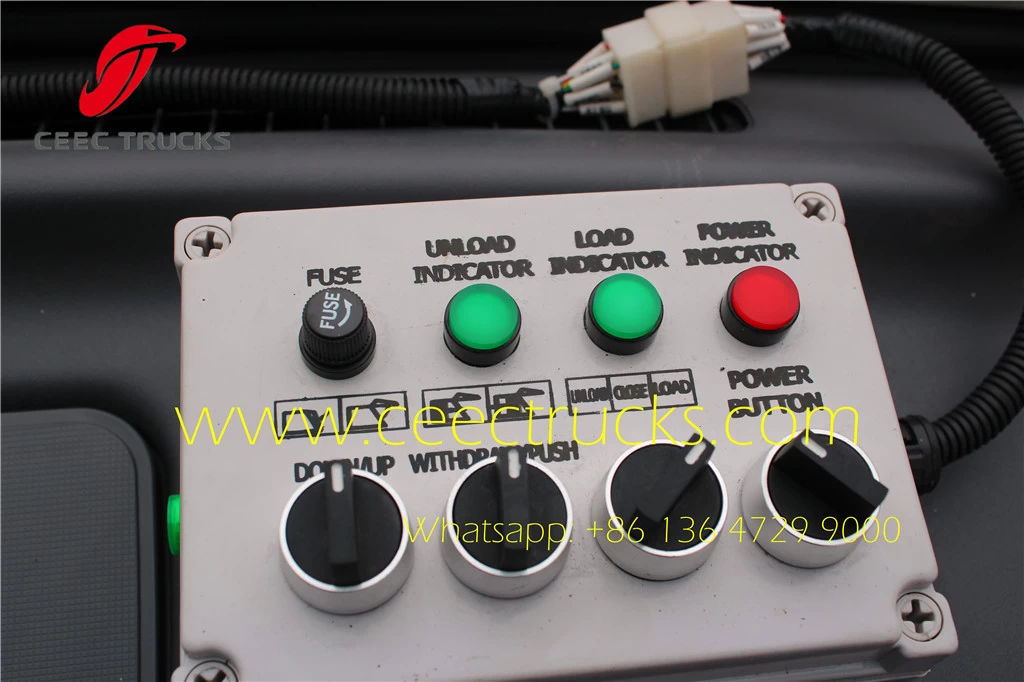

Isuzu 8cbm Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. ISUZU 8000 Liters compression refuse truck is ideal solution for solid waste collection.The operation system could be manual or electrical control, all equipped with English version guidance for easy operation. Also English version Owner's Manual for quick learning operation.

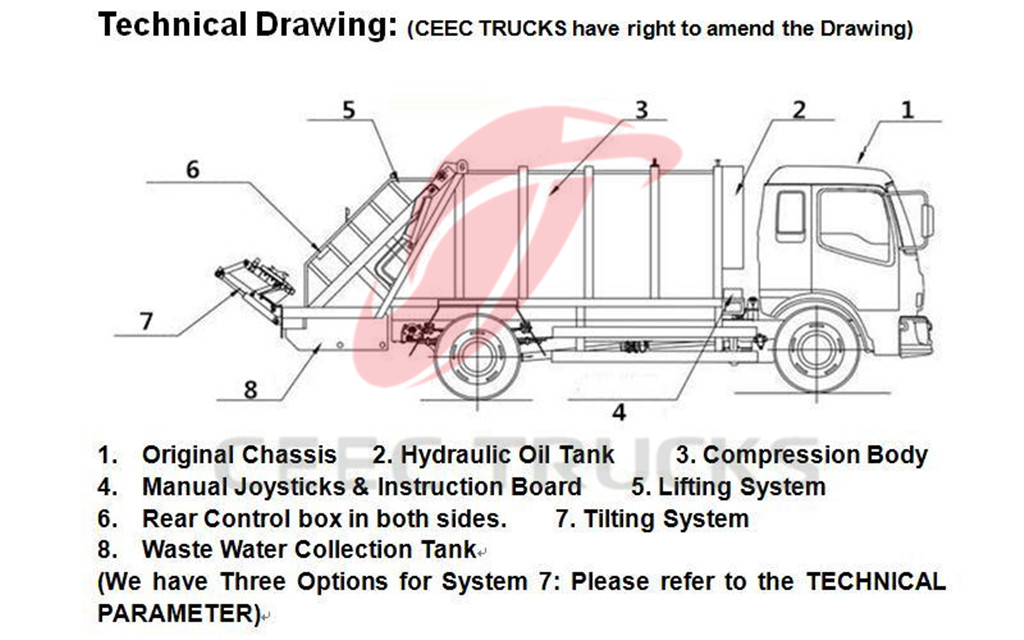

Below show brief drawing for CEEC TRUCKS produced garbage compactor trucks:
---- ISUZU mini 4x2 LHD chassis, 3815mm wheelbase, perfect performance.
---- ISUZU 4HK1-TC engine, super power can be up to 190HP; reliable performance, customer feedback no overhaul within 100,000 km.
---- Carbon steel material compactor body, Nice shape, rational structure, with thickness 4mm

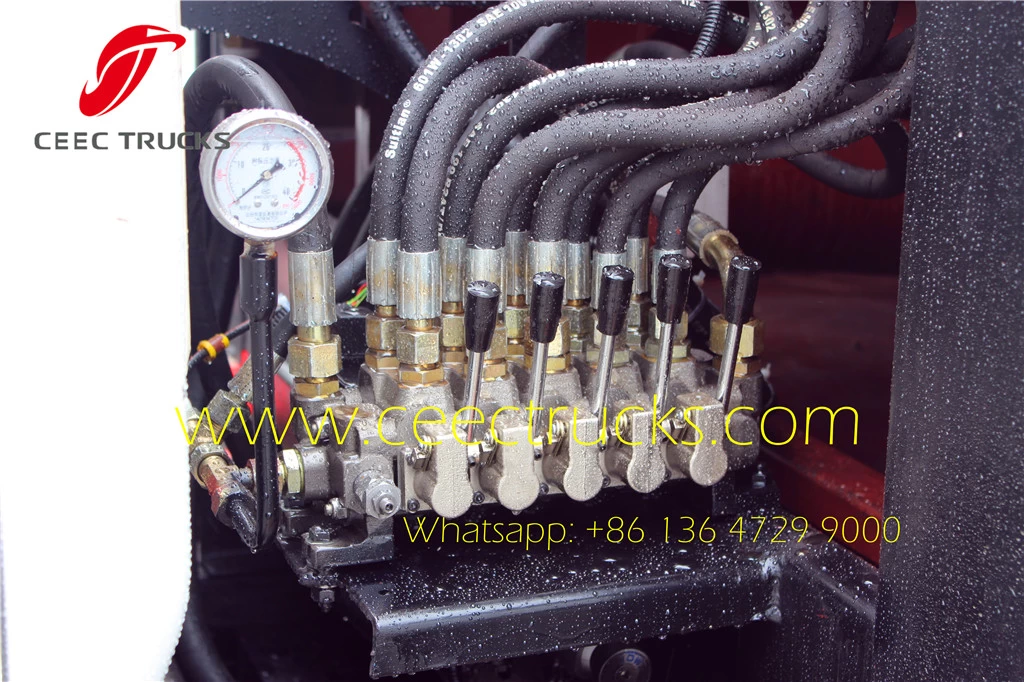

---- High quality hydraulic system with original Italy control valves and SIMENS PLC moudel
---- Over thiree level painting for both inside and outside of the body, Massive, durable, perfect performance
---- 12 months guarantee and 1 yest spare parts for Quick Delivery, Prolonged service life
Similar Key Words: Garbage compactor truck, ISUZU trash compressor truck, 8 CBM waste compactor, ISUZU rear loader compactor truck, ISUZU 8CBM refuse collection truck, Beiben compactor garbage truck, Dongfeng waste collection vehicle
|
Product name
|
ISUZU 8CBM Garbage Compactor Truck
LHD / 4*2
|
|
Chassis name
|
ISUZU brand
|
|
Capacity of body
|
8CBM (2200Gallons)
|
|
Specification
of vehicle
|
Outside dimension (mm):
|
7690x2250x2950
|
|
Total weight (kg):
|
14000
|
|
Loading weight (kg):
|
8000
|
|
Net weight (kg):
|
6880
|
|
Approach / departure angle (mm):
|
19/13
|
|
Front / rear suspension (mm):
|
1032/1818
|
|
Fuel type :
|
Diesel
|
|
Max. speed (km/h):
|
105
|
|
Engine specs
|
Model :
|
ISUZU 4HK1-TCG40
|
|
Manufacturer :
|
ISUZU
|
|
Displacement (ml):
|
5193
|
|
Power (kw):
|
140
|
|
Chassis specs
|
Driving type:
|
4×2
|
|
Wheelbase (mm):
|
3815
|
|
Tread (front/rear):
|
1506/1442
|
|
Displacement standard:
|
Euro 4
|
|
Front / rear axle:
|
Japanese tech
|
|
Gear box:
|
ISUZU MLD 6-shift gerbox
|
|
Brake system:
|
Pneumatic
|
|

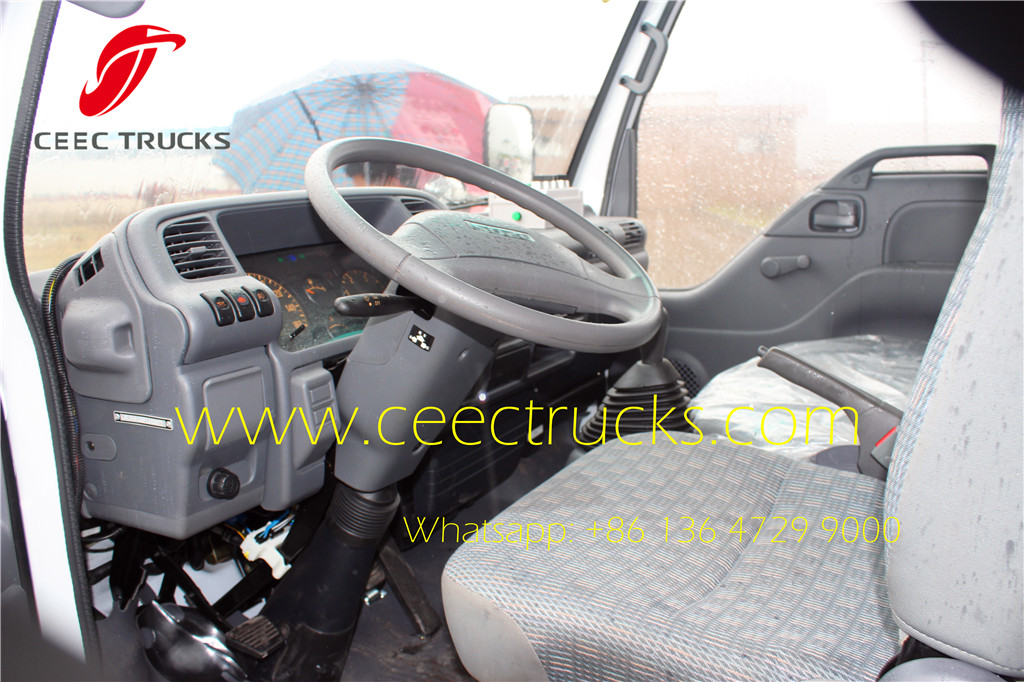

Cab:
|
Single cab
|
|
Spring file (front/rear):
|
8/9+5
|
|
Tyre:
|
8.25-16
|
|
Air condition :
|
equipped
|
|
Garbage body feature
|
Working pressure of hydraulic
|
16MPa
|
|
Garbage body mterial
|
Carbon steel Q235
|
|
Thickness
|
Side
|
4mm
|
|
Floor
|
4mm
|
|
Lifting the bin time:
|
20s
|
|
Unloading bin time:
|
12s
|
|
Brief introduction
|

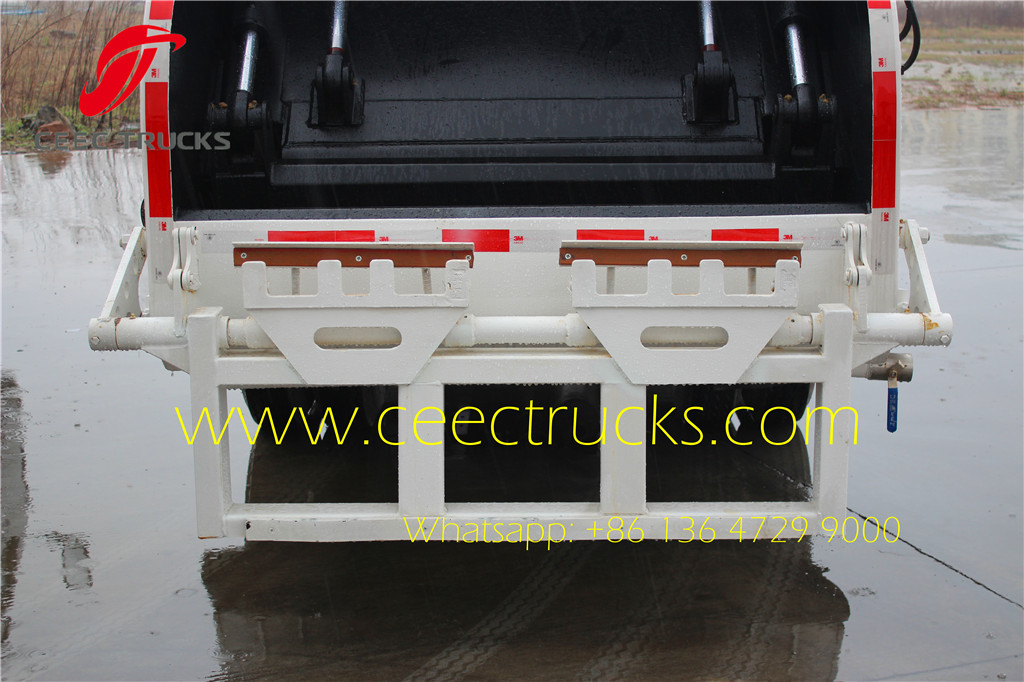

1, The large hydraulic cylinder drive the
double arms, to install hydraulic legs to make sure the stability and safety
of vehicle during operation.
2, The type of garbage box: sealed,
semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.
3, The characterized of this vehicle: cargo
compartment and vehicle body can be separated. One vehicle can work with more
one garbage cargo body, recycling transport; improve the transport capacity,
especially for short-distance transport, such as the sanitation department.
|

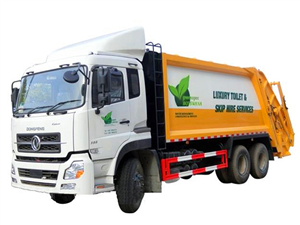

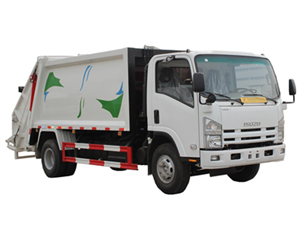

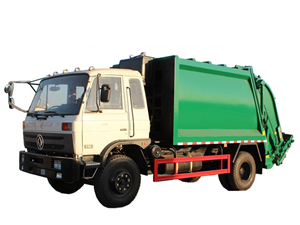

Garbage compactor trucks on sale
