How to find best 12CBM garbage compactor trucks from China. professional compression garbage truck manufacturer CEEC TRUCKS can supply Isuzu refuse compressor truck, beiben heavy duty compactor truck, dongfeng waste management trucks, etc. and our 4 CBM trash compactor truck, 8 CBM refuse compressed vehicle and 16CBM compressor garbage trucks are widely export Phillippines, Myanmar, Malaysia, Kenya, Tanzania, South Africa, Fiji, Ecuador, etc.
Professional 12 CBM refuse compactor truck Manufacturer
Advanced Features for CEEC produced 12CBM trash compressor truck:
★ High anti-wear metal is adopted, long lasting
★ Self-lock and security stick is used to protect loading organ, safeand stable
★ Tailgate is movable and controlled by pneudraulic easily. Dustbin isairproof completely
★ Manual and automatic are optional. Drive can operate inside of cabor in the middle or back
★ 12 CBM compactor truck body made by high strength steel, the whole vehicle is light ,economical, stable and good at anti-rust
CEEC produced garbage compactor trucks rear loading system for choice
★ Container volume is big, comparing with that with compression rate,which can meets heavy load requirement
★ Refuse Education device operation of garbage releasing in the cab,vent all of garbage in loading body at one time.
★ Raise
and decline alarm device. To ensure the safety, the buzzermoos
automatically when the loading body rise or decline. After the
loadingbody raised, the scarping board and the slipping board could be
innovation tomake sure the garbage be cleaned off.★
★ Uplifted Loading body. Loading body rises to the top, and thegarbage is released by the pushing board.
★ Defilade board falls automatically to ensure garbage pileup
Similar Key Words: 12CBM garbage compactor truck, isuzu trash compactor truck, beiben compression garbage truck, 12cbm refuse compactor truck, waste management truck, dongfeng rubbish compactor trucks
| Main specification
|
| Product model and name
|

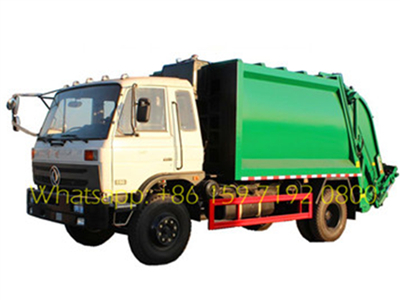

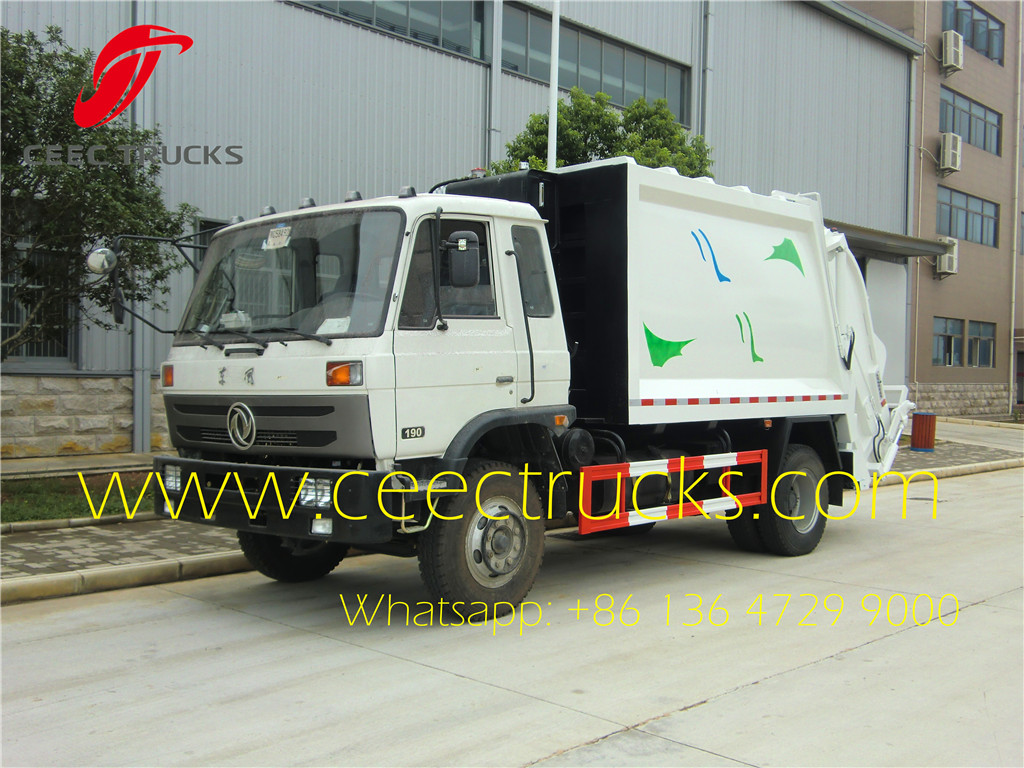

CEEC5160ZYS 12 CBM Garbage Compactor Truck Manufacturer
|
| Gross weight(Kg)
|
16000
|
Drive type
|
4X2, LHD
|
| Curb weight(Kg)
|
9005
|
Overall dimension(mm)
|
8600X2490X3100
|
| Approach/departure angle(°)
|
20/12
|
Cab seats
|
3
|
| Axle No.
|
2
|
Front/rear hang(mm)
|
1430/2670
|
| Axle load(Kg)
|
5000/10000
|
Wheelbase(mm)
|
4500
|
| Max speed(Km/h)
|
90
|
|
|
| Chassis specification
|

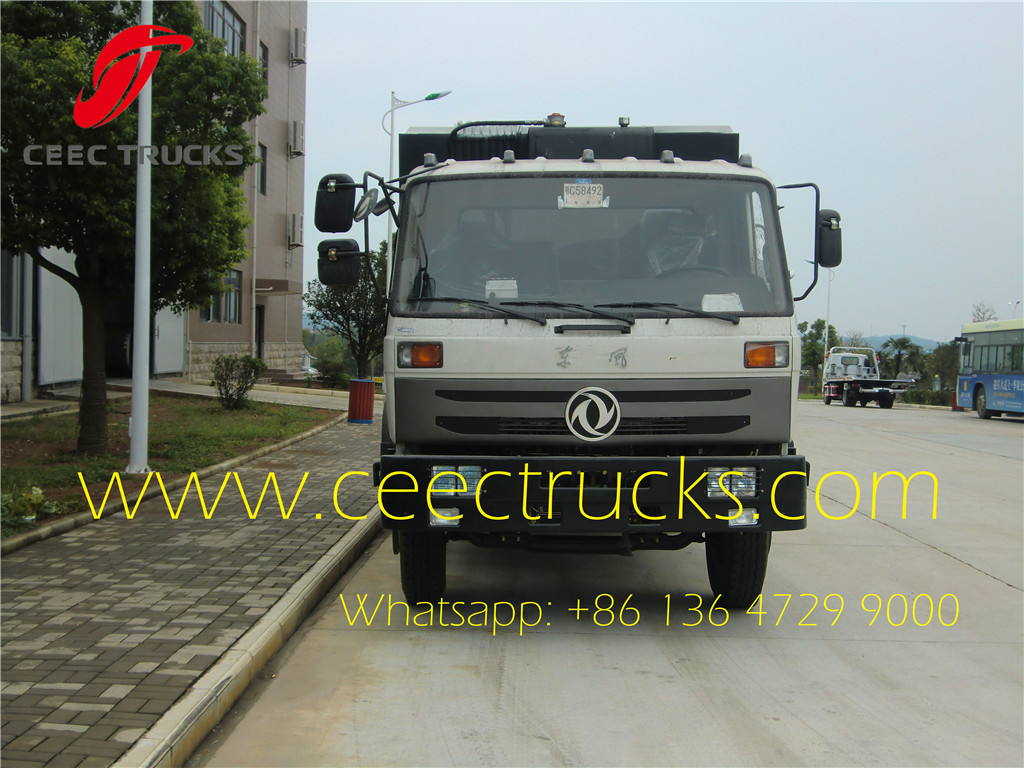

| Chassis model
|
DFL1160
|
Manufacturer
|
Dongfeng Motor Co., Ltd
|
| Brand name
|
Dongfeng
|
Dimension(mm)
|
7790×2460×2840
|
| Tyre specification
|
10.00-20
|
Tire No.
|
6+1(one spare tire)
|
| Steel spring number
|
8/10+8
|
Front track base(mm)
|
1880
|
| Fuel type
|
Diesel
|
Rear track base(mm)
|
1860
|
| Emission standard
|
Euro III
|
Transmission
|
6 forward gear & 1reverse gear
|
| Cab
|
Single row, Luxurious interior trim with power steering and A/C
|
| Engine model
|
Engine manufacturer
|
Displacement(ml)
|
Power(Kw)
|
| B190-33
|
Dongfeng Cummins Engine Co.,Ltd
|
5900
|
140(190HP)
|
| Performance
|
| Box volume
|
12-14cbm
|
Box material
|
Q235
|
| Box dimension
|
Side 4mm,buttom 4mm
|
Operation control system
|
Manual + Automatic
|
| Main Characteristic
|

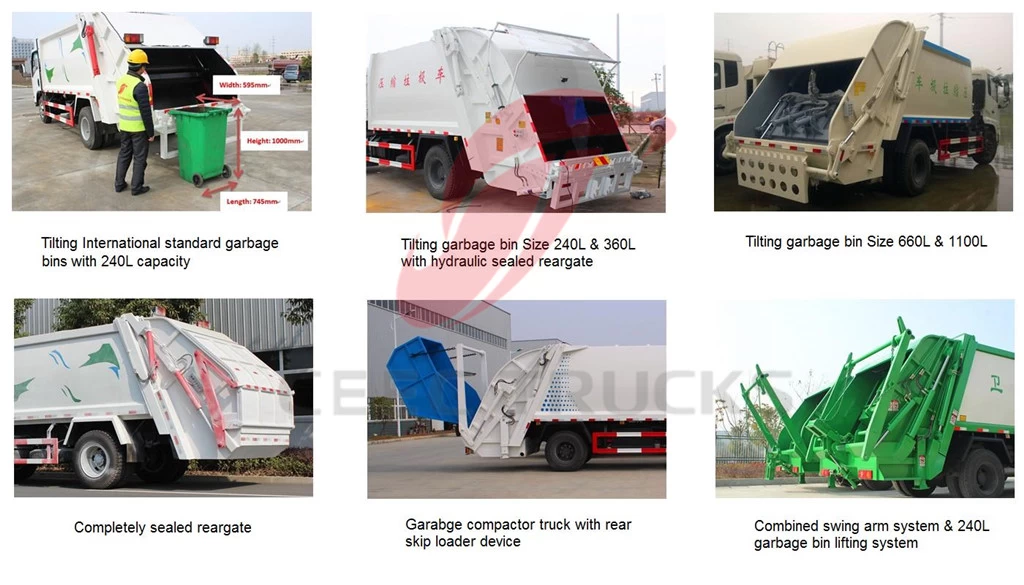

| 1,Can choose 240L(single bin, double bins)or 360L,660L,1100L standard lifting and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device.
2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button.
3,Garbage body use frame design, elegant, strong structure, large effective capacity.
4,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
5,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
|
