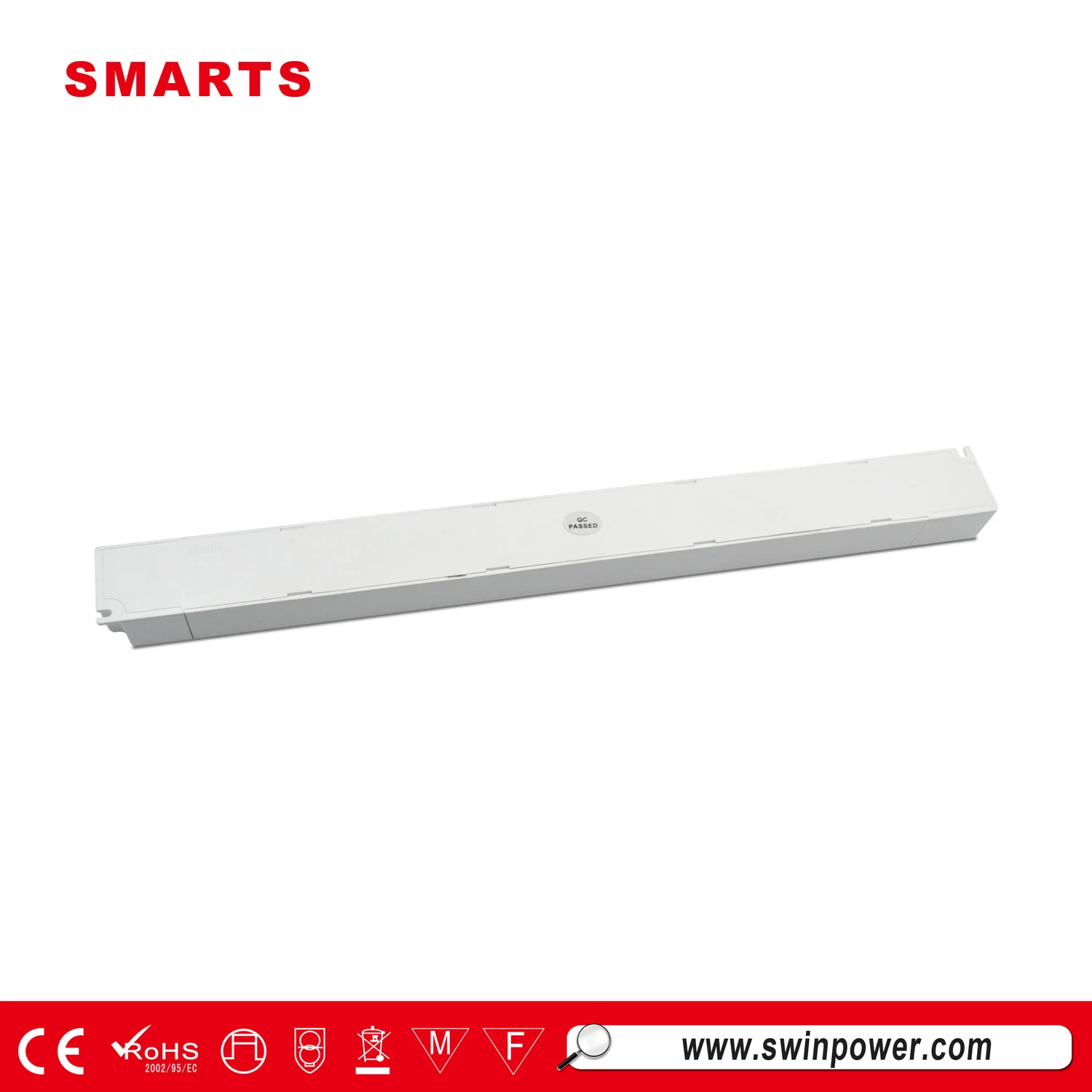

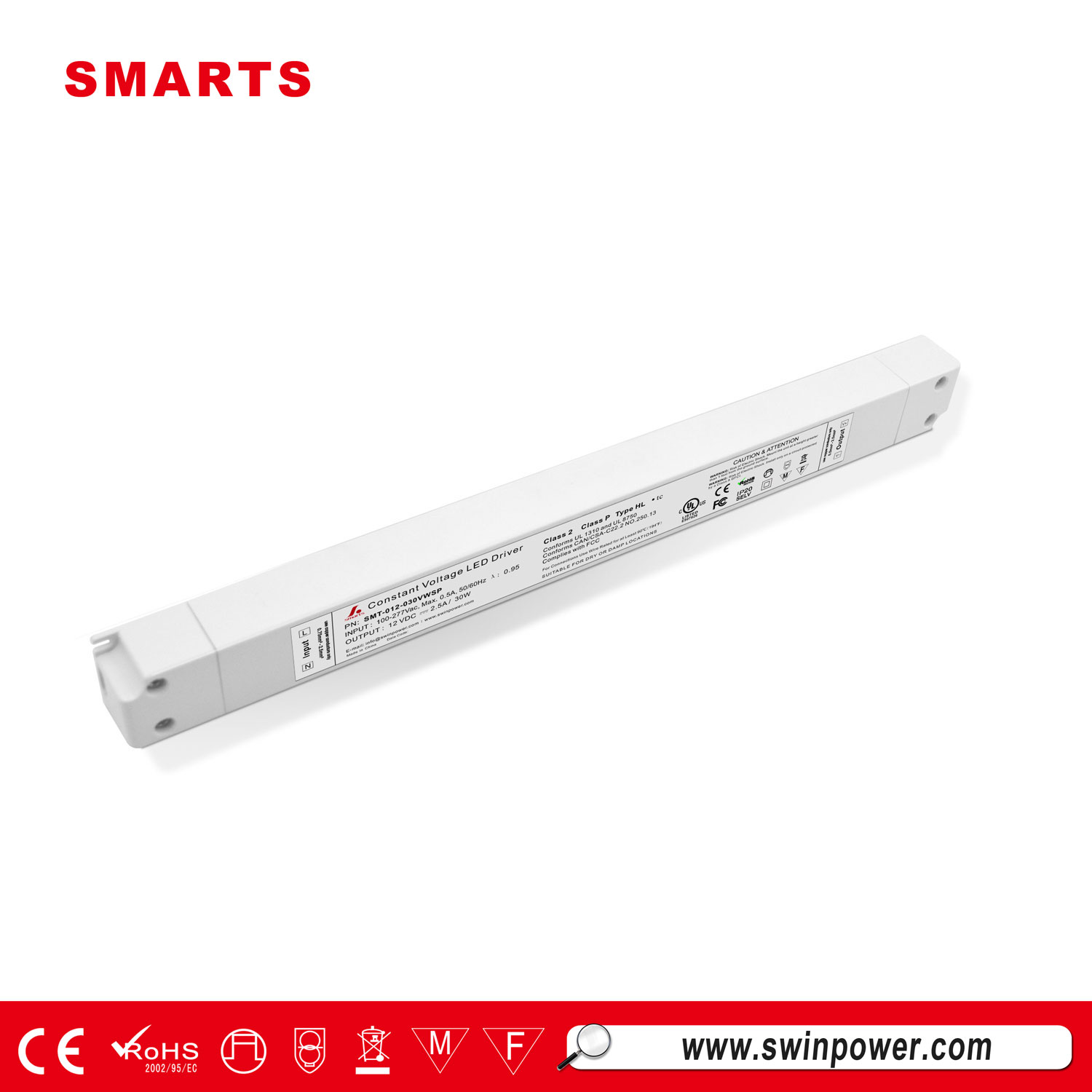

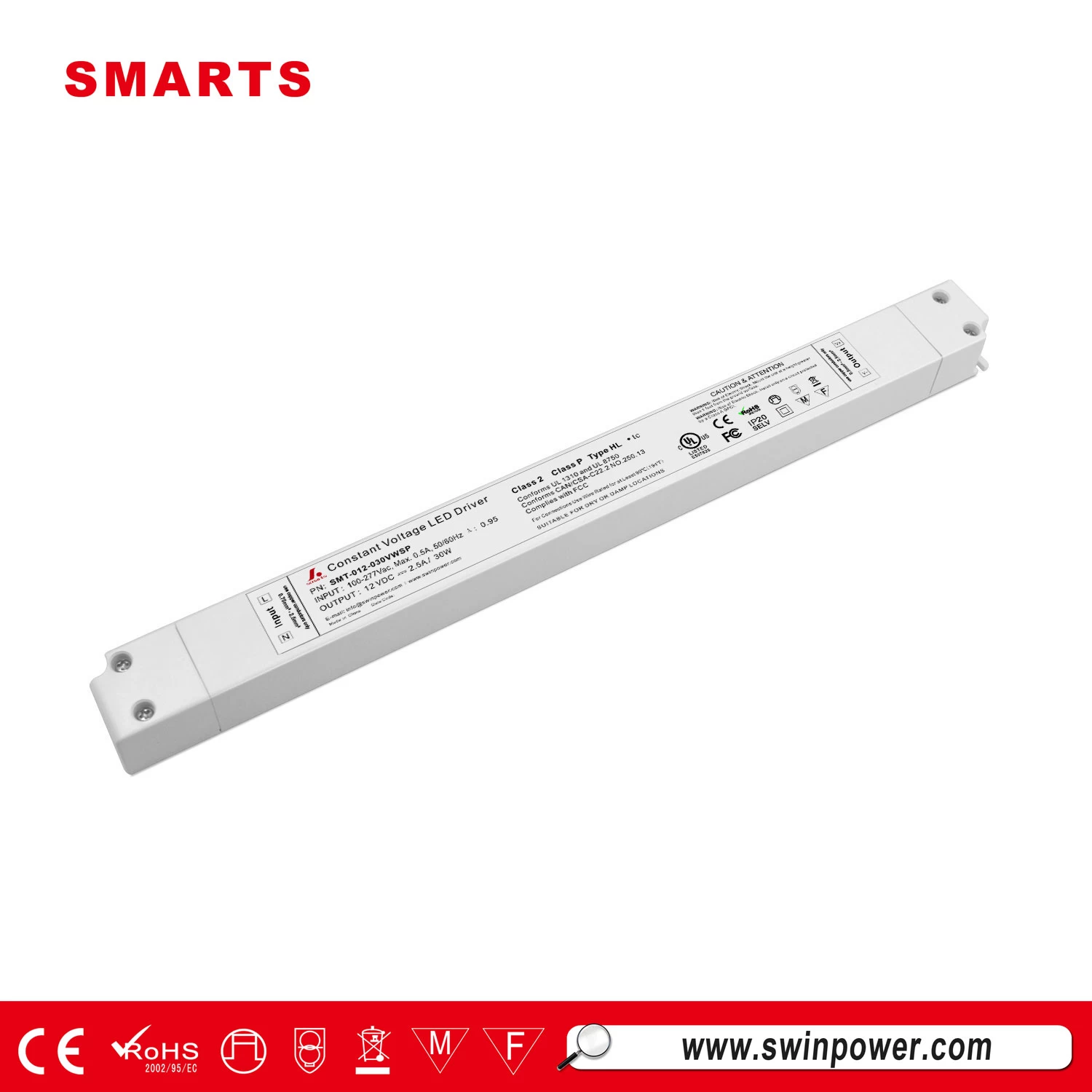

UL Slim LED Driver Surge Protection 24v 30 watt
SMT-012-030VWSP is a range of 30W single output constant voltage led drivers, of non waterproof design. With quick connect terminals these LED drivers are easy to install and suitable for indoor LED lighting applications, particularly those with space constraints or in hard to access locations, such as ceiling voids.
Can you let us know more details about Smarts Electronics' Super Slim Size LED Driver?
Answers:
IP20 & IP67 for indoor and outdoor using
12VDC & 24VDC / 30W -96W
7 years warranty
high Power factor >0.95 , High efficiency >85%
Class P/ Type HL, class 2 standard
Size for 30W 36W: Aluminum case: 263*32*20mm / Plastic case: 261*30*19mm
Size for 60W: Aluminum case: 300*32*20mm / Plastic case: 300*30*19mm
Size for 96W: Aluminum case: 331*32*23mm / Plastic case: 331*30*22m
Features for 30w led driver:
Output constant voltage type
Input voltage range 100-277VAC
UL/cUL listed, Class 2, Class P approval
Built-in PFC function / Efficiency > 84% / PF> 0.95
Protections:short circuit/over voltage/over heat
IP20 design for indoor dry environment installations
Cooling by free air convection
PWM output, does not change the color index
Full protection aluminum housing, for dry, damp, wet location
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
7 years warranty
|
model
|
SMT-012-030VWSP
|
SMT-024-030VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@230VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
82%@120VAC ; 83%@230VAC; 84%@ 277VAC
|
|
AC Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;
12A,50%480us@277VAC
12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.20Kg
|
|
Size
|
260*32*18mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Mechanical Specification for led driver surge protection:
Ø Input with Live Wire(L) Neutral Wire (N)
Ø Output terminals "Red" to LED Positive side (+) and "Black" to LED Negative side (-).
Derating Curve for led driver 24v:
l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life
Connecting Diagram for slim led driver :
