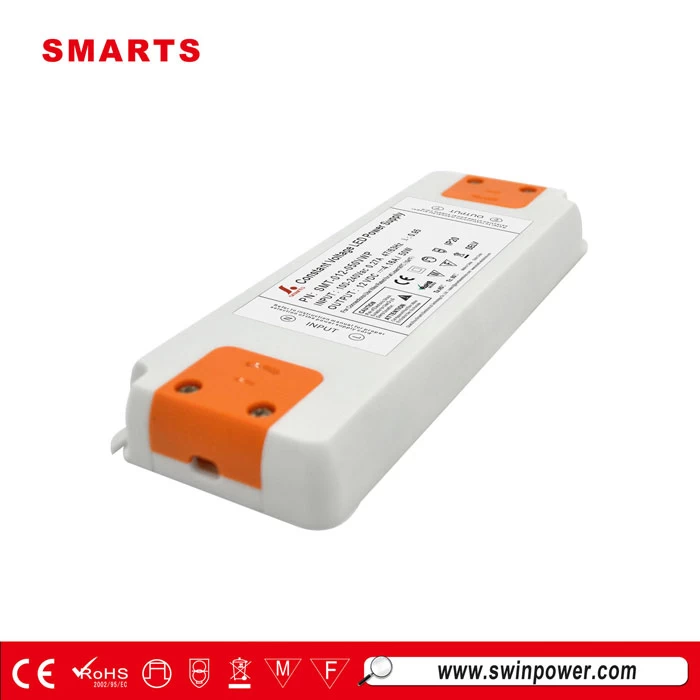

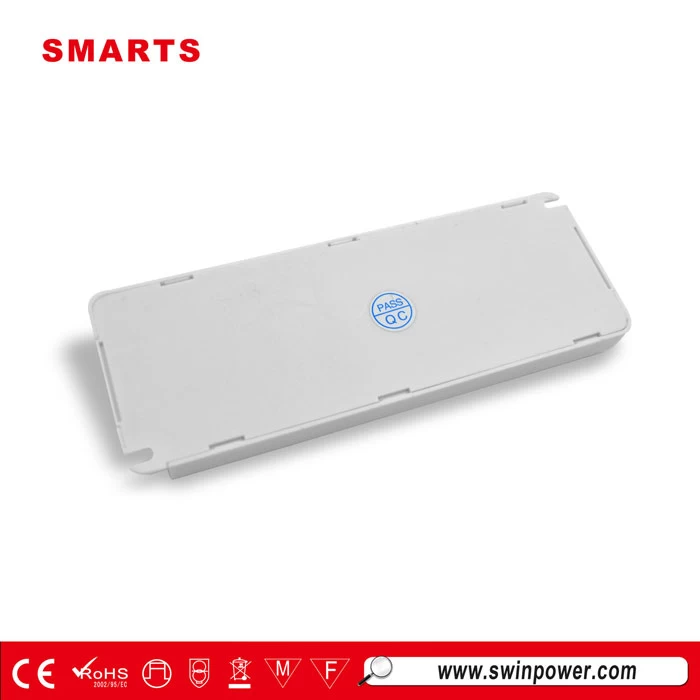

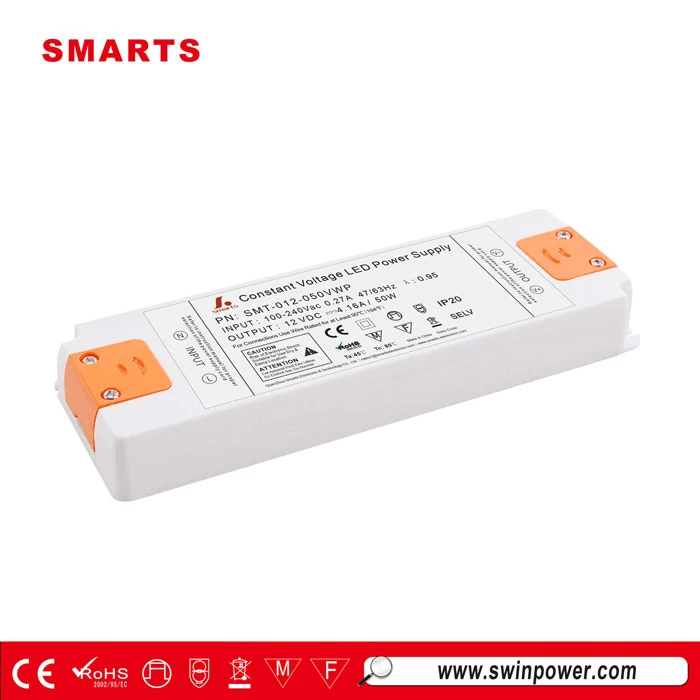

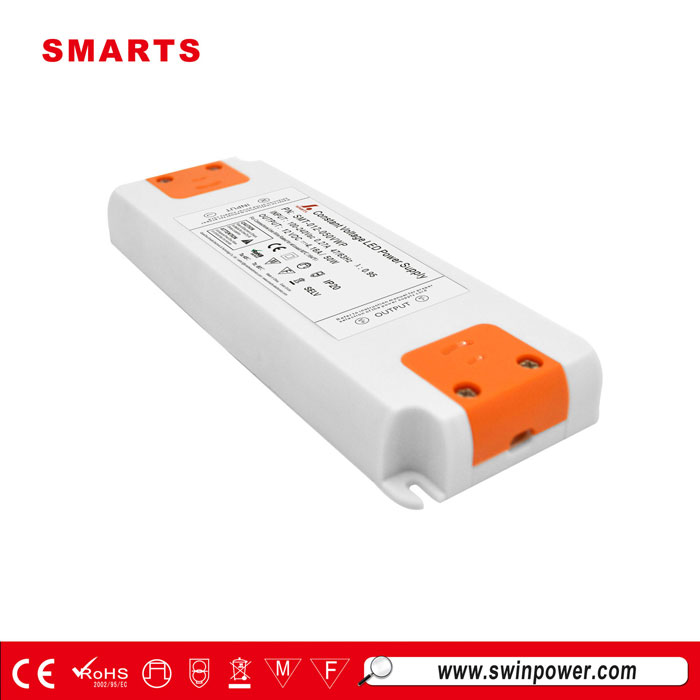

12 volt 50w power supply for led lights led strip
With a new line of led power supply 12volt, Smarts Electronics offers industry leading performance solutions for any 12V 24V commercial, residential and industrial LED and LED Strip and LED Mirror Lighting applications.
|
Feture
|
Label for 50w led driver
|
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty
|
|
Specification:
urervie & FAQ:
|
MODEL
|
SMT-012-050VWP
|
SMT-024-050VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
4.2Amp
|
2.1Amp
|
|
VOLTAGE RANGE
|
0-4.2A
|
0-2.1A
|
|
RATED POWER
|
50Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
|
LINE REGULATION
|
±1%
|
|
LOAD REGULATION
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
|
AC CURRENT(Typ.)
|
0.57A/110VAC, 0.28A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
4.8A
|
2.5A
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
Question
Can the power supplies be made with cords attached? We need them to have a 1.8m 18AWG cord with 3-prong USA plug for the AC input. Can the power supplies be customized like this?
Answer
The power supplies we offered can be made with 1.8m 18AWG cord with 3-prong USA plug for the AC input.
Packing & Shipping
inner box-white box + outer carton- standard exporting carton for packing
-
MOQ: 1 pcs
-
Delivery: 7 working days for sample order,12 working days for 500pcs.
-
Shipping freight are quoted under your requests.
-
Loading port: Xiamen
