12v 60 watt power supply 100-240vac

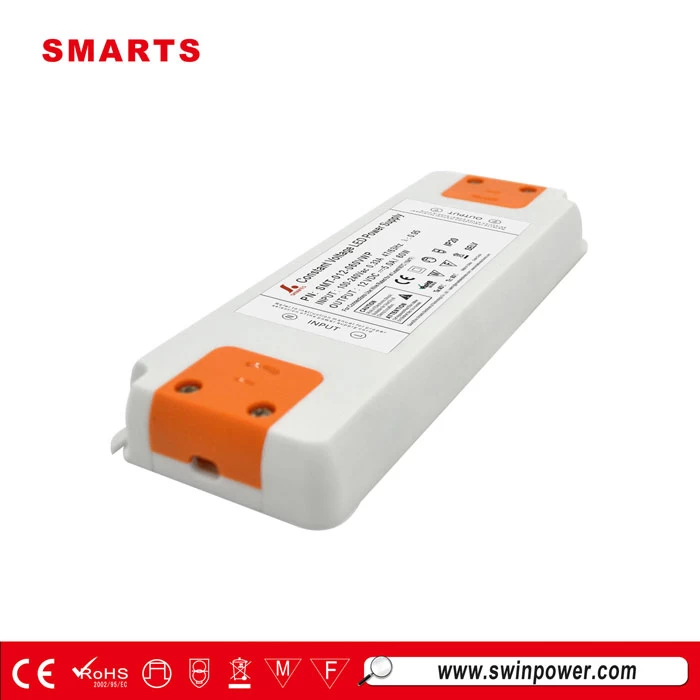

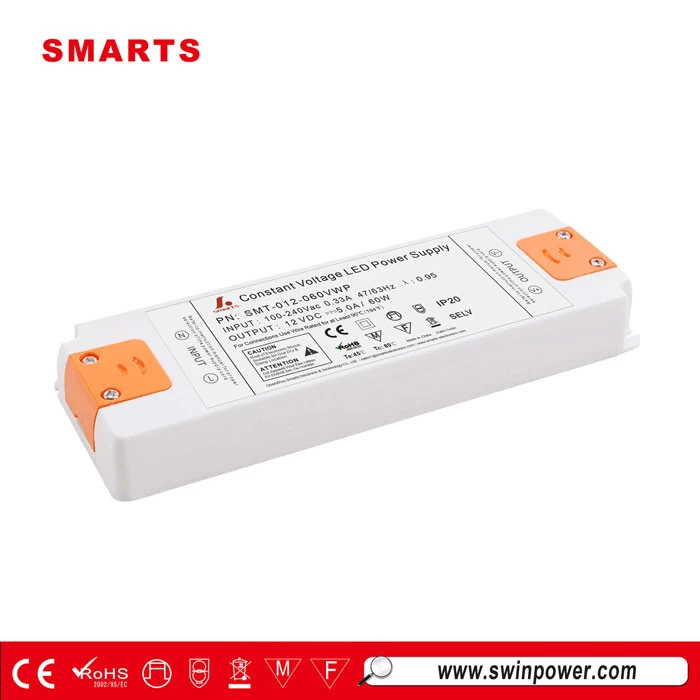

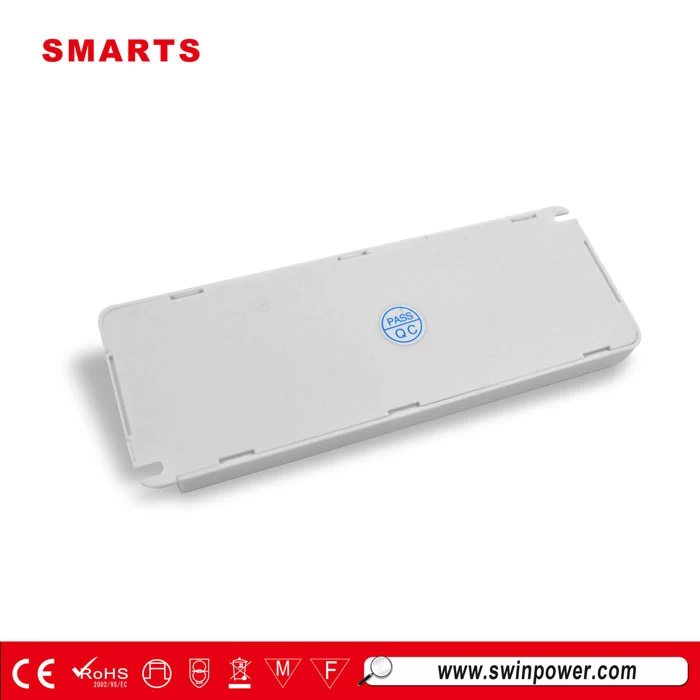

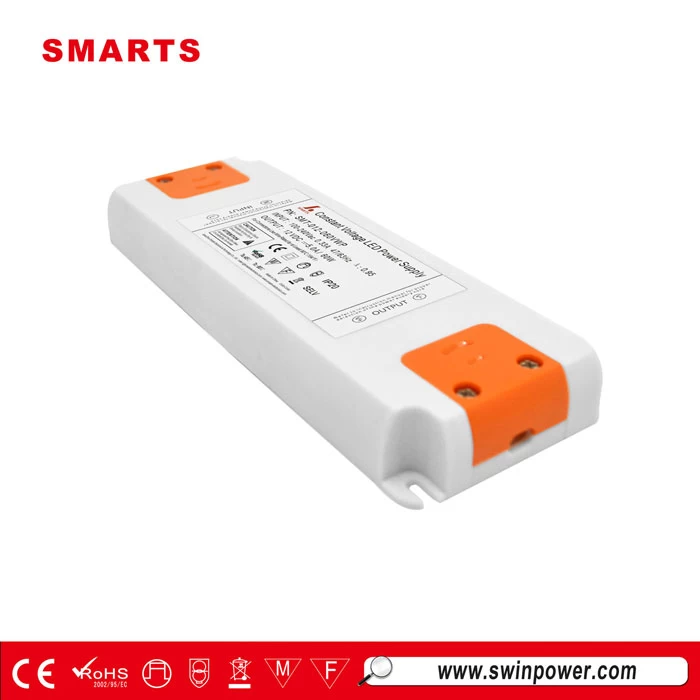

This SMT-012-060VWP 60 watt power supply is a reliable power source for LED strips and any other devices with power less than 60W and running voltage at 12V (DC).
|
Features
|

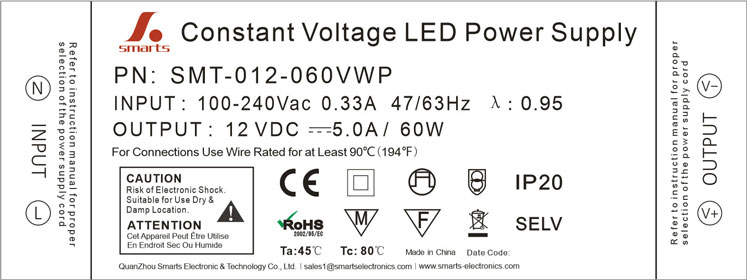

Label for led power supply 60w
|
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free aiconvection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE,RoHS Certification
● 2 years warranty
|
|
Specifications for 240 volt led power supply:
|
MODEL
|
SMT-012-060VWP
|
SMT-024-060VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
5.0Amp
|
2.5Amp
|
|
VOLTAGE RANGE
|
0-5.0A
|
0-2.5A
|
|
RATED POWER
|
60Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
|
LINE REGULATION
|
±1%
|
|
LOAD REGULATION
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.69A/110VAC, 0.34A/220VAC
|
0.69A/110VAC, 0.34A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
5.7A
|
3.2A
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10～+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20～99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40～+80℃,10～99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
Noted for led power supply 60w
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Question
1. can you please confirm lead time?
Answer
Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order. It depends on the quantities.
