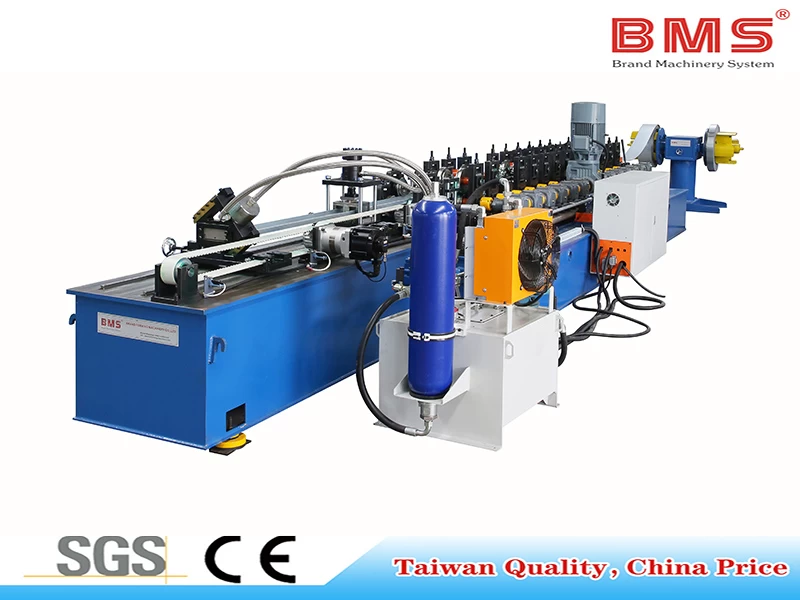

120 m/min CU Purlin Roll Formin Machine

Speed can reach 120 meters/ per minute



High Speed CU Purlin Machine


(1 Machine For Multi-Profiles,AUTO Changing Size)




                 Click here to check the video

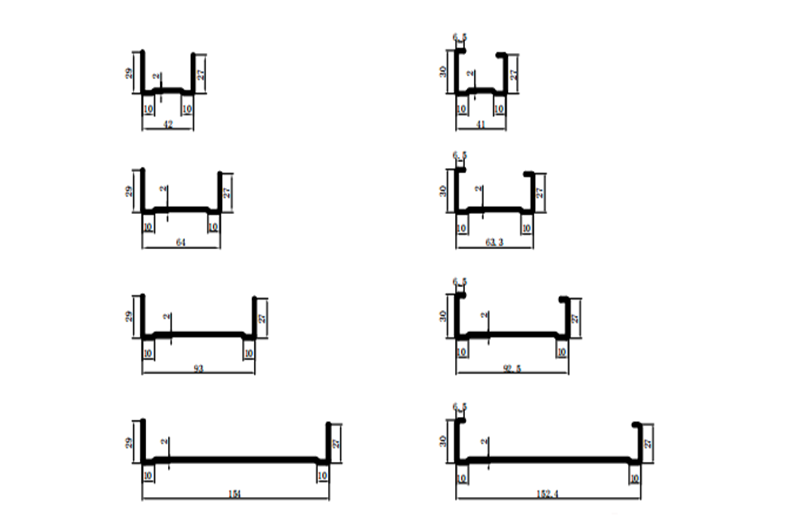

Profile



Material




Effective width:About 3/4/6/8 Inches
Feeding width:about 187/212/263/314mm
Material Thickness:0.6-2.0mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa



Work Follow


Decoiler→Feeding Guide Device→Rolling Forming SystemHydraulic Not Stop Cutting And Punching Device→ Exit Rack


Machine Components

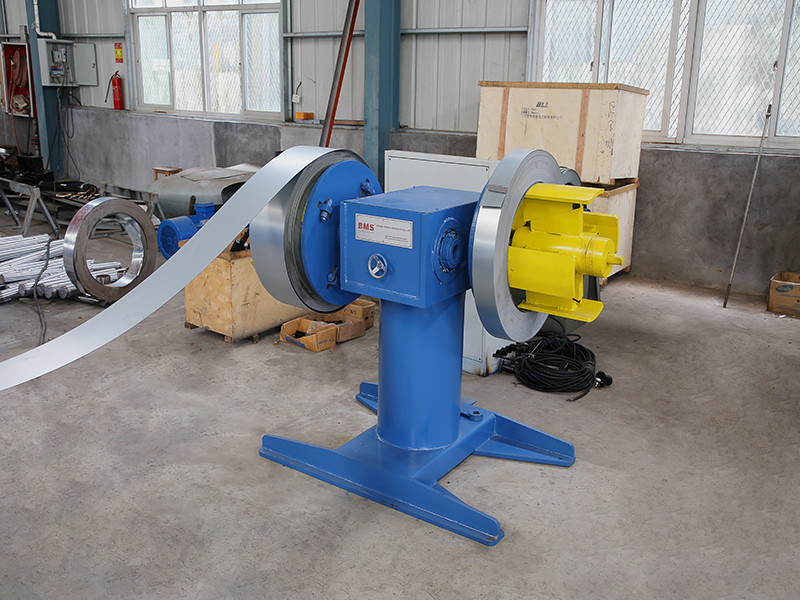

1)Manual Decoiler(Double Coil):One Set



Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2




2)Feeding Guide Device



The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently

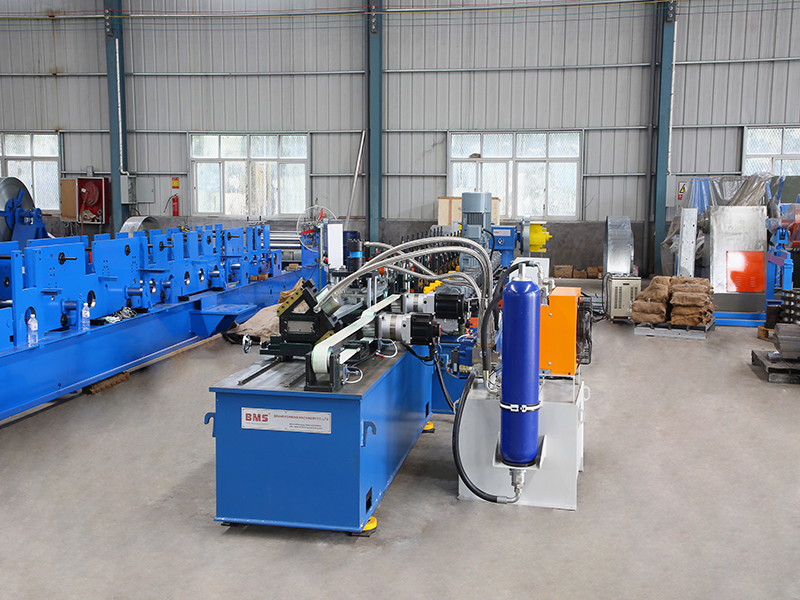

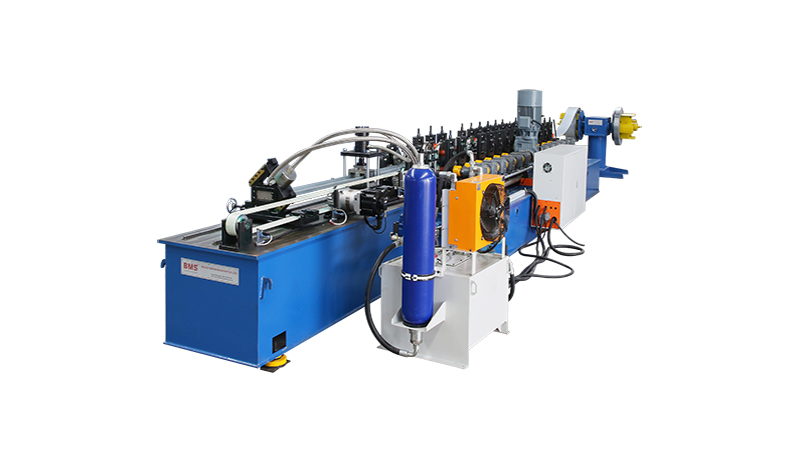

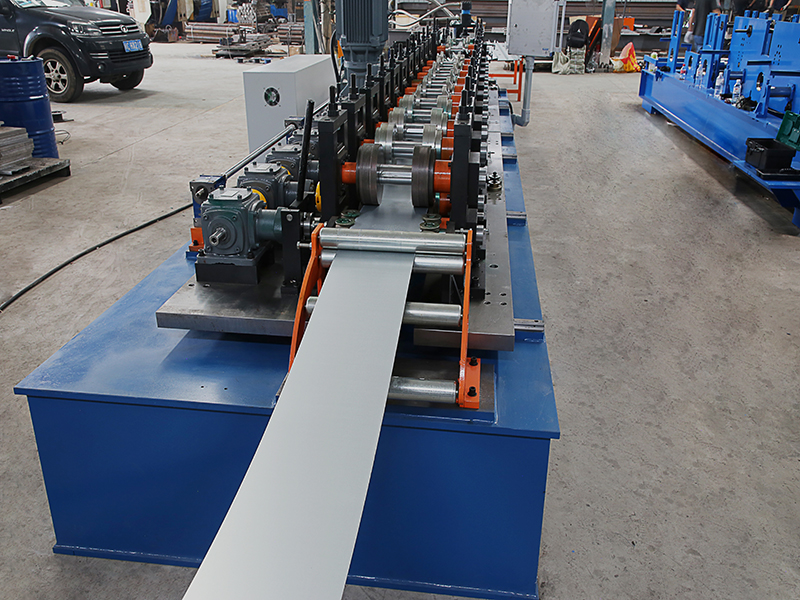

3)Rolling Forming System



The machine dimension(L*W*H):About 10000mm*2100mm*1800mm

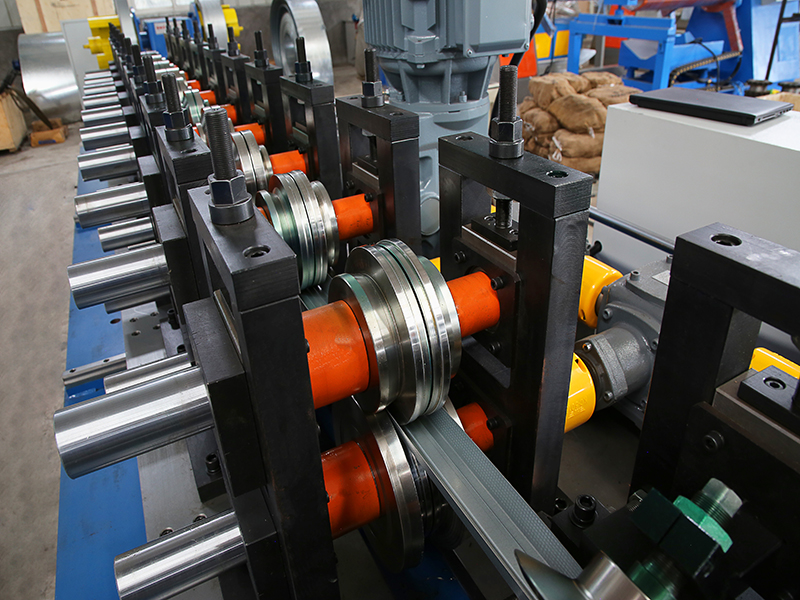

Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 14-step to form
Main Motor =18.5KW,Frequency speed control






4)Hydraulic Cutting And Punching Device



Cutter stype:Not stop cutting and punching

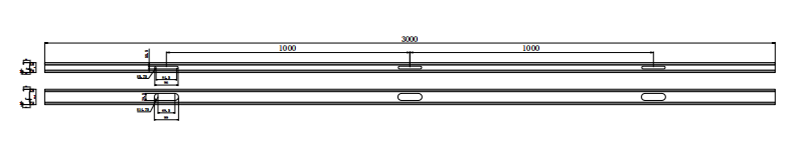

The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4.4KW&2.9KW





5)Operation Panel



Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

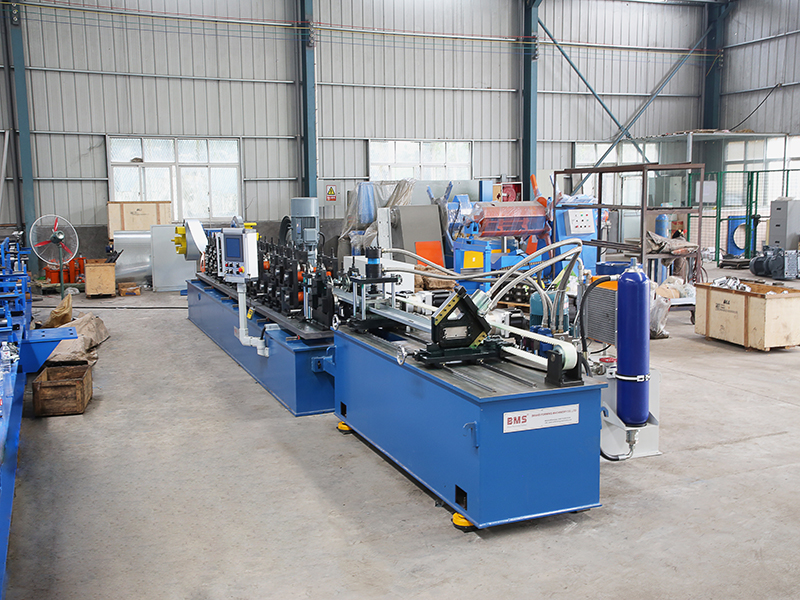

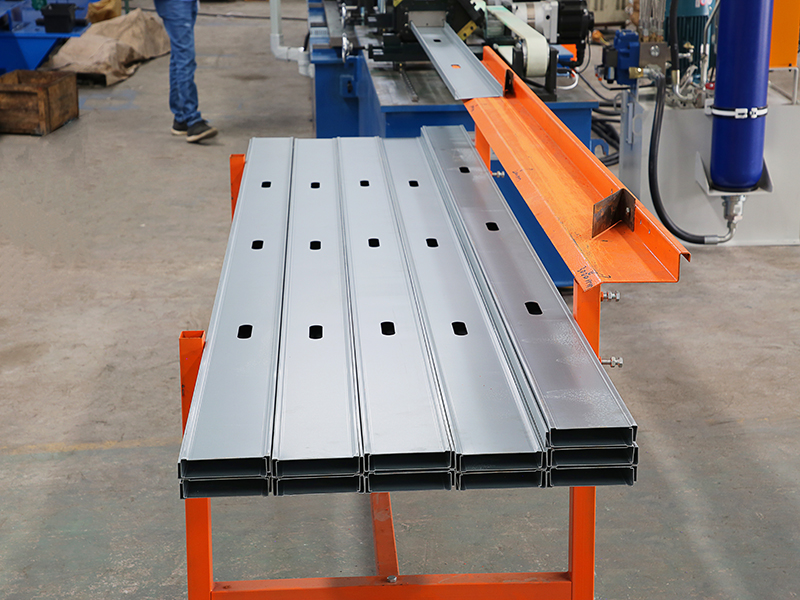

6)Exit Rack And Product Show



After-sale service of stud and track roll forming machine



1. The warranty of CU purlin roll forming machine is two years
after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia,Thailand,
Philippines, Myanmar ,Vietnam, South Africa, Mozambique,Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc
