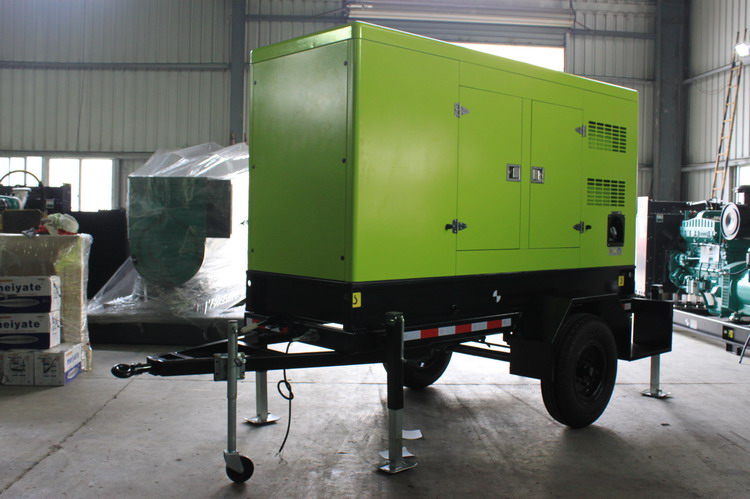

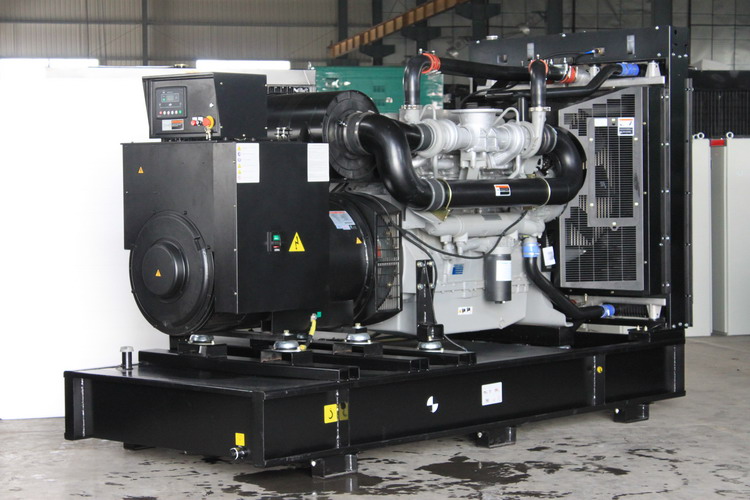

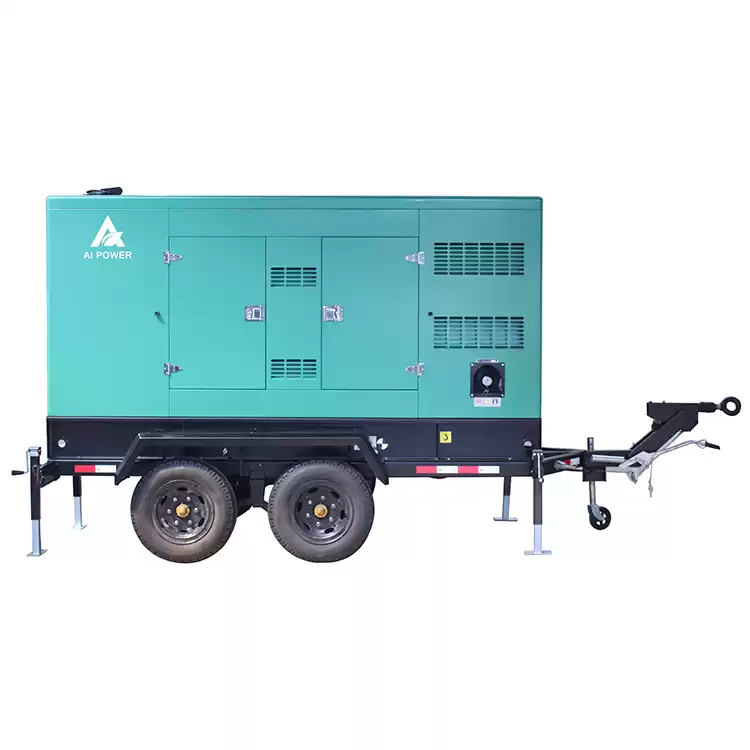

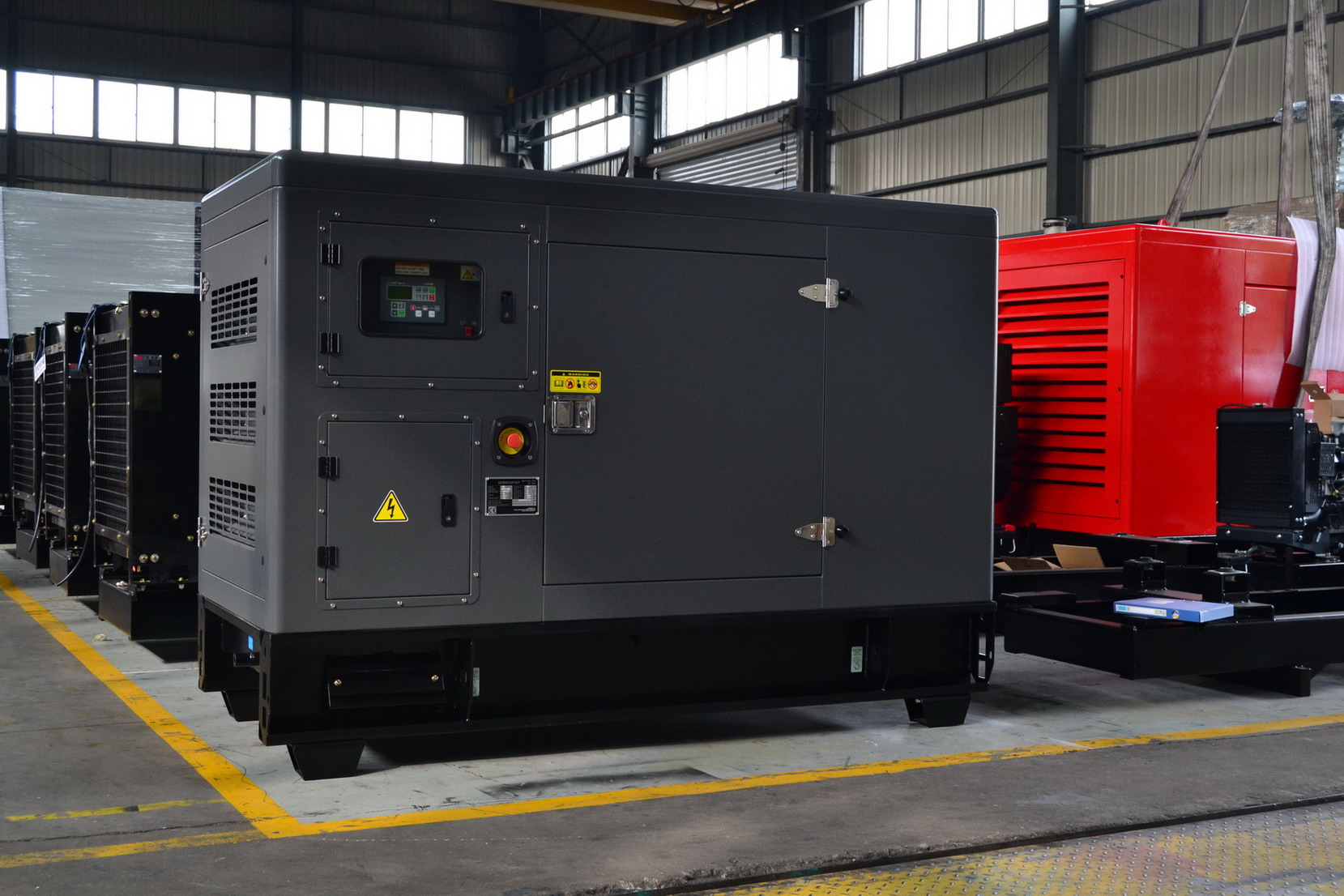

120kw 150kVA Silent Perkins Engine Portable Diesel Genset With CE Approval
Perkins Engine
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family. such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA/U.S. EPA Tier4 interim territories.
Engine Specifications:
Engine spec
|
Engine Model
|
1106A-70TAG2
|
|
Number of Cylinders
|
6 in-line
|
|
Cycle
|
4 stroke
|
|
Aspiration
|
Turbocharged after cooled
|
|
Bore×Stroke
|
105x135mm
|
|
Displacement
|
7.01L
|
|
Compression ratio
|
16:1
|
|
Prime Power/Speed
|
120KW / 1500rpm
|
|
Standby Power/Speed
|
132KW / 1500rpm
|
|
Speed Governor
|
Mechanical
|
|
Cooling System
|
Forced water cooling cycle
|
|
Steady speed droop
|
≤1%
|
|
Total lubrication system capacity
|
16.5L
|
|
Coolant capacity (engine only)
|
21L
|
|
Fuel Consumption at 100% Load
|
212g/kwh
|
|
Starter Motor
|
DC24V
|
|
Alternator
|
DC24V
|
Alternator spec
|
Stamford Alternator Model
|
UCI 274F
|
|
Prime power
|
150KVA
|
|
Frequency/speed
|
50HZ/1500rpm
|
|
Exciter type
|
Brushless
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
|
Phase
|
Three phases
|
Control panel spec
|
Model
|
DeepSea/SmartGen/ComAp
|
|
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
|
DeepSea
DSE6120, DSE7320, DSE8610, DSE8810
SmartGen
HGM6110N, HGM6120N, HGM9510
ComAp
MRS10, MRS16, IC-NT
|
Product Details
The 404 range of engines give 20-40 kVA generator output, along with the extra refinement and noise reduction that 4 cylinder engines provide. Its power density, durability, fuel efficiency and quiet operation set it apart from similar sized competitors' engines. The 404 range's quiet operation makes it an excellent option where noise is a concern, particularly if you're operating in urban areas.
Air inlet system
Control system
Cooling system
Flywheel and flywheel housing
Fuel system
General
Oil system
FAQ
1. What is your warranty period?
A: Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
A: Yes. Gensets powered by USA famous engine, with UK famous engine, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
5. Can you use our logo?
A: Yes. For mass orders, we can use customer's logo instead of ours.
