120v bimetallic thermostat switch for pet heating pads

Pets also need to keep out the cold in winter. Choose a pet heating pad with a thermostat to make the pet environment safer. VA1 series thermostat switches are commonly used in heating pads.



120v bimetallic thermostat switch prevents the pet pad from overheating

Nowadays, in addition to special clothes and shoes for pets to keep warm, there are already exclusive pet electric blankets. Similar to electric blankets used by humans, safety comes first. Pets tend to have long coats, and heat can burn their fur, so choosing a pet heating pad with a thermostat is key. VA1 heating pad thermostat can keep the heating pad at a constant temperature, making our pet environment safer.

Features

Use bimetallic material with good electrical conductivity to ensure that it can withstand the requirements of normal loop current.

Creep action device,slow make/slow break switching action.

No obvious difference between the opening and closing temperature.

The housing is electrically conductive, and insulating sleeves can be added according to customer requirements, and plastic case sealing can also be provided.

Preset calibration temperature.

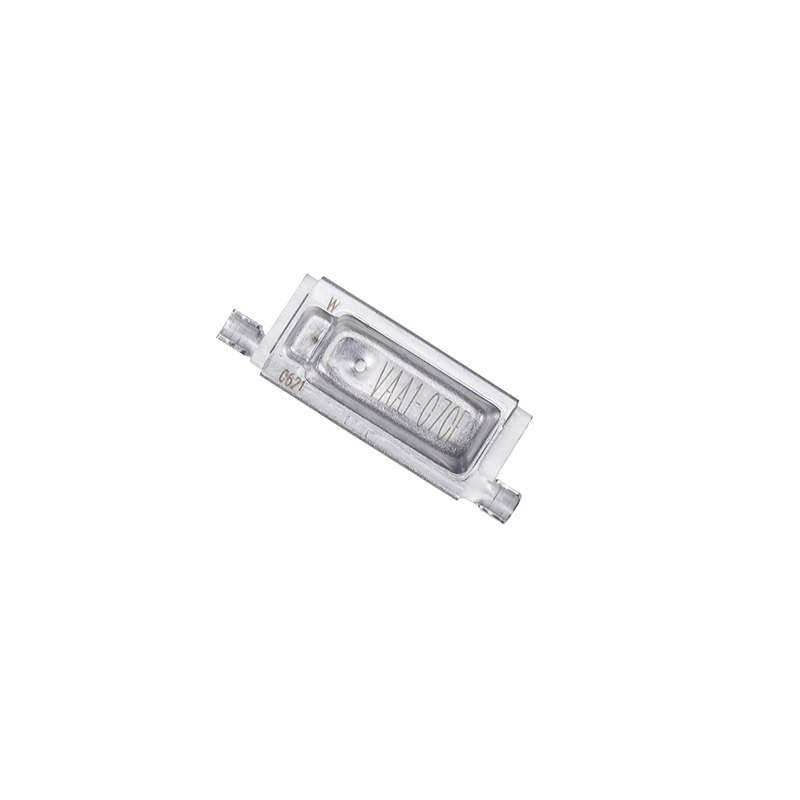

Available with same end termination, Model VA1-A or opposite end termination, Model VAA1-B.

Available with factory applied lead wires.

Specifications

Item No.

VA1/VAA1

Electrical specifications

5 amps/120 volts AC resistive

5 amps/24 volts DC resistive

Operating temperature range

5°C~200°C

Temperature tolerance

± 3°C, ± 5°C, ± 8°C

Case material

Metal

Case size(mm)

24.2*9.5*4.5

Wire

Optional and customized

Applications

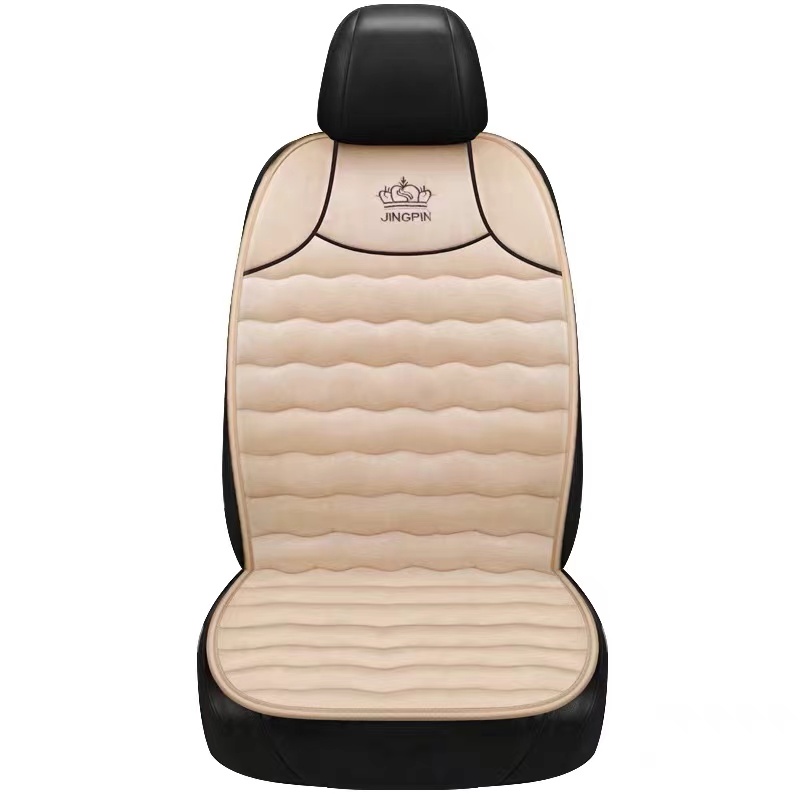

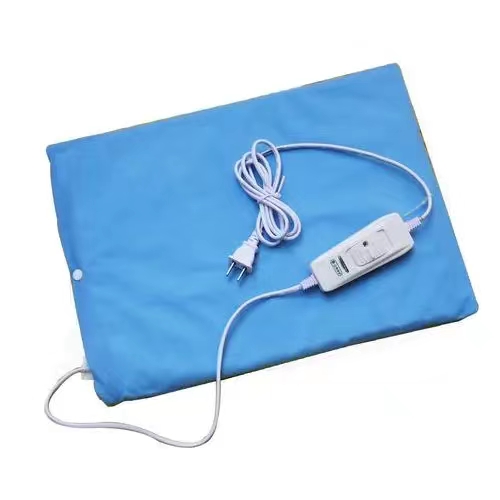

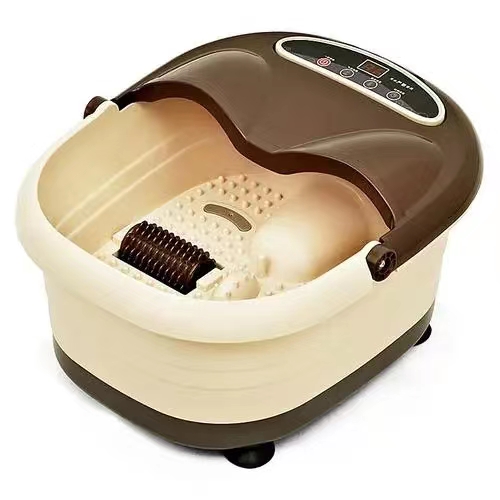

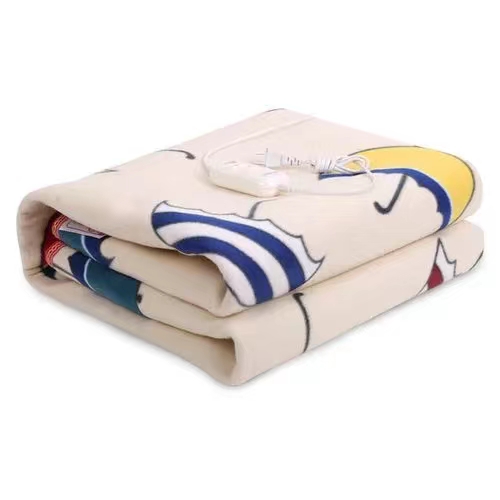

Car heating seat pads Electric blankets Electric heating suits Foot bath

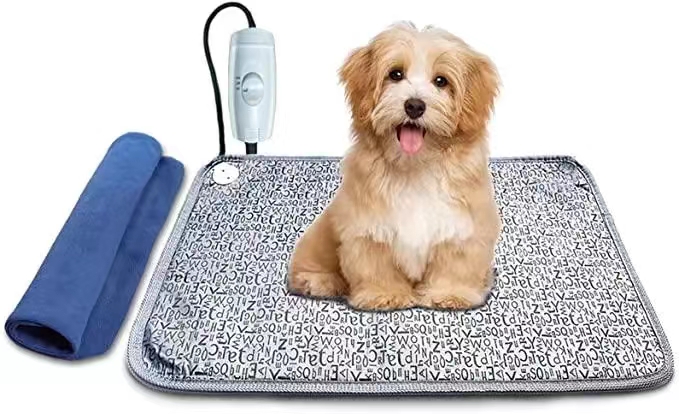

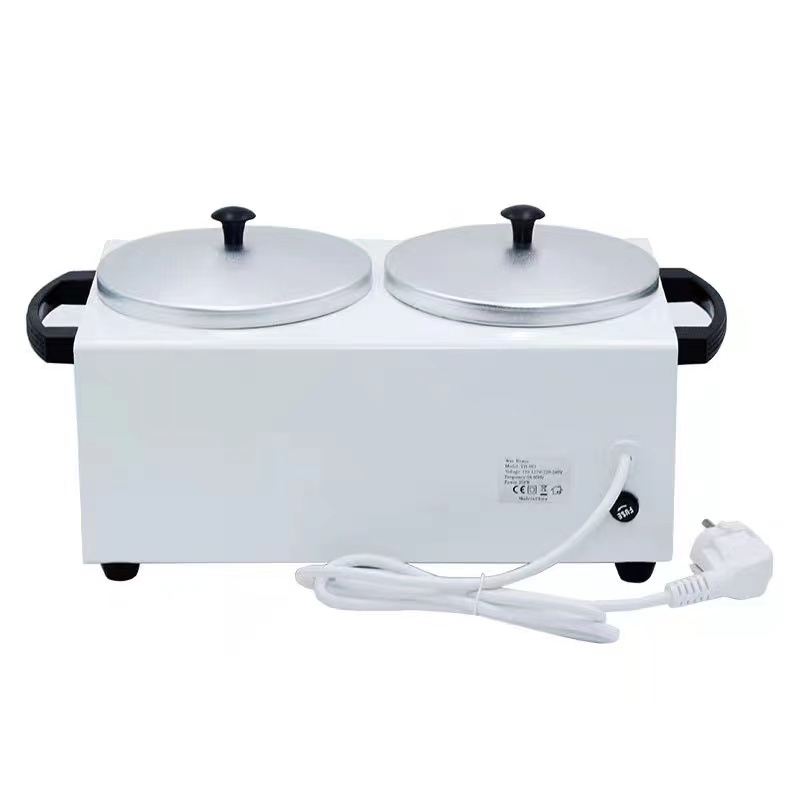

Hair curlers Medical pads Pet pads Wax melting machines

Product display

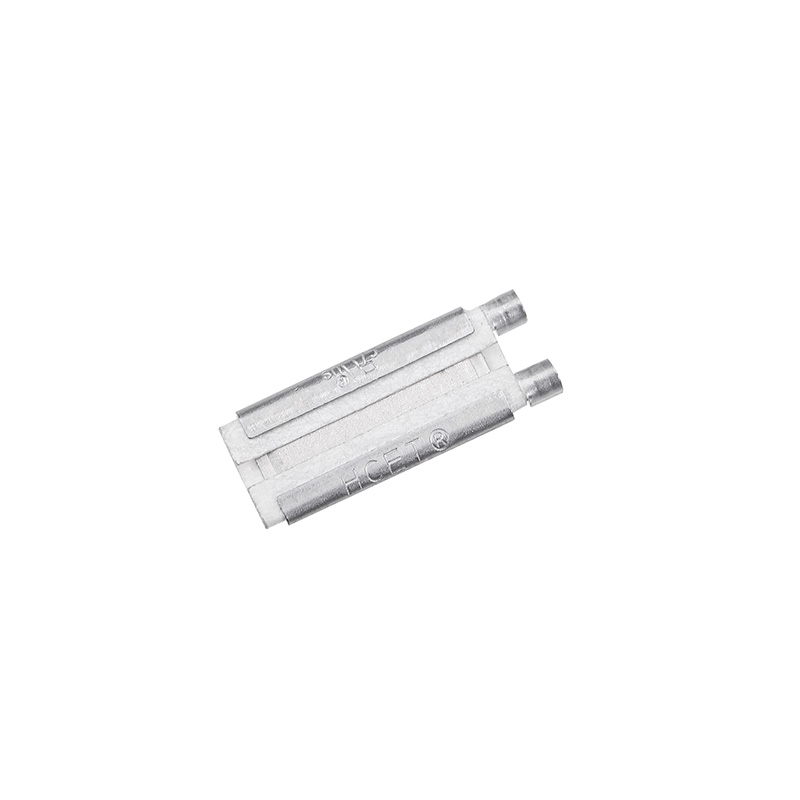

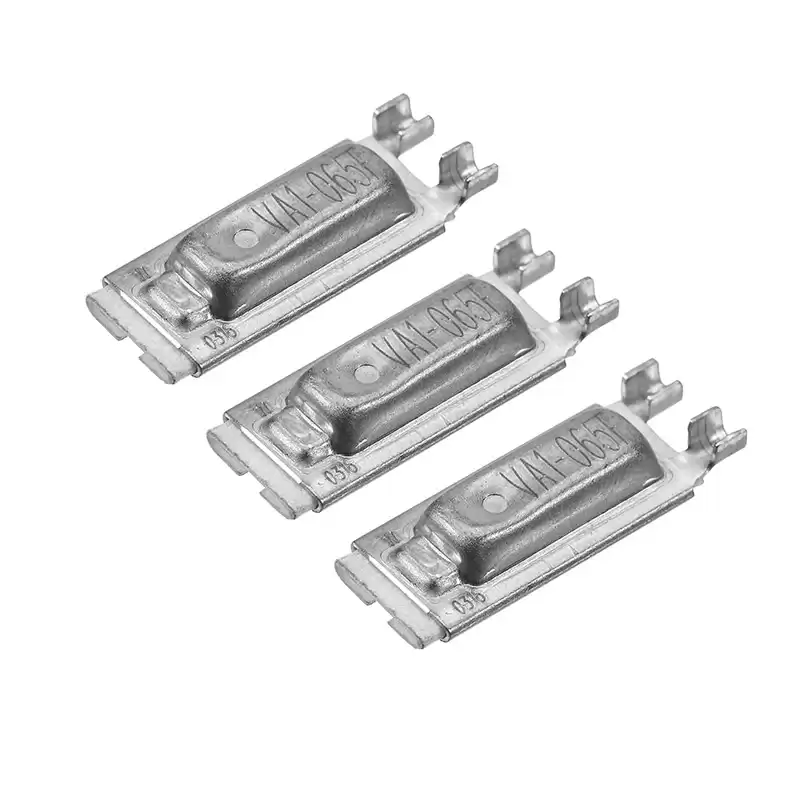

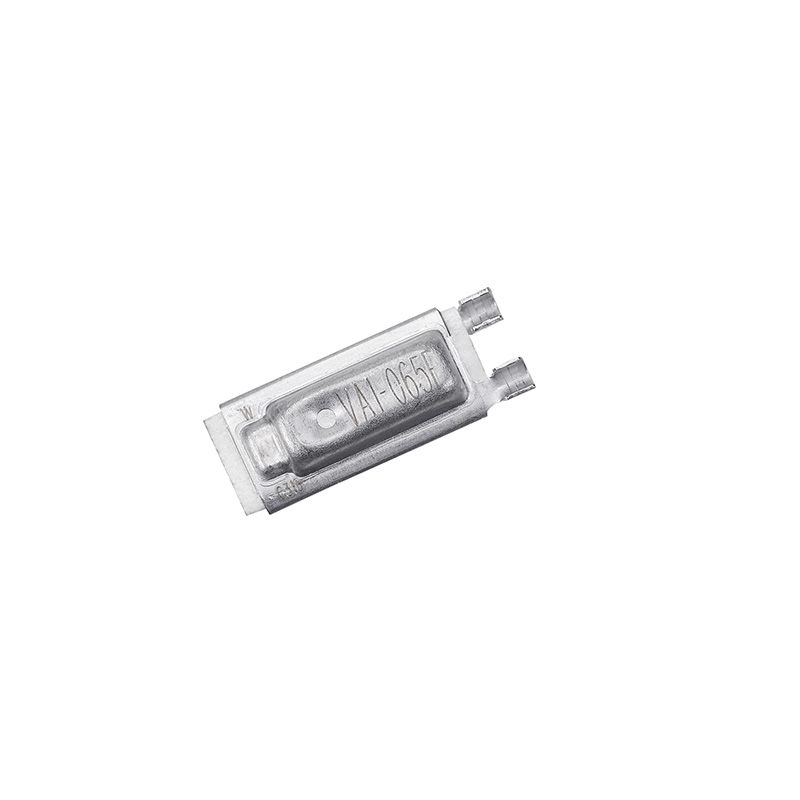

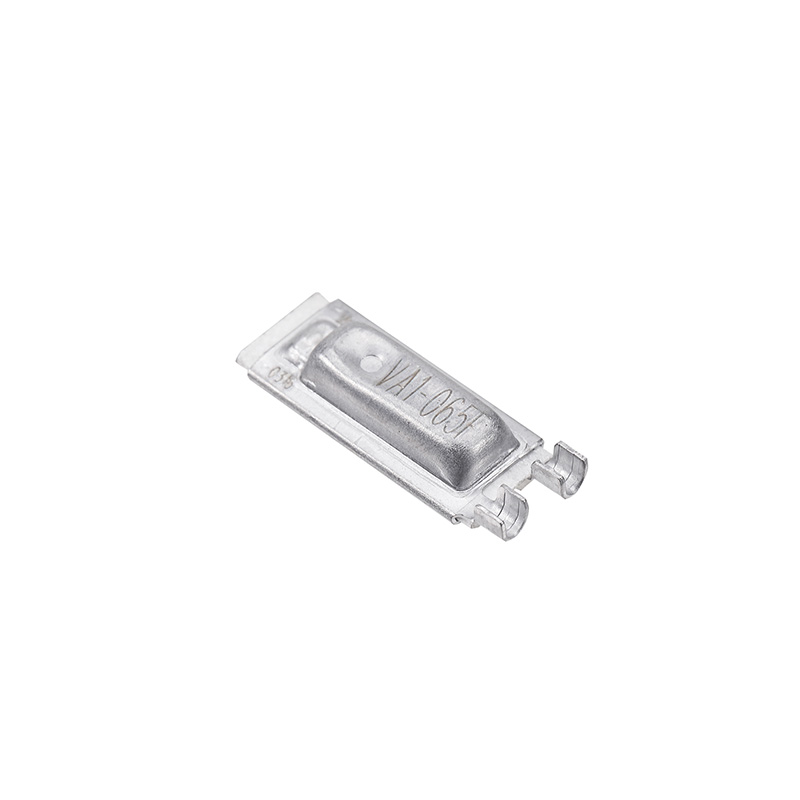

120V thermostat switchHeating pad thermostat switch

Size details

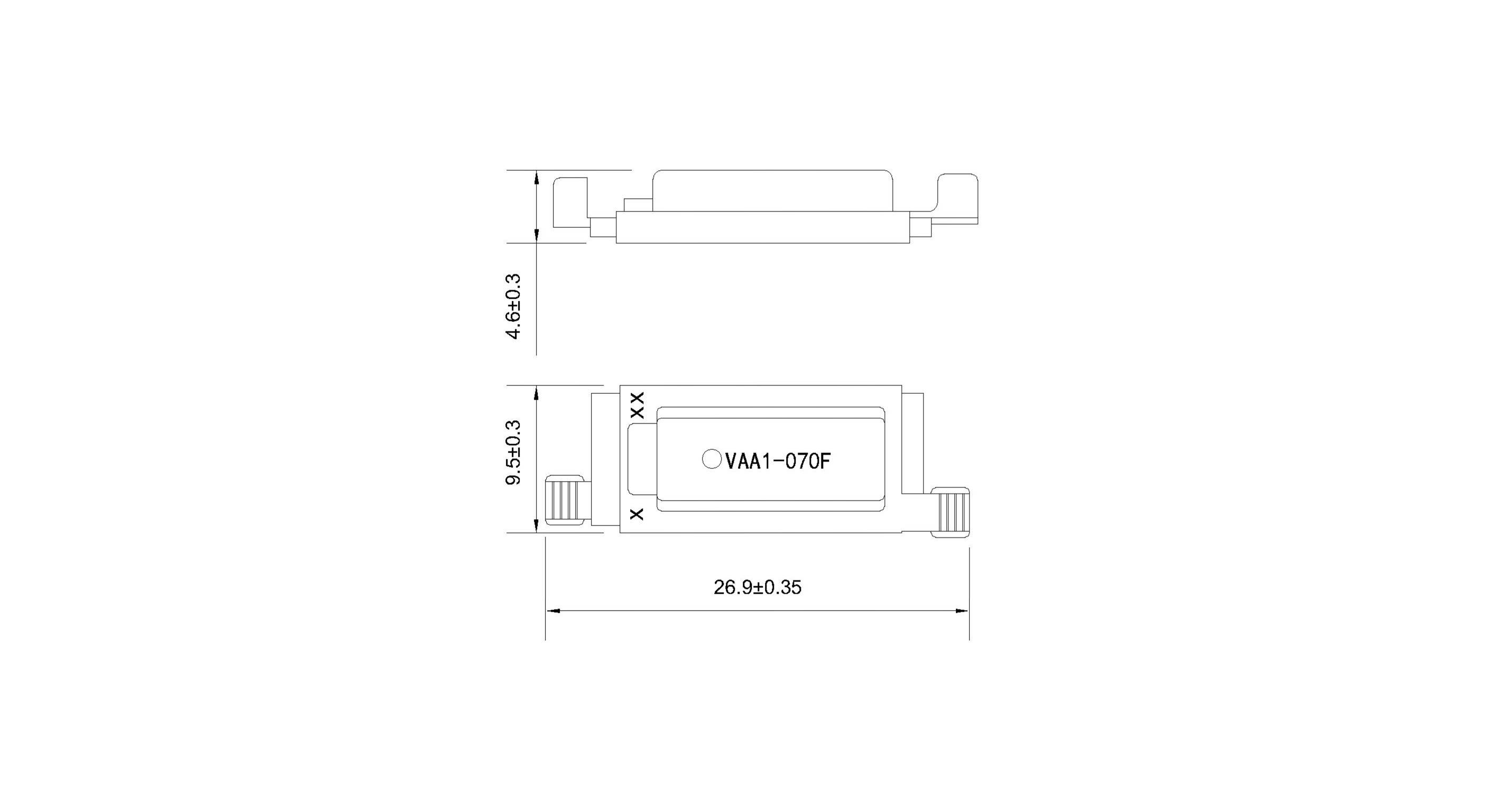

120v thermostat switch drawing

Packing & Delivery

Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.

thermostat switch delivery

FAQ

Q:Are you a product supplier or a factory?

A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.

Q:How can I get a free sample?

A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.

Q:What is the shipping term of bimetal thermal protector?

A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.

Q:What parameters should I provide when I want to buy a thermal protector?

A:If you want to buy a thermal protector, please prepare these parameters:

1. Rated voltage, rated current.

2. Operating temperature and rest temperature of thermal protectors.

3. Length of lead wire, color, type and temperature resistance.

4. Application of thermal protector.

5. Mounting requirements if needed, including dimensional requirements.
